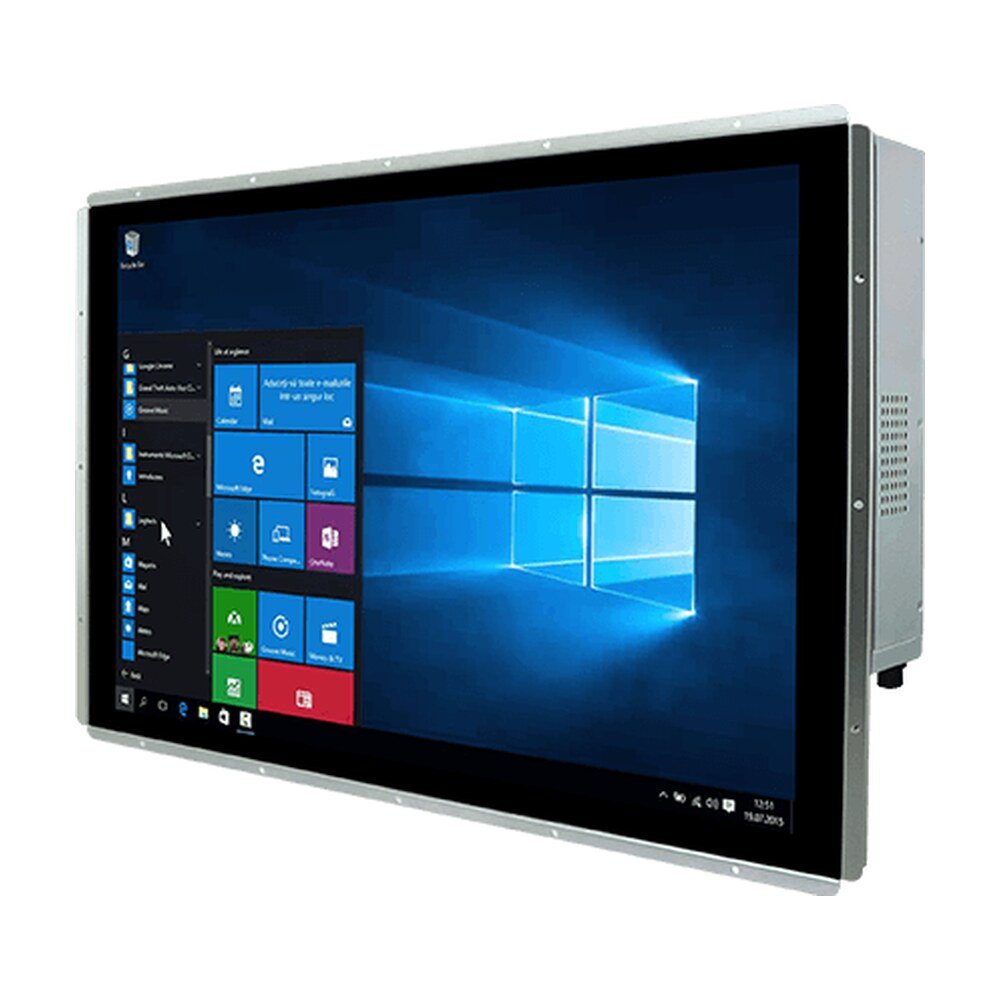

Explore Winmate W24IP7T-POA2, an HMI panel PC featuring Intel® Pentium® N4200, 24-inch display with 1920x1080 resolution, IP65 for machine control and factory…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W24IP7T-POA2, an HMI panel PC featuring Intel® Pentium® N4200, 24-inch display with 1920x1080 resolution, IP65 for machine control and factory…
The Open Frame HMI panel PCs offer an ultimate touch experience with a projected capacitive (PCAP) multi-touch screen. This technology allows enjoying every touch and improving the convenience of using the device. Thus it helps to enhance the overall customer experience. Enjoy every touch and convenience of using the device!
The PO Series HMI panel PCs come with a sleek flat bezel and easy to mount open frame housing ideal for most industrial embedded and kiosk applications. The PO Series HMI panel PCs are targeted for banking, hospitals, retail, transportation, and other vertical markets.
The PO Series HMI panel PCs feature high performance and a rich I/O interface for innovative industrial IoT solutions, including serial ports, USB ports, LAN, video, and audio ports. Connectivity options, high performance, and installation‐friendly design deliver excellent performance for vertical applications.
| Display | |
|---|---|
| Size | 23.8 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 527.04x296.46 mm |
| System Specification | |
| Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz) |
| Memory | 2 x SODIMM, DDR3L 1866 MHz, 4GB (Default), 8GB (Optional) |
| Storage | 1 x M.2 2242 SSD 128GB (Default), 256GB (Optional), 512GB (Optional), 2 x SATA III for 2.5" SSD/HDD (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 615 x 385 x 68.8 mm |
| Weight | 6.3 kg |
| Mounting | Open Frame, Panel Mount, VESA Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 4 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x Giga LAN RJ45 Connector |
| Video | 1 x DP1.2 (Default), 1 x HDMI 1.4 (Optional), 1 x VGA (Optional) |
| Audio | 1 x Mic in, 1 x Line out, 2 x Speaker |
| Expansion Port | 1 x M.2 2242 B-key Slot (for SATA III SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module), 1 x PCIe 2.0 (x1) slot |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
| Power Input | 1 x 12V DC, Din4 pin connector |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws |
| Power | |
| Power Rating | 12V DC |
| Adapter | 12V 84W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W24IP7T-POA2 |
| Series | PO Series HMI |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W24IP7T-POA2 |
|---|---|
| Category | HMI (P-CAP Touch), Industrial Panel PC and HMI, Winmate |
| Size | 23.8 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 527.04x296.46 mm |
| Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz) |
| Memory | 2 x SODIMM, DDR3L 1866 MHz, 4GB (Default), 8GB (Optional) |
| Storage | 1 x M.2 2242 SSD 128GB (Default), 256GB (Optional), 512GB (Optional), 2 x SATA III for 2.5" SSD/HDD (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Dimension | 615 x 385 x 68.8 mm |
| Weight | 6.3 kg |
| Mounting | Open Frame, Panel Mount, VESA Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 4 x USB3.2 Gen1x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x Giga LAN RJ45 Connector |
| Video | 1 x DP1.2 (Default), 1 x HDMI 1.4 (Optional), 1 x VGA (Optional) |
| Audio | 1 x Mic in, 1 x Line out, 2 x Speaker |
| Expansion Port | 1 x M.2 2242 B-key Slot (for SATA III SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module), 1 x PCIe 2.0 (x1) slot |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
| Power Input | 1 x 12V DC, Din4 pin connector |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws |
| Power Rating | 12V DC |
| Adapter | 12V 84W |
| Brand | Winmate |
| Manufacturer part number | W24IP7T-POA2 |
| Series | PO Series HMI |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
