Explore Winmate W24IT7T-POA2, an HMI panel PC featuring Intel® Core™ i5, 24-inch display with 1920x1080 resolution, IP65 for machine control and factory…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W24IT7T-POA2, an HMI panel PC featuring Intel® Core™ i5, 24-inch display with 1920x1080 resolution, IP65 for machine control and factory…

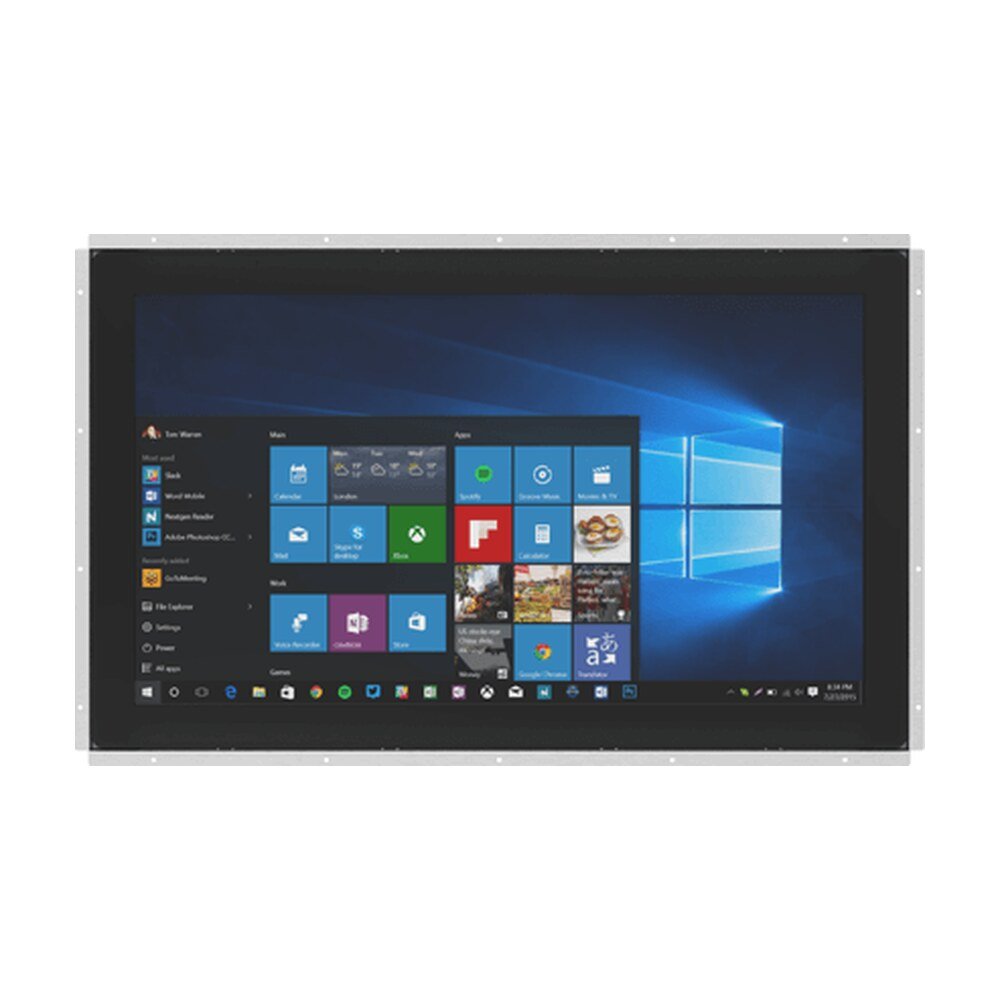

The Open Frame HMI panel PCs deliver an exceptional touch experience with their projected capacitive (PCAP) multi-touch screens. This advanced technology enhances every interaction, improving device usability and elevating the overall customer experience. Enjoy effortless control and convenience with each touch!

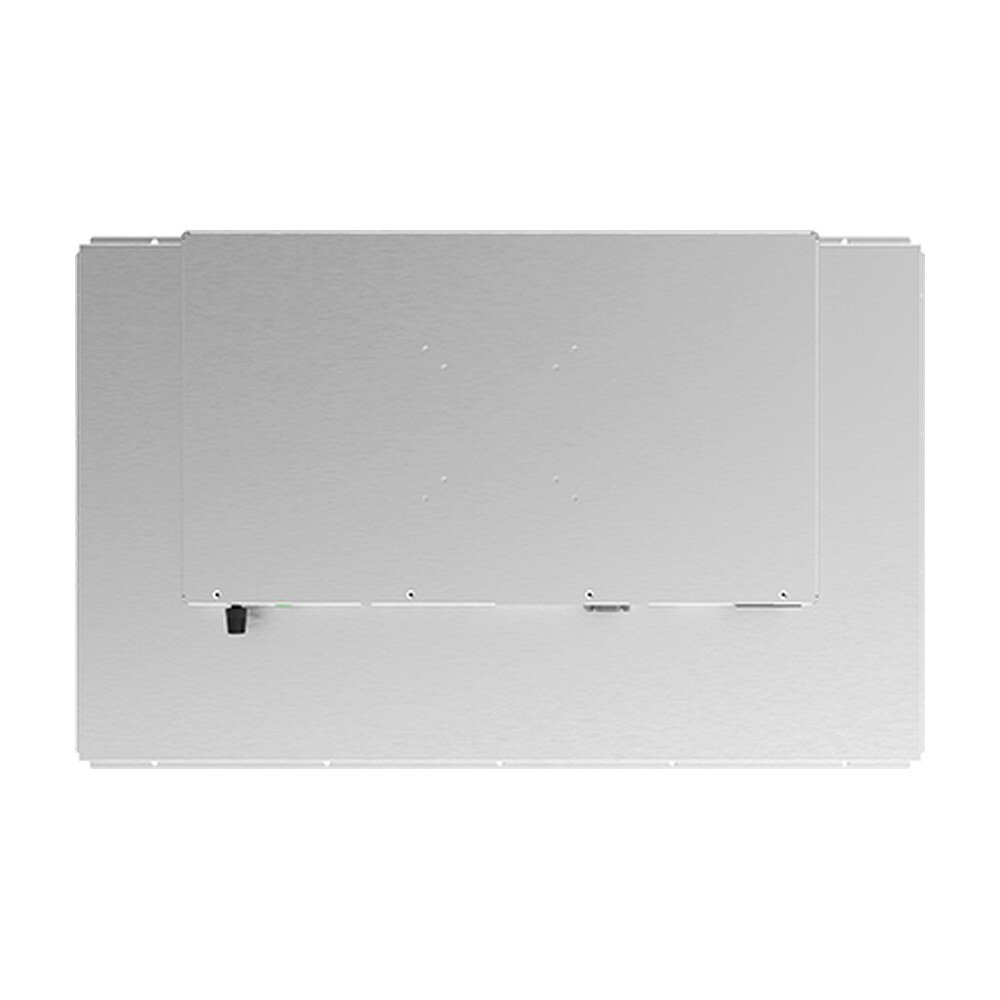

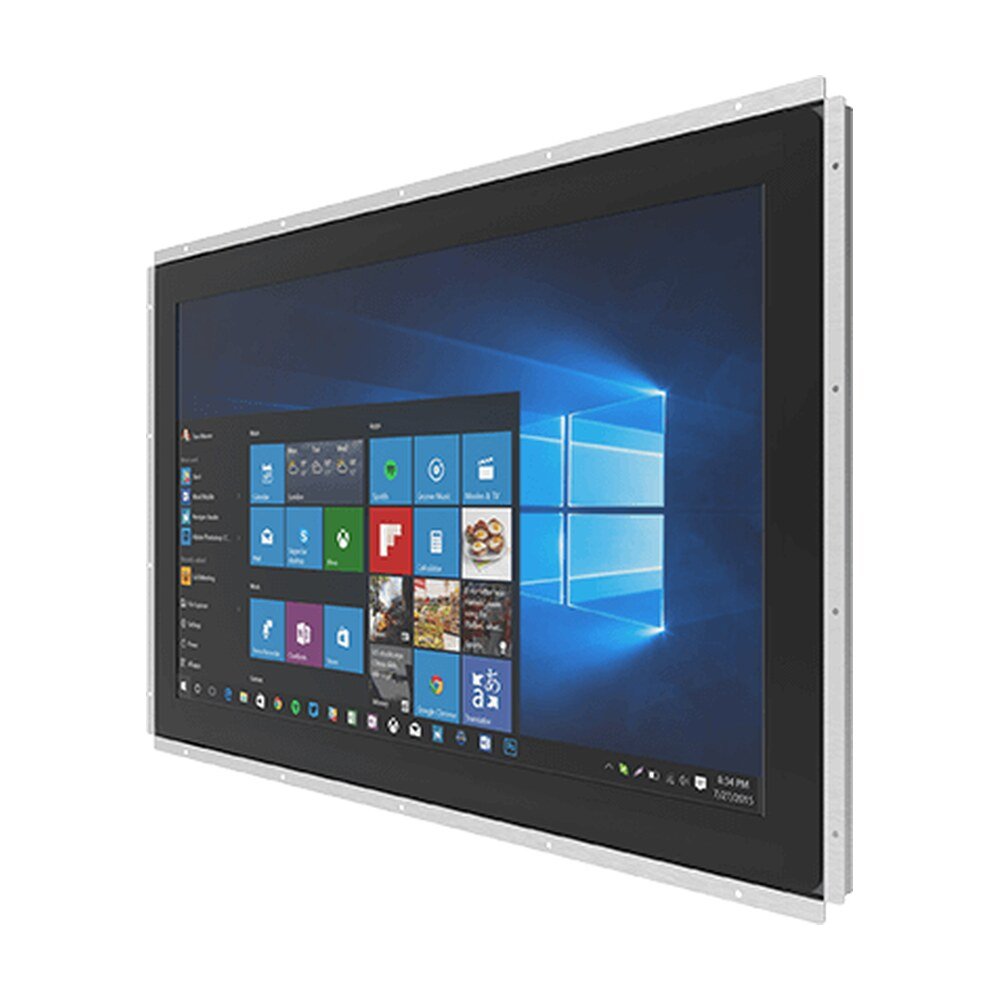

The PO Series HMI panel PCs feature a sleek flat bezel and an easy-to-mount open frame housing, making them perfect for various industrial embedded and kiosk applications. Specifically designed for banking, healthcare, retail, transportation, and other vertical markets, these panel PCs combine modern aesthetics with functional versatility.
The PO Series HMI panel PCs offer exceptional performance and a versatile I/O interface, perfect for advanced industrial IoT solutions. Equipped with serial ports, USB ports, LAN, video, and audio ports, they provide reliable connectivity. Their installation-friendly design and high efficiency make them well-suited for a range of vertical applications.
| Display | |
|---|---|
| Size | 23.8 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 527.04x296.46 mm |
| System Specification | |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB (Default), 8GB (Optional), 16GB (Optional), 32GB (Optional), 2 x SO-DIMM, DDR4 3200 MHz, 4GB (Optional), 8GB (Optional), 16GB (Optional), 32GB (Optional), 64GB (Optional) |
| Storage | 1 x M.2 M-Key 2280 NVMe SSD 128GB (Default), 256GB (Optional), 512GB (Optional), 1TB (Optional), 2TB (Optional), 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 615 x 385 x 69 mm |
| Weight | 6.3 kg |
| Mounting | Open Frame, Panel Mount, VESA Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 4 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 1 x Giga LAN RJ45 Connector, 1 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x DP1.4 (Default), 1 x HDMI 2.0 (Optional) |
| Audio | Mic in, Line out |
| Expansion Port | 1 x M.2 2280 M-Key Slot (for NVME SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module), 1 x PCIe 4.0 (x16) slot (x4 signal) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
| Power Input | 1 x 12V DC, Din4 pin connector |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws |
| Power | |
| Power Rating | 12V DC |
| Adapter | 12V 120W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W24IT7T-POA2 |
| Series | PO Series HMI |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W24IT7T-POA2 |
|---|---|
| Category | HMI (P-CAP Touch), Industrial Panel PC and HMI, Winmate |
| Size | 23.8 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 250.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 527.04x296.46 mm |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Dimension | 615 x 385 x 69 mm |
| Weight | 6.3 kg |
| Mounting | Open Frame, Panel Mount, VESA Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | CE, FCC |
| USB Port | 4 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 1 x Giga LAN RJ45 Connector, 1 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x DP1.4 (Default), 1 x HDMI 2.0 (Optional) |
| Audio | Mic in, Line out |
| Expansion Port | 1 x M.2 2280 M-Key Slot (for NVME SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module), 1 x PCIe 4.0 (x16) slot (x4 signal) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
| Power Input | 1 x 12V DC, Din4 pin connector |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws |
| Power Rating | 12V DC |
| Adapter | 12V 120W |
| Brand | Winmate |
| Manufacturer part number | W24IT7T-POA2 |
| Series | PO Series HMI |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
