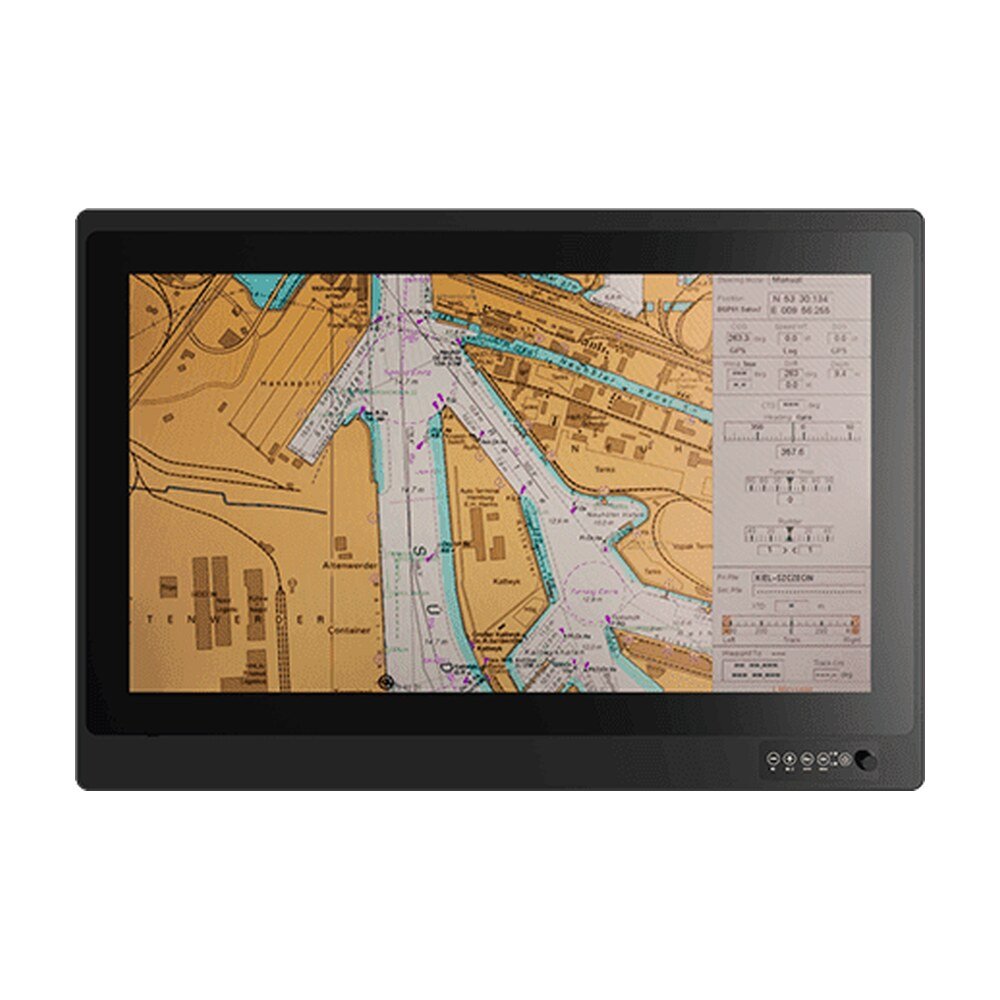

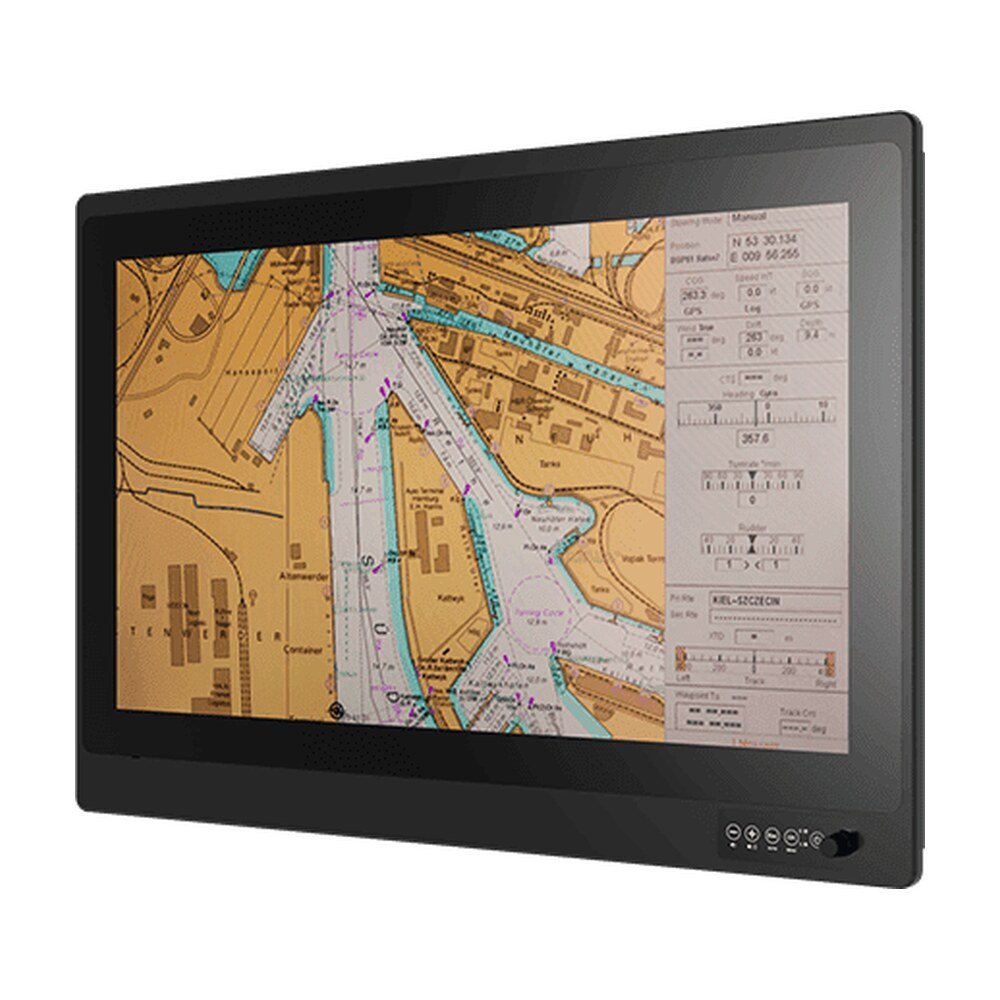

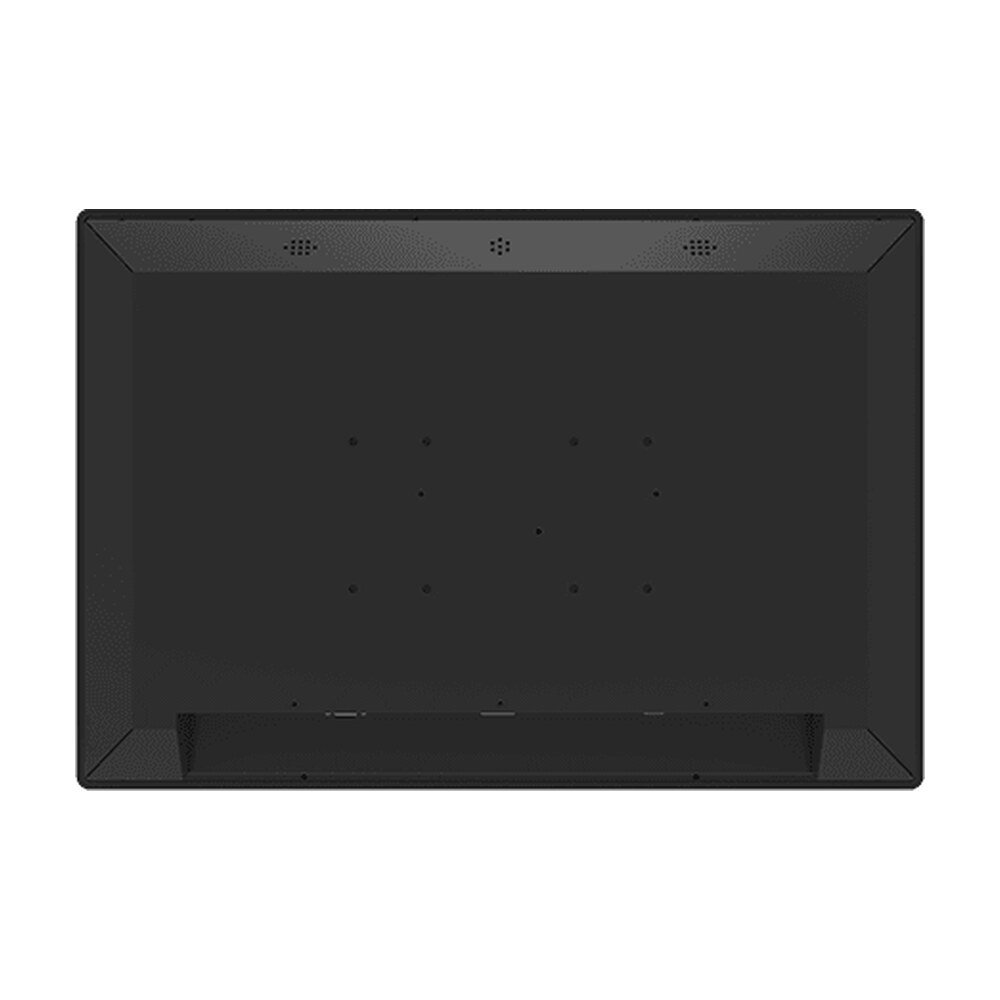

Explore Winmate W24L100-MRL1FP, a marine display featuring 24-inch display, IP66, IP54 for marine bridge systems and shipboard automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W24L100-MRL1FP, a marine display featuring 24-inch display, IP66, IP54 for marine bridge systems and shipboard automation.
Winmate 4K UHD Marine Displays are built and tested according to DNVGL Standard, IEC, and IACS to meet the marine industry's international regulatory requirements. Winmate performs in-house reliability tests to ensure optimal performance in harsh maritime environments.
Winmate 4K UHD Marine Displays feature a brilliant screen with 4K UHD (3840 x 2160) resolution to help minimize errors and improve operational efficiencies. With unsurpassed image quality, sharpness, and clarity, now every detail on the screen is displayed more detailed than ever.
Easy to maintain and clean. The glass cover lens provides excellent protection from scratch and reduces the gap for a possible accumulation of dust and liquid. The true-flat surface also gives the device a slim and elegant appearance that goes beyond the standard, marine computers with a sleek and edge-to-edge design, rugged construction, powerful performance, and flexible mounting options.
Enhance customer experience with PCAP touch that supports multi-touch and can easily be controlled by fingers. Enjoy every touch and convenience when using the 4K UHD Marine Displays, and experience the ultimate durability in some of the most demanding applications, such as navigation and control.
Video input consists of DVI-D, HDMI, and VGA connectors. Use the RS232 port for remote control and a USB connector for touch.
| Display | |
|---|---|
| Touch / Glass | Projected Capacitive Multi Touch Screen (Default), AR Glass (Optional) |
| Size | 23.8 inches |
| Resolution | 3840x2160 |
| Panel Brightness | 540.0 nits |
| Contrast Ratio | 1200:1 |
| View Angles | 89,89,89,89 |
| Display Color | 1.07B Colors |
| Active Area | 525.65x295.70 mm |
| Environment | |
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| Vibration | 0.7g@DNV-CG-0339 (Class A) |
| IP rating | IP66 (Front Side) |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x USB Type A |
| Serial Port | 1 x RS232 for remote control |
| Video | 1 x VGA, 1 x DVI-D, 1 x HDMI 1.4, 1 x HDMI 2.0, 1 x DP |
| Mechanical | |
| Dimension | 605 x 415 x 73.8 mm |
| Cut out | 580 x 390 mm |
| Weight | 10.5 kg |
| Mounting | VESA mount/Panel mount |
| Enclosure | Anodized Aluminum Bezel |
| Cooling System | Fanless Design |
| Power | |
| Power Rating | 9~36V DC Input Acceptable |
| Consumption | 70W (Typical) |
| Accessory | |
| Accessory | User Manual, Mounting clips x 12, AC to 12V DC Adapter , Power Cord, 3 Pin Terminal Block, Open Wire Cable, 1 x VGA cable, 1 x DVI cable , 1 x HDMI cable, 1 x RS232 cable, 1 x USB cable |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W24L100-MRL1FP |
| Series | Marine Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W24L100-MRL1FP |
|---|---|
| Category | Marine Display, Marine Grade, Winmate |
| Touch / Glass | Projected Capacitive Multi Touch Screen (Default), AR Glass (Optional) |
| Size | 23.8 inches |
| Resolution | 3840x2160 |
| Panel Brightness | 540.0 nits |
| Contrast Ratio | 1200:1 |
| View Angles | 89,89,89,89 |
| Display Color | 1.07B Colors |
| Active Area | 525.65x295.70 mm |
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| Vibration | 0.7g@DNV-CG-0339 (Class A) |
| IP rating | IP66 (Front Side) |
| Certification | CE, FCC |
| USB Port | 1 x USB Type A |
| Serial Port | 1 x RS232 for remote control |
| Video | 1 x VGA, 1 x DVI-D, 1 x HDMI 1.4, 1 x HDMI 2.0, 1 x DP |
| Dimension | 605 x 415 x 73.8 mm |
| Cut out | 580 x 390 mm |
| Weight | 10.5 kg |
| Mounting | VESA mount/Panel mount |
| Enclosure | Anodized Aluminum Bezel |
| Cooling System | Fanless Design |
| Power Rating | 9~36V DC Input Acceptable |
| Consumption | 70W (Typical) |
| Brand | Winmate |
| Manufacturer part number | W24L100-MRL1FP |
| Series | Marine Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
