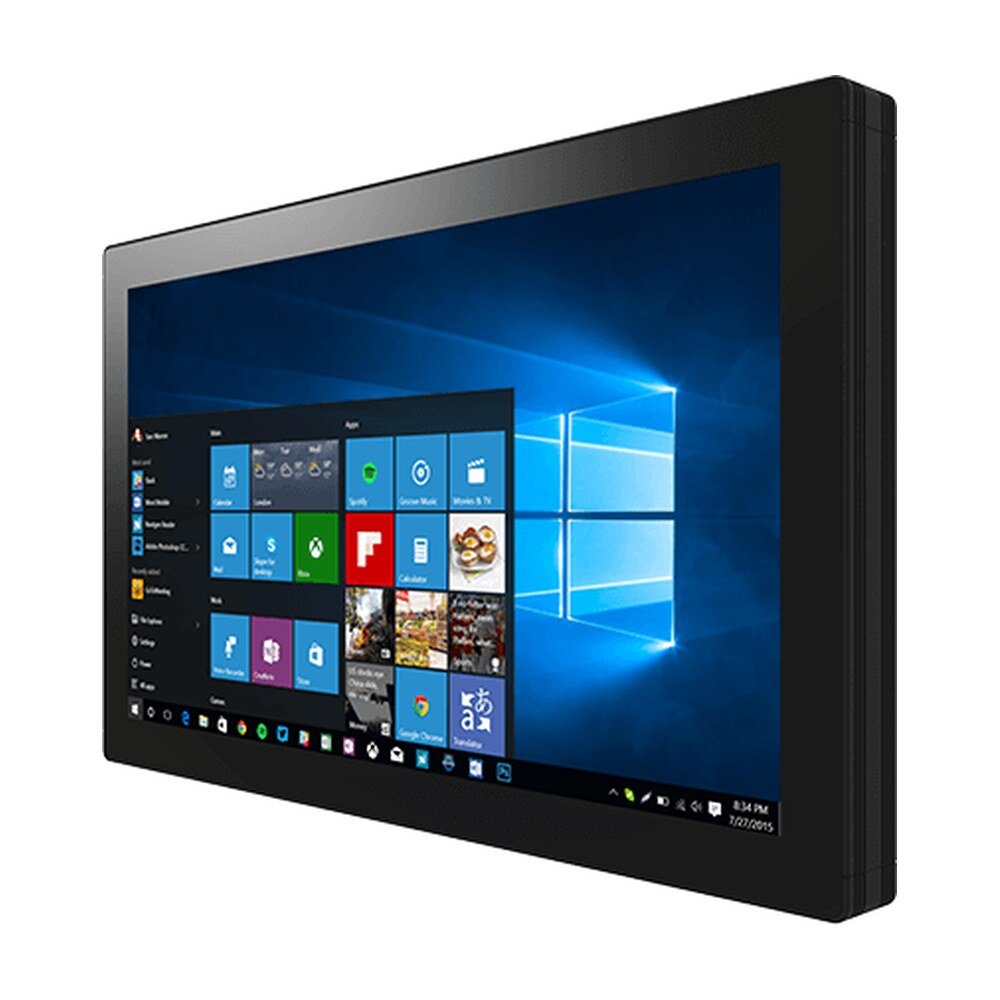

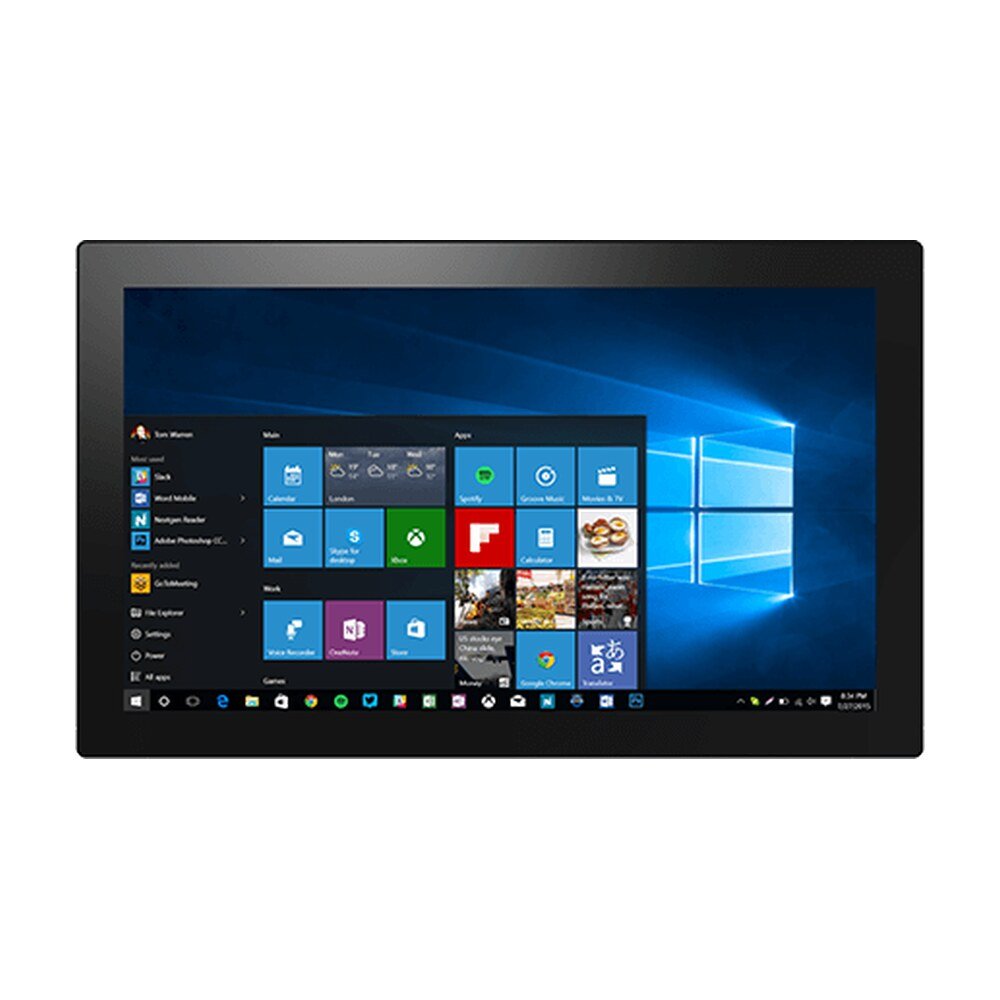

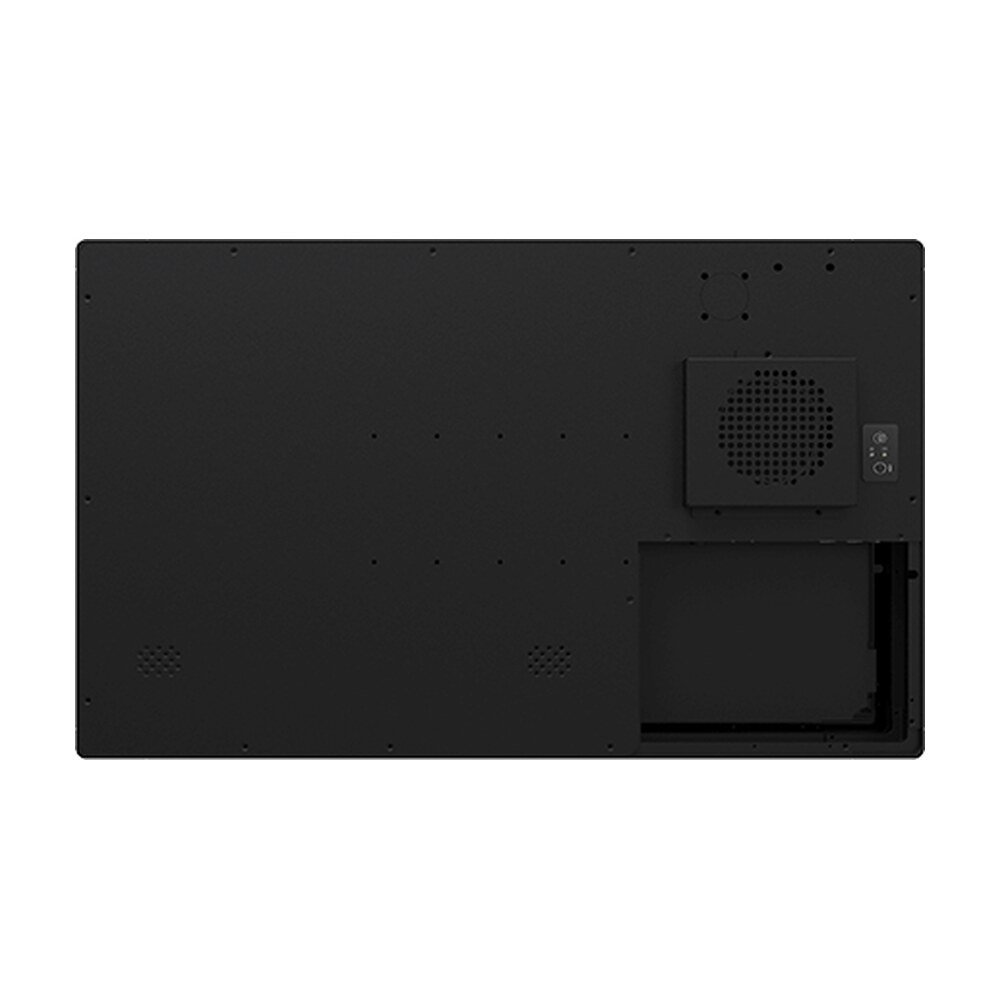

Explore Winmate W27IAD7T-PCA1, an HMI panel PC featuring 27-inch display with 1920x1080 resolution, IP65 for machine control and factory automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W27IAD7T-PCA1, an HMI panel PC featuring 27-inch display with 1920x1080 resolution, IP65 for machine control and factory automation.
The 27-inch panel offers a high-resolution display of 1920 x 1080 pixels, ensuring crisp and detailed visuals. With a projected capacitive multitouch screen, users can enjoy smooth and responsive touch interactions, making it ideal for applications requiring intuitive input.
The panel is housed in a durable aluminum casing, providing excellent protection and sturdiness. This ensures long-term reliability even in demanding environments. Additionally, the fanless design eliminates noise and reduces the risk of dust or debris accumulation, making it suitable for various settings.Whether used in industrial automation, digital signage, or interactive kiosks, this 27-inch panel with its high resolution, multitouch functionality, robust aluminum housing, and fanless design offers a reliable and user-friendly solution for a wide range of applications.
The 27-inch multitouch screen features an impressive IP65 rating, making it resistant to water and dust ingress from the front. This level of protection ensures reliable operation even in challenging environments where exposure to moisture, dirt, or dust is common. With its IP65 rating, the screen can withstand water jets from any direction and is fully protected against the intrusion of dust particles. This makes it suitable for outdoor applications, industrial settings, and other environments where durability and resilience are crucial. The multitouch functionality adds an intuitive and interactive element to the screen, allowing users to navigate, zoom, and interact with content using their fingers. The combination of multitouch capability and IP65 protection makes this screen an excellent choice for applications that require both touch interactivity and resistance to water and dust. Whether used in outdoor kiosks, industrial control panels, or interactive displays, the 27-inch multitouch screen with its IP65 water and dustproof rating offers a reliable and user-friendly solution for various demanding environments.
The 27-inch multitouch screen is equipped with a powerful Intel® 12th Gen Intel® Core™ Alder Lake S Socket LGA 1700 i9 / i7/ i5 / i3 processor, delivering impressive processing performance. This enables smooth and efficient operation, ensuring seamless multitasking and responsive touch interactions. Whether used in interactive displays, kiosks, or control panels, the combination of the 27inch multitouch screen and the high-performance CPU provides a reliable and user-friendly solution for a wide range of applications.
| Display | |
|---|---|
| Size | 27.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 300.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 597.6x336.15 mm |
| System Specification | |
| Processor | Intel® Core™ i5-12500TE(up to 4.3GHz) (Default), Intel® Core™ i9-12900TE(up to 4.80GHz) (Optional), Intel® Core™ i7-12700TE(up to 4.6GHz) (Optional), Intel® Core™ i3-12100TE(up to 4.00GHz) (Optional) |
| Chipset | Intel® R680E |
| Memory | 2 x non-ECC SO-DIMM RAM, up to 64GB (32GB per DIMM) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 675.4 x 413.4 x 64.5 mm |
| Weight | 10.2 kg |
| Mounting | VESA mount |
| Enclosure | Metal Housing |
| Cooling System | Fan Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 4 x USB 3.2 Gen2x1 (10Gbps, TypeA) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x DP1.4a DP++ , Max resolution up to, 4096x2160@60Hz (Default), 1 x HDMI 2.0b , Max resolution up to, 4096x2160@60Hz (Optional) |
| Audio | Mic in, Line out |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Power Input | 1 x 12V DC, Din4 pin connector |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws |
| Power | |
| Power Rating | 12V DC |
| Adapter | 12V 220W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W27IAD7T-PCA1 |
| Series | Standalone Panel PC (Big size & P-CAP) |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W27IAD7T-PCA1 |
|---|---|
| Category | Industrial Panel PC and HMI, Industrial Panel PCs (P-CAP Touch), Winmate |
| Size | 27.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 300.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 597.6x336.15 mm |
| Chipset | Intel® R680E |
| Memory | 2 x non-ECC SO-DIMM RAM, up to 64GB (32GB per DIMM) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Dimension | 675.4 x 413.4 x 64.5 mm |
| Weight | 10.2 kg |
| Mounting | VESA mount |
| Enclosure | Metal Housing |
| Cooling System | Fan Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| USB Port | 4 x USB 3.2 Gen2x1 (10Gbps, TypeA) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x DP1.4a DP++ , Max resolution up to, 4096x2160@60Hz (Default), 1 x HDMI 2.0b , Max resolution up to, 4096x2160@60Hz (Optional) |
| Audio | Mic in, Line out |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Power Input | 1 x 12V DC, Din4 pin connector |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws |
| Power Rating | 12V DC |
| Adapter | 12V 220W |
| Brand | Winmate |
| Manufacturer part number | W27IAD7T-PCA1 |
| Series | Standalone Panel PC (Big size & P-CAP) |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
