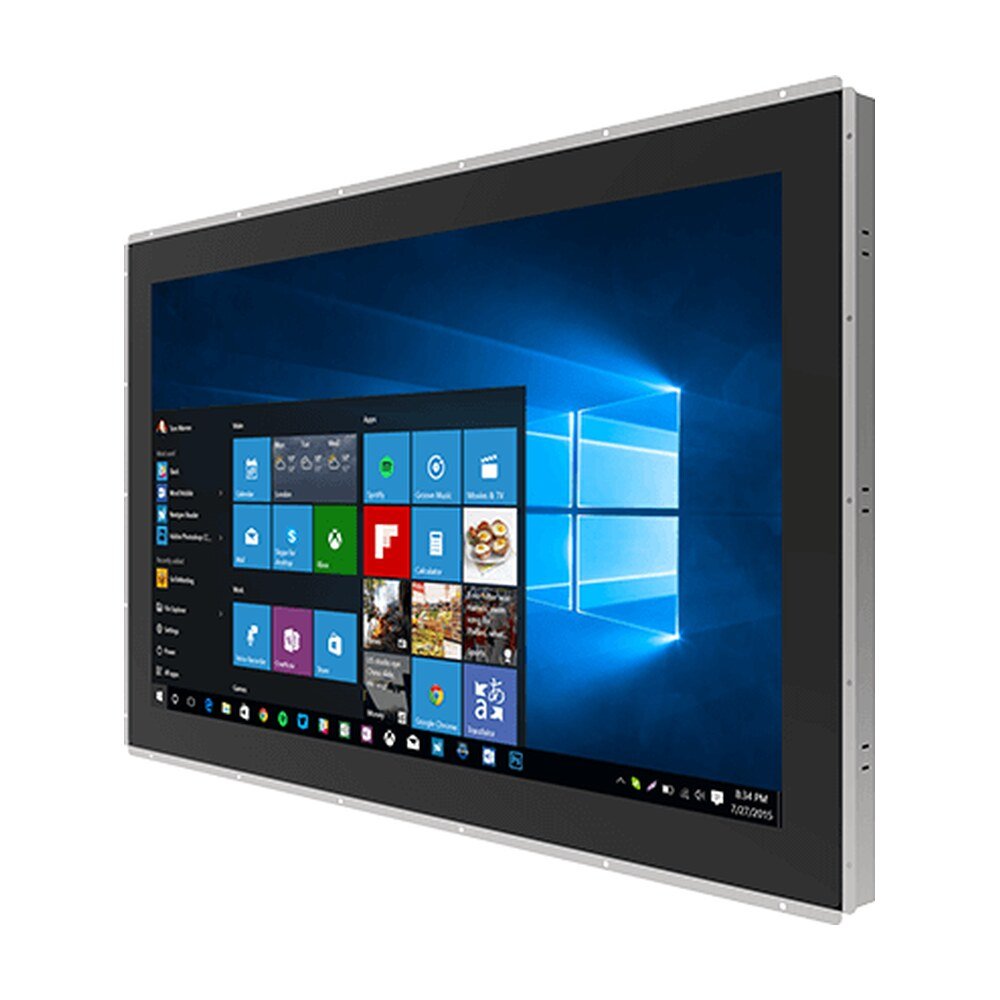

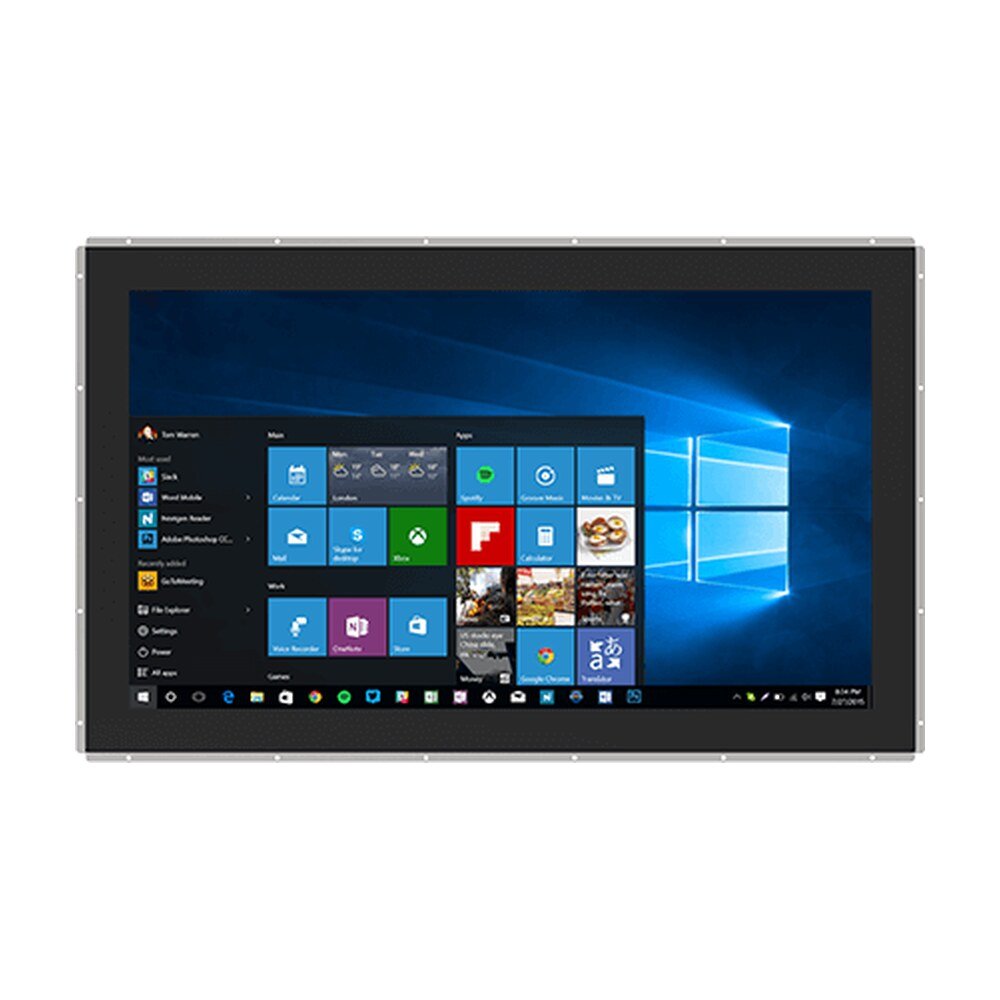

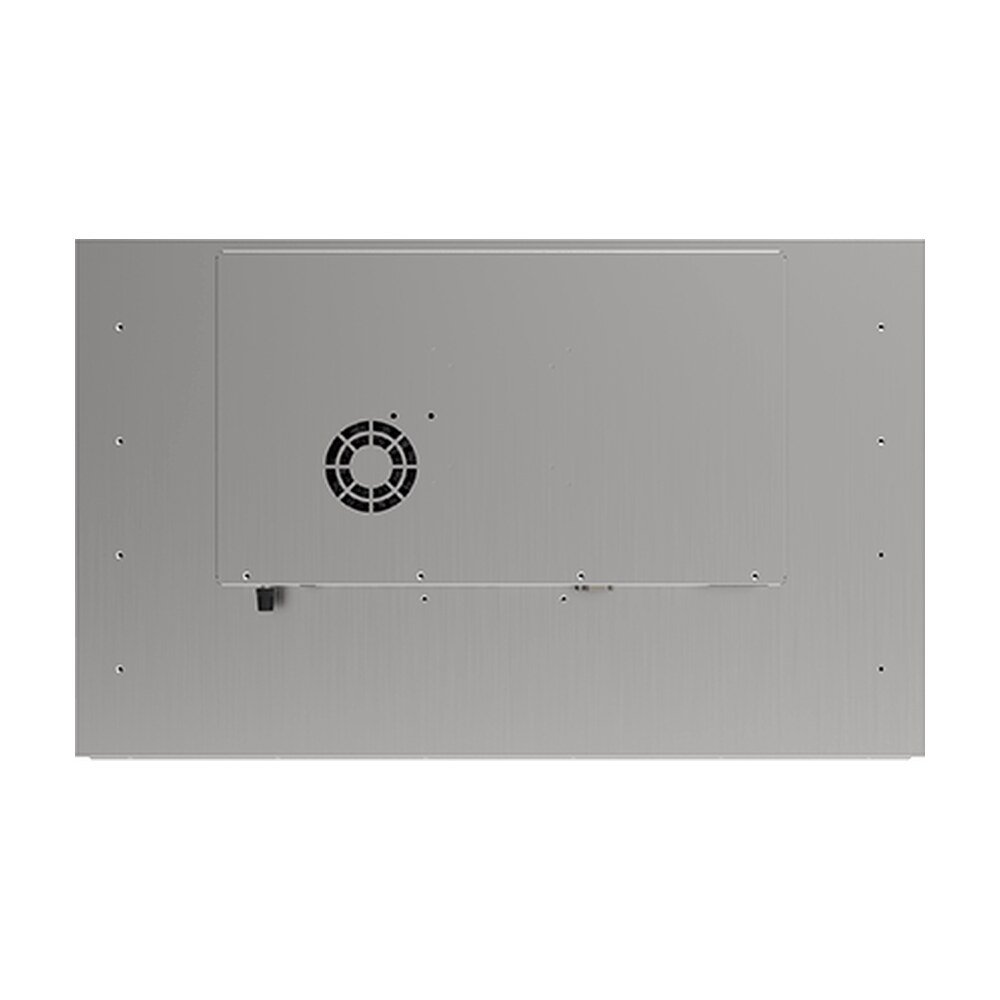

Explore Winmate W27IAD7T-POA1, an HMI panel PC featuring 27-inch display with 1920x1080 resolution, IP65 for machine control and factory automation.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W27IAD7T-POA1, an HMI panel PC featuring 27-inch display with 1920x1080 resolution, IP65 for machine control and factory automation.
Equipped with HDMI, LVDS, and eDP panel interfaces, the HMI Panel PC supports multiple display options to meet diverse industrial requirements. This versatility allows users to connect the device to various peripherals, such as external monitors or projectors, enhancing visualization and system monitoring capabilities.
Understanding the importance of seamless connectivity, the PO Series HMI Panel PC features a range of I/O ports, including 2 Serial Ports for communication with legacy industrial equipment. Additionally, it offers 4 USB 3.2 Gen 2x1 Ports for fast data transfer rates with external devices, such as USB drives and peripherals.
The PO Series HMI Panel PC is designed for power efficiency and flexibility, accommodating a 12V single voltage power input. This feature allows for seamless integration into various power systems, making it an ideal choice for diverse industrial setups.
| Display | |
|---|---|
| Size | 27.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 300.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 597.6x336.15 mm |
| System Specification | |
| Processor | Intel® Core™ i3-12100TE(up to 4.00GHz) (Default), Intel® Core™ i5-12500TE(up to 4.3GHz) (Optional), Intel® Core™ i7-12700TE(up to 4.6GHz) (Optional), Intel® Core™ i9-12900TE(up to 4.80GHz) (Optional), Intel® Core™ i3-14100T(up to 4.4GHz) (Optional), Intel® Core™ i5-14500T(up to 4.8GHz) (Optional), Intel® Core™ i7-14700T(up to 5.2GHz) (Optional), Intel® Core™ i9-14900T(up to 5.5GHz) (Optional) |
| Chipset | Intel® R680E |
| Memory | 2 x SO-DIMM, DDR5 4800 MHz, 8GB (Default), 16GB (Optional), 32GB (Optional), 64GB (Optional) |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 256GB (Default), 512GB (Optional), 1TB (Optional), 2TB (Optional), 2 x SATA III for 2.5" SSD/HDD (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 685.4 x 423.4 x 84.2 mm |
| Weight | 11.3 kg |
| Mounting | VESA mount |
| Enclosure | Metal Housing |
| Cooling System | Fan Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 4 x USB 3.2 Gen2x1 (10Gbps, TypeA) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x DP1.4a DP++ , Max resolution up to, 4096x2160@60Hz (Default), 1 x HDMI 2.0b , Max resolution up to, 4096x2160@60Hz (Optional) |
| Audio | Mic in, Line out |
| Expansion Port | 1 x M.2 2280 M-Key Slot (for NVME SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Power Input | 1 x 12V DC, Din4 pin connector |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws |
| Power | |
| Power Rating | 12V DC |
| Adapter | 12V 220W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W27IAD7T-POA1 |
| Series | PO Series HMI |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W27IAD7T-POA1 |
|---|---|
| Category | HMI (P-CAP Touch), Industrial Panel PC and HMI, Winmate |
| Size | 27.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 300.0 nits |
| Contrast Ratio | 3000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 597.6x336.15 mm |
| Chipset | Intel® R680E |
| Memory | 2 x SO-DIMM, DDR5 4800 MHz, 8GB (Default), 16GB (Optional), 32GB (Optional), 64GB (Optional) |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 256GB (Default), 512GB (Optional), 1TB (Optional), 2TB (Optional), 2 x SATA III for 2.5" SSD/HDD (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Dimension | 685.4 x 423.4 x 84.2 mm |
| Weight | 11.3 kg |
| Mounting | VESA mount |
| Enclosure | Metal Housing |
| Cooling System | Fan Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | CE, FCC |
| USB Port | 4 x USB 3.2 Gen2x1 (10Gbps, TypeA) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x DP1.4a DP++ , Max resolution up to, 4096x2160@60Hz (Default), 1 x HDMI 2.0b , Max resolution up to, 4096x2160@60Hz (Optional) |
| Audio | Mic in, Line out |
| Expansion Port | 1 x M.2 2280 M-Key Slot (for NVME SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| Power Input | 1 x 12V DC, Din4 pin connector |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws |
| Power Rating | 12V DC |
| Adapter | 12V 220W |
| Brand | Winmate |
| Manufacturer part number | W27IAD7T-POA1 |
| Series | PO Series HMI |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
