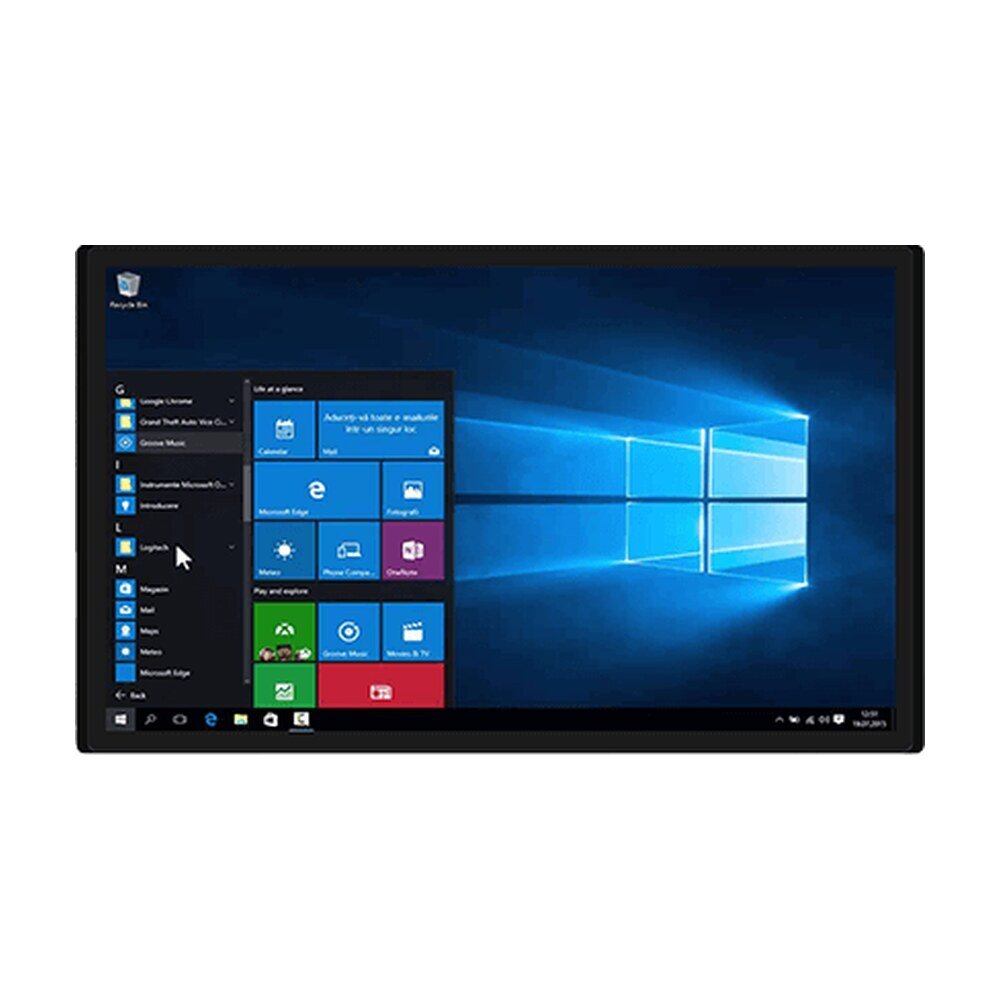

Explore Winmate W32IT3S-PTA3, an HMI panel PC featuring Intel® Core™ i5-1135G7, 32-inch display with 1920x1080 resolution…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W32IT3S-PTA3, an HMI panel PC featuring Intel® Core™ i5-1135G7, 32-inch display with 1920x1080 resolution…
The Intel® Core™ i5-1135G7 Processor pairs flawlessly with all your favorite applications. Its straightforward software integration allows for extensive customization options, creating a wide array of possibilities.
The True Flat surface offers a sleek, stylish design that enhances both modern interiors and exteriors. It is easy to maintain and clean, eliminating issues with dust accumulation on edges.
The HMI features a VESA mounting pattern for easy wall and desk installation. This design provides convenient access to all your I/O ports in high-traffic areas, tailored to meet your specific requirements across various industrial scenarios.
P-Cap Touch panels are scratch-resistant, ensuring durability and a responsive multi-touch experience, making them perfect for industrial and retail applications where reliability is essential.
Don't worry about spills or raindrops damaging the HMI! The W32IT3S-PTA3 features an IP65 rating on the front, protecting it from dust and water splashes.
| Display | |
|---|---|
| Size | 32.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 400.0 nits |
| Contrast Ratio | 4000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 698.4x392.85 mm |
| System Specification | |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB (Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Storage | 1 x M.2 2280 M-Key NVMe SSD 128GB (Default), 256GB (Optional), 512GB (Optional), 1TB (Optional), 2TB (Optional), 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | *Note：Only Windows 11 support Wake on touch (Default), Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 22.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | |
| Certification | CE, FCC |
| Mechanical | |
| Dimension | 799 x 478 x 63.7 mm |
| Mounting | VESA Mount |
| Enclosure | Plastic |
| Cooling System | Fan Design |
| IO Ports | |
| USB Port | 2 x USB 3.0 |
| Serial Port | 1 x RS232(Default)/422/485 |
| LAN | 2 x RJ45-10/100/1000 Mbps |
| Video | 1 x HDMI (Optional) |
| Audio | 2 x Speaker |
| Accessory | |
| Accessory | Quick Start Guide(Hardcopy) , AC Adapter 12V/120W, Power Cord |
| Power | |
| Power Rating | 12V DC |
| Control | |
| Button | 5 key:, Power, Up, Down, Left, Right, |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W32IT3S-PTA3 |
| Series | Standalone Panel PC (Big size & P-CAP) |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W32IT3S-PTA3 |
|---|---|
| Category | Industrial Panel PC and HMI, Industrial Panel PCs (P-CAP Touch), Winmate |
| Size | 32.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 400.0 nits |
| Contrast Ratio | 4000:1 |
| View Angles | 89,89,89,89 |
| Active Area | 698.4x392.85 mm |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB (Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| IP rating | Front IP65 |
| Certification | CE, FCC |
| Dimension | 799 x 478 x 63.7 mm |
| Mounting | VESA Mount |
| Enclosure | Plastic |
| Cooling System | Fan Design |
| USB Port | 2 x USB 3.0 |
| Serial Port | 1 x RS232(Default)/422/485 |
| LAN | 2 x RJ45-10/100/1000 Mbps |
| Video | 1 x HDMI (Optional) |
| Audio | 2 x Speaker |
| Accessory | Quick Start Guide(Hardcopy) , AC Adapter 12V/120W, Power Cord |
| Power Rating | 12V DC |
| Button | 5 key:, Power, Up, Down, Left, Right, |
| Brand | Winmate |
| Manufacturer part number | W32IT3S-PTA3 |
| Series | Standalone Panel PC (Big size & P-CAP) |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
