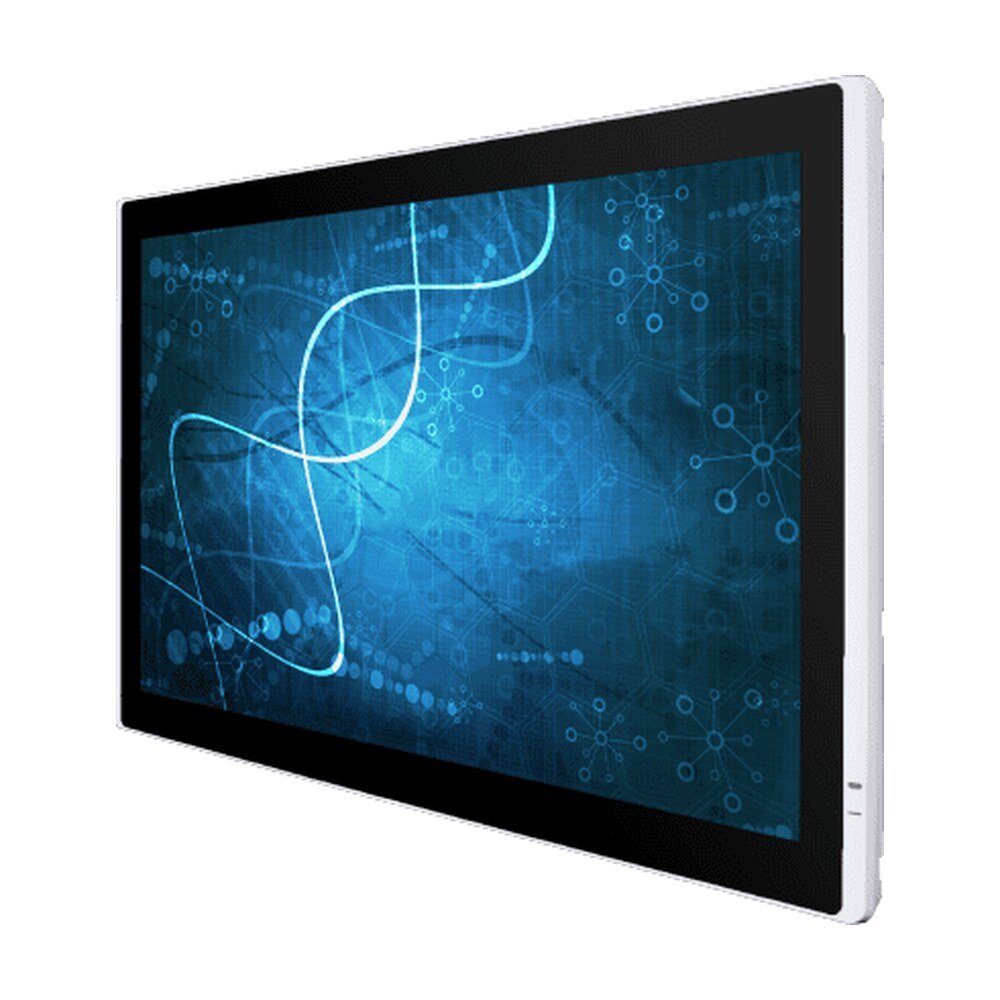

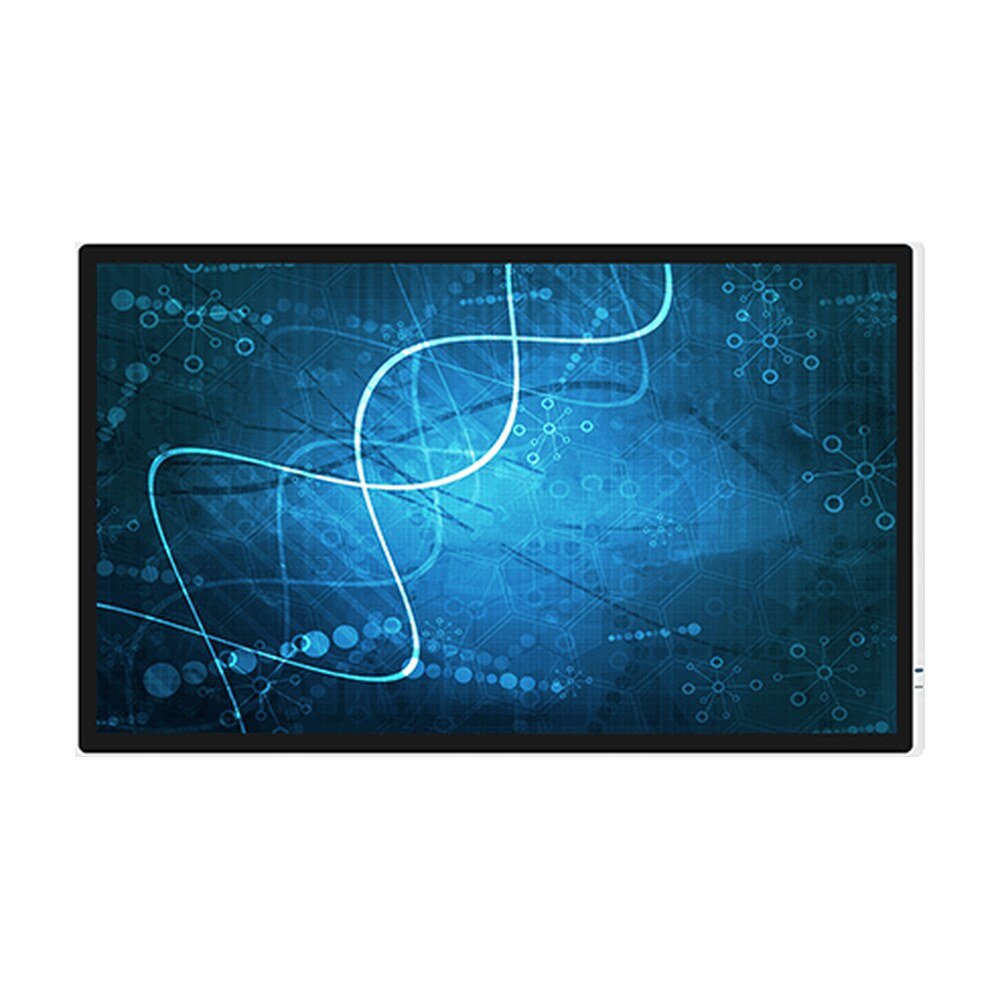

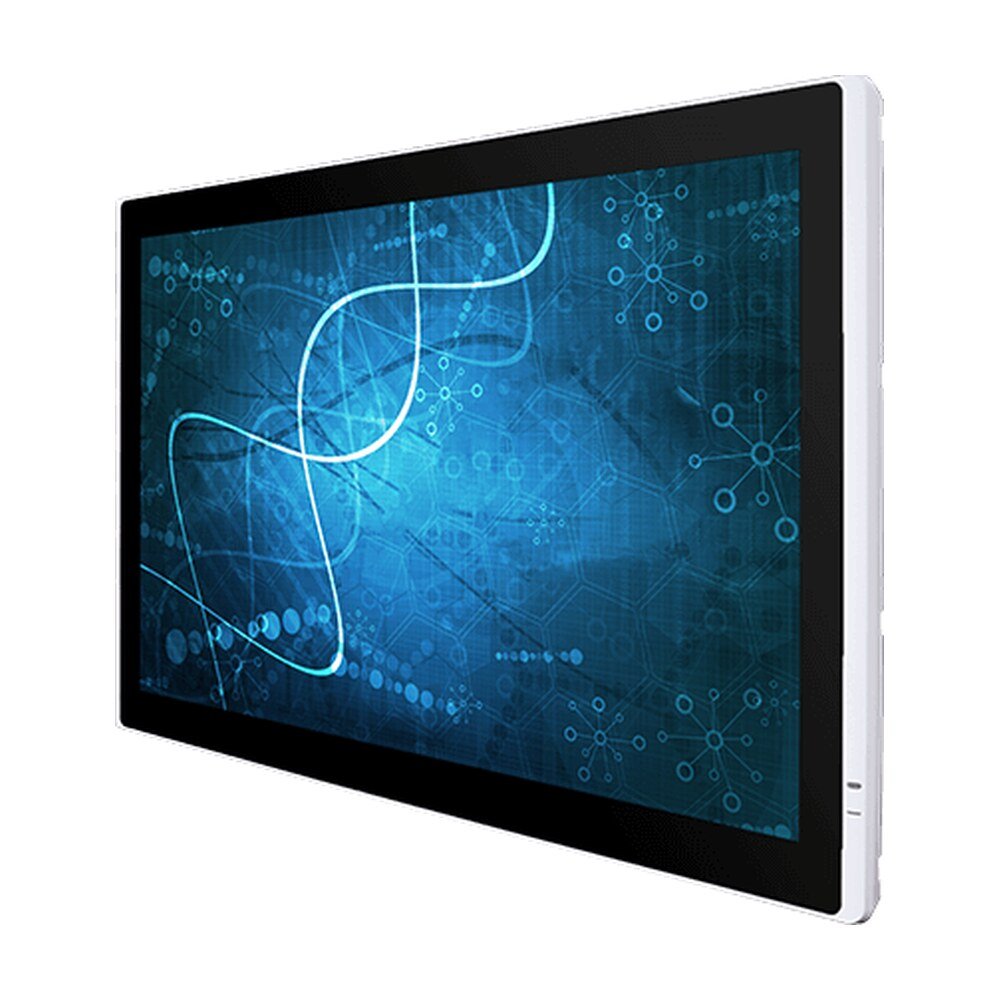

Explore Winmate W32L100-PTA1, a medical display featuring 32-inch display with 3840x2160 resolution, IP65 for hospital workflows and clinical carts.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W32L100-PTA1, a medical display featuring 32-inch display with 3840x2160 resolution, IP65 for hospital workflows and clinical carts.
Winmate's Healthcare Display complies with several international healthcare and patient safety standards ISO13485. These displays can be found in health centers, clinical research laboratories, and patient care units. Plus, the antimicrobial housing helps to prevent the spread of bacteria and contaminants.
The flat surface simplifies the disinfection process. Cleaning liquids can be used on the screen to maximize safety and hygiene. Plus, white-colored housing makes it easy for users to detect and remove dust or other foreign substances.
The high-resolution LCD screen with wide-viewing angles offers sharp and bright images to deliver spectacular contrast and colors for surgical operations, diagnosis, and clinical review applications.

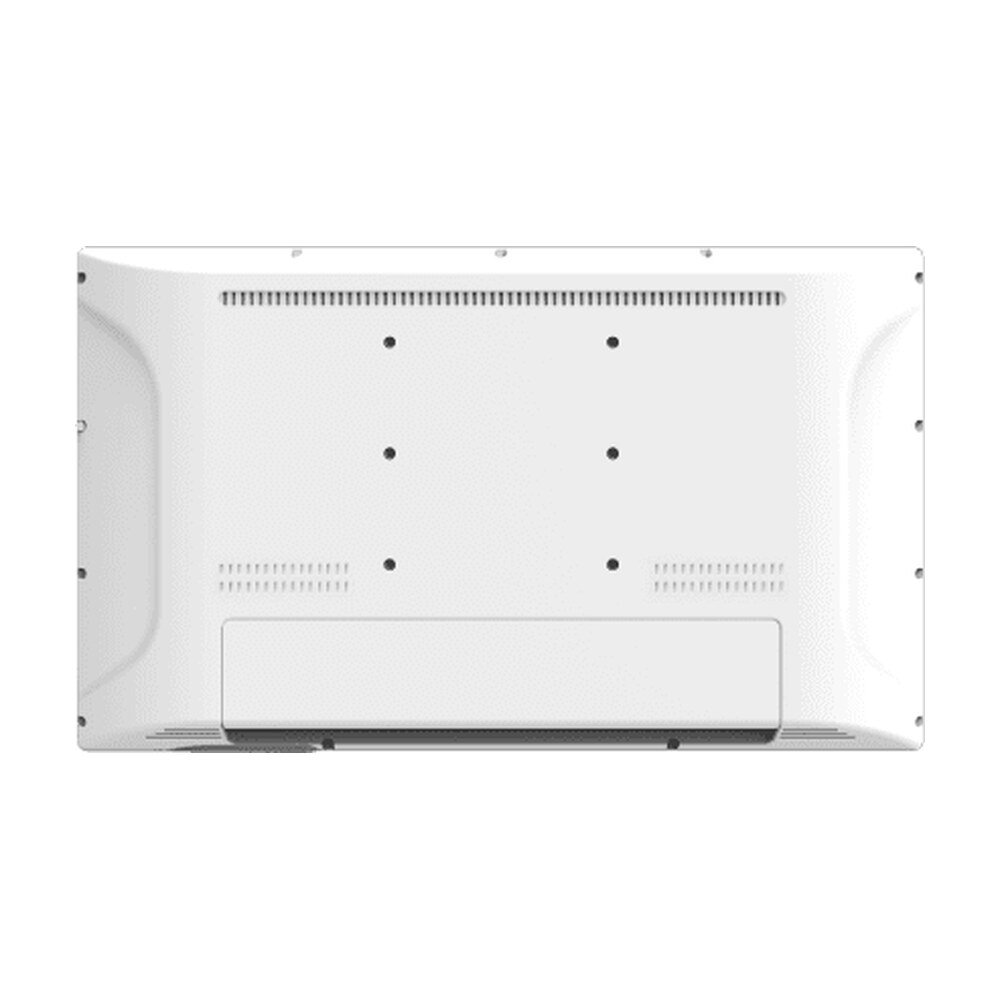

The display features a sleek, lightweight design that is compatible with VESA mounting options. The low-cost installation of these displays can be used in a broad range of applications. The display can be installed vertically or horizontally to suit any environment.
The PCAP multi-touch technology allows the use of multiple fingers at the same time. Take full advantage of the multi-touch screen and scroll, tap, zoom in or zoom out of medical images for precise diagnostics and better prevention measures.
| Display | |
|---|---|
| Size | 32.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen (AG) |
| Resolution | 3840x2160 |
| Panel Brightness | 350.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 1.07B Colors |
| Active Area | 708.48x398.52 mm |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 35°C |
| Storage Temperature | -20°C to 60°C |
| Certification | |
| Certification | IEC/EN 60601-1, IEC 60601-1-2:2014/AMD:2020, IEC60601-1-6 +IEC62366 , EN 60601-1-2:2015/A1:2021, EN55032/35, FCC Part15B, ICE-003, ISO14971, RoHS-2, REACH, WEEE compliant |
| IO Ports | |
| USB Port | 1 x USB 2.0 |
| Serial Port | 1 x RS-232, |
| Video | 1 x Dual DVI In, 1 x DP 1.2 Out, 1 x DP 1.2 In, 1 x VGA In, 1 x 3G SDI in, 1 x 3G SDI out (Default), 1 x HDMI 1.4 (Optional), 1 x HDMI 2.0 (Optional) |
| Audio | 1 x Mic In, 1 x Line Out, 2 x Speaker |
| GPIO | 1 x RJ-11 |
| Mechanical | |
| Dimension | 799 x 478 x 63.7 mm |
| Weight | 18.5 kg |
| Mounting | VESA mount |
| Enclosure | Plastic |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | Remote Control, User Manual , VESA Mounting Screws, 24 Volt Power Supply, Power Cable, VGA Cable, DVI Cable , SDI Cable, DC Jack to Open Wire Cable, RS232 Cable |
| Optional Accessory | USB Cable for Touch (Optional) |
| Power | |
| Power Rating | 24V DC in |
| Control | |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W32L100-PTA1 |
| Series | Multi-Touch Color Surgical Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W32L100-PTA1 |
|---|---|
| Category | Healthcare Grade, Winmate |
| Size | 32.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen (AG) |
| Resolution | 3840x2160 |
| Panel Brightness | 350.0 nits |
| Contrast Ratio | 1000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 1.07B Colors |
| Active Area | 708.48x398.52 mm |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 35°C |
| Storage Temperature | -20°C to 60°C |
| USB Port | 1 x USB 2.0 |
| Serial Port | 1 x RS-232, |
| Video | 1 x Dual DVI In, 1 x DP 1.2 Out, 1 x DP 1.2 In, 1 x VGA In, 1 x 3G SDI in, 1 x 3G SDI out (Default), 1 x HDMI 1.4 (Optional), 1 x HDMI 2.0 (Optional) |
| Audio | 1 x Mic In, 1 x Line Out, 2 x Speaker |
| GPIO | 1 x RJ-11 |
| Dimension | 799 x 478 x 63.7 mm |
| Weight | 18.5 kg |
| Mounting | VESA mount |
| Enclosure | Plastic |
| Cooling System | Fanless Design |
| Accessory | Remote Control, User Manual , VESA Mounting Screws, 24 Volt Power Supply, Power Cable, VGA Cable, DVI Cable , SDI Cable, DC Jack to Open Wire Cable, RS232 Cable |
| Optional Accessory | USB Cable for Touch (Optional) |
| Power Rating | 24V DC in |
| Button | 5 Keys: - , + , Power , Esc , Enter |
| Brand | Winmate |
| Manufacturer part number | W32L100-PTA1 |
| Series | Multi-Touch Color Surgical Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
