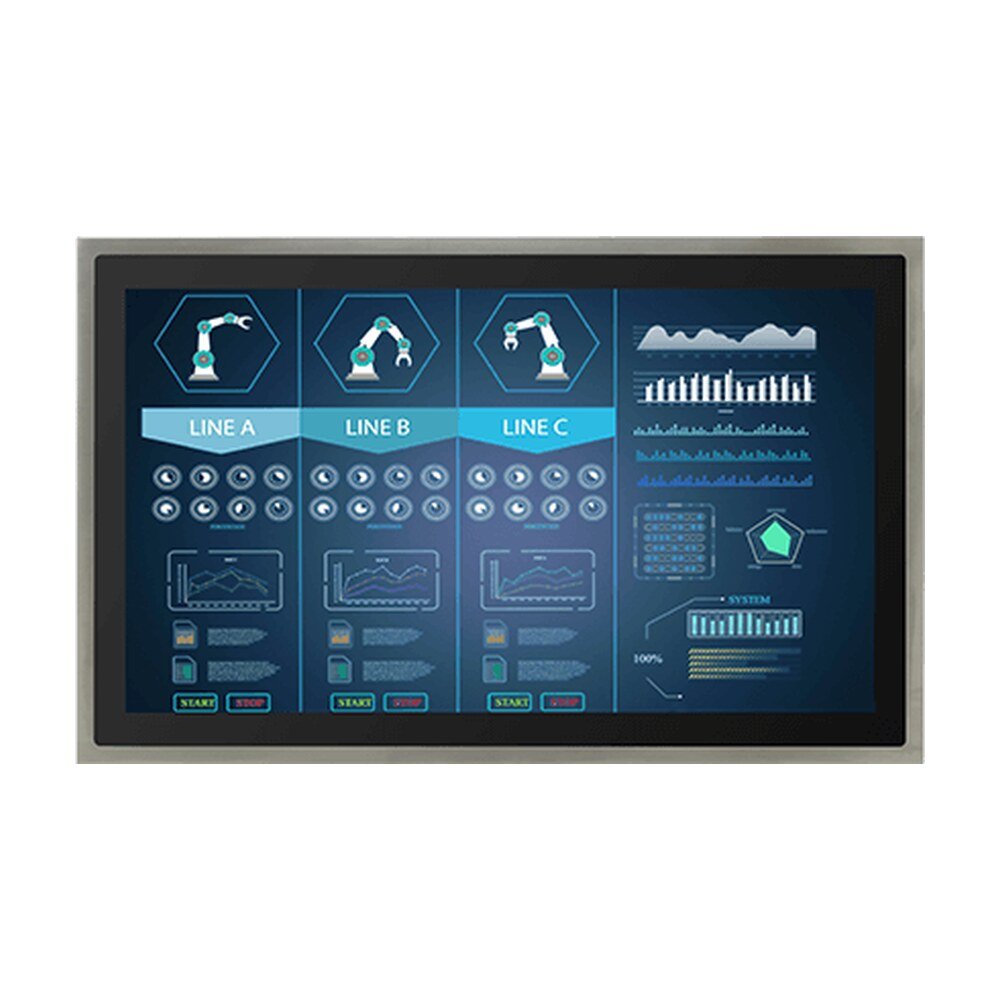

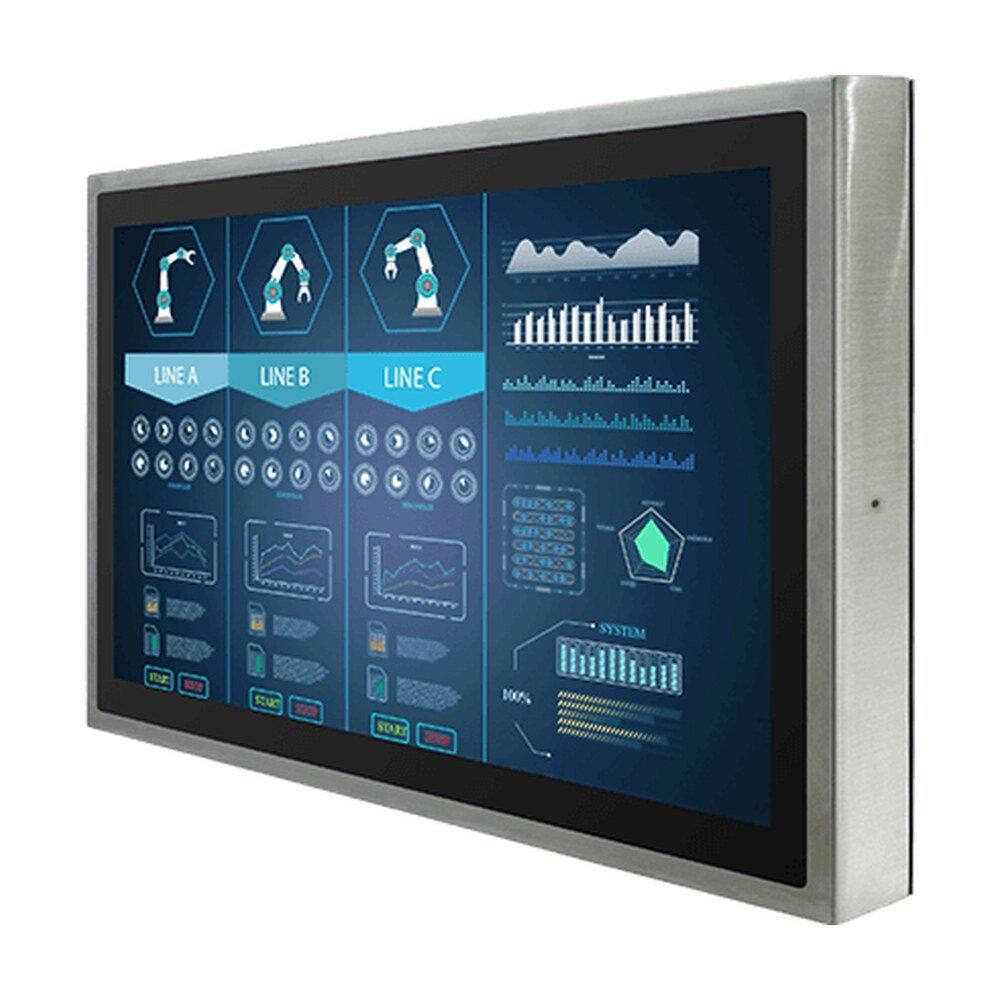

Explore Winmate W32L100-SPA3, a chassis display featuring 32-inch display with 1920x1080 resolution, IP65 for industrial visualization and control rooms.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W32L100-SPA3, a chassis display featuring 32-inch display with 1920x1080 resolution, IP65 for industrial visualization and control rooms.
The display complies with IP65 water and dust resistance for regular cleanup processes and strict hygiene standards in the Food, Beverage, and Pharmaceutical industries.
The wide range of stainless human-machine interfaces (HMI) and displays are widely used for automation processes in Food & Beverage applications and chemical factories.
The highly-sensitive touch screen and PCAP multi-touch support make it easy for users to key in data, rotate images, drag and drop files, and zoom in with two or more fingers.
The covered chassis design for this touch screen display is stylish and also supports rear or VESA brackets for easy installation.
Sophisticated timeless design coupled with Winmate expertise in industrial computers and touchscreen not only offers you a top product at an attractive cost but also gives you a sense of technical superiority and the future. Winmate display modules are perfectly assembled in the clean room for easy further processing.
Winmate provides a wide range of customization options to meet your requirements, including product size, customer logo, LCD panel brightness, glass cover surface treatment, display ports, and many more. The power plug is selected according to the different styles of each country. Contact our team for more information.
| Display | |
|---|---|
| Size | 32 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 400 nits |
| Contrast Ratio | 4000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 16.7M Colors |
| Active Area | 698.4x392.85 mm |
| Mechanical | |
| Mounting | VESA Mount |
| Enclosure | Stainless Housing |
| Cooling System | Fanless design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1x M12 waterproof connector for touch screen control |
| Video | 1x M12 type connector for VGA input (Default), 1x waterproof DVI input (Optional), 1x waterproof connector for HDMI input (Optional) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for status |
| Control | |
| Button | 1 x Power Button, 1 x Adjust up button, 1 x Adjust down button, 1 x ESC (Auto) button, 1 x OK (Menu) button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter with waterproof connector, Power Cord, External USB cable with waterproof connector for touchscreen control, External VGA cable with waterproof connector, Waterproof caps, Manual, VESA screws |
| Optional Accessory | External HDMI cable with waterproof connector (Optional), External DVI cable with waterproof connector (Optional), External Power cable with waterproof connector(For AC power buid in) (Optional) |
| Power | |
| Power Rating | 24V DC (M12 type) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W32L100-SPA3 |
| Series | IP65 Stainless PCAP Chassis Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W32L100-SPA3 |
|---|---|
| Category | Industrial Display, Stainless Series, Winmate |
| Size | 32 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1920x1080 |
| Panel Brightness | 400 nits |
| Contrast Ratio | 4000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 16.7M Colors |
| Active Area | 698.4x392.85 mm |
| Mounting | VESA Mount |
| Enclosure | Stainless Housing |
| Cooling System | Fanless design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| IP rating | IP65 |
| Certification | CE, FCC |
| USB Port | 1x M12 waterproof connector for touch screen control |
| Video | 1x M12 type connector for VGA input (Default), 1x waterproof DVI input (Optional), 1x waterproof connector for HDMI input (Optional) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for status |
| Button | 1 x Power Button, 1 x Adjust up button, 1 x Adjust down button, 1 x ESC (Auto) button, 1 x OK (Menu) button |
| Power Rating | 24V DC (M12 type) |
| Brand | Winmate |
| Manufacturer part number | W32L100-SPA3 |
| Series | IP65 Stainless PCAP Chassis Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
