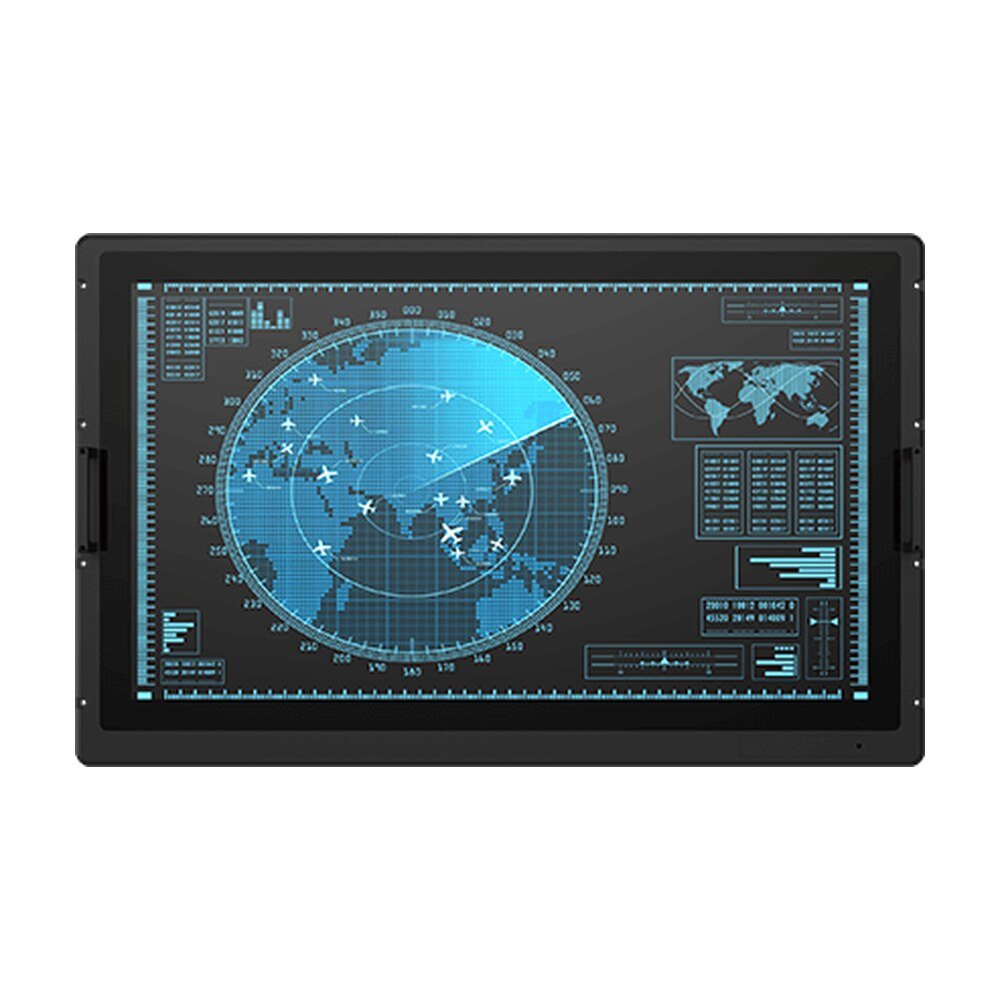

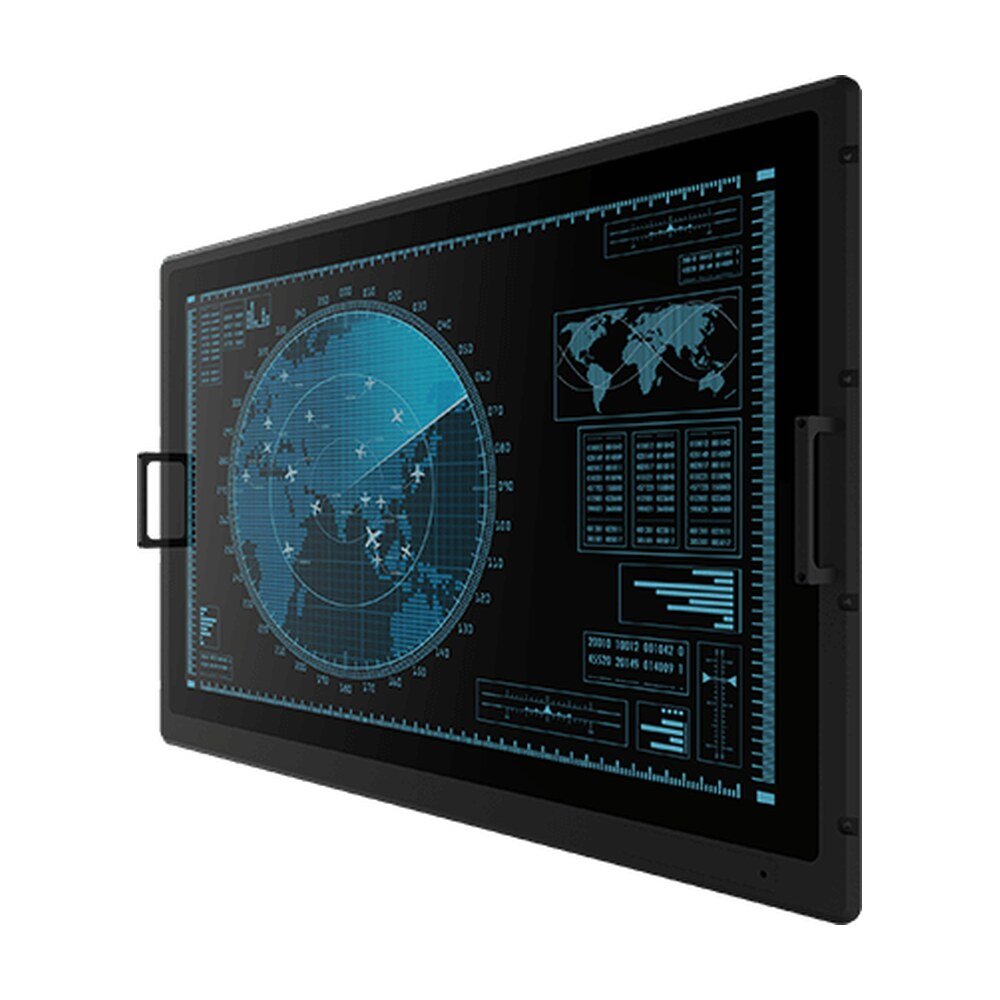

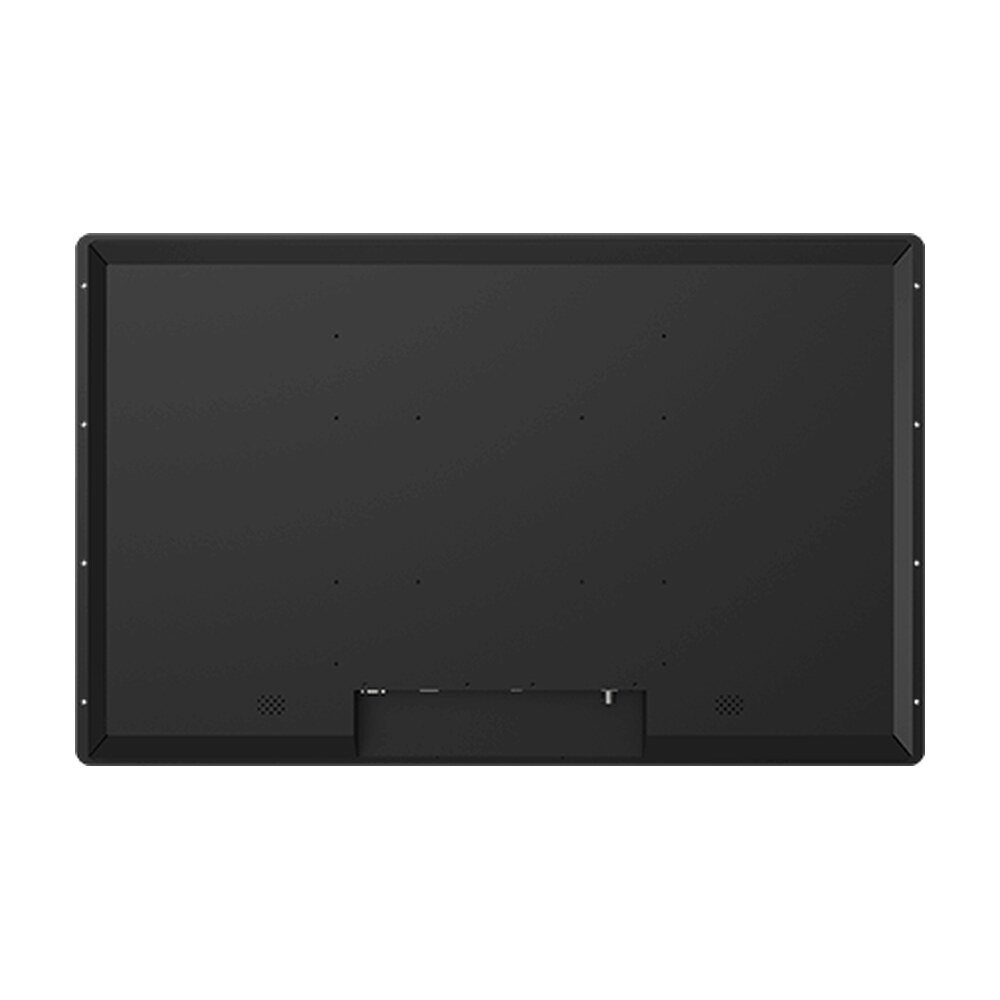

Explore Winmate W43L100-MLA2FP, an industrial display featuring 43-inch display with 3840x2160 resolution for defense operations and field command.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W43L100-MLA2FP, an industrial display featuring 43-inch display with 3840x2160 resolution for defense operations and field command.
UHD (=Ultra High Definition) displays an extremely high resolution - from now on for industrial applications by Winmate. 4-times higher resolution and pixel density. Winmate 4K2K PPC displays with an incomprehensible high resolution of 3840 x 2160 pixels by Innolux are applicable for your industrial applications – NOW.
To meet the regulatory requirements of the defence and defense, all Winmate's Defence Console Rack Displays are built and tested according to MIL-STD-810G environmental and MIL-STD 461F EMC standard. Winmate performs in-house reliability test to ensure optimal performance in harsh defence environments.
Increase the efficiency of the command center and control room personnel. Built your ergonomic command console that complies with defence and defense precise needs with Defence Console Rack Displays that feature rack mount mechanical design (8U).
The Defence Console Rack Displays come with MIL-DTL-38999 type I power input connector and, for selected models, MIL-DTL-38999 type III input/ output connectors – high-performance cylindrical connector for cable-to-panel applications in the Defence, air traffic control, or other mission-critical situations. Compatible with existing defence systems.
The Defence Console Rack Displays feature user-friendly physical OSD buttons for fast access to the central control located on the front panel.
The Defence Console Rack Displays feature a built-in light sensor for auto-brightness control. The screen brightness effortlessly changes with the lighting conditions throughout the day.
| Display | |
|---|---|
| Touch / Glass | Projected Capacitive Multi Touch Screen (Default), PCAP with With ITO Film (Optional) |
| Size | 42.5 inches |
| Resolution | 3840x2160 |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 4000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 1.07B Colors |
| Active Area | 941.184x529.416 mm |
| Certification | |
| Certification | CE, FCC |
| Environment | |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10°C~60°C |
| TEMPEST | USA: NSA NSTISSAM TEMPEST/1-92 (optional), NATO: NATO SDIP-27 (optional) |
| Compliance | |
| MIL-STD 461G | USA MILSTD461G CE101, CE102, RE101, RE102, CS118 (Default) , MILSTD461G CS101, CS106, CS109, CS114, CS115, CS116, RS101, RS103 (Optional) , , NATO STANAG 4370/AECTP501 NCE01, NCE02, NRE01, NRE02, NCS12 (Default) , STANAG 4370/AECTP501 NCS01, NCS07, NCS08, NCS09, NRS01, NRS02 (Optional) |
| MIL-STD 810H | USA: MIL-STD-810H (default): Vibration Method 514.8, Humidity Method 507.6, Transit Drop Method516.8, , NATO (optional): Vibration Test STANAG 4370/AECTP-401, Shock STANAG 4370/AECTP-402 Procedure I, Drop and Topple Test STANAG 4370/AECTP-404 |
| IO Ports | |
| USB Port | 1 x USB for Touch Screen |
| Serial Port | 1 x RS232 for Remote Control (Optional) |
| Video | 1 x VGA, 1 x DVI, 1 x Display Port 1.2 (Default), 2 x HDMI 2.0 (Optional) |
| Audio | 1 x Audio Line In (Optional) |
| Mechanical | |
| Dimension | 1088.2 x 681.4 x 84.6 mm |
| Weight | Metal |
| Mounting | VESA mount/Rack mount |
| Enclosure | nan |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | 1 x User Manual(Hardcopy), 1 x Power Cord MILDTL38999/1, 1 x VGA Cable , 1 x DVI Cable , 2 x HDMI Cable , 1 x DP Cable , 1 x USB Cable |
| Optional Accessory | 1 x Audio cable |
| Power | |
| Power Rating | MIL-DTL-38999/1 Connector, AC 110~240V |
| Control | |
| Button | 5 x Capacitive Touch Key, Power, Brightness+, Brightness-, OSD/ Enter, ESC |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W43L100-MLA2FP |
| Series | 4K2K Defence Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W43L100-MLA2FP |
|---|---|
| Category | Defence Display / NVIS Display, Defence Grade, Winmate |
| Touch / Glass | Projected Capacitive Multi Touch Screen (Default), PCAP with With ITO Film (Optional) |
| Size | 42.5 inches |
| Resolution | 3840x2160 |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 4000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 1.07B Colors |
| Active Area | 941.184x529.416 mm |
| Certification | CE, FCC |
| Operating Humidity | 10% to 95% RH |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10°C~60°C |
| TEMPEST | USA: NSA NSTISSAM TEMPEST/1-92 (optional), NATO: NATO SDIP-27 (optional) |
| USB Port | 1 x USB for Touch Screen |
| Serial Port | 1 x RS232 for Remote Control (Optional) |
| Video | 1 x VGA, 1 x DVI, 1 x Display Port 1.2 (Default), 2 x HDMI 2.0 (Optional) |
| Audio | 1 x Audio Line In (Optional) |
| Dimension | 1088.2 x 681.4 x 84.6 mm |
| Weight | Metal |
| Mounting | VESA mount/Rack mount |
| Enclosure | nan |
| Cooling System | Fanless Design |
| Accessory | 1 x User Manual(Hardcopy), 1 x Power Cord MILDTL38999/1, 1 x VGA Cable , 1 x DVI Cable , 2 x HDMI Cable , 1 x DP Cable , 1 x USB Cable |
| Optional Accessory | 1 x Audio cable |
| Power Rating | MIL-DTL-38999/1 Connector, AC 110~240V |
| Button | 5 x Capacitive Touch Key, Power, Brightness+, Brightness-, OSD/ Enter, ESC |
| Brand | Winmate |
| Manufacturer part number | W43L100-MLA2FP |
| Series | 4K2K Defence Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
