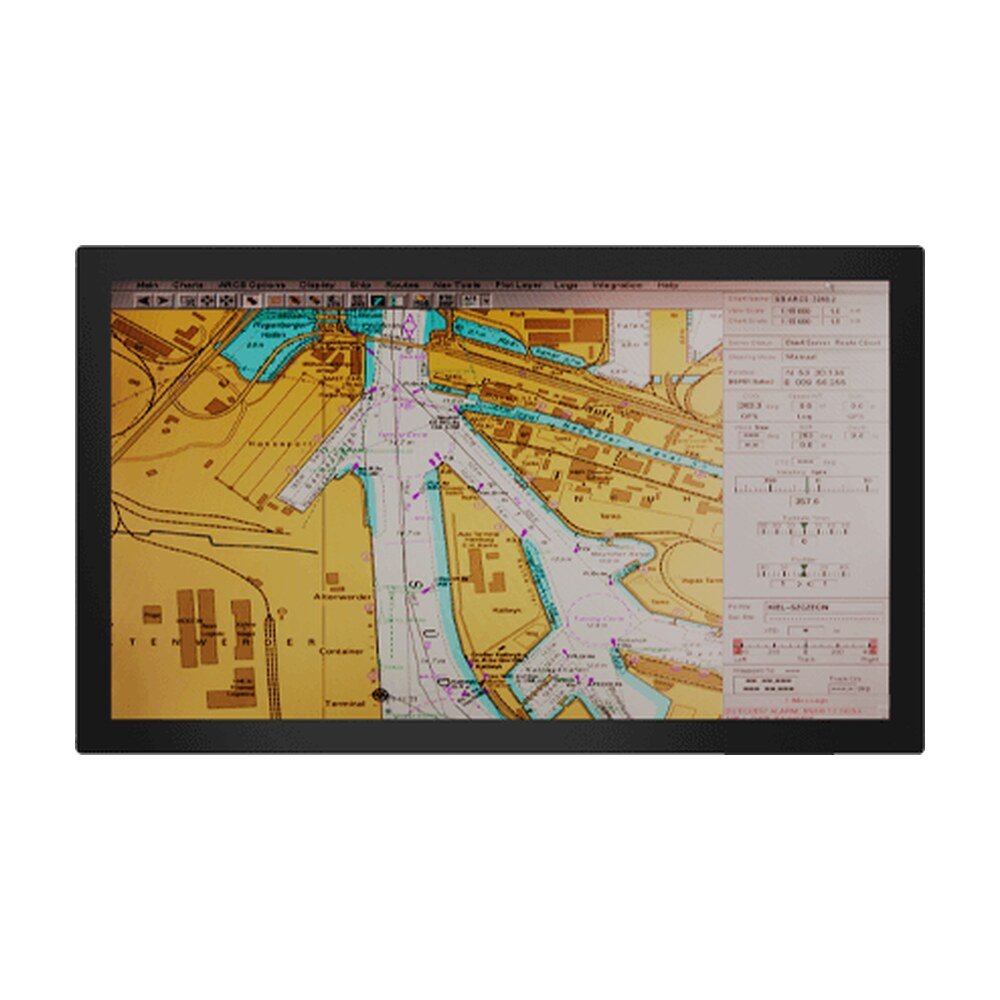

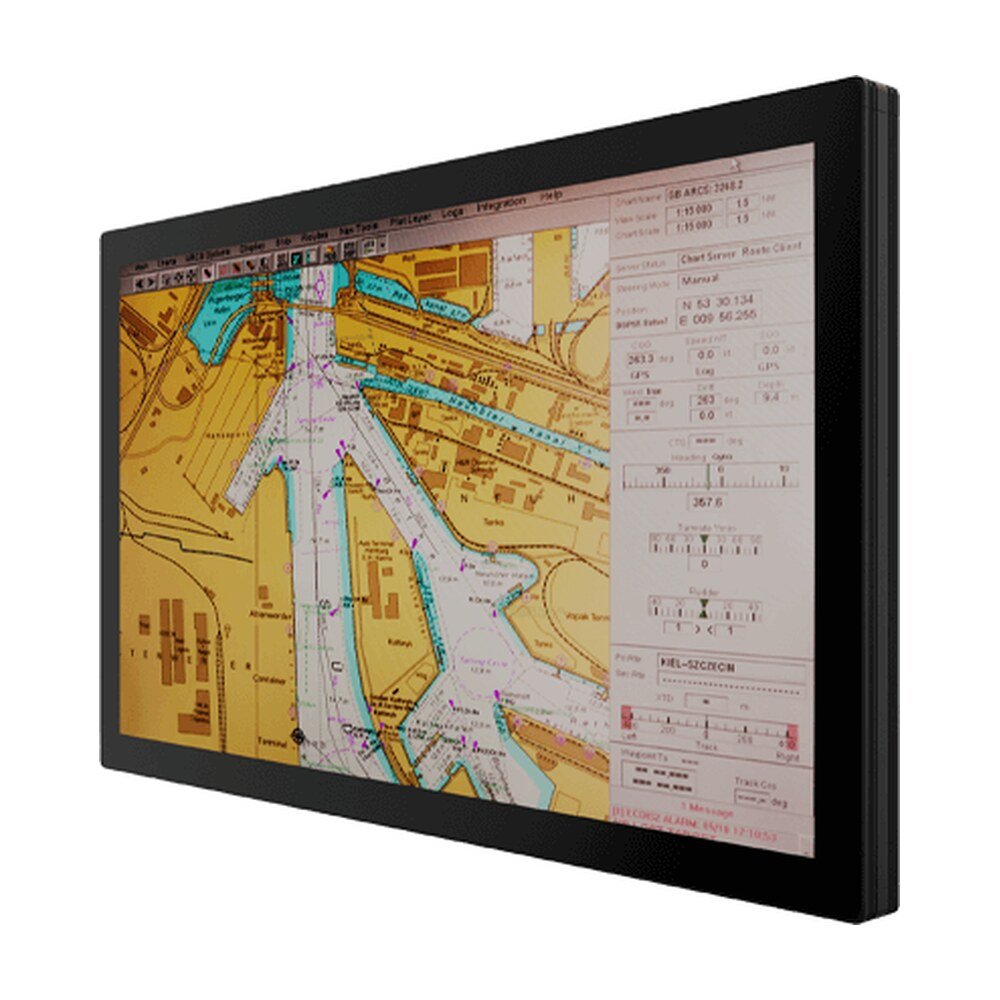

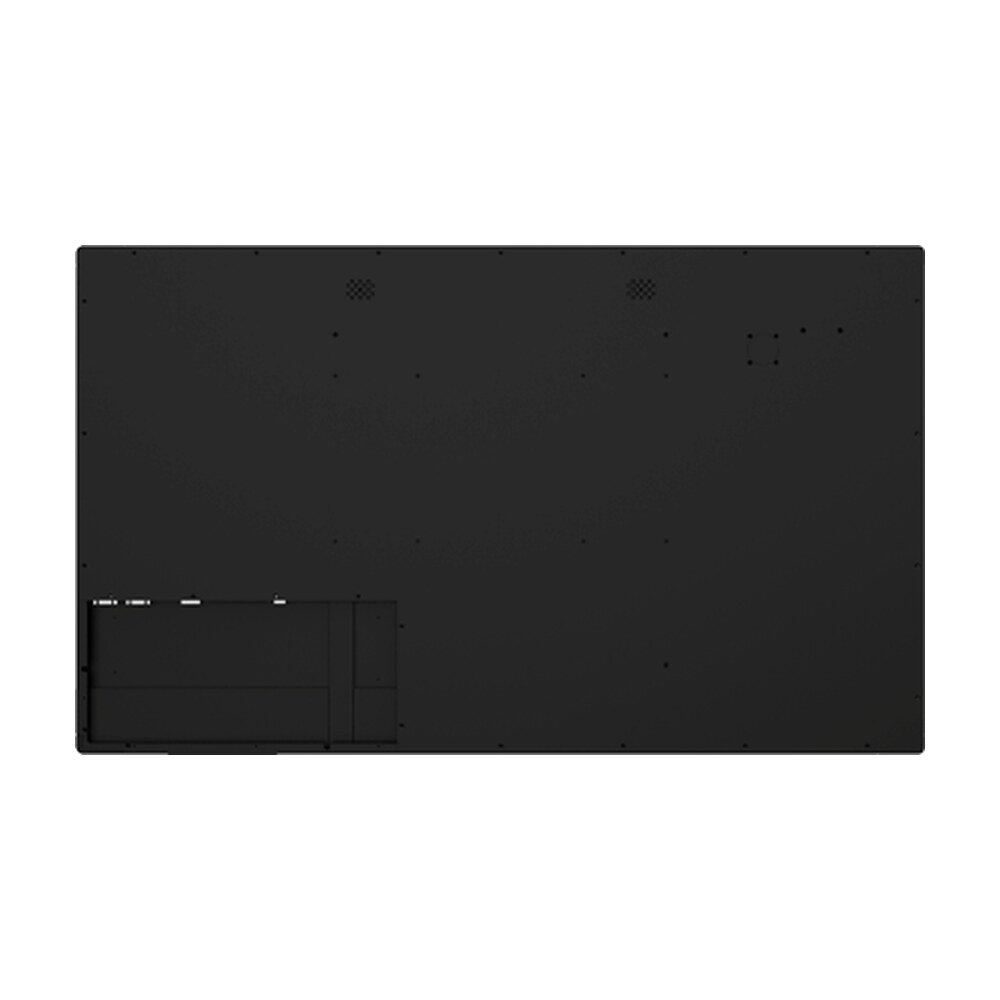

Explore Winmate W43L100-MRA2FP, an ECDIS marine display featuring 43-inch display with 3840x2160 resolution, DNV, IEC 60945 for marine bridge systems and…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W43L100-MRA2FP, an ECDIS marine display featuring 43-inch display with 3840x2160 resolution, DNV, IEC 60945 for marine bridge systems and…
Winmate’s 4K UHD Marine Display feature a brilliant screen with a resolution of 3840 x 2160 pixels, aiming to reduce errors and enhance operational efficiency. The exceptional image quality, sharpness, and clarity ensure that every detail on the screen is now presented with unprecedented precision. This resolution represents approximately four times the resolution of Full HD.
Winmate ensures the reliability of Marine 4K Displays by adhering to the DNVGL-CG-0339 Standard, IEC60945, and IACS-E10. Rigorous in-house reliability tests ensure optimal performance even in challenging maritime conditions.
To enhance operator convenience in industrial environments, Winmate’s Marine Display Series optimizes the 6 key OSD button, providing seamless access to DAY/DUSK/Night Mode. This enhancement ensures straightforward operation, eliminating complexity and providing swift access to the central control located on the front panel.
Winmate ensures precise color reproduction by calibrating color settings according to the IEC 61174 ECDIS Standard during the manufacturing process. This meticulous calibration guarantees accurate portrayal of colors.
| Display | |
|---|---|
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 42.5 inches |
| Resolution | 3840x2160 |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 4000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 1.07B Colors |
| Active Area | 941.184x529.416 mm |
| Environment | |
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| Vibration | 0.7g@DNV-CG-0339 (Class A) |
| IP rating | IP66 (Front Side) |
| Certification | |
| Certification | CE, FCC, DNV-CG-0339, IEC60945 4th, IACS E10 |
| IO Ports | |
| USB Port | 1 x USB for Touch Screen |
| Serial Port | 1 x RS232 for remote control |
| Video | 1 x VGA, 1 x DVI-D, 2 x HDMI 2.0, 1 x DP |
| Buzzer | 75 dB~80 dB, 2300 Hz, 1m |
| Mechanical | |
| Dimension | 1028.8 x 617 x 48 mm |
| Weight | 29.5 kg |
| Mounting | VESA mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Power | |
| Power Rating | 24V DC-in with Isolation (Approval by Certificate), 9~36V DC Input Acceptable |
| Consumption | 100W (Typical) |
| Accessory | |
| Accessory | User Manual, AC to DC Adapter, Power Cord , 3 Pin Terminal Block, 1 x VGA cable, 1 x DVI cable, 1 x DP cable, 2 x HDMI cable, 1 x RS232 cable, 1 x USB cable |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W43L100-MRA2FP |
| Series | 4K Marine Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W43L100-MRA2FP |
|---|---|
| Category | Marine Display, Marine Grade, Winmate |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 42.5 inches |
| Resolution | 3840x2160 |
| Panel Brightness | 500.0 nits |
| Contrast Ratio | 4000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 1.07B Colors |
| Active Area | 941.184x529.416 mm |
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| Shock | 15G,11ms duration |
| Vibration | 0.7g@DNV-CG-0339 (Class A) |
| IP rating | IP66 (Front Side) |
| Certification | CE, FCC, DNV-CG-0339, IEC60945 4th, IACS E10 |
| USB Port | 1 x USB for Touch Screen |
| Serial Port | 1 x RS232 for remote control |
| Video | 1 x VGA, 1 x DVI-D, 2 x HDMI 2.0, 1 x DP |
| Buzzer | 75 dB~80 dB, 2300 Hz, 1m |
| Dimension | 1028.8 x 617 x 48 mm |
| Weight | 29.5 kg |
| Mounting | VESA mount |
| Enclosure | Metal Housing with Aluminum Bezel |
| Cooling System | Fanless Design |
| Power Rating | 24V DC-in with Isolation (Approval by Certificate), 9~36V DC Input Acceptable |
| Consumption | 100W (Typical) |
| Accessory | User Manual, AC to DC Adapter, Power Cord , 3 Pin Terminal Block, 1 x VGA cable, 1 x DVI cable, 1 x DP cable, 2 x HDMI cable, 1 x RS232 cable, 1 x USB cable |
| Brand | Winmate |
| Manufacturer part number | W43L100-MRA2FP |
| Series | 4K Marine Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
