Explore Winmate W50L100-POCV, an industrial display featuring 50-inch display with 3840x2160 resolution for industrial visualization and control rooms.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate W50L100-POCV, an industrial display featuring 50-inch display with 3840x2160 resolution for industrial visualization and control rooms.

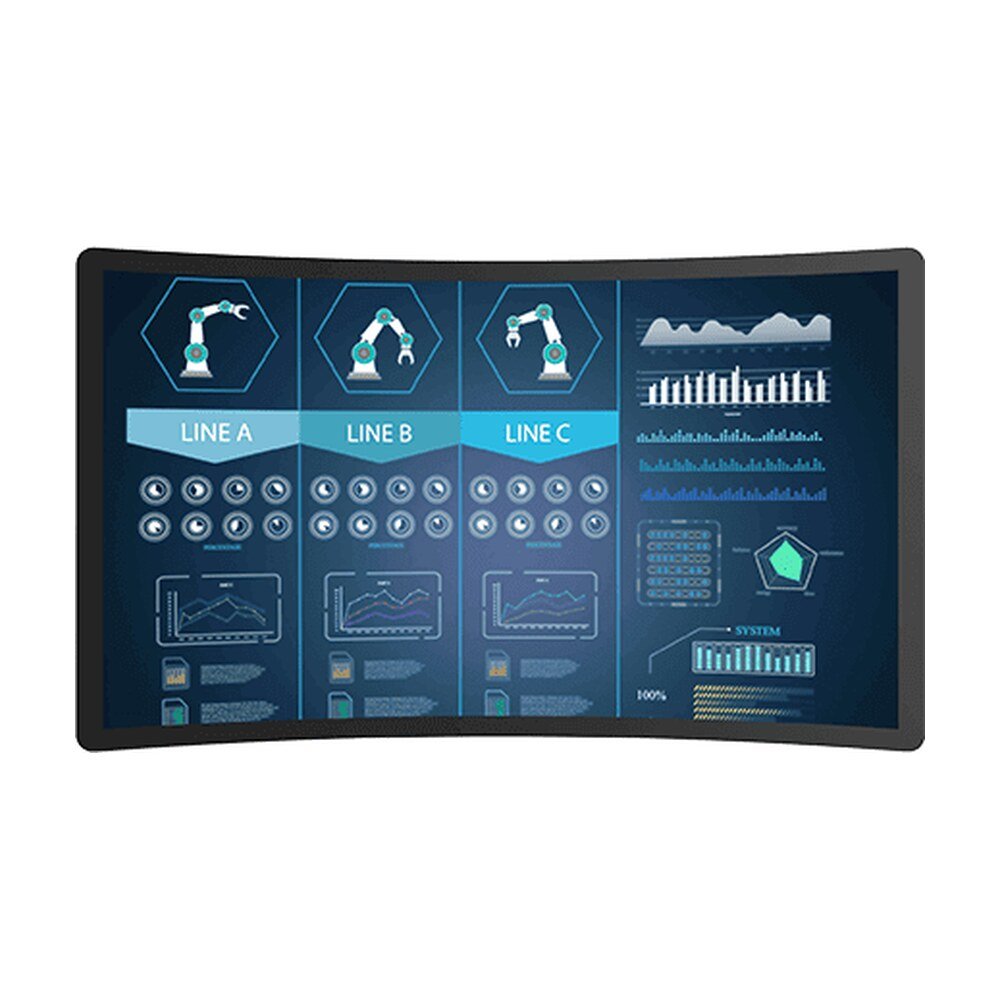

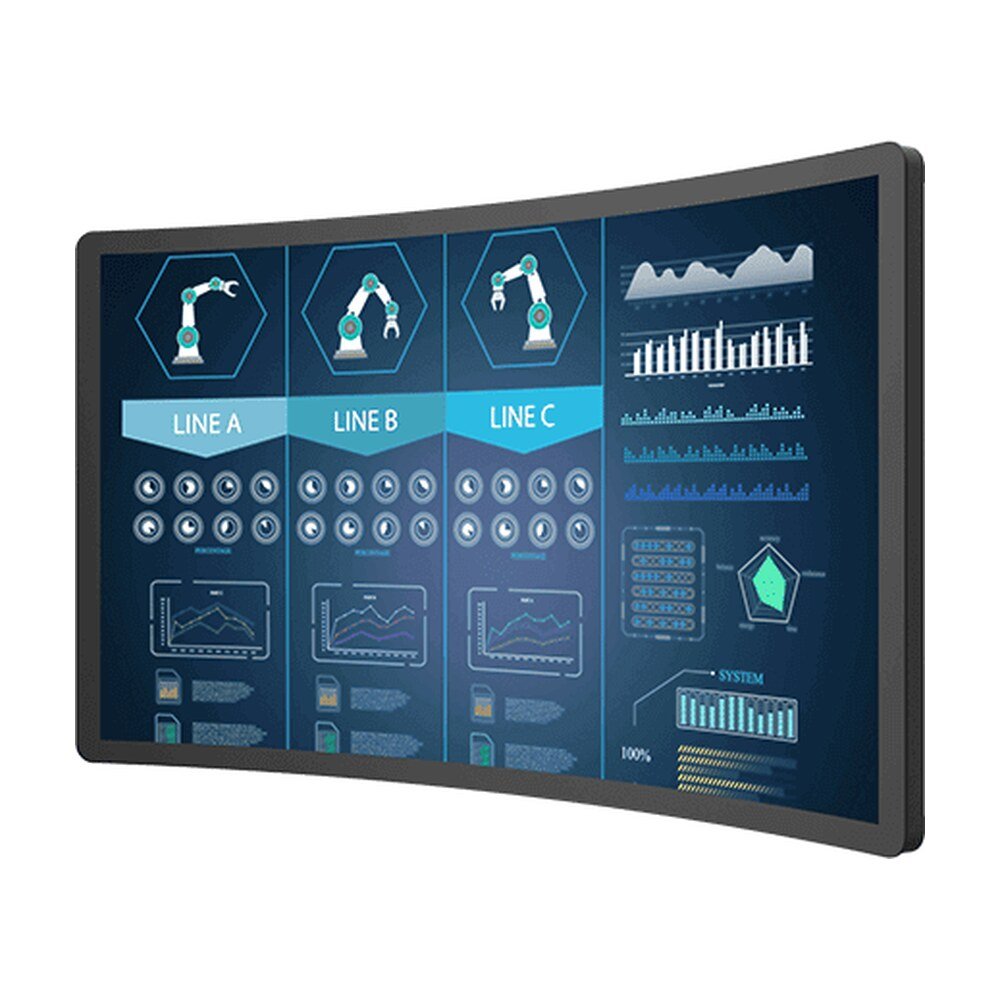

The Winmate W50L100-POCV Curved Monitor delivers stunning 4K resolution (3840 x 2160) and an R1500 curvature that wraps naturally around the viewer’s field of vision. With a wide viewing angle for accurate colors and consistent brightness, it ensures excellent visual performance. Operating at a 60Hz refresh rate, it provides smooth motion and comfortable long-hour viewing, making it ideal for control rooms, simulation centers, and industrial visualization environments.
Equipped with advanced Projected Capacitive (P-Cap) multi-touch technology, the display offers accurate, responsive, and fluid touch interaction. Users can navigate interfaces, adjust parameters, and zoom into critical data points effortlessly. Its touch sensitivity remains stable even in demanding industrial environments, providing intuitive operation for mission-critical applications.
Designed for flexibility, the curved display features both DVI and DisplayPort inputs to support a variety of video sources. A dedicated USB port ensures smooth touch functionality and reliable system communication. These multiple connectivity options allow seamless integration into control consoles, broadcast systems, or digital signage networks.

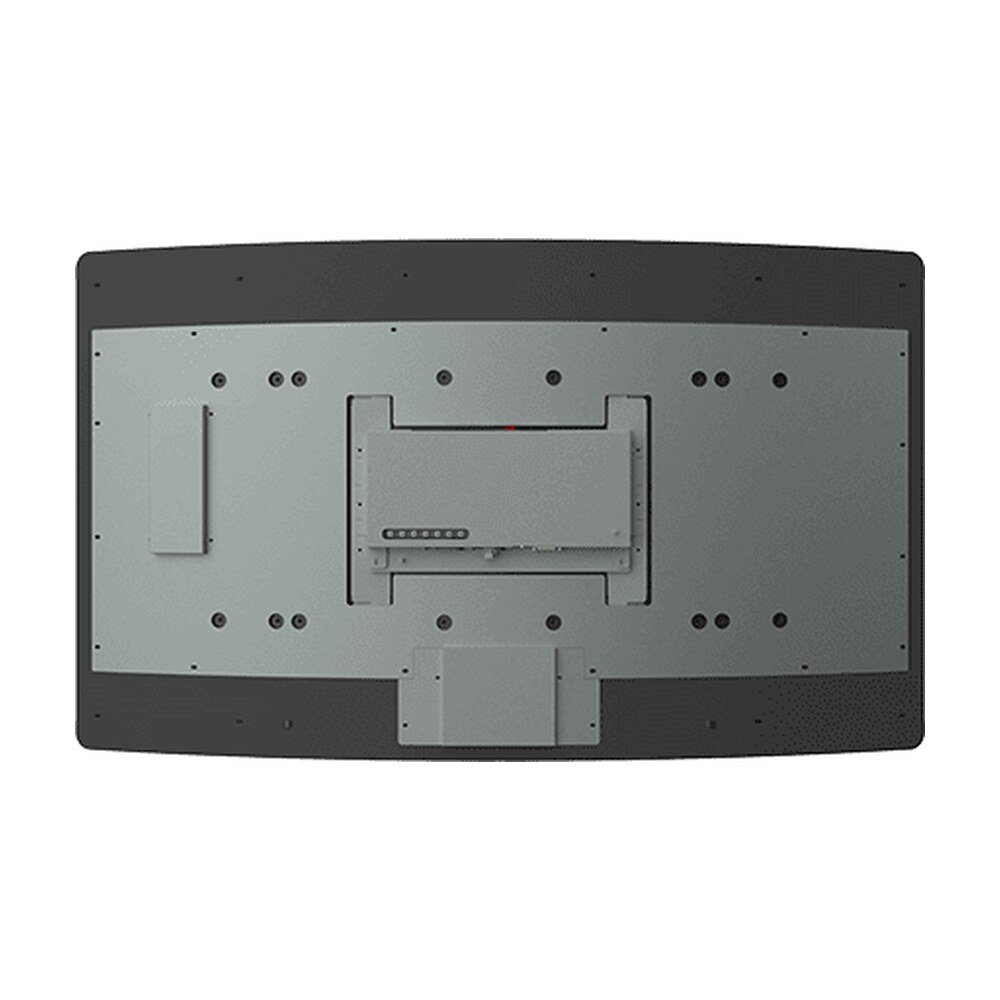

The Winmate Curved Display supports standard VESA mounting hole patterns of 75 × 75 mm and 100 × 100 mm, providing flexibility for various installation setups. The precisely spaced screw holes ensure secure attachment and long-term stability, allowing easy integration into different mounting brackets or enclosures.
| Display | |
|---|---|
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 50.0 inches |
| Resolution | 3840x2160 |
| Panel Brightness | 425.0 nits |
| Contrast Ratio | 4000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 10-bit Colors |
| Active Area | 1068.84x616.4 mm |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| Video | 2 x DP, 1 x HDMI, 1 x DVI |
| Mechanical | |
| Dimension | 1153 x 679 x 164 mm |
| Mounting | VESA mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
| Accessory | |
| Accessory | 1 x USB cable, 1 x HDMI cable, 1 x DP Cable, 1 x DVI cable, 100~240V AC to DC Adapter, Power Cord, Manual, VESA screws(Varies by product) |
| Power | |
| Power Rating | 24V DC in |
| Control | |
| Button | 7 Keys: Power, Menu, Down, Up, Left,Right, Exit |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | W50L100-POCV |
| Series | Curved Display |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | W50L100-POCV |
|---|---|
| Category | Industrial Display, Multi-touch (P-CAP), Winmate |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Size | 50.0 inches |
| Resolution | 3840x2160 |
| Panel Brightness | 425.0 nits |
| Contrast Ratio | 4000:1 |
| View Angles | 89,89,89,89 |
| Display Color | 10-bit Colors |
| Active Area | 1068.84x616.4 mm |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | CE, FCC |
| Video | 2 x DP, 1 x HDMI, 1 x DVI |
| Dimension | 1153 x 679 x 164 mm |
| Mounting | VESA mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
| Accessory | 1 x USB cable, 1 x HDMI cable, 1 x DP Cable, 1 x DVI cable, 100~240V AC to DC Adapter, Power Cord, Manual, VESA screws(Varies by product) |
| Power Rating | 24V DC in |
| Button | 7 Keys: Power, Menu, Down, Up, Left,Right, Exit |
| Brand | Winmate |
| Manufacturer part number | W50L100-POCV |
| Series | Curved Display |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
