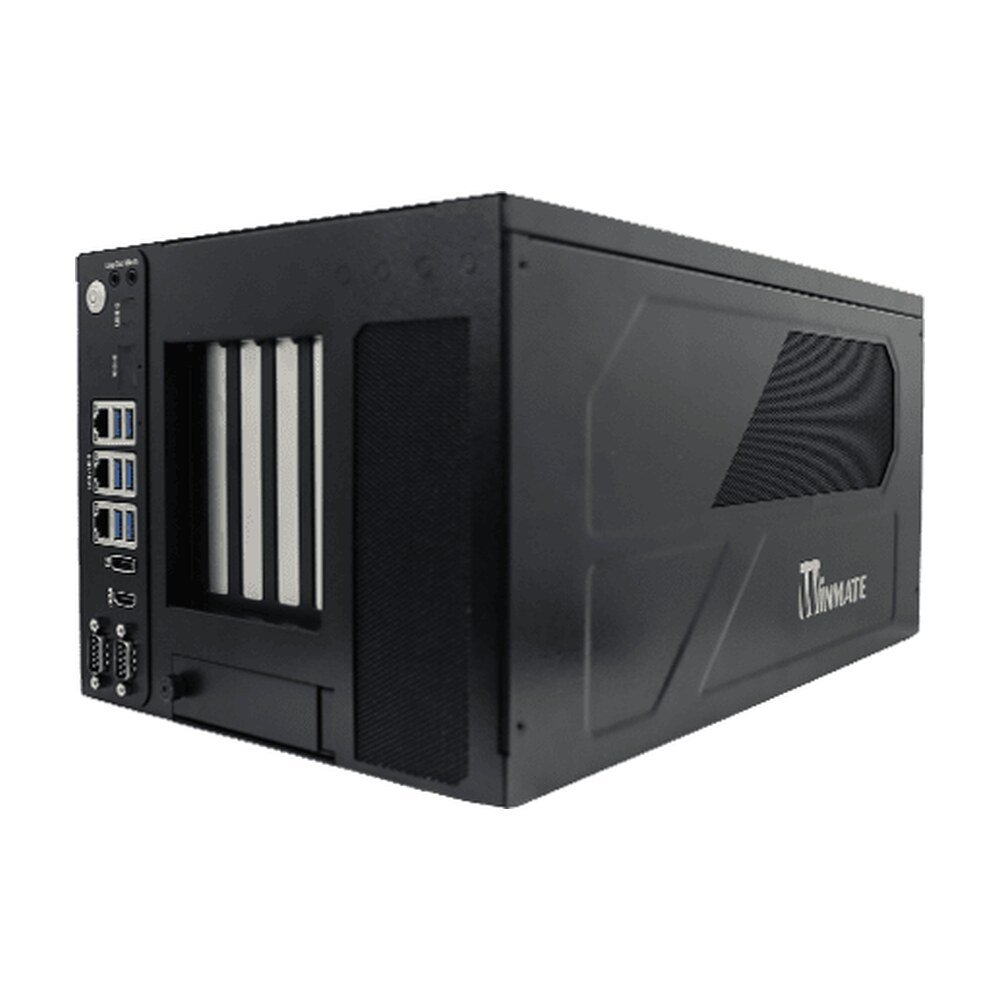

Explore Winmate WNAI-E800L, an edge AI computer featuring Supports Intel® 12/14th generation Raptor Lake S processor (LGA 1700)…
Engineered for intensive AI workloads, the WNAI-E800L supports a single, high-performance NVIDIA RTX PRO 6000 Blackwell or RTX 5090 GPU. This immense graphical processing power accelerates AI-assisted defect inspection, machine vision, and deep learning applications. By delivering unparalleled visual computing performance, it ensures real-time data analysis at the edge without compromising system stability.
Powered by Intel® 12th/14th Gen Raptor Lake S processors (LGA 1700) and supporting up to 96GB of dual-channel DDR SODIMM memory (48GB per slot), this edge AI system delivers breakthrough computational speed. Enhanced with Intel® vPro technology for secure remote management, the WNAI-E800L executes complex AI algorithms rapidly while optimizing power consumption—a critical advantage for energy-efficient AIoT and industrial automation deployments.
Built to act as an intelligent gateway, the WNAI-E800L features a comprehensive I/O interface tailored for high-speed sensor data acquisition. It is equipped with 6 x USB 3.2 ports and 3 x Intel 2.5 Gigabit LAN ports, alongside dual independent display support (1 x HDMI 2.0, 1 x DP 1.4a). This diverse connectivity provides the scalability required for seamless integration into complex robotics, automated production lines, and various industry-specific sensors.
Reliability in harsh environments is non-negotiable. The WNAI-E800L has a durable, rugged design. It runs reliably in temperatures from -25°C to 60°C. Its strong thermal design removes heat from high-performance CPU and GPU components. This helps prevent hardware damage and supports reliable 24/7 use in critical edge computing.
| System Specification | |
|---|---|
| Processor | Supporting Intel® 12/14th-Gen Core™ CPU (LGA1700 socket, 65W/45W/35W TDP), Intel® Core™ i7-14700T(up to 5.2GHz) , Intel® Core™ i7-12700TE(up to 4.6GHz) (Default), Intel® Core™ i9-12900TE(up to 4.8GHz) (Optional), Intel® Core™ i5-14500T(up to 4.8GHz) (Optional), Intel® Core™ i9-14900T(up to 5.5GHz) (Optional), Intel® Core™ i9-14500(up to 5.0GHz) (Optional), Intel® Core™ i7-14700(up to 5.4GHz) (Optional), Intel® Core™ i9-14900(up to 5.8GHz) (Optional) |
| Chipset | Intel® R680E |
| Memory | 2 x non-ECC SO-DIMM RAM, up to 96GB (48GB per DIMM) |
| Storage | 128GB SSD (Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB, 2 x SATA III for 2.5" SSD/HDD up to 2TB(RAID support) (Optional) |
| Ethernet controller | 3 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional), Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 24.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Graphic Card | Supports high-end NVIDIA RTX GPUs (e.g., GeForce RTX 5090 or RTX PRO 6000 Blackwell) (Optional), Other GPU options are available upon request. (Optional) |
| Mechanical | |
| Dimension | 400 x 230 x 196 mm |
| Weight | 7.85kg |
| Mounting | Desk mount |
| Enclosure | Metal Housing |
| Cooling System | Fan Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | -25°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 6 x USB3.2 Gen 2x1 (Type-A) |
| Serial Port | 2 x RS232/422/485 (Default RS232) |
| LAN | 3 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x DP1.4a DP++ , Max resolution up to, 4096x2160@60Hz (Default), 1 x HDMI 2.0b , Max resolution up to, 4096x2160@60Hz (Optional) |
| Audio | Mic in, Line out |
| SIM Card Slot | 1 x nano SIM slot |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi module), 1 x M.2 3042/3052 B-Key Slot (for WWAN module), 1 x PCIe x16 slot, 16-lanes, for NVIDIA® RTX™ GPU cards, 1 x PCie x8 slot, 8-lanes (Only available when PCIe x16 signal is not present), 2 x PCIe x8 slot, 4-lanes |
| Power Input | 1 x 3 Pin AC Plug for ATX Power Supply.Max. to 1200W |
| Control | |
| Button | 1 x Power Button with LED Indicator, 1 x Clear CMOS Button |
| Accessory | |
| Accessory | Power Cord |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | WNAI-E800L |
| Series | Edge AI Computing |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
