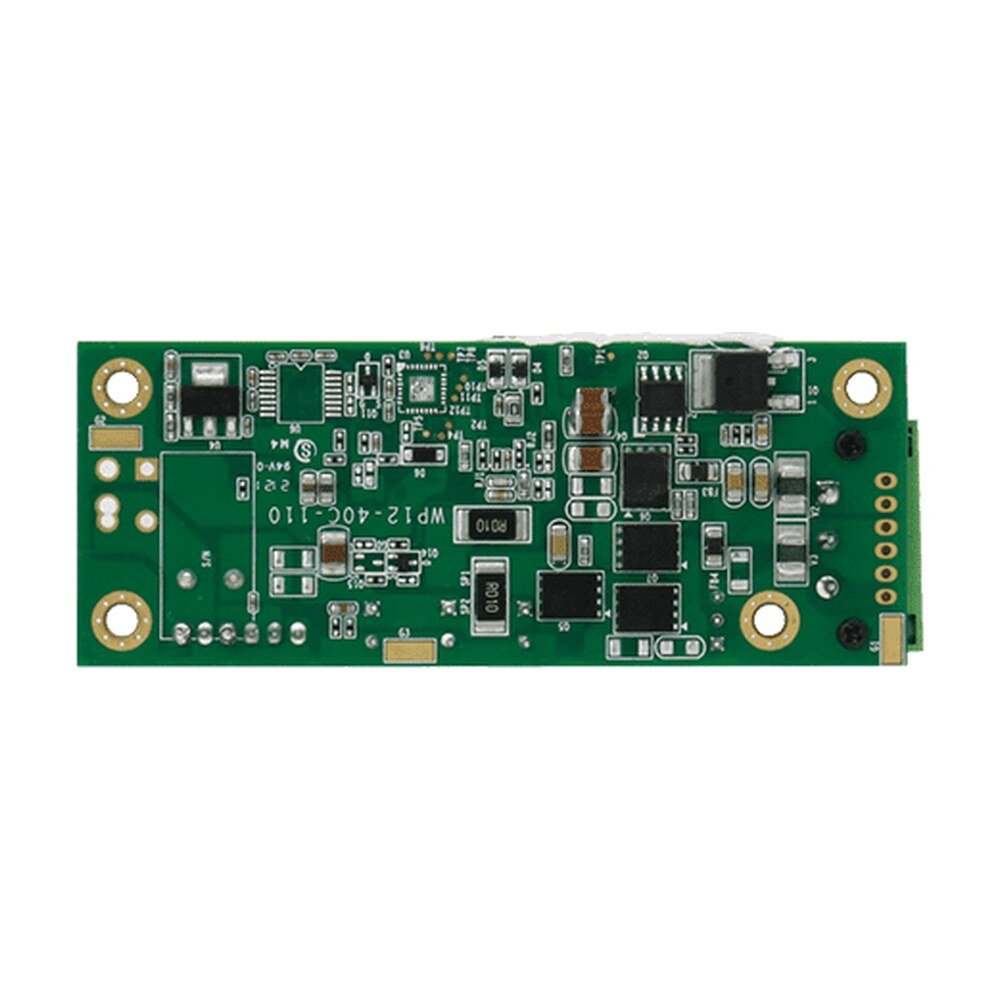

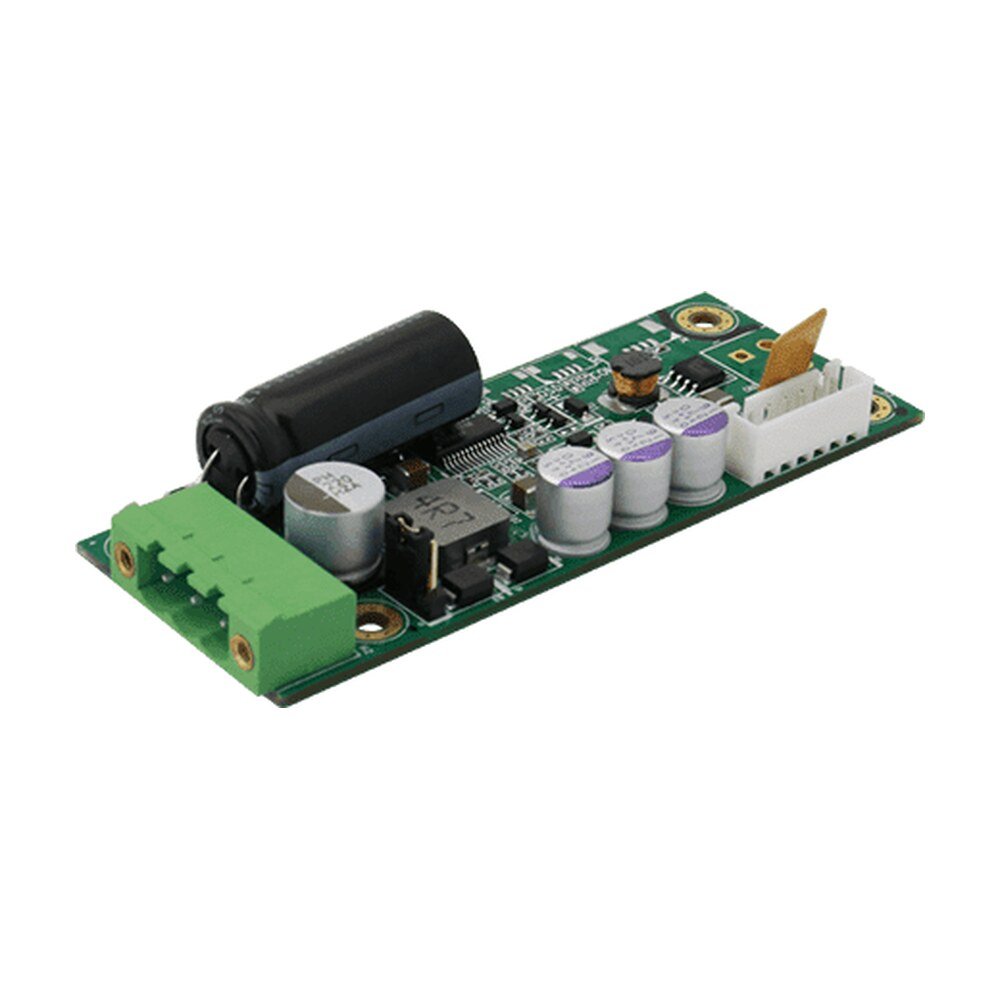

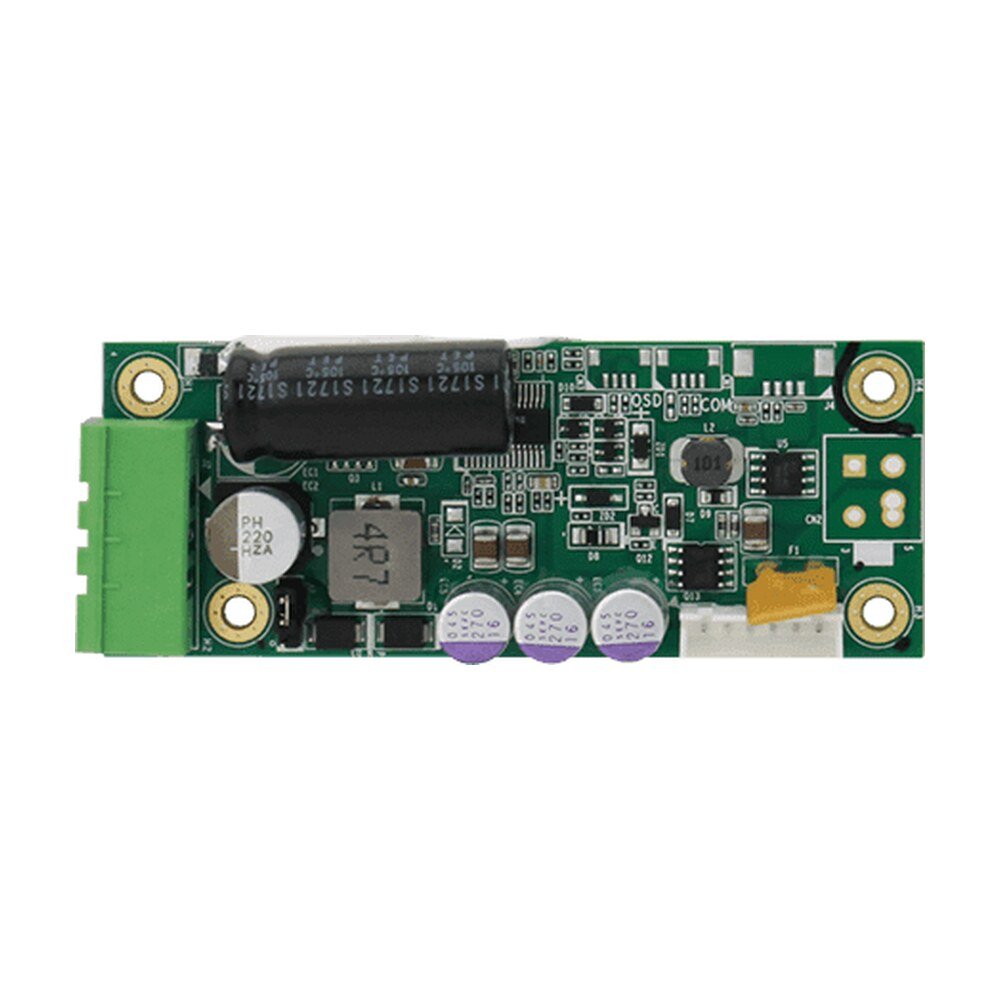

Explore Winmate WP12-40C, a DC-DC converter module featuring High efficiency DC-DC converter module, Low inrush current for industrial power integration and…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate WP12-40C, a DC-DC converter module featuring High efficiency DC-DC converter module, Low inrush current for industrial power integration and…
Developed for dependable operation in renewable resource applications such as solar energy tools, wind generators, as well as electric charging terminals. Available in board mount, chassis mount, and DIN rail mount configurations.
The Winmate Wide Voltage Input DC Converter collection likewise includes a broad operating temperature level series of -20 as much as +70 ° C at complete tons, constant short circuit defense with automatic recovery, and also ranked procedure as much as 0 to 10000ft, permitting it to sustain remote, high elevation installments.
With its high-frequency zero-voltage switching (ZVS) geography, the WP12-40C converter constantly provides high efficiency across the input line range. Modular WP12-40C converters and downstream DC-DC items sustain effective power circulation, giving superior power system performance and also connectivity from a variety of unregulated sources of power to the point-of-load.
| System Specification | |
|---|---|
| Input Voltage | 9V to 36V DC |
| Load Range | 12V 3.3A |
| Power Consumption | 40W |
| Ripple And Noise | Less than 120mV |
| Line Regulation | Less than ±1% at rated 9~36V input voltage |
| Load Regulation | Less than ±5% |
| Efficiency | Up to 90% (Full loading) |
| Protection | OCP protection, OVP protection |
| Certification | |
| Certification | CE, FCC |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Altitude | 0 to 10000ft |
| Mechanical | |
| Dimension | 90 x 35 x 18.6 mm |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | WP12-40C |
| Series | Wide Voltage Input DC Converter |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | WP12-40C |
|---|---|
| Category | Embedded Computing, Power Converter Board, Winmate |
| Input Voltage | 9V to 36V DC |
| Load Range | 12V 3.3A |
| Power Consumption | 40W |
| Ripple And Noise | Less than 120mV |
| Line Regulation | Less than ±1% at rated 9~36V input voltage |
| Load Regulation | Less than ±5% |
| Efficiency | Up to 90% (Full loading) |
| Protection | OCP protection, OVP protection |
| Certification | CE, FCC |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Altitude | 0 to 10000ft |
| Dimension | 90 x 35 x 18.6 mm |
| Brand | Winmate |
| Manufacturer part number | WP12-40C |
| Series | Wide Voltage Input DC Converter |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
