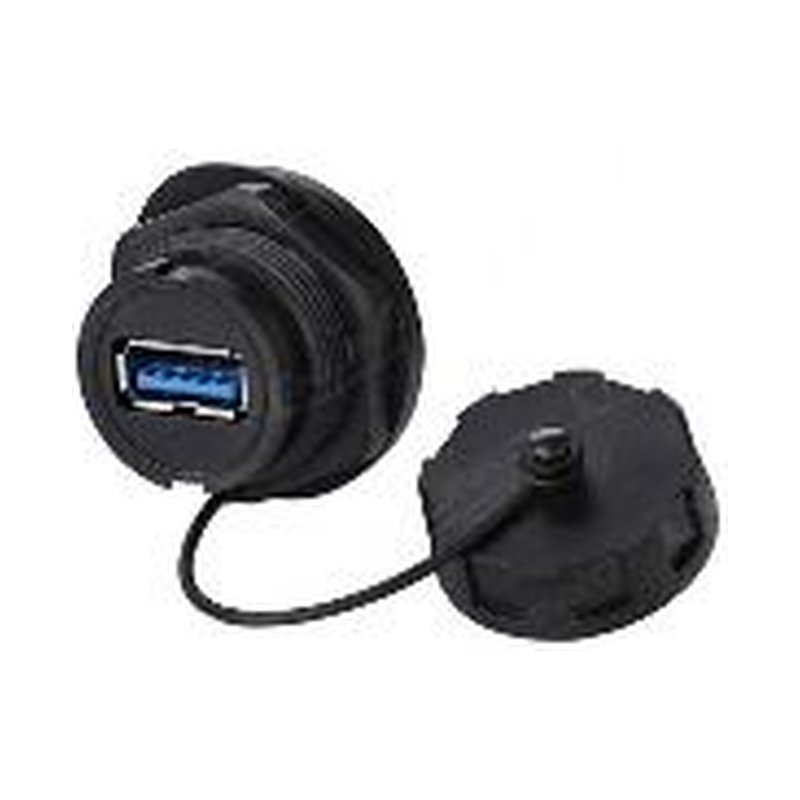

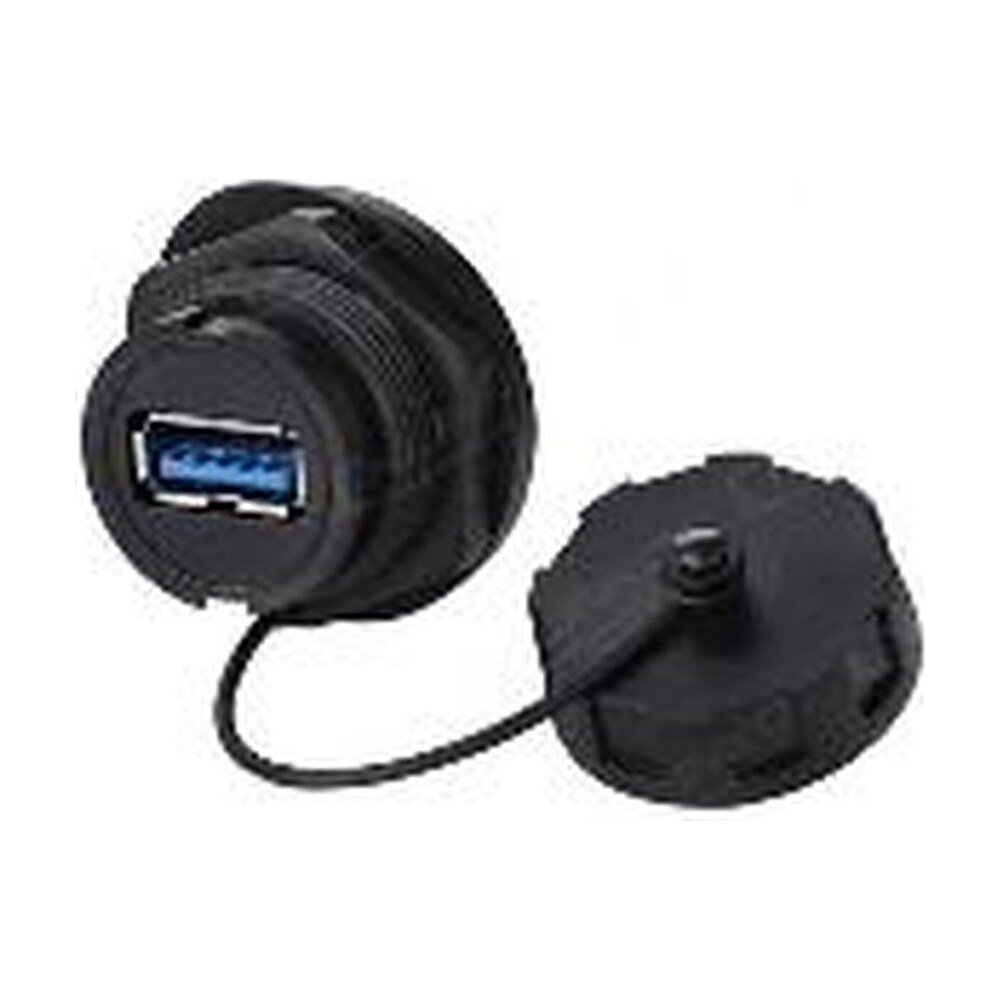

YU-USB3-JSX-01-003 USB 3.0 Female Socket Water Tight

The Cnlinko YU-USB3-JSX-01-003 is a high-quality USB 3.0 female to female socket that is perfect for a wide range of applications, including computers, scanners, digital cameras, and similar devices and perfect for industrial applications. With its 26-24 AWG cable accommodation and 1.5A rating, this socket is designed to operate even under harsh conditions and can even be used with USB 2.0 devices. Plus, it comes complete with a handy cap and features gold plated copper contacts for superior performance.

Description

Cnlinko USB 3.0 Panel Mount Socket YU-USB3-JSX-01-003

YU-USB3-JSX-01-003, USB3.0 type A female socket, dual sides, panel mount

Old Part Number: YU-USB3-JSX-01-003

Specifications

  • Dimensions (Without Cap)- 32.2 mm Diameter x 31.2 mm Length (1.27″ x 1.23″)
  • Number of Contacts- 9
  • Wire Gauge- 26-24 AWG
  • Rated Current- 1.5 Amps
  • Contact Resistance- <30 mOhm
  • Withstanding Voltage- 100V
  • Insulation Resistance- >500 MOhm
  • Ingress Protection- IP 67 (when mated) – Indicates total protection from dust & temporary immersion in water (1 meter for 30 minutes)
  • Durability- > 500 times
  • Operating Temperature- -40 C to 80 C (-40 F to 176 F)
  • Connection- 1/2 Bayonet
  • Housing Material- High performance engineering plastic
  • Flammability Rating- UL94-V0
