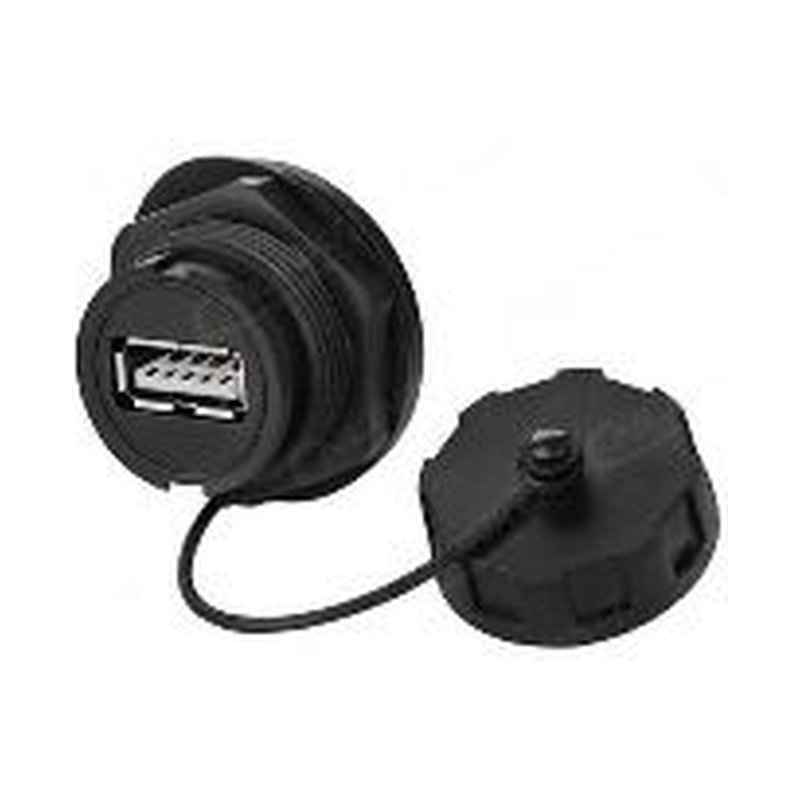

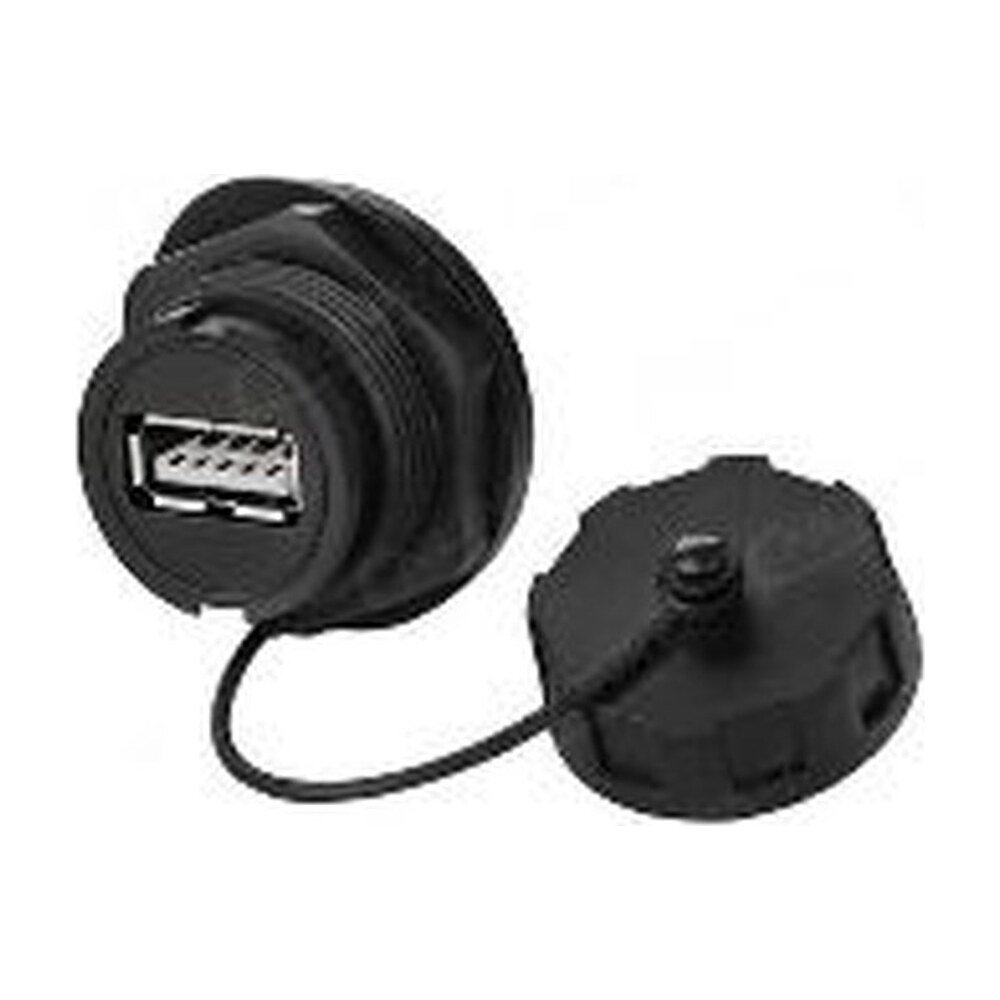

YU-USB2-JSX-01-003 YU-USB Series USB 2.0 Female Socket Water Tight

The Cnlinko YU-USB2-JSX-01-003 is a USB 2.0 female socket that can be an ideal solution for connection requirements of computers, scanners, digital cameras, and other similar devices. This socket is designed to operate smoothly and effectively even under harsh conditions, providing reliable performance when you need it the most. With its 26-24 AWG cable accommodation, 1.5A rating, and gold plated copper contacts, this pocket-sized socket offers high-quality connectivity, ensuring a seamless experience every time. The 1/2 bayonet connection adds to the convenience and functionality of this socket while the included cap enhances the longevity and usability of the socket, making it a must-have for your connectivity needs.

Description

Specifications

  • Dimensions (Without Cap)- 32.2 mm Diameter x 31.2 mm Length (1.27″ x 1.23″)
  • Number of Contacts- 4
  • Wire Gauge- 26-24 AWG
  • Rated Current- 1.5 Amps
  • Contact Resistance- <30 mOhm
  • Withstanding Voltage- 500V
  • Insulation Resistance- >500 MOhm
  • Ingress Protection- IP 67 (when mated) – Indicates total protection from dust & temporary immersion in water (1 meter for 30 minutes)
  • Durability- > 500 times
  • Operating Temperature- -40 C to 80 C (-40 F to 176 F)
  • Connection- 1/2 Bayonet
  • Housing Material- High performance engineering plastic
  • Flammability Rating- UL94-V0
  • Approvals- CE, RoHS, ISO 9001

Cnlinko USB 2.0 Panel Mount Socket YU-USB2-JSX-01-003

Reviews

There are no reviews yet.

Be the first to review “YU-USB2-JSX-01-003 YU-USB Series USB 2.0 Female Socket Water Tight”

Your email address will not be published. Required fields are marked *

SKU YU-USB2-JSX-01-003 Category

The Cnlinko YU-USB2-JSX-01-003 is a USB 2.0 female socket that can be an ideal solution for connection requirements of computers, scanners, digital cameras, and other similar devices. This socket is designed to operate smoothly and effectively even under harsh conditions, providing reliable performance when you need it the most. With its 26-24 AWG cable accommodation, 1.5A rating, and gold plated copper contacts, this pocket-sized socket offers high-quality connectivity, ensuring a seamless experience every time. The 1/2 bayonet connection adds to the convenience and functionality of this socket while the included cap enhances the longevity and usability of the socket, making it a must-have for your connectivity needs.

$7.34

Available on backorder

Quantity Discount
Quantity Discount Discounted price
1 - 25 - $7.34
26 - 50 1% $7.27
51 - 75 1.5% $7.23
76 - 100 2% $7.19
Bulk pricing will be applied to package:
