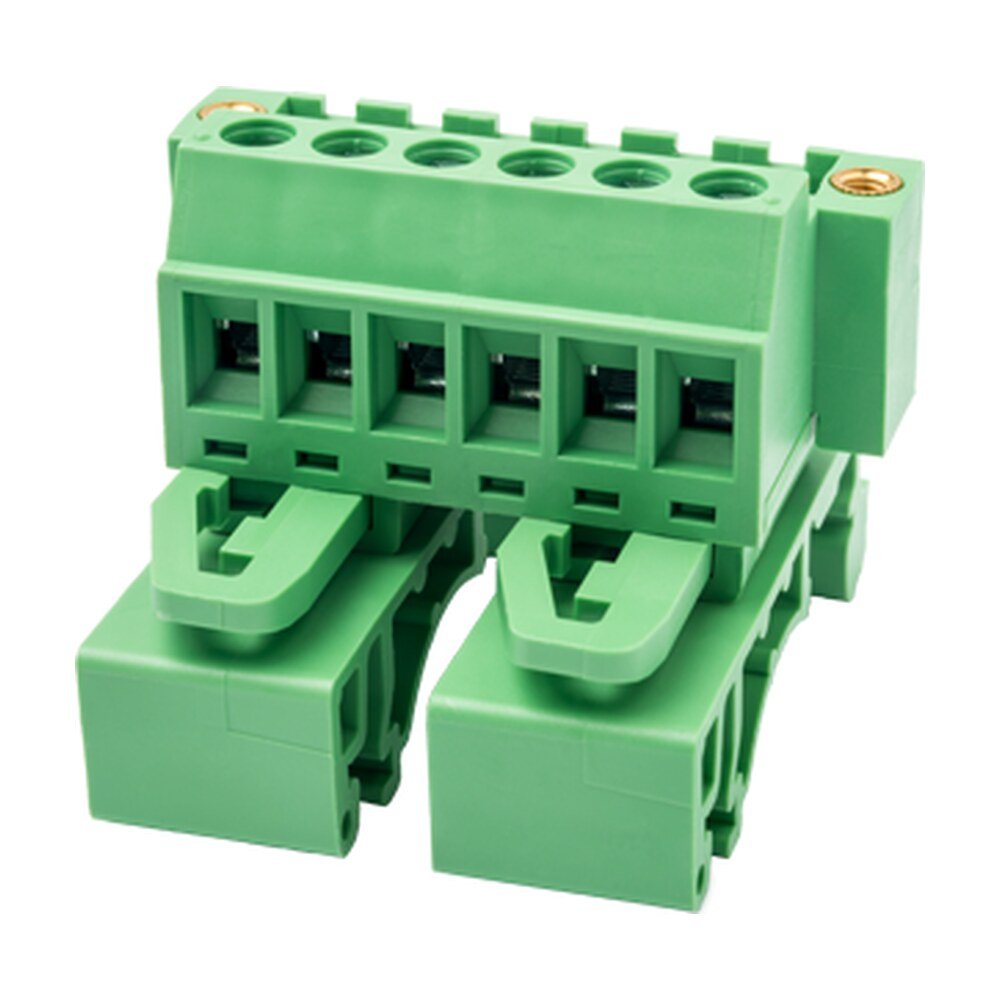

2EHDRDM-XXP — Special type terminal blocks, Screw connection, Pitch: 5.08 mm, 300V, 12A
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Send us the quantity you need and we will come back with pricing and a firm lead time.
Dinkle 2EHDRDM-XXP — Special type terminal blocks, Screw connection. Distributed by Micro-Ray Electronics.
DIN rail terminal blocks distribute and land field wiring inside a control panel on a standard 35 mm rail, so circuits can be tested, isolated and re-terminated without cutting into the harness. They are the backbone of the wiring in machine control cabinets, building systems and process skids.
Special type terminal blocks, Screw connection, Pitch: 5.08 mm, 300V, 12A
Published by Dinkle for the 2EHDRDM-XXP series.
| Category | Special type terminal blocks |
|---|---|
| Pitch (mm) | 5.08 |
| Color | Green (default) |
| Connection method | Screw connection |
| Type of locking | With threaded flange |

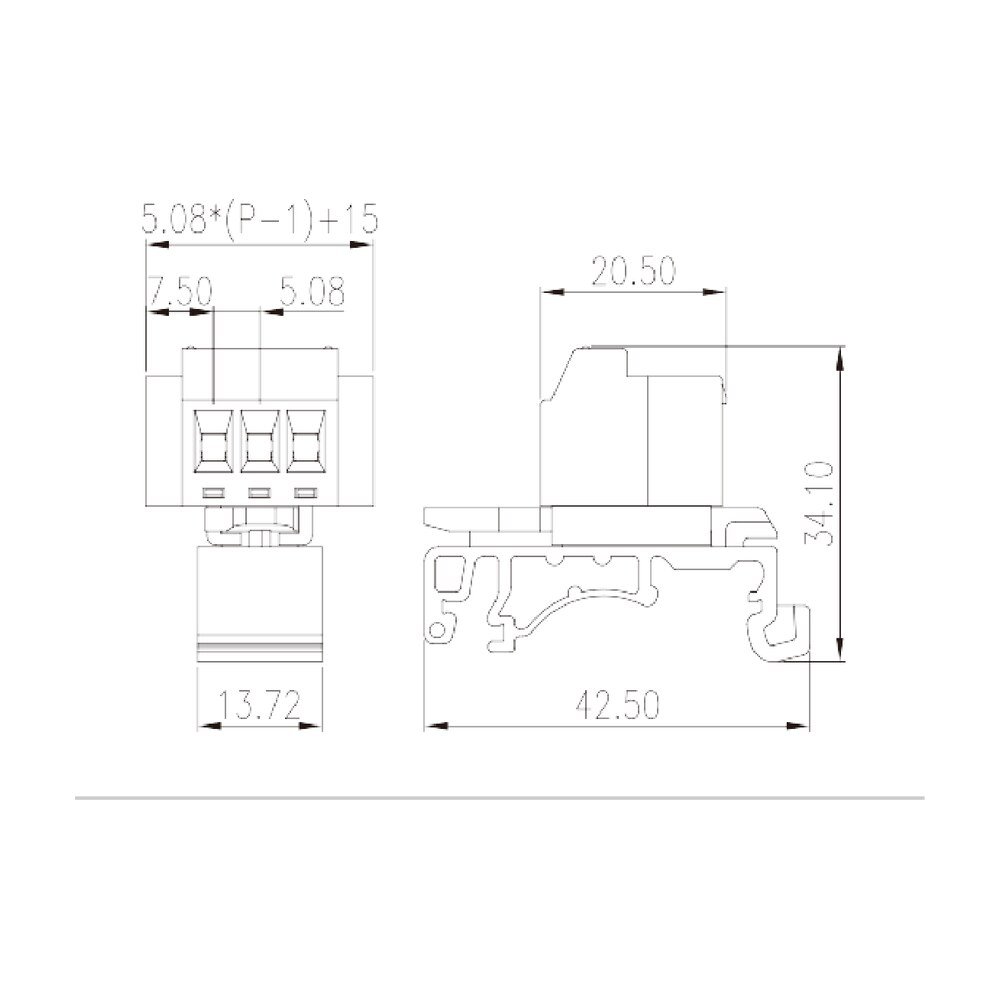

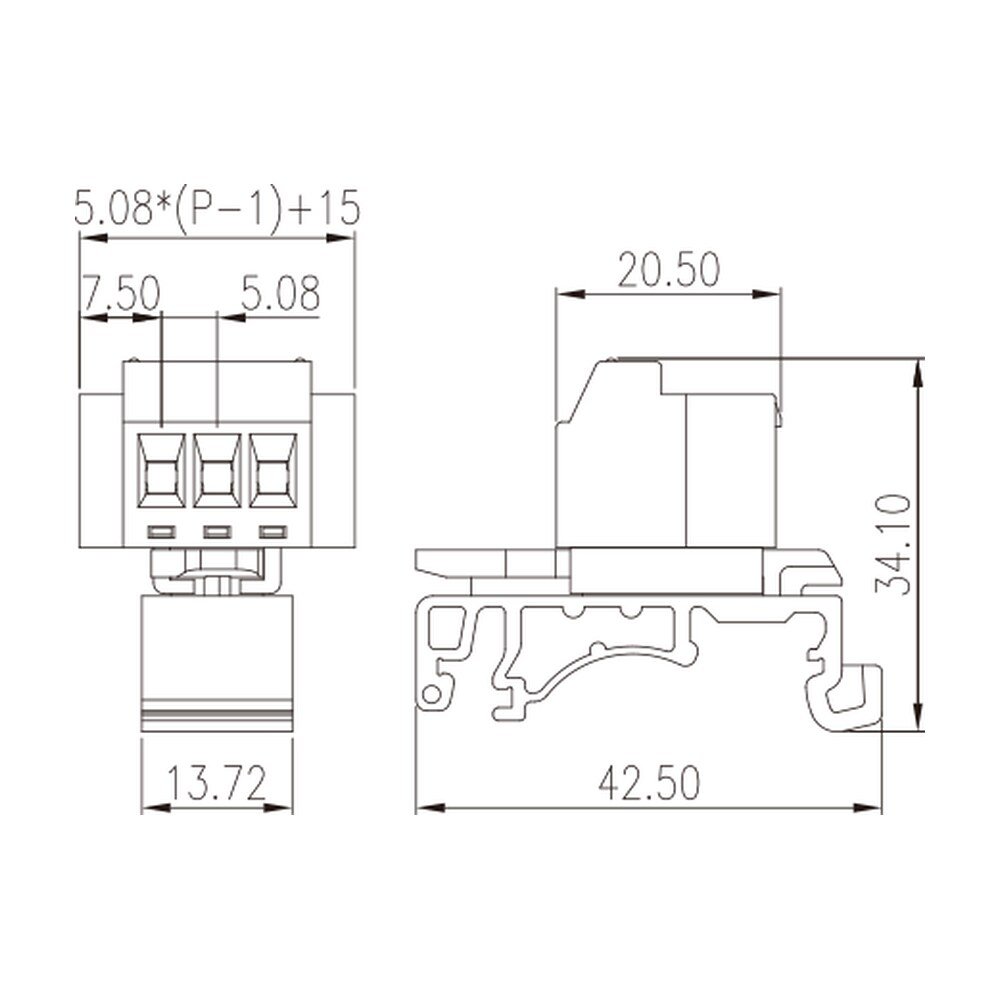

| Length (mm) | 5.08*(P-1)+15.00 |
| Width (mm) | 20.05 |
| Height (mm) | 34.1 |
| Number of positions | 02~20P |
| Insulation material | PA |
|---|---|
| Insulation material group | I |
| Flame retardant rating , compliant with UL94 | V0 |
| Conductor material | COPPER ALLOY |
| Plating of conductor surface | Tin PLATED |
| Rated voltage (V) | 250 |
|---|---|
| Rated current (A) | 12 |
| Rated voltage (II/2)(V) | 600 |
| Rated voltage (III/2) (V) | 320 |
| Rated voltage (III/3)(V) | 250 |
| Rated impulse voltage (II/2)(KV) | 4 |
| Rated impulse voltage (III/2)(KV) | 4 |
| Rated impulse voltage (III/3)(KV) | 4 |
| Conductor cross section solid. min (mm²) | 0.5 |
| Conductor cross section solid.max (mm²) | 2.5 |
| Conductor cross section stranded. min (mm²) | 0.5 |
| Conductor cross section stranded. max (mm²) | 2.5 |
| Conductor cross section flexible, with min ferrule without plastic sleeve (mm²) | 0.25 |
| Conductor cross section flexible, with max ferrule without plastic sleeve (mm²) | 2.5 |
| Conductor cross section flexible, with min ferrule with plastic sleeve (mm²) | 0.25 |
| Conductor cross section flexible, with max ferrule with plastic sleeve (mm²) | 1.5 |
| 2 conductors with same cross section, solid, max (mm²) | 1.5 |
| 2 conductors with same cross section, stranded, max (mm²) | 1.5 |
| 2 conductors with same cross section flexible, with min ferrule without plastic sleeve (mm²) | 0.25 |
| 2 conductors with same cross section flexible, with max ferrule without plastic sleeve (mm²) | 0.75 |
| 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²) | 0.5 |
| 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²) | 1.5 |
| Screw thread | M2.5 |
| Slotted screwdriver size (Blade thickness x Width)(mm) | 0.6x3.5 |
| Philips screwdriver size | PH1 |
| Rated torque (N.m) | 0.6 |
| Stripping Length (mm) | 7~8 |
| Mounting rail | TS-35 |
| Rated voltage (UL/CUL Group B)(V) | 300 |
|---|---|
| Rated current (UL/CUL Group B)(A) | 12 |
| Back of the hand protection (YES or NO) | YES |
|---|---|
| Finger protection (YES or NO) | YES |
| Operating temperature. max (°C) | 115 |
| Operating temperature. min (°C) | -40 |
