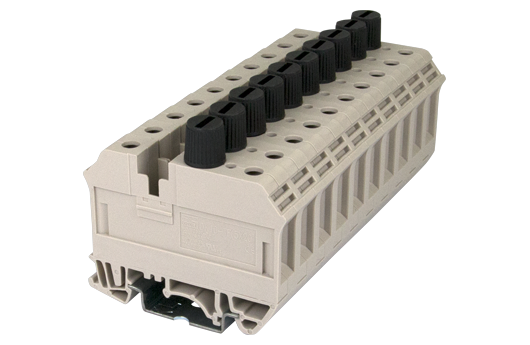

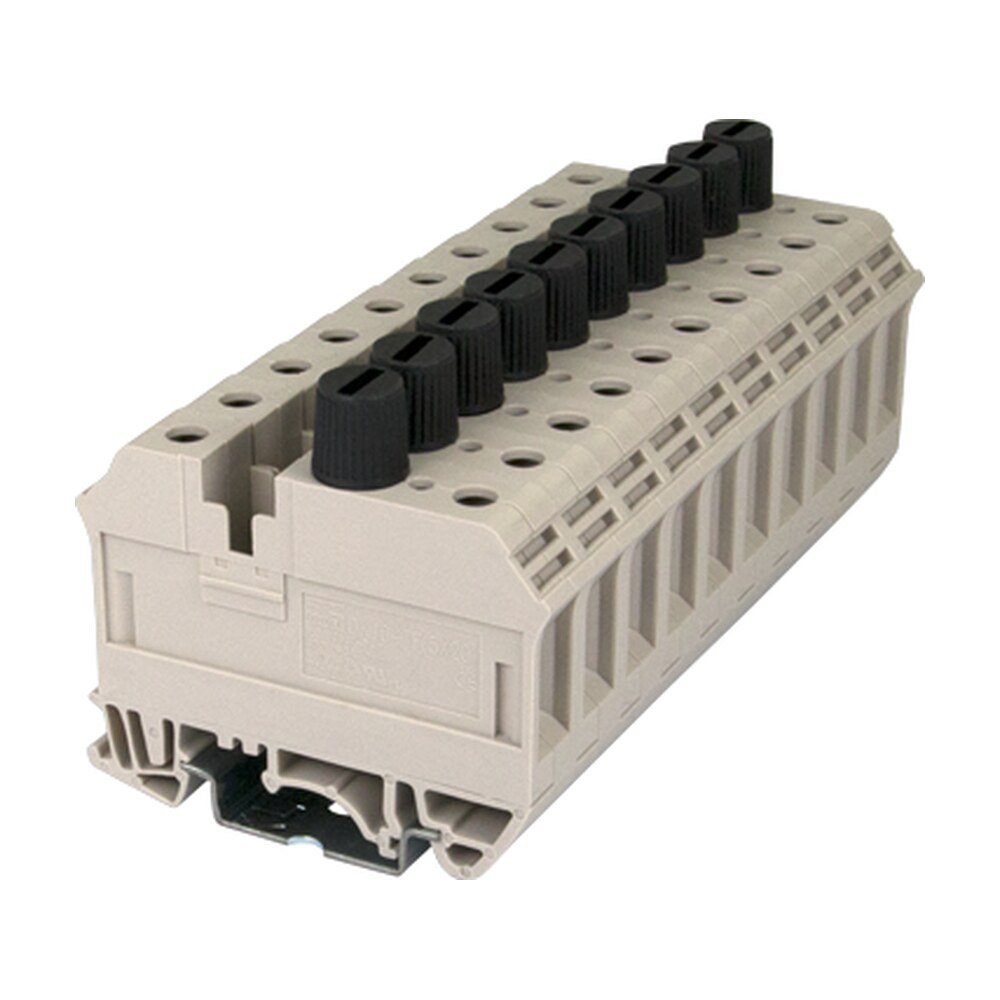

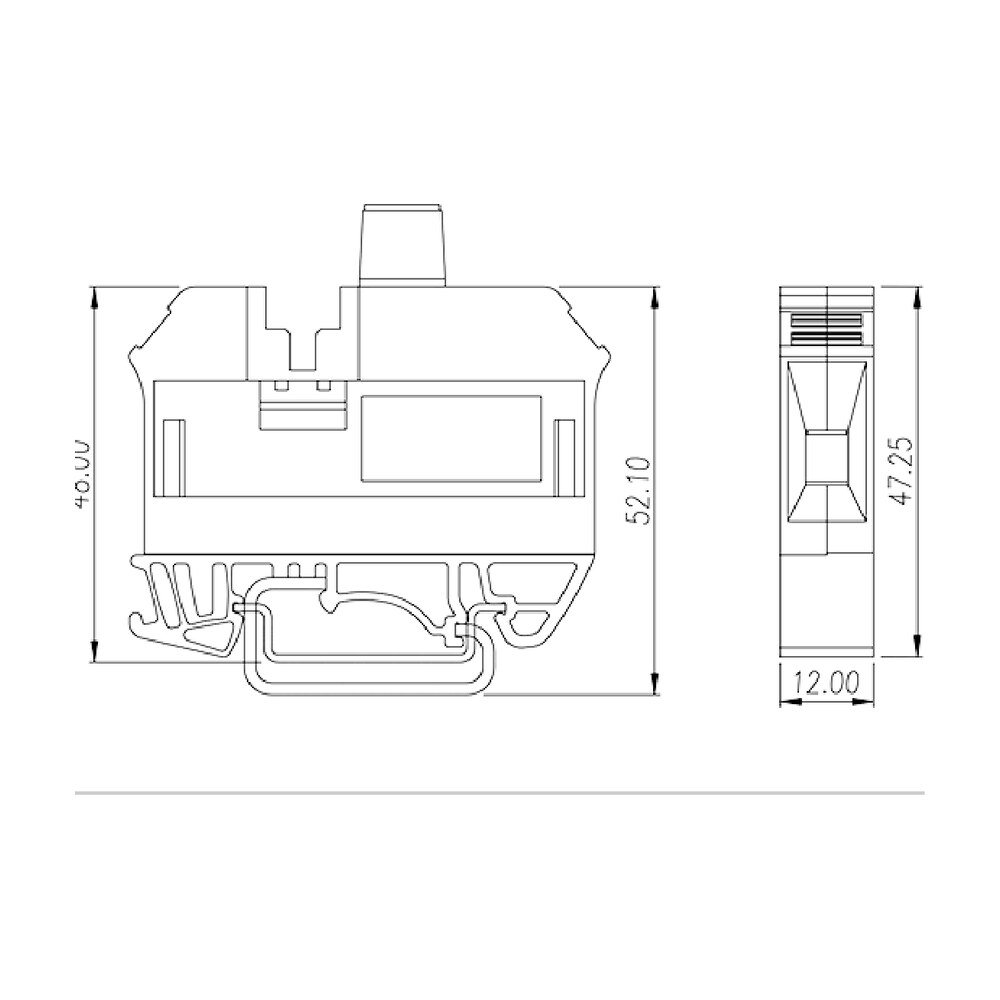

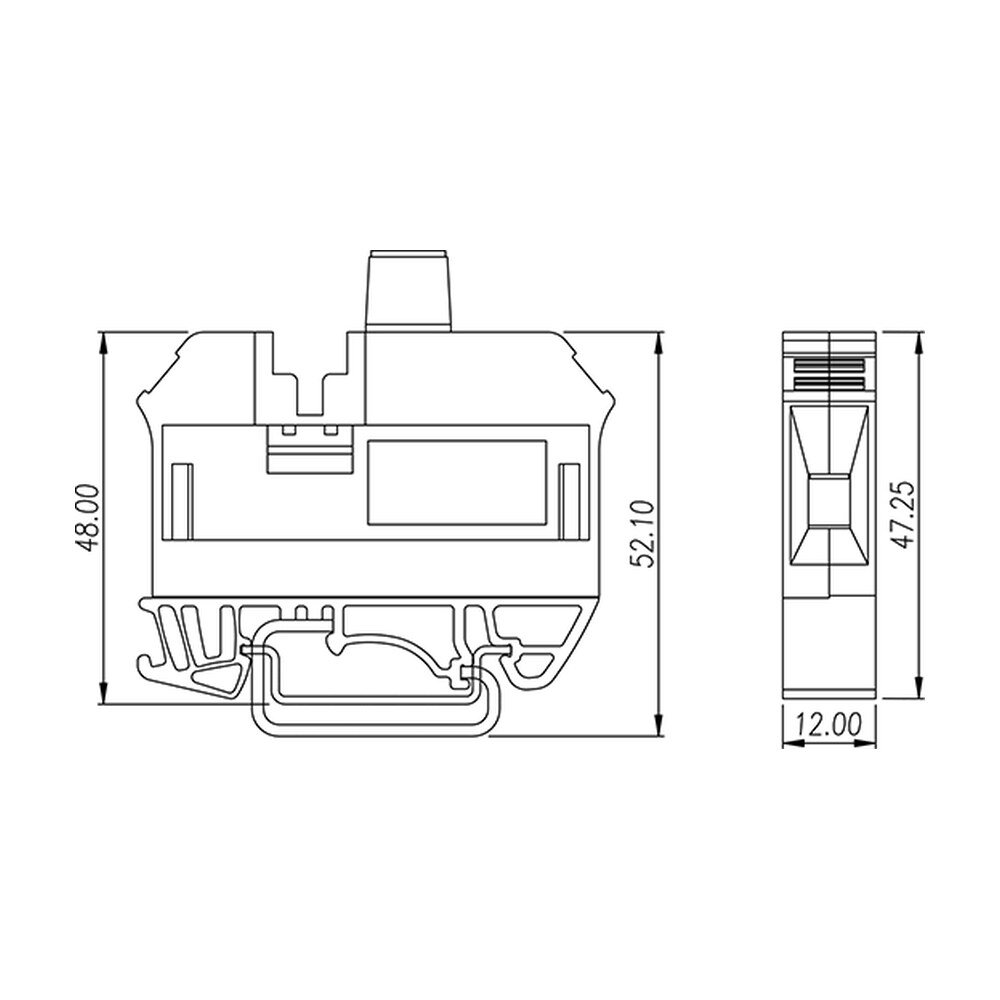

DK10-TF — Fuse terminal blocks, Screw Connection, Width：12mm, M4, 600V, 6.3A. M4, 600V, 6.3A, Beige (default).
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Send us the quantity you need and we will come back with pricing and a firm lead time.
Dinkle DK10-TF — DIN rail terminal blocks, Fuse terminal blocks. Distributed by Micro-Ray Electronics.
DIN rail terminal blocks distribute and land field wiring inside a control panel on a standard 35 mm rail, so circuits can be tested, isolated and re-terminated without cutting into the harness. They are the backbone of the wiring in machine control cabinets, building systems and process skids.
Fuse terminal blocks, Screw Connection, Width：12mm, M4, 600V, 6.3A
Published by Dinkle for the DK10-TF series.
| Category | Fuse terminal blocks |
|---|---|
| Color | Beige (default) |
| Connection method | Screw connection |
| Type of locking | Rail mounting |
| Length (mm) | 61.63 |
| Width (mm) | 12 |
| Height (mm) | 57.8 |
| Number of positions | ≥1P |
| Level | Single level |
| Connection points | 2 |
| Insulation material | PA |
|---|---|
| Insulation material group | I |
| Flame retardant rating , compliant with UL94 | V0 |
| Insulation resistance | ≥500MΩ at DC 500V |
| Rated voltage (V) | 800 |
|---|---|
| Rated current (A) | 6.3 |
| Rated voltage (III/3)(V) | 800 |
| Rated impulse voltage (II/2)(KV) | 8 |
| Rated impulse voltage (III/2)(KV) | 8 |
| Rated impulse voltage (III/3)(KV) | 8 |
| Conductor cross section solid. min (mm²) | 1.5 |
| Conductor cross section solid.max (mm²) | 10 |
| Conductor cross section stranded. min (mm²) | 1.5 |
| Conductor cross section stranded. max (mm²) | 10 |
| Conductor cross section flexible, with min ferrule without plastic sleeve (mm²) | 1.5 |
| Conductor cross section flexible, with max ferrule without plastic sleeve (mm²) | 10 |
| Conductor cross section flexible, with min ferrule with plastic sleeve (mm²) | 1.5 |
| Conductor cross section flexible, with max ferrule with plastic sleeve (mm²) | 10 |
| 2 conductors with same cross section, solid, min (mm²) | 1.5 |
| 2 conductors with same cross section, solid, max (mm²) | 6 |
| 2 conductors with same cross section, stranded, min (mm²) | 1.5 |
| 2 conductors with same cross section, stranded, max (mm²) | 6 |
| 2 conductors with same cross section flexible, with min ferrule without plastic sleeve (mm²) | 1.5 |
| 2 conductors with same cross section flexible, with max ferrule without plastic sleeve (mm²) | 6 |
| 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²) | 1.5 |
| 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²) | 4 |
| Screw thread | M4 |
| Slotted screwdriver size (Blade thickness x Width)(mm) | 0.8x4.0 |
| Philips screwdriver size | PH2 |
| Rated torque (N.m) | 1.8 |
| Stripping Length (mm) | 12~16 |
| Mounting rail | TS-35 |
| End cover plate required | NO |
| Grounding connections | NO |
| Rated voltage (UL/CUL Group B)(V) | 600 |
|---|---|
| Rated current (UL/CUL Group B)(A) | 6.3 |
| Rated voltage (UL/CUL Group D)(V) | 600 |
| Rated current (UL/CUL Group D)(A) | 5 |
| Min. solid wire connection (AWG) acc. to UL/CUL | 22 |
| Max. solid wire connection AWG acc. to UL/CUL | 6 |
| Min. stranded wire connection AWG acc. to UL/CUL | 22 |
| Max. stranded wire connection AWG acc. to UL/CUL | 6 |
| Back of the hand protection (YES or NO) | YES |
|---|---|
| Finger protection (YES or NO) | YES |
| Operating temperature. max (°C) | 120 |
| Operating temperature. min (°C) | -40 |
| Wire Range (Group B)(AWG) | 22~6 |
|---|---|
| Rated voltage (Group B)(V) | 600 |
| Rated current (Group B)(A) | 6.3 |
| Wire Range (Group D)(AWG) | 22~6 |
| Rated voltage (Group D)(V) | 600 |
| Rated current (Group D)(A) | 5 |
| Wire Range (Group B)(AWG) | 22~6 |
|---|---|
| Rated voltage (Group B)(V) | 600 |
| Rated current (Group B)(A) | 6.3 |
| Wire Ranget (Group D)(AWG) | 22~6 |
| Rated voltage (Group D)(V) | 600 |
| Rated current (Group D)(A) | 5 |
Supplied by Micro-Ray Electronics, a family-owned connector manufacturer in Brick, New Jersey since 1984. Availability is confirmed on your quotation, samples are available for qualification, and there is no minimum order quantity.
| Part Number (SKU) | DK10-TF |
|---|---|
| Category | Screw Connection |
| Block Type | Fuse terminal blocks |
| Connection Method | Screw connection |
| Type of Locking | Rail mounting |
| Level | Single level |
| Connection Points | 2 |
| Number of Positions | ≥1P |
| Rated Voltage (UL) | 600 |
| Rated Current (UL) | 6.3 |
| Wire Range (UL) | 22~6 |
| Rated Voltage (IEC) | 800 |
| Rated Current (IEC) | 6.3 |
| Stripping Length (mm) | 12~16 |
| Screw Thread | M4 |
| Mounting Rail | TS-35 |
| Length (mm) | 61.63 |
| Width (mm) | 12 |
| Height (mm) | 57.8 |
| Insulation Material | PA |
| Flame Rating (UL94) | V0 |
| Color | Beige (default) |
| Operating Temperature | -40 to 120 °C |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
