DH-20-J03SX-03-401

DH-20-J03SX-03-401

Old Part Number: DH-20-J03SX-01-001

The Cnlinko DH-20-J03SX-03-401 is a high-quality, durable and reliable 3 pin female socket that is specifically designed for power applications. This socket can easily accommodate 14-12 AWG cable, making it a versatile choice for a variety of different electrical applications. It is rated for 500V and has a maximum rating of 20A, which means that it can easily handle high-powered equipment with ease.

If you are looking for a socket that is ideal for LED displays and stage lighting equipment, then the Cnlinko DH-20-J03SX-03-401 is the perfect choice for you. It has been designed with the needs of professionals in mind and is made from only the highest-quality materials, ensuring that it will stand up to even the toughest environmental conditions. So if you want a socket that you can rely on for years to come, then be sure to choose the Cnlinko DH-20-J03SX-03-401.

Description

DH-20-J03SX-03-401

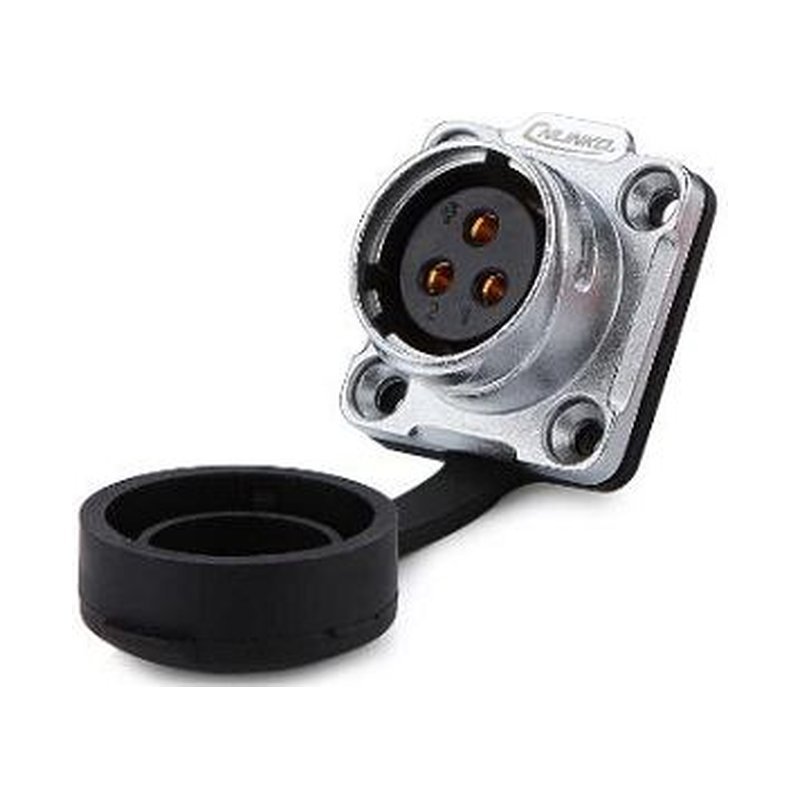

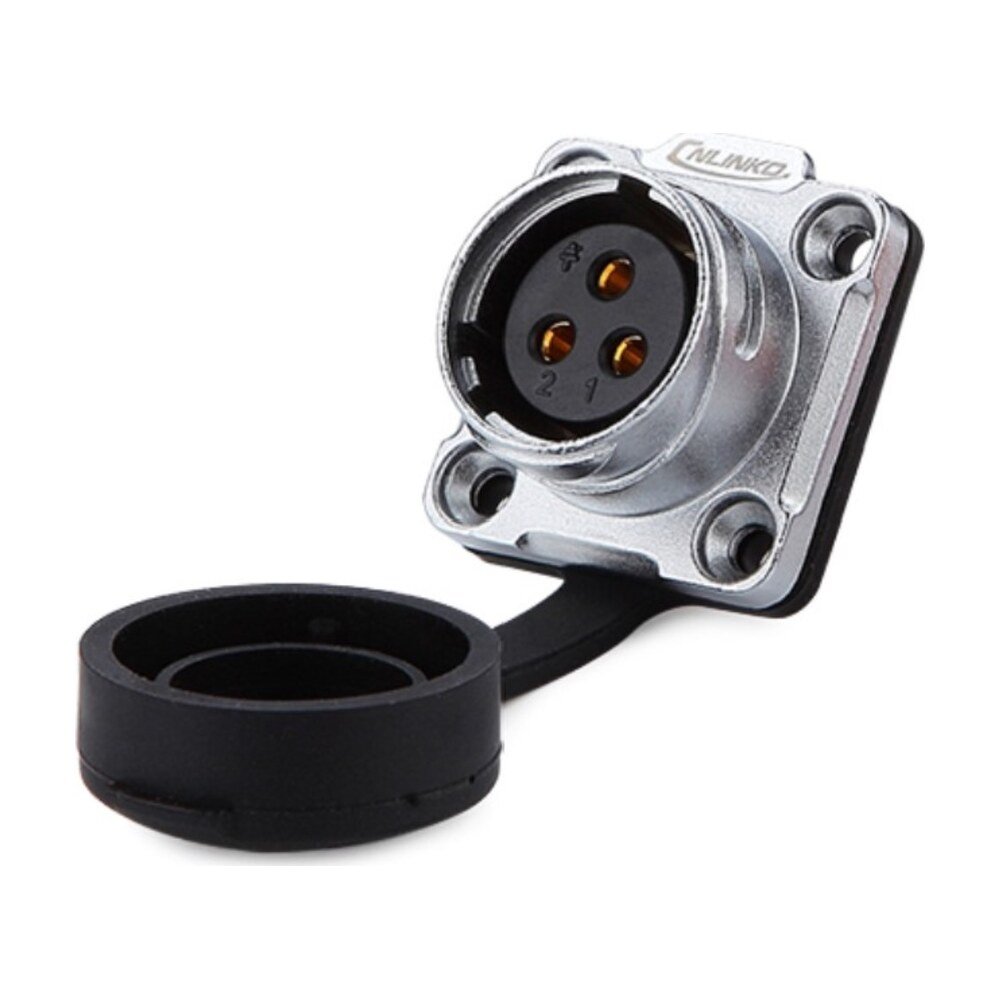

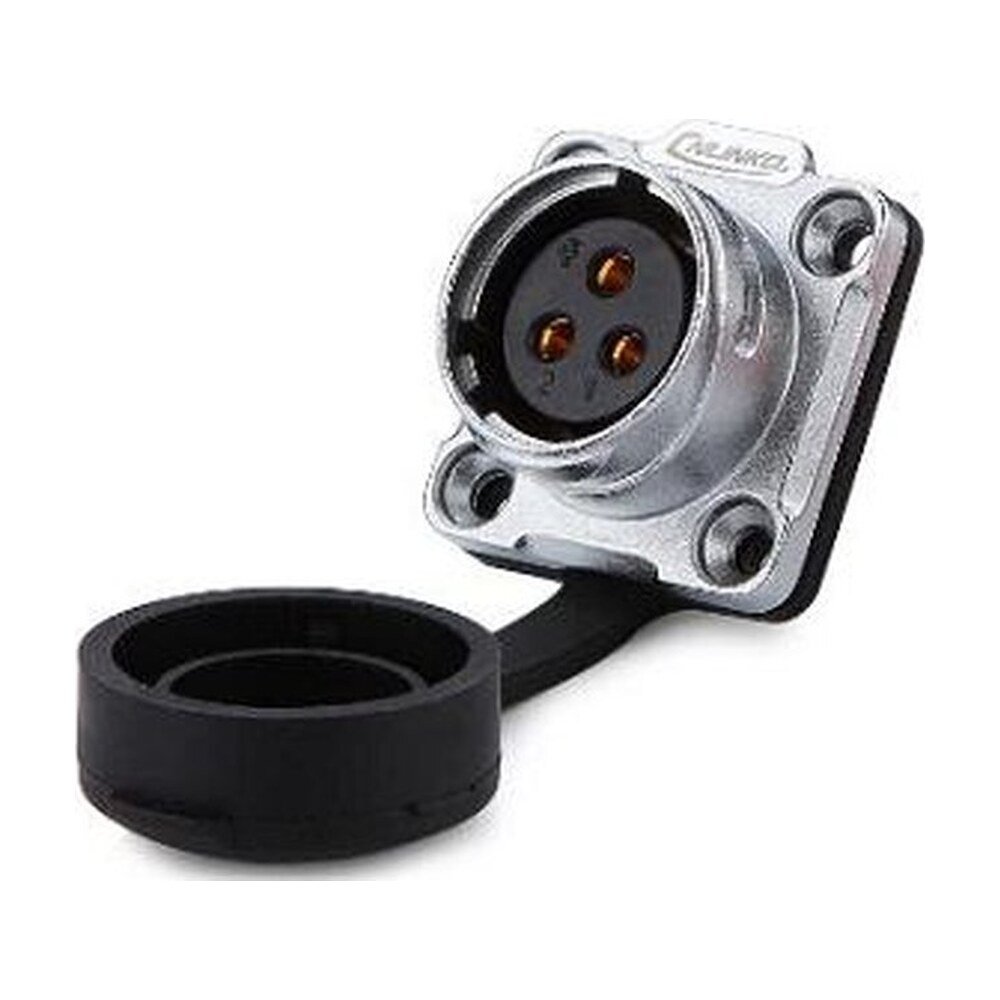

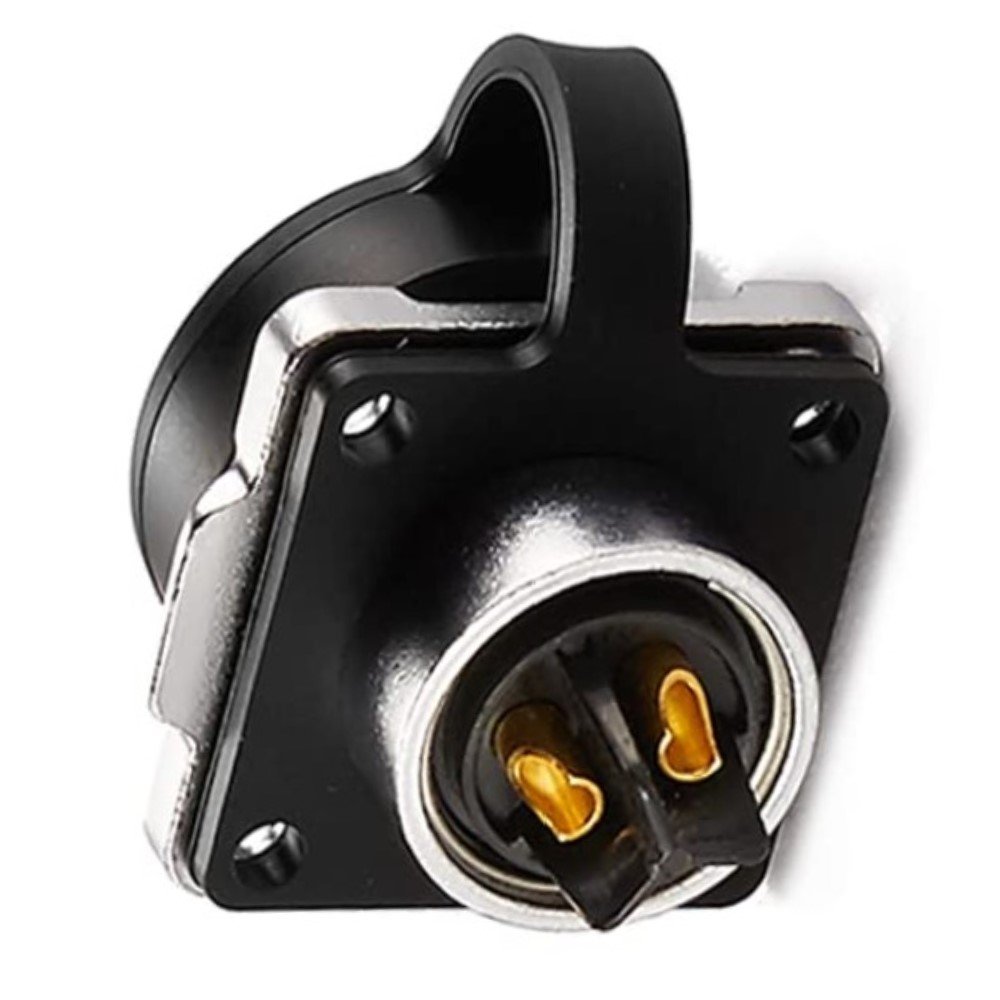

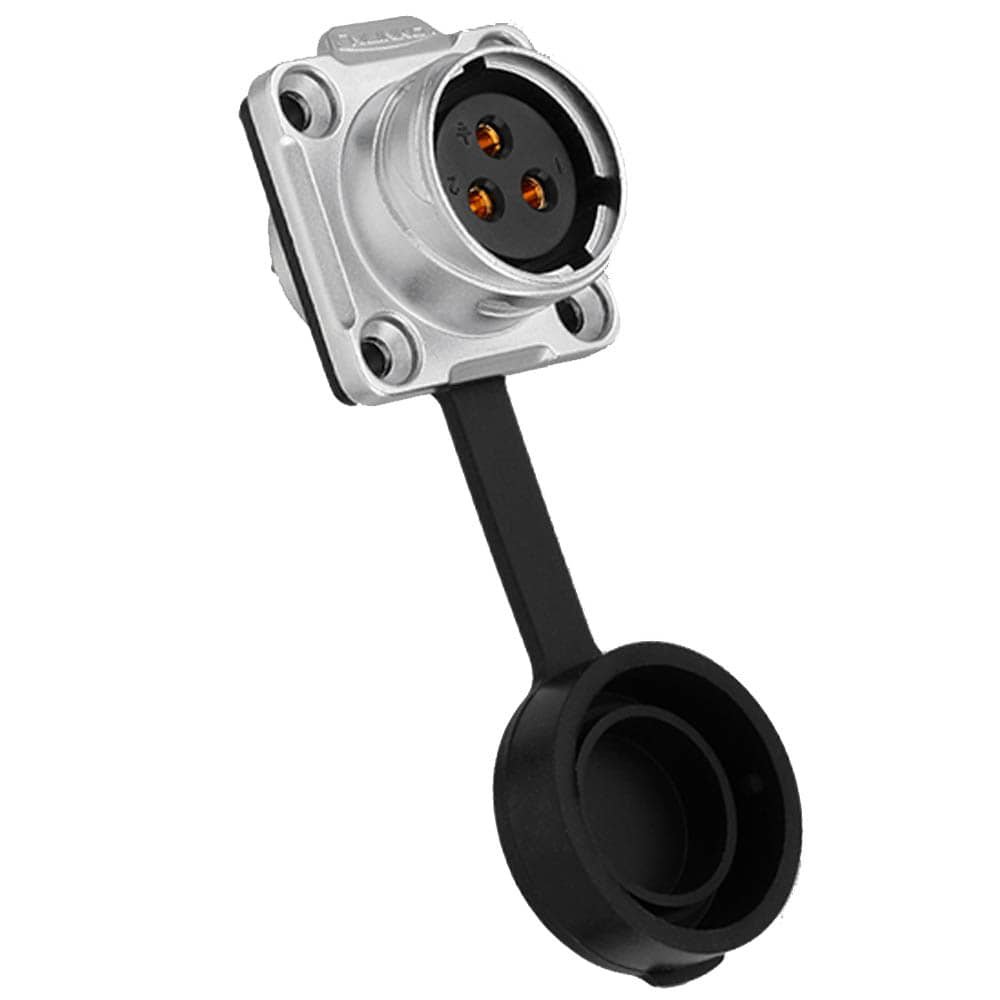

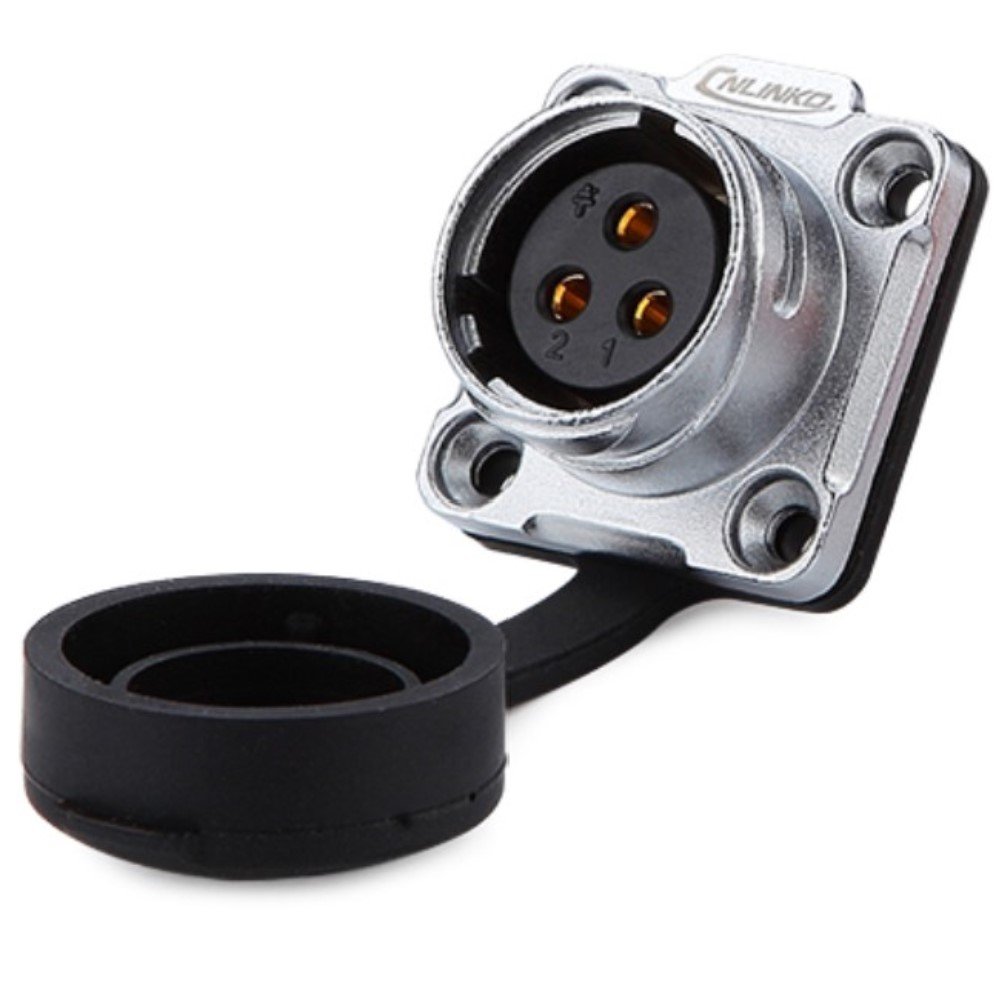

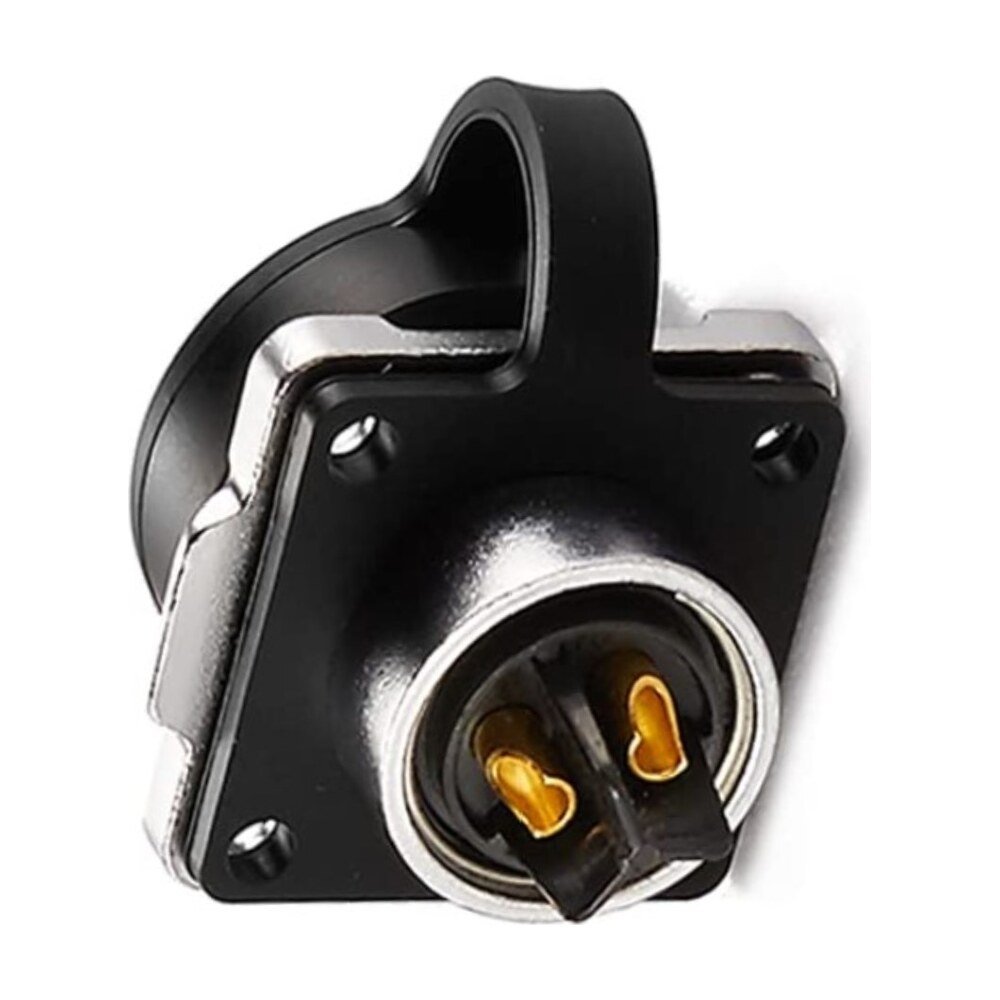

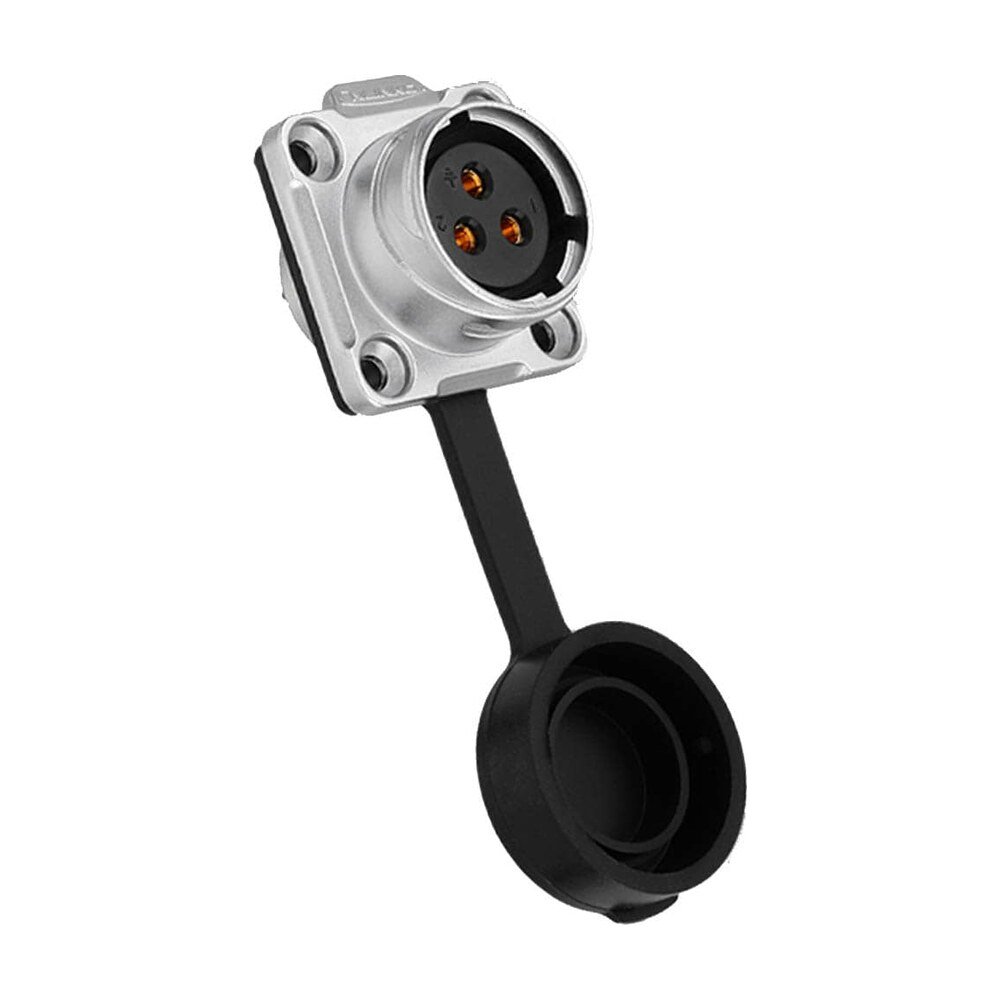

3 pins female socket

  • Metal alloy housing
  • Screw tightening design
  • Reduces electromagnetic & radio frequency interference
  • Resistant to corrosion
  • Heat & pressure resistant
  • Includes waterproof cover

Specifications

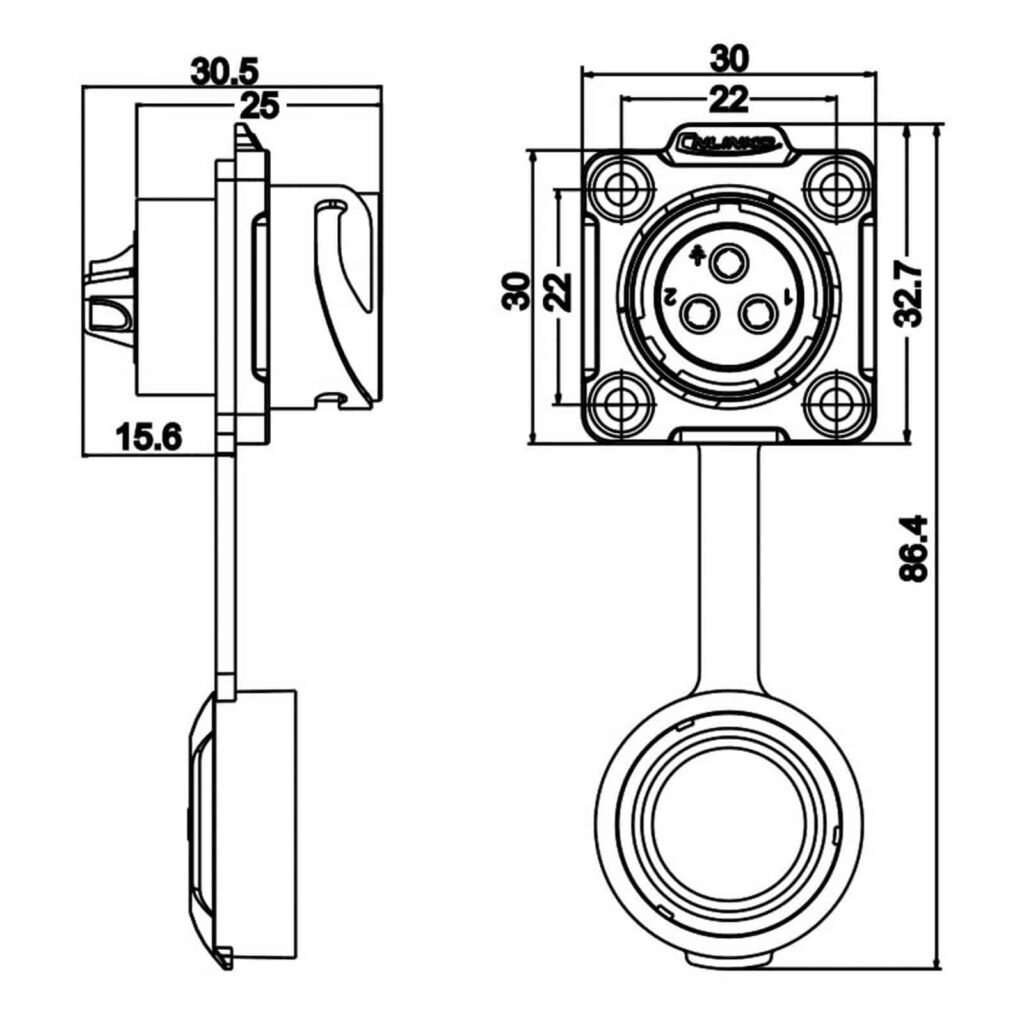

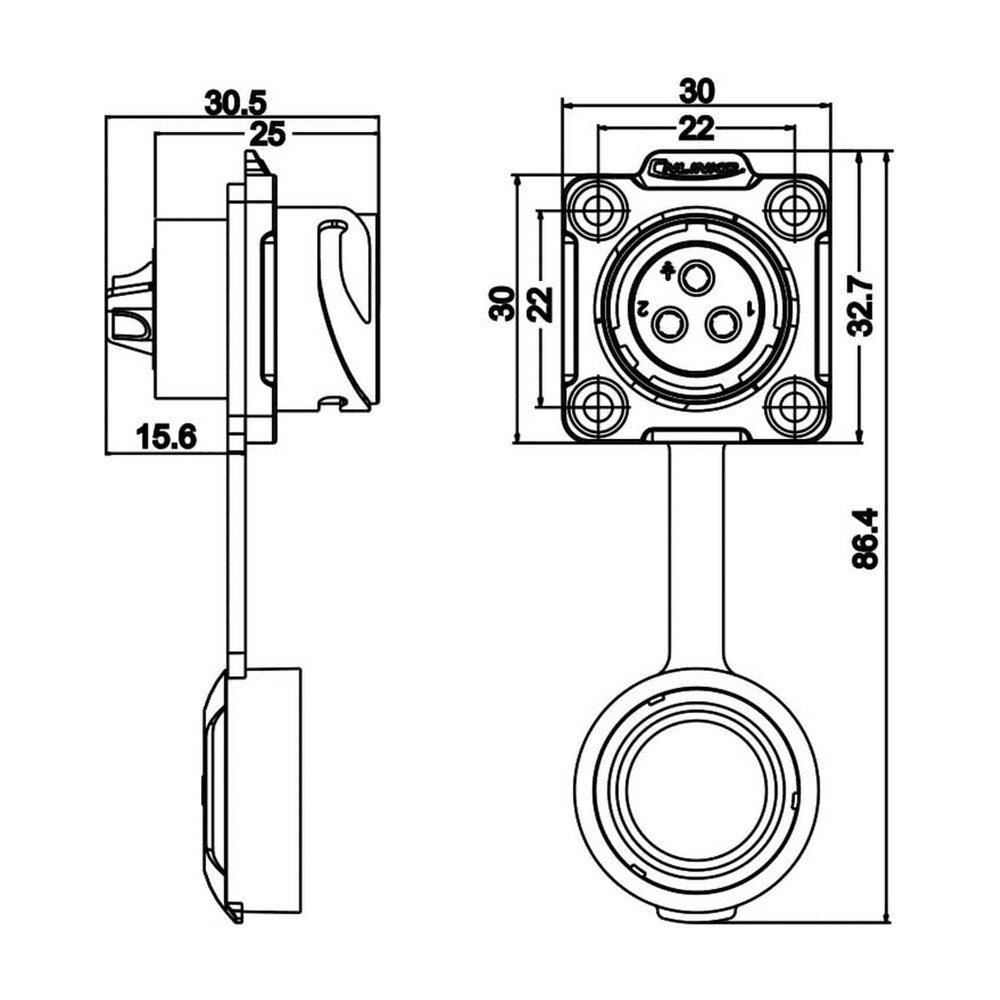

  • Dimensions (without cap)- 32.7 mm Height x 30 mm Width x 30.5 mm Depth (1.3″ x 1.18″ x 1.2″)
  • Number of Pins- 3
  • Wire Gauge- 14-12 AWG
  • Diameter Range- 8-12mm
  • Contact Diameter- 2.7mm
  • Rated Current- 20A
  • Operating Voltage- 500V
  • Contact Resistance- < 1mOhm
  • Withstanding Voltage- 2500V
  • Insulation Resistance- > 500MOhm
  • Ingress Protection- IP65/67
  • Durability- > 500 times
  • Operating Temperature- -40 C to 80 C (-40 F to 176 F)
  • Housing Material- Zinc Alloy
  • Contact Material- Gold Plated Copper Alloy
  • Flammability Rating- UL94-V0
  • Approvals- CE, CCC, RoHS, ISO9001
