Old Part Number: DH-20-C03SX–01-001

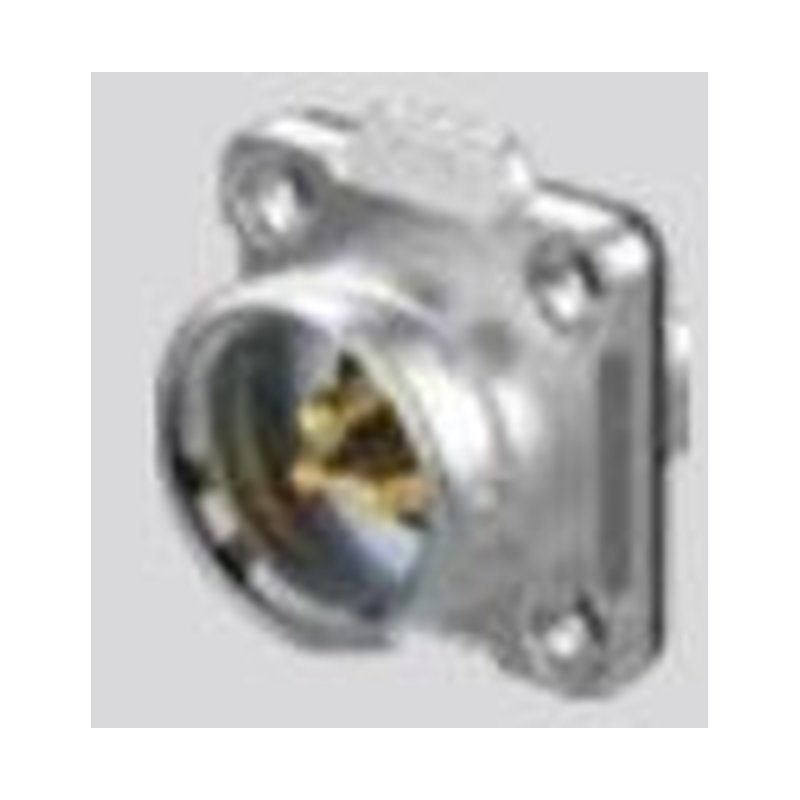

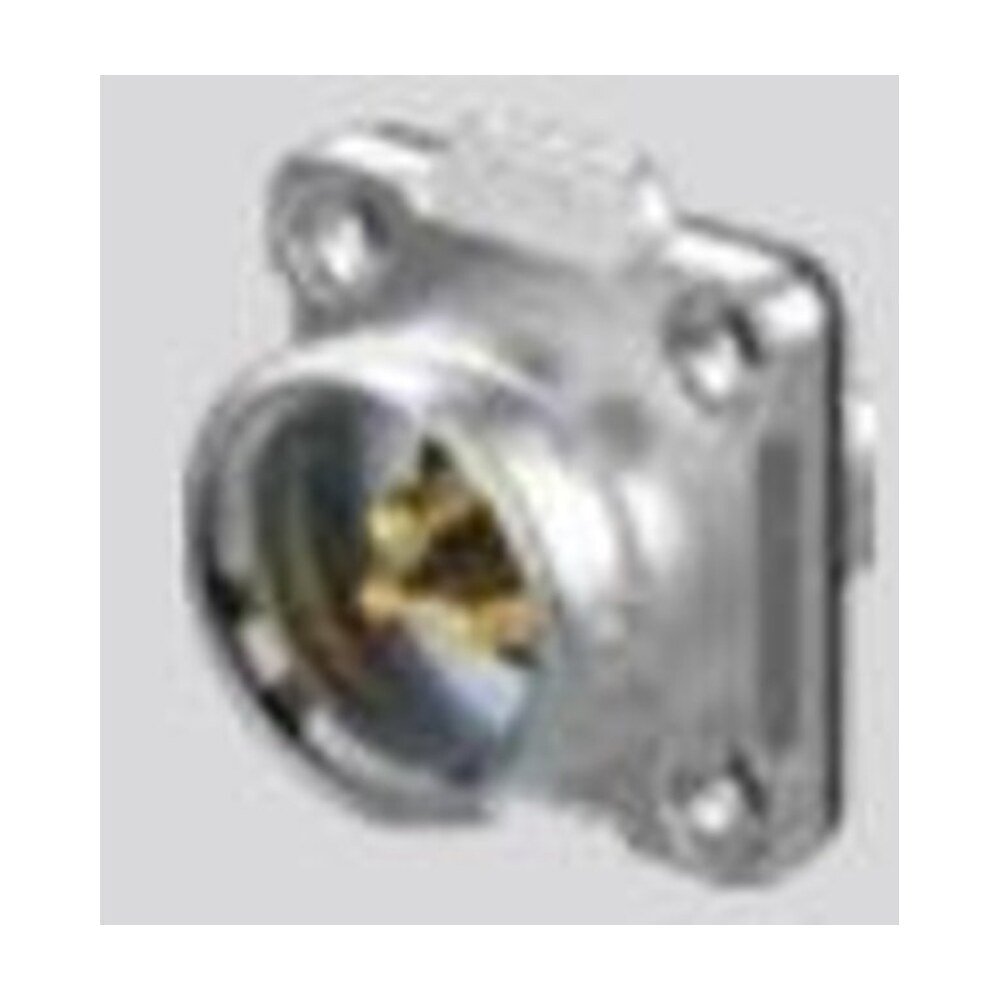

The Cnlinko DH-20-C03SX-03-401 is an excellent choice for those looking for a high-quality 3 pin male socket that can be used in various power applications. Its capacity for accommodating 14-12 AWG cable means that it is capable of handling a wide range of power loads and currents. This versatile socket is rated for 500V and 20A, making it the perfect choice for applications such as LED displays and stage lighting equipment. Furthermore, it is interesting to note that the DH-20-C03SX-03-401 is also known by the Old part Number: DH-20-C03SX-01-001, which may come in handy when searching for this product. Overall, the Cnlinko DH-20-C03SX-03-401 is a reliable and well-designed socket that offers great value for those seeking a quality product for their power applications.



3 pins male socket

  • Metal alloy housing
  • Screw tightening design
  • Reduces electromagnetic & radio frequency interference
  • Resistant to corrosion
  • Heat & pressure resistant
  • Includes waterproof cover


  • Dimensions (without cap)- 32.7 mm Height x 30 mm Width x 30.5 mm Depth (1.3″ x 1.18″ x 1.2″)
  • Number of Pins- 3
  • Wire Gauge- 14-12 AWG
  • Diameter Range- 8-12mm
  • Contact Diameter- 2.7mm
  • Rated Current- 20A
  • Operating Voltage- 500V
  • Contact Resistance- < 1mOhm
  • Withstanding Voltage- 2500V
  • Insulation Resistance- > 500MOhm
  • Ingress Protection- IP65/67
  • Durability- > 500 times
  • Operating Temperature- -40 C to 80 C (-40 F to 176 F)
  • Housing Material- Zinc Alloy
  • Contact Material- Gold Plated Copper Alloy
  • Flammability Rating- UL94-V0
  • Approvals- CE, CCC, RoHS, ISO9001
