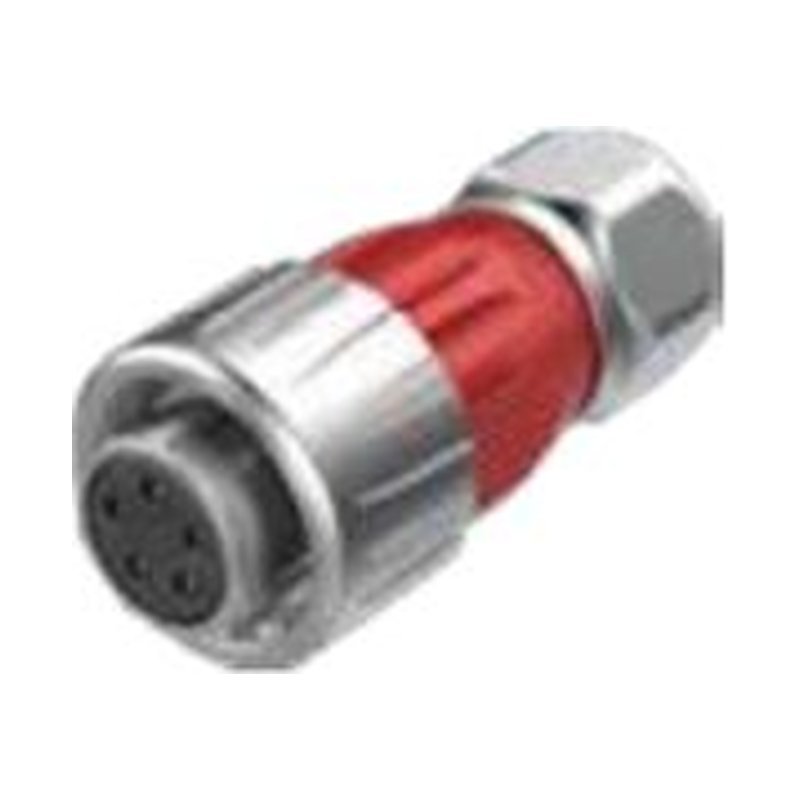

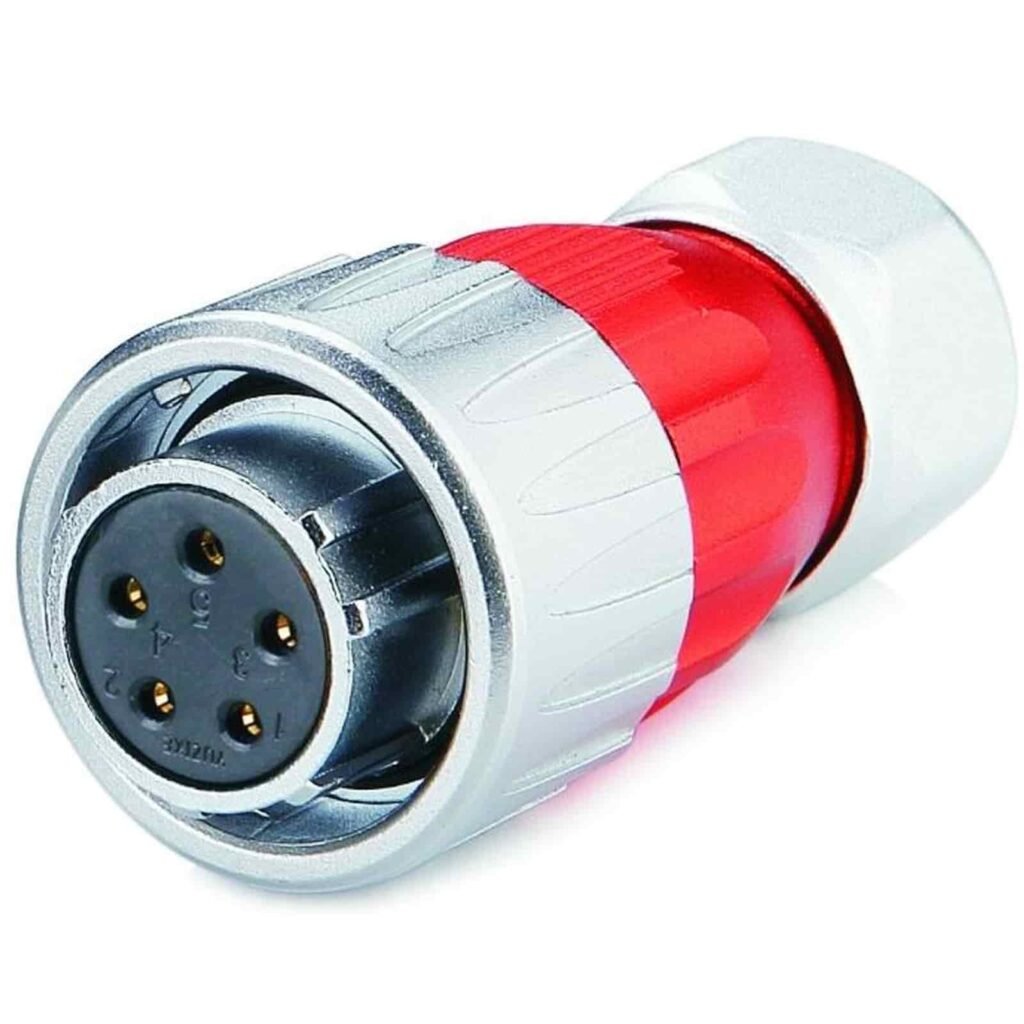

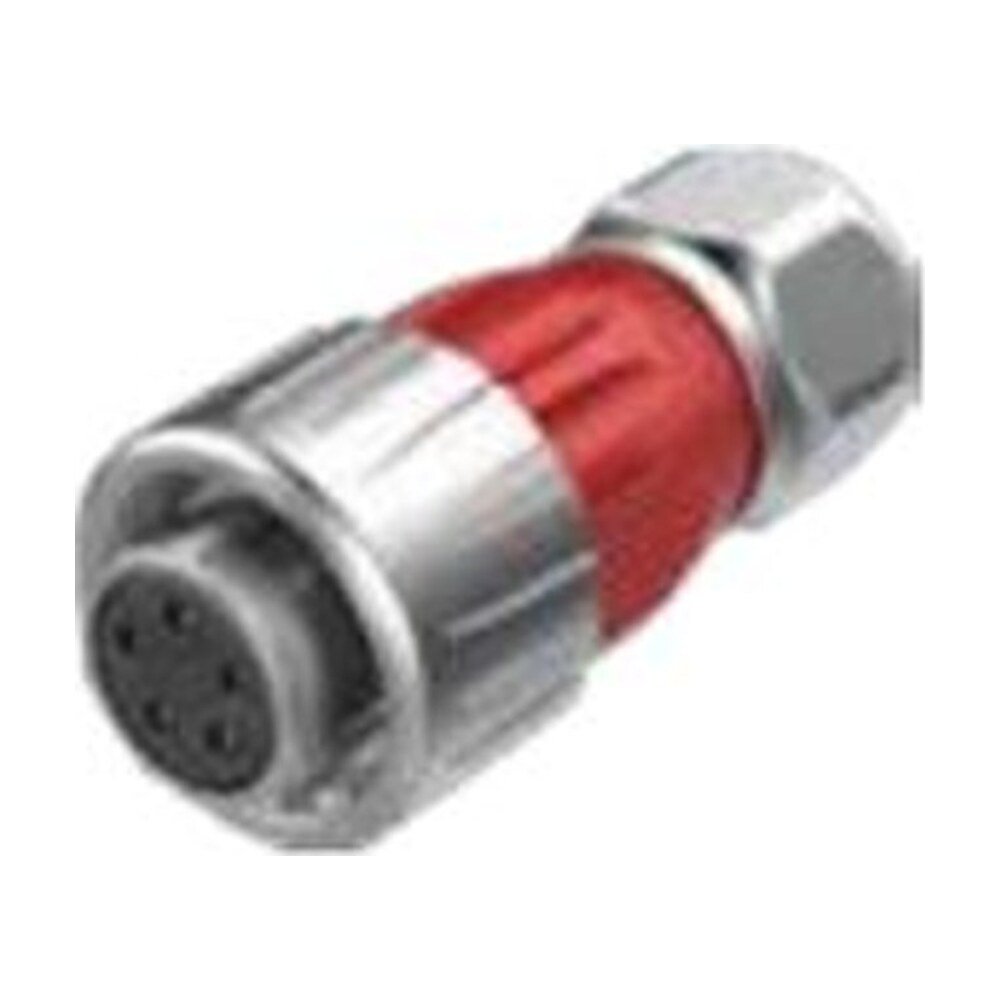

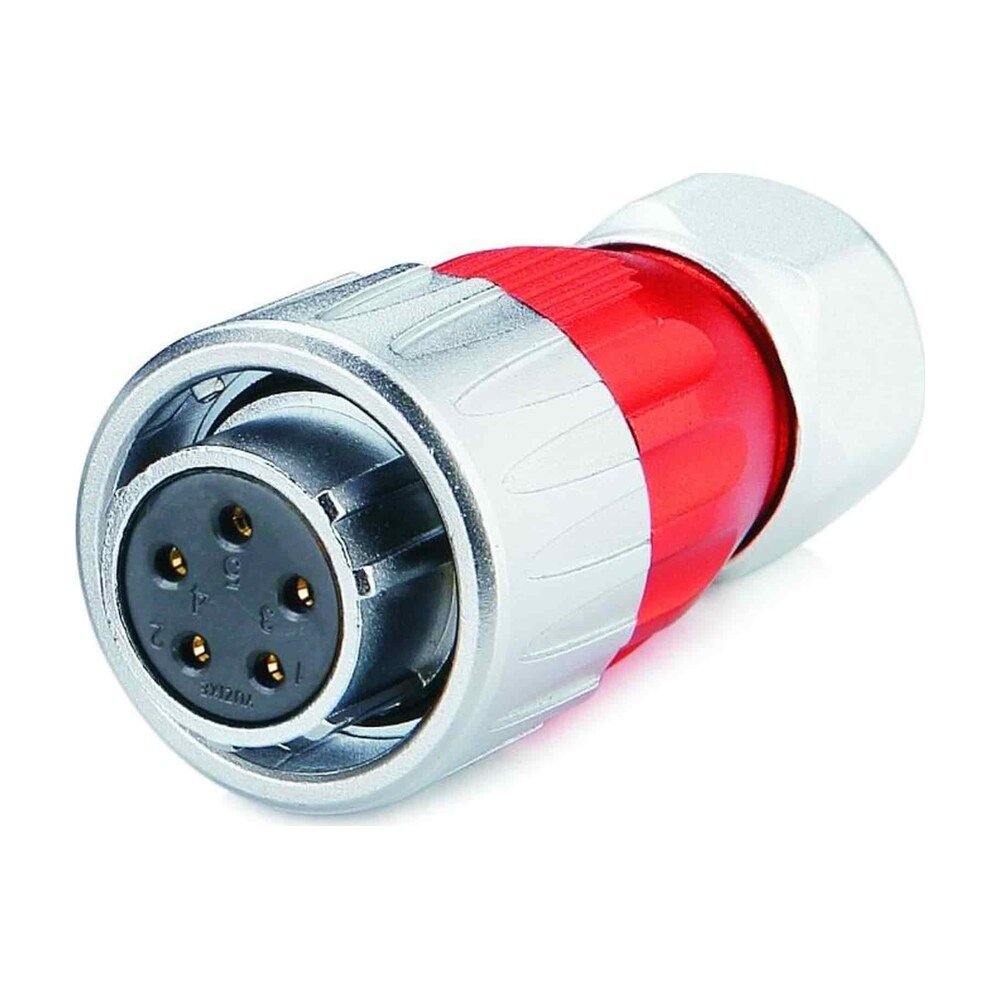

DH-20-J05PE-03-001, 5-Pin Female Cable Mount Waterproof Connector

Name: DH-20-J05PE-03-001, 5-Pin Female Cable Mount Waterproof Connector
Brand: Micro-Ray Electronics
SKU: DH-20-J05PE-03-001
Price: 18.34 USD
Availability: BackOrder

Made to Order - typically 8-10 weeks

CNLinko DH-20 Series 5-Pin Female cable mount waterproof aviation connector. Rated 10A / 300V AC, IP68 / IPX9K sealing, ≥500 times mating cycles.

$18.34

Made to Order typically 8-10 weeks

Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales

Made to Order - typically 8-10 weeks

Stocked items ship from our Brick, New Jersey facility. Made-to-order items ship after production.

Need volume, a custom length, or a cross-reference? Talk to our sales account representative.

DH-20-J05PE-03-001

Female socket contacts
Cable-mount inline housing (no chassis flange)
IP68 / IPX9K waterproof sealing
Full metal shell (zinc/aluminum alloy), gold-plated copper contacts

Specifications

Model- DH-20
Pin Count- 5
Contacts- φ1.8mm x 5
Wire Gauge- 16 AWG (1.5mm² max)
Cable Diameter Range- Φ9.0-Φ12.0mm
Rated Current- 10A
Rated Voltage- 300V AC
Withstand Voltage- 1500V AC
Contact Resistance- 3.0mΩ
Insulation Resistance- ≥500MΩ
Ingress Protection- IP68 / IPX9K
Durability- ≥500 times
Max Temperature Rise- 30K
Operating Temperature- -40°C to +85°C
Wiring Method- Soldering

Specifications sourced from CNLinko's official site (cnlinko.com), verified 2026-08-20.

Part Number (SKU)	DH-20-J05PE-03-001
Category	DH-20 Series Power Connectors
Availability	Made to Order
Typical Lead Time	8-10 weeks

Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray

Stocked items ship from our Brick, New Jersey facility. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.

Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.

Contact Micro-Ray Sales

Related Products

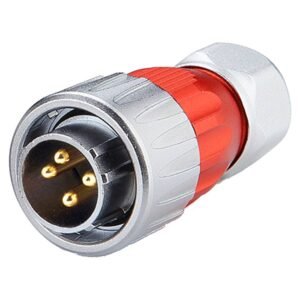

DH-20-C04PE-03-001, 4-Pin Male Cable Mount Waterproof Connector
