DH-24-J/USB3/213/SX-43-401, DH-24 Series USB Water Resistant Socket

DH-24-J/USB3/213/SX-43-401

Old Part Number: DH-24-USB3.0-S01

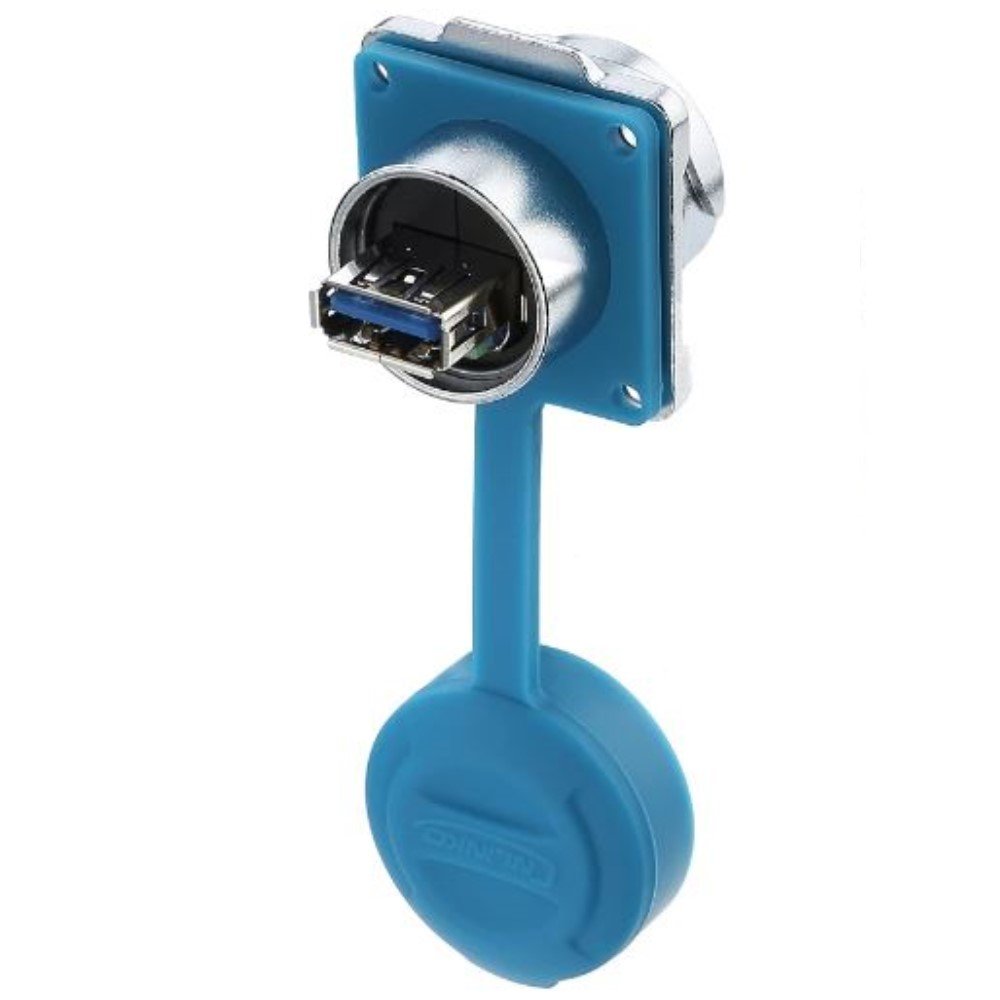

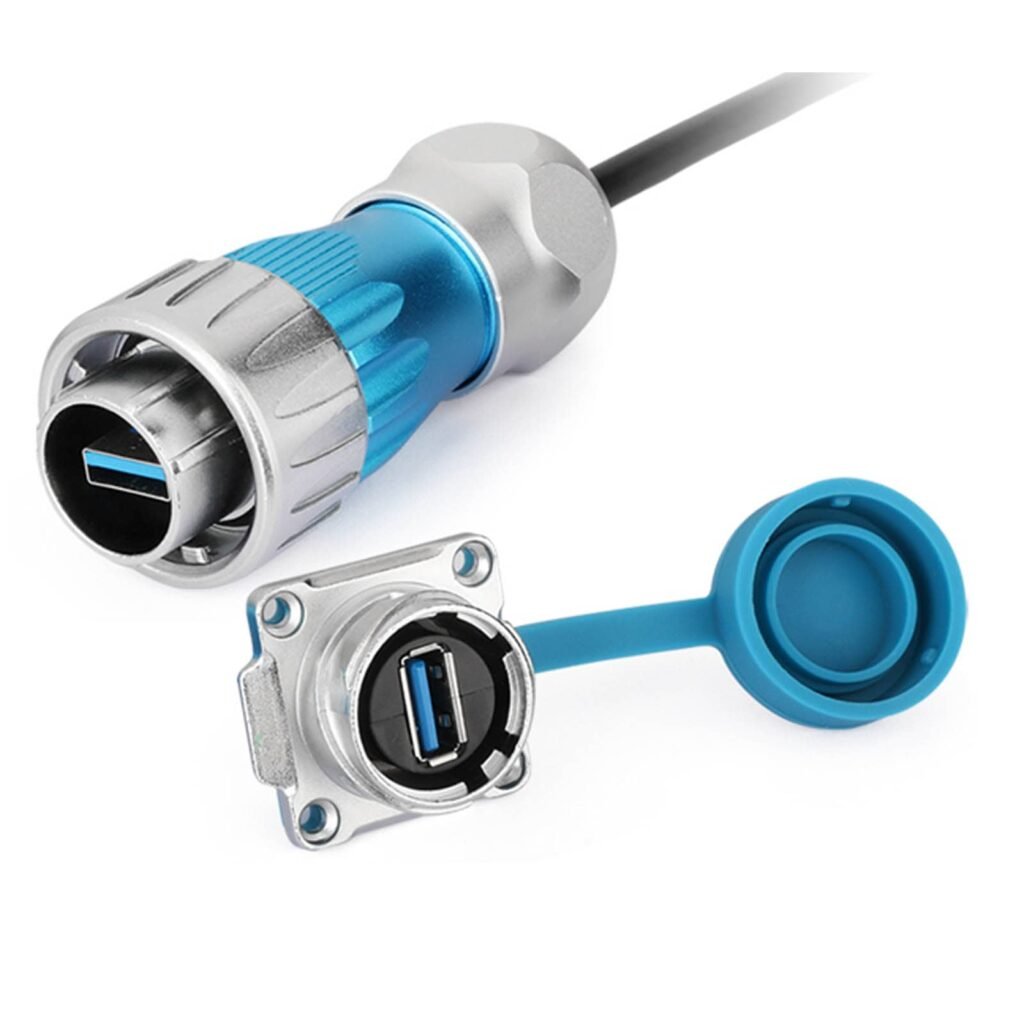

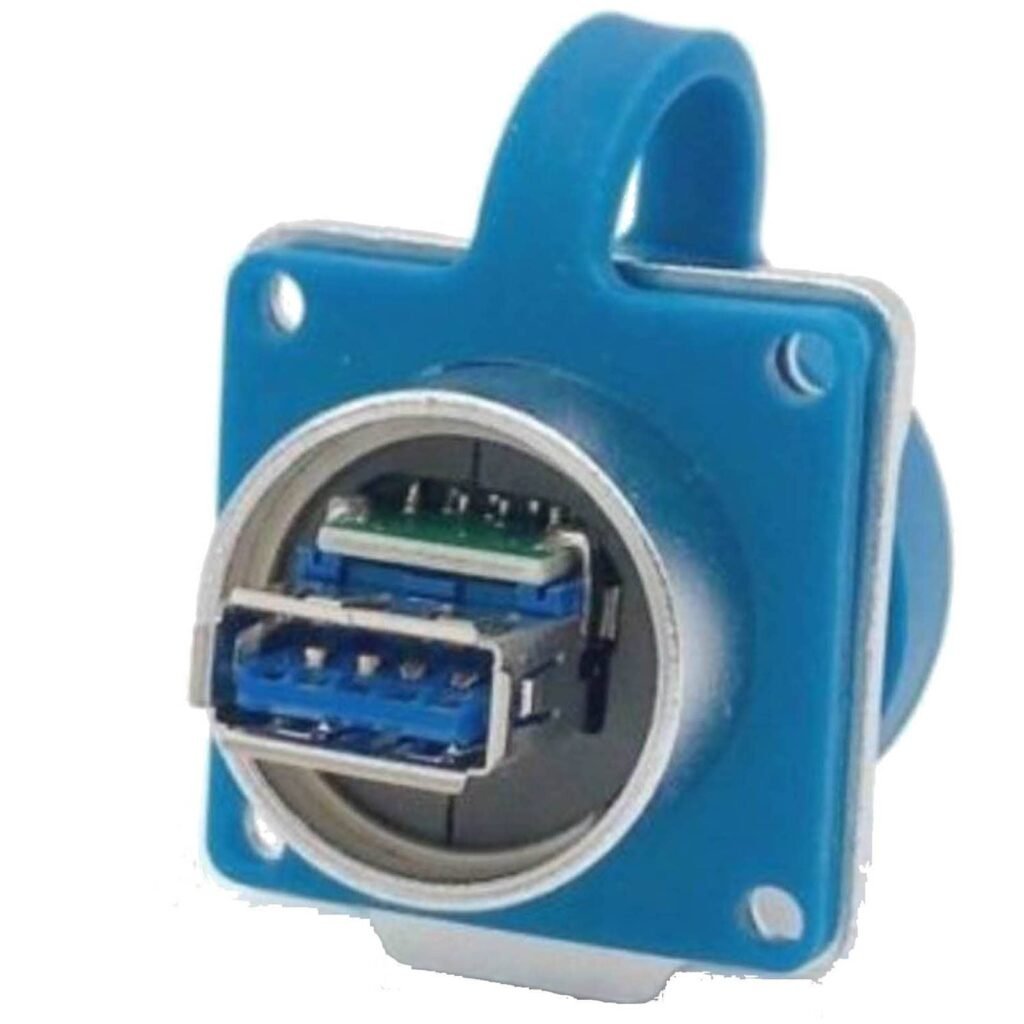

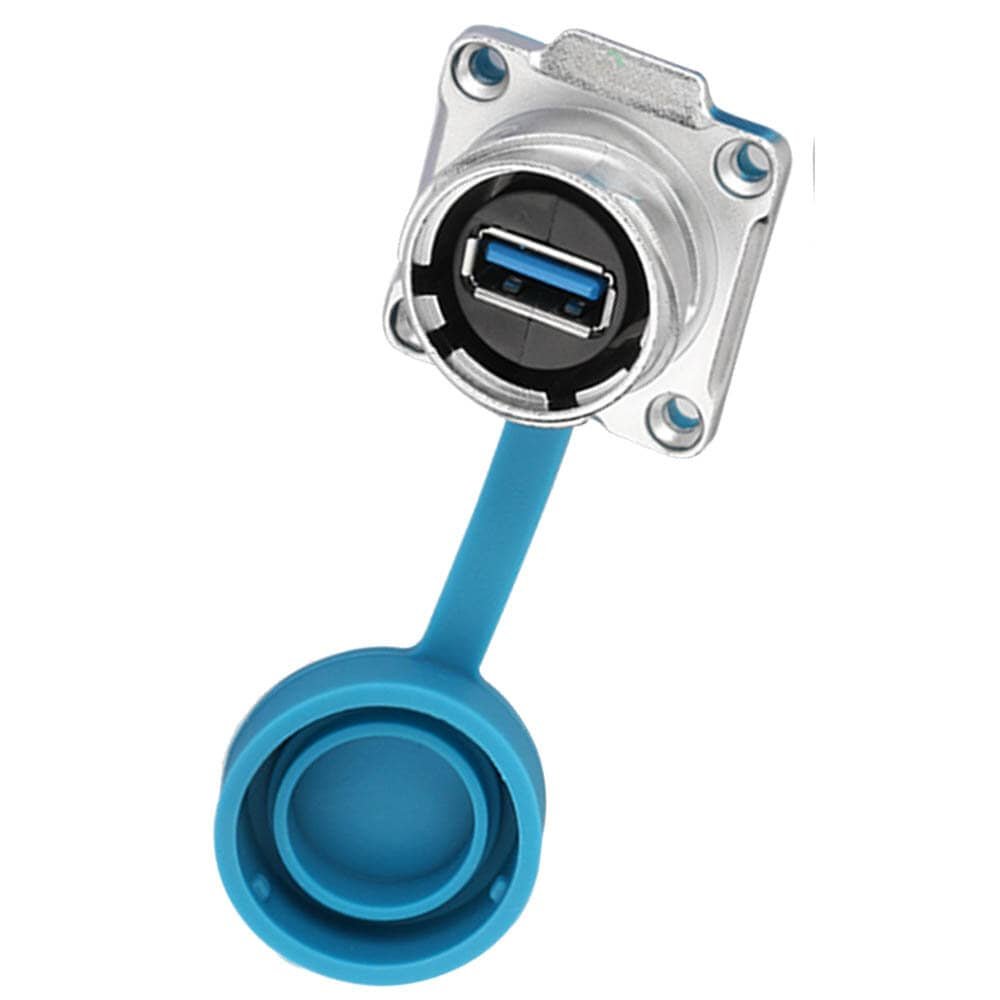

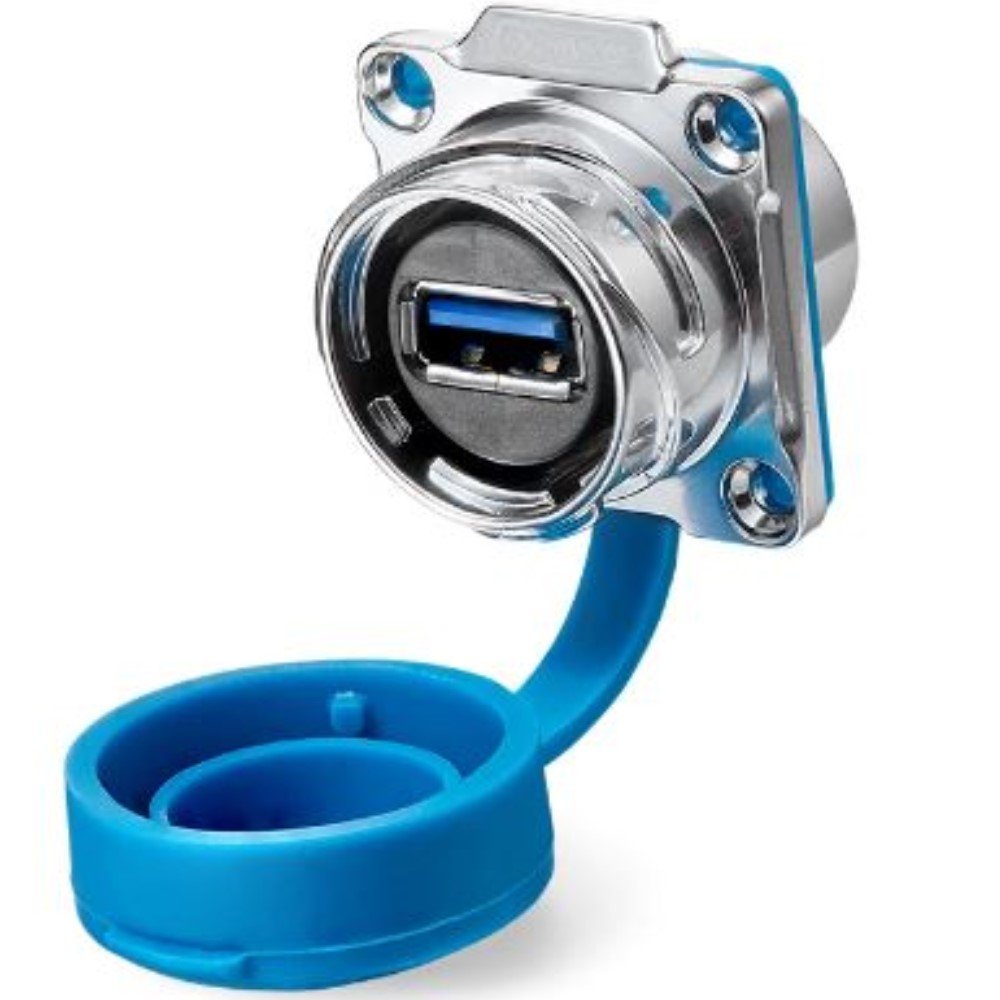

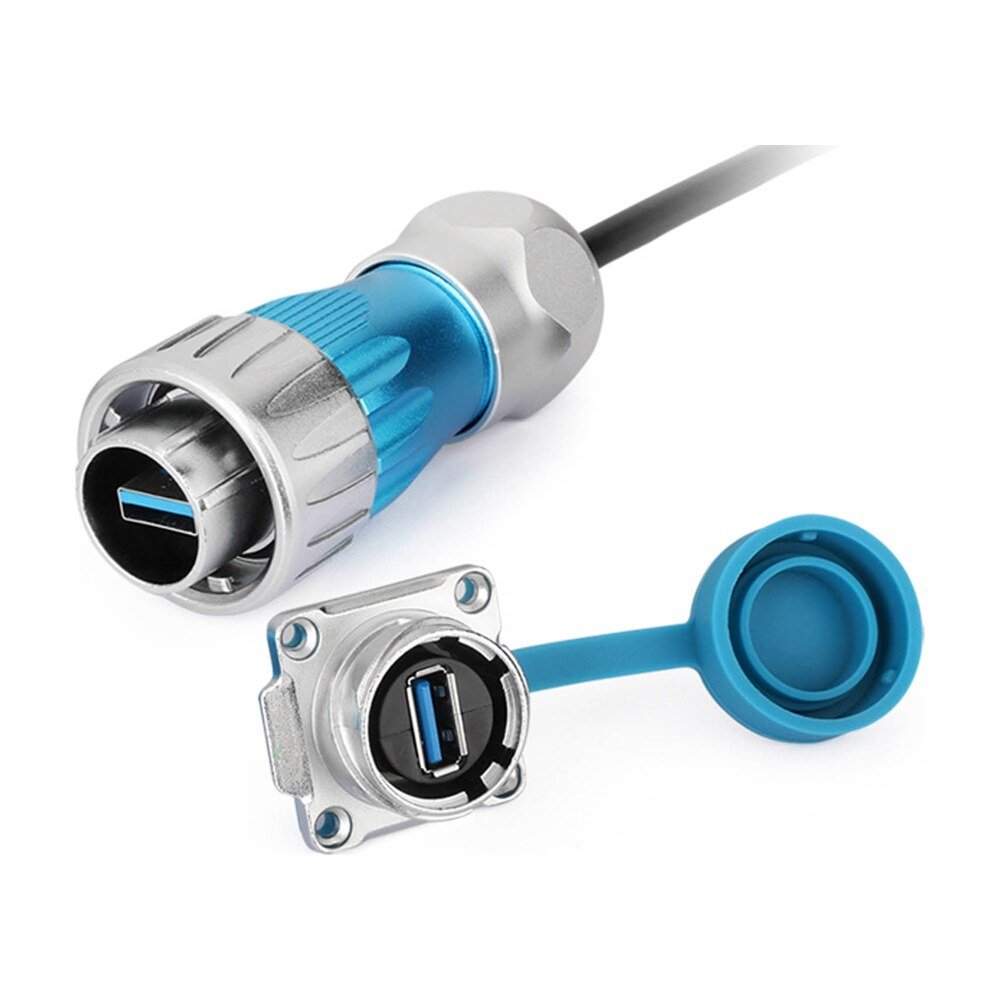

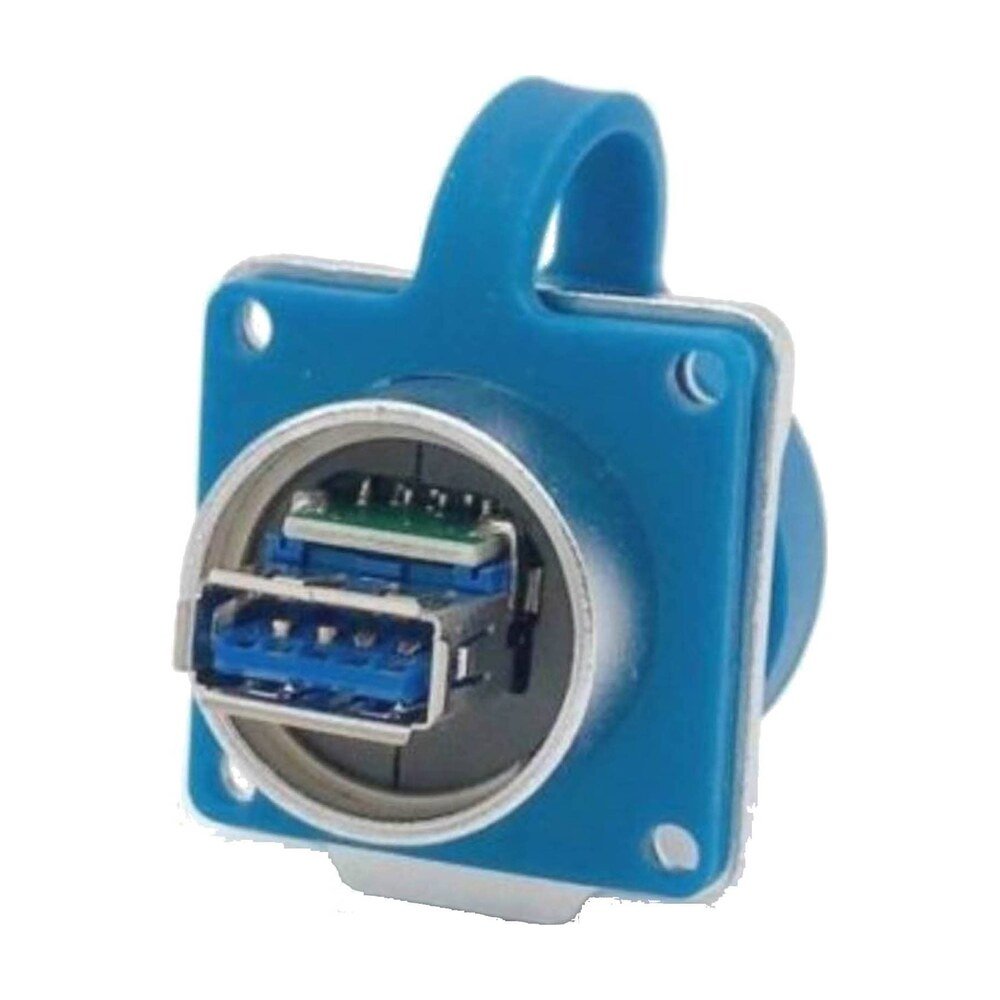

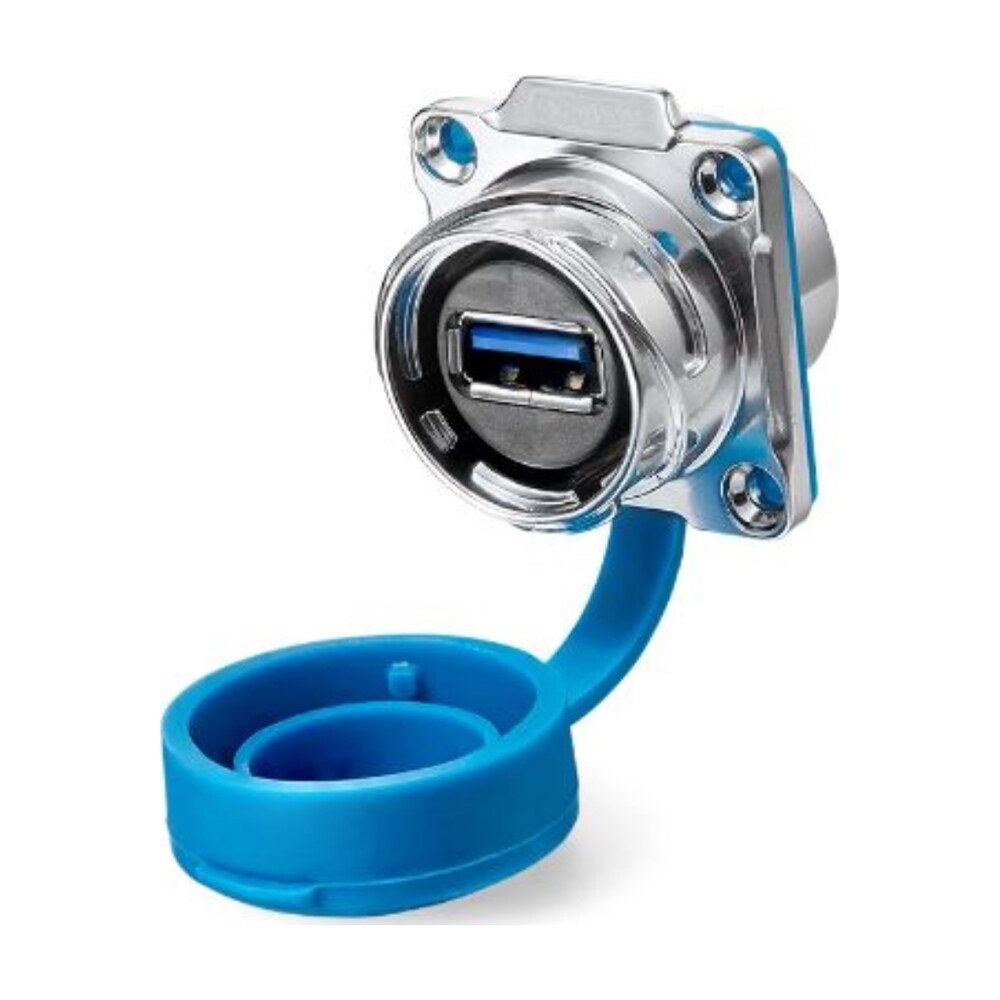

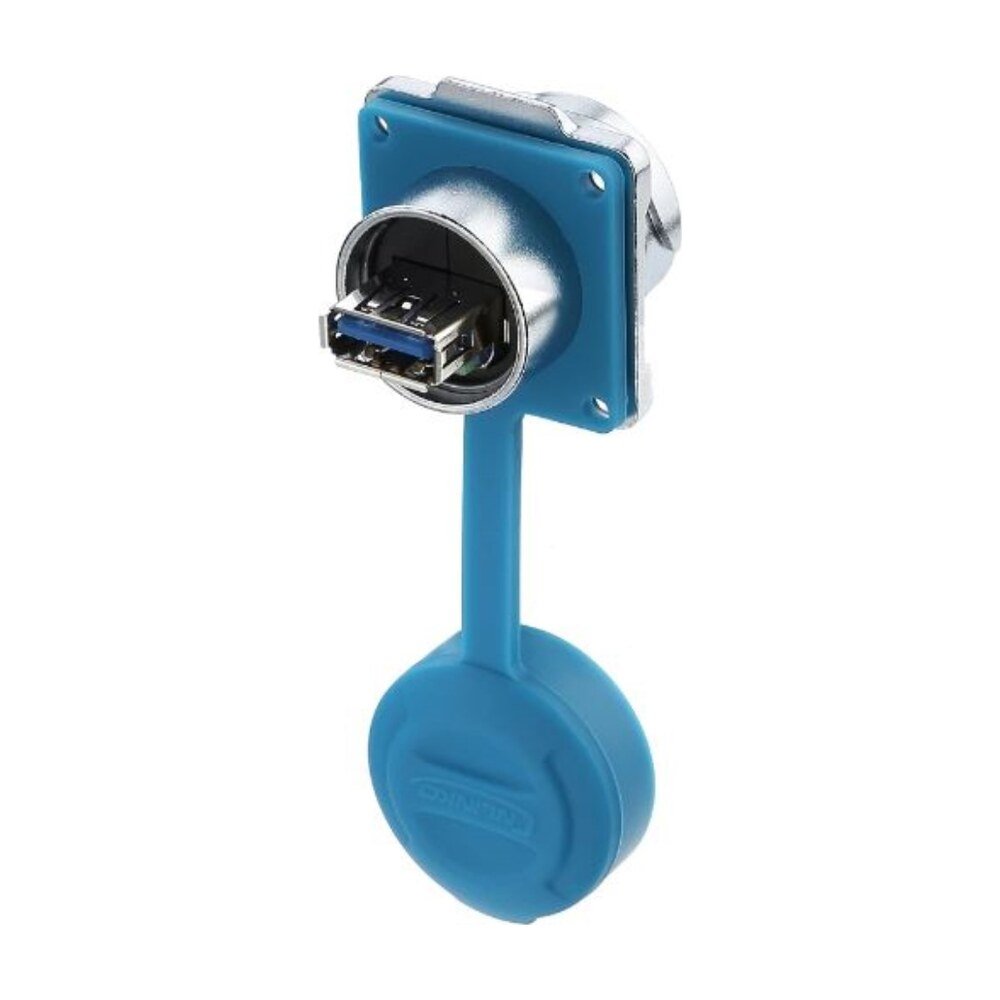

The Cnlinko DH-24-J/USB3/213/SX-43-401 is a high-quality and reliable Type A USB 3.0 surface mount socket data connector that will exceed all of your expectations. With the ability to accommodate 26-24 AWG cable and a rating of 1.5 A, this connector is the perfect solution for all of your USB connectivity needs. Plus, it’s fully compatible with the corresponding USB plug, making it incredibly easy to use. So why wait? Invest in the Cnlinko DH-24-J/USB3/213/SX-43-401 today and experience the ultimate in USB connectivity!

  • Metal alloy housing
  • Screw tightening design
  • Reduces electromagnetic & radio frequency interference
  • Resistant to corrosion
  • Heat & pressure resistant

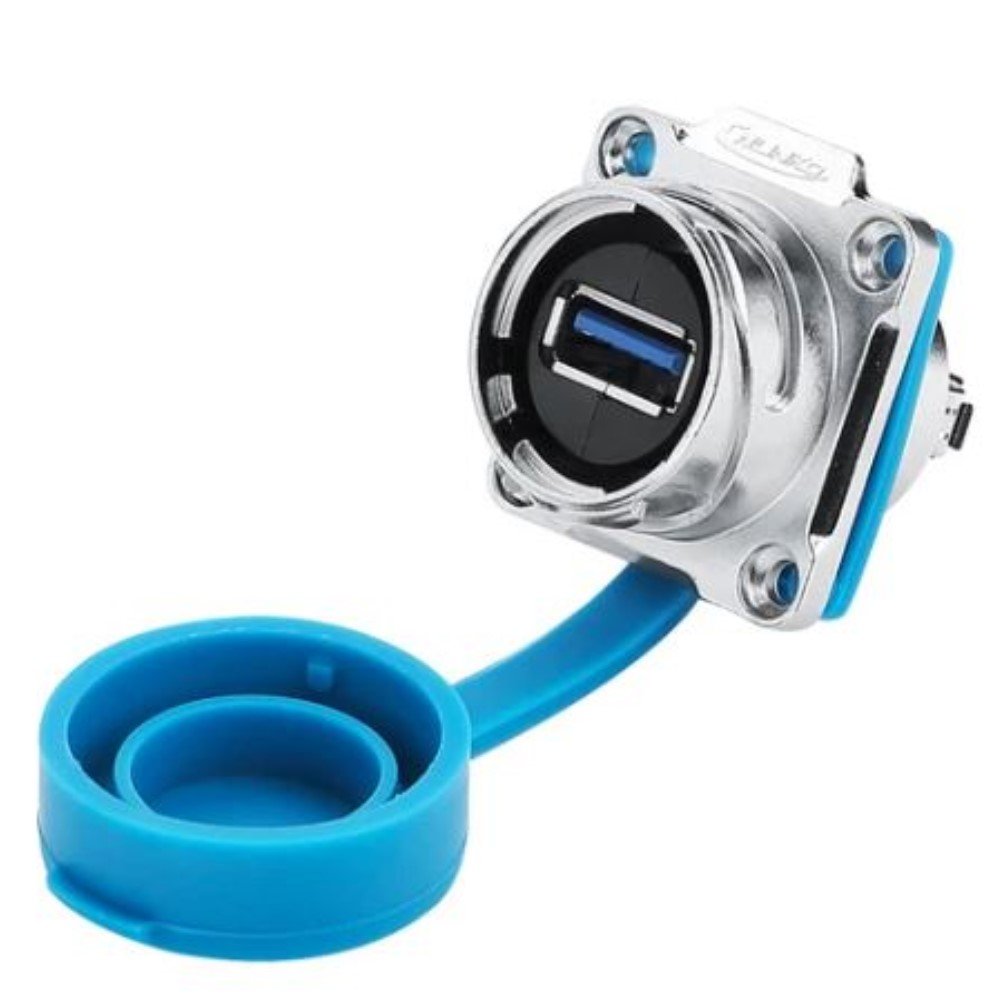

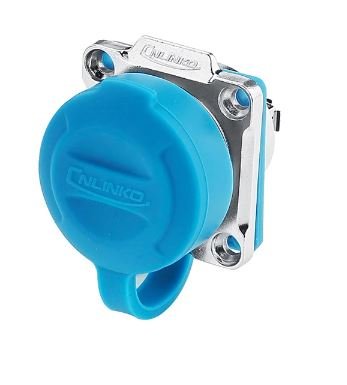

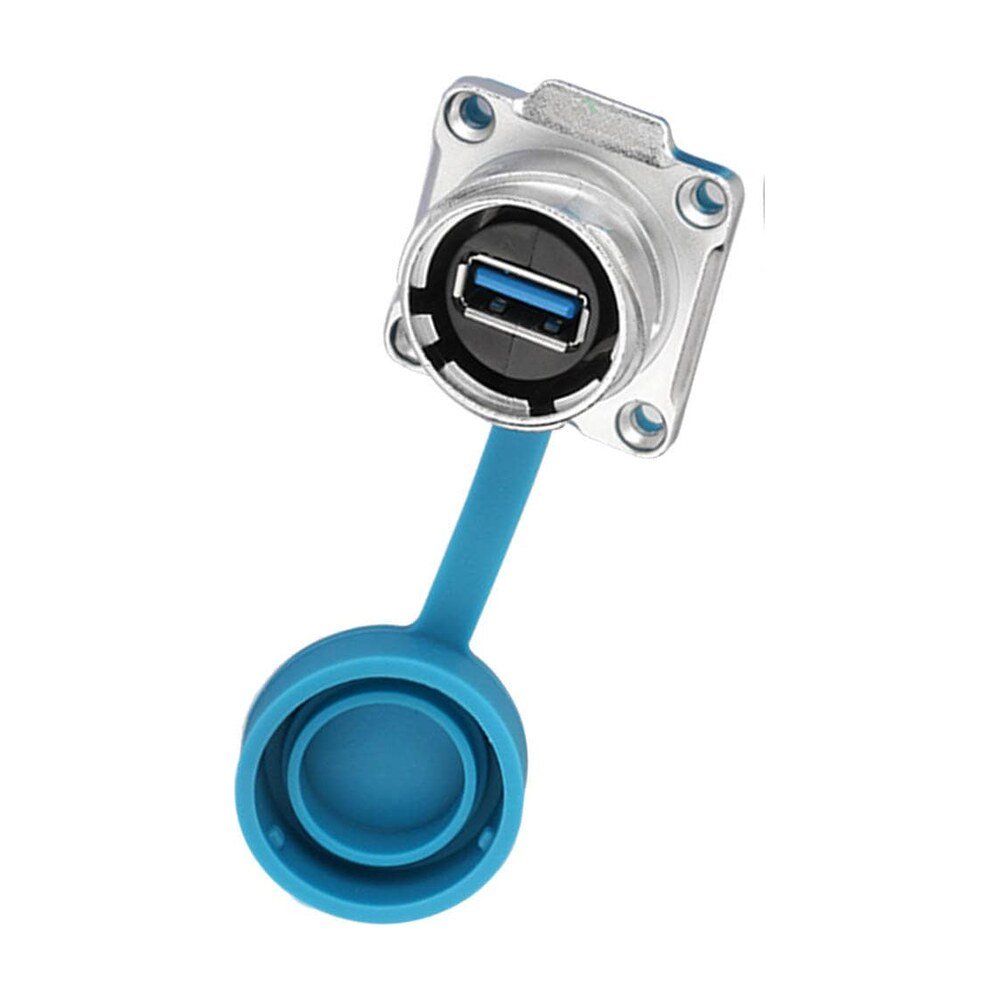

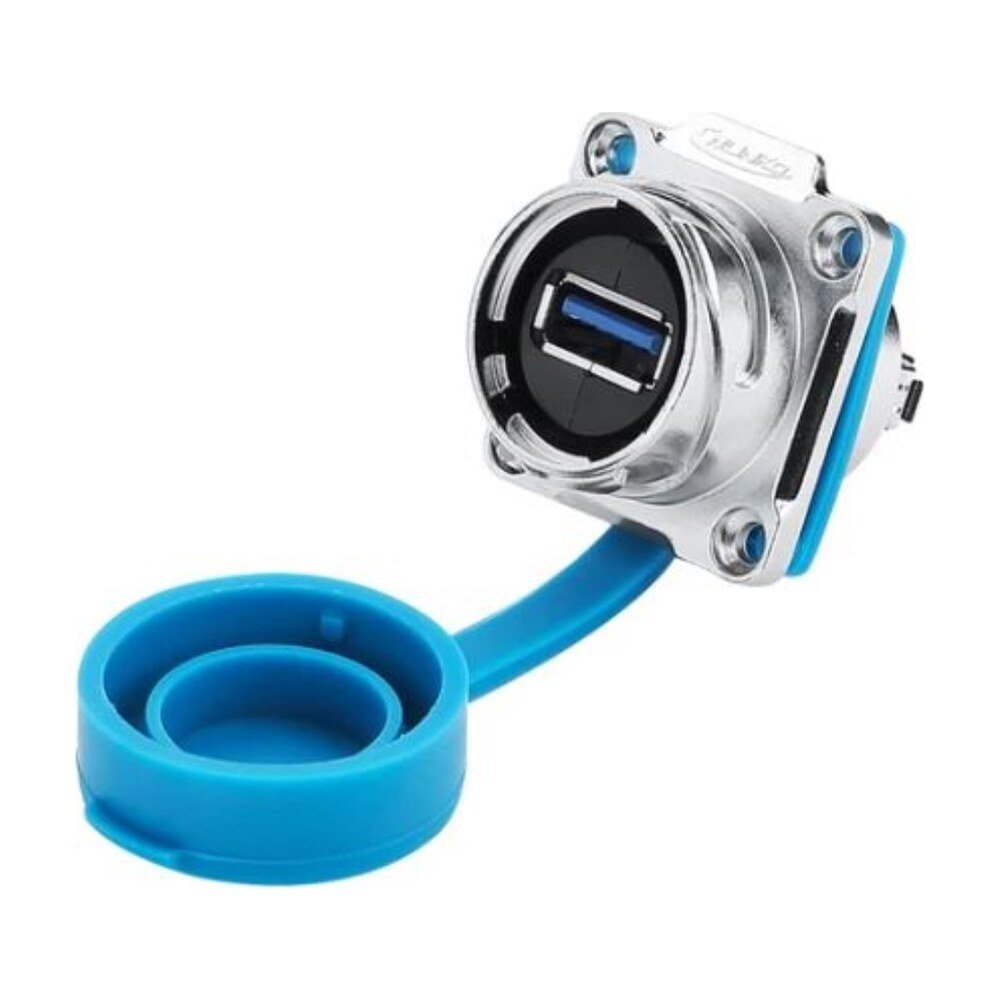

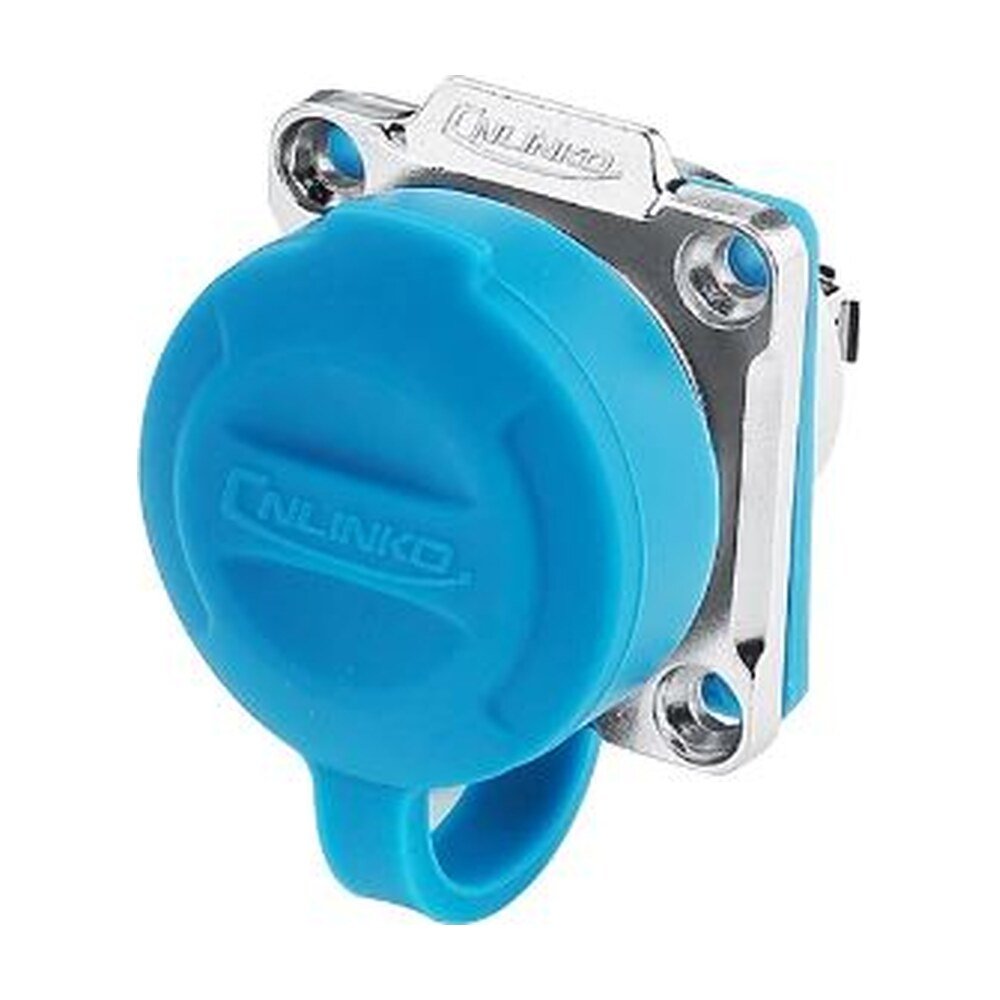

  • Includes blue waterproof cover

Description

Cnlinko Screw Water Resistant USB 3.0 Socket DH-24-J/USB3/213/SX-43-401

Specifications

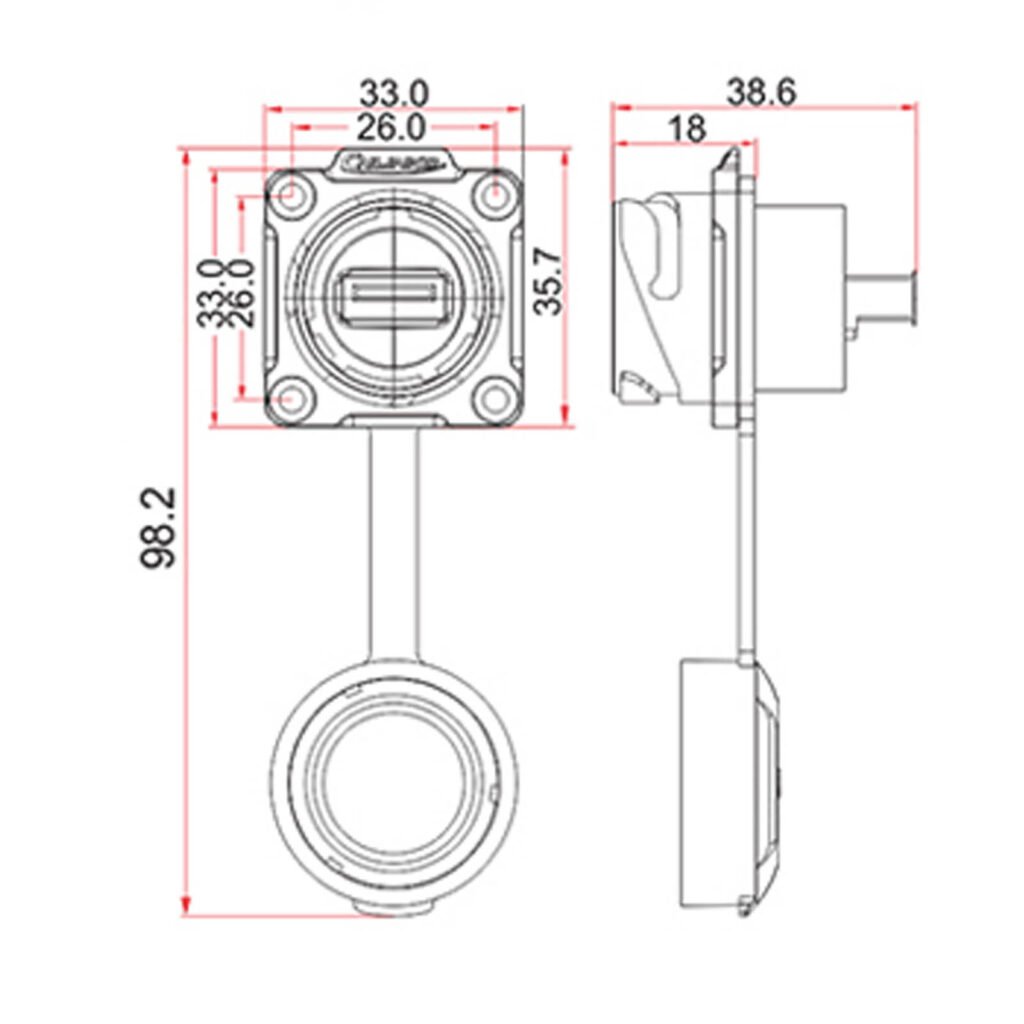

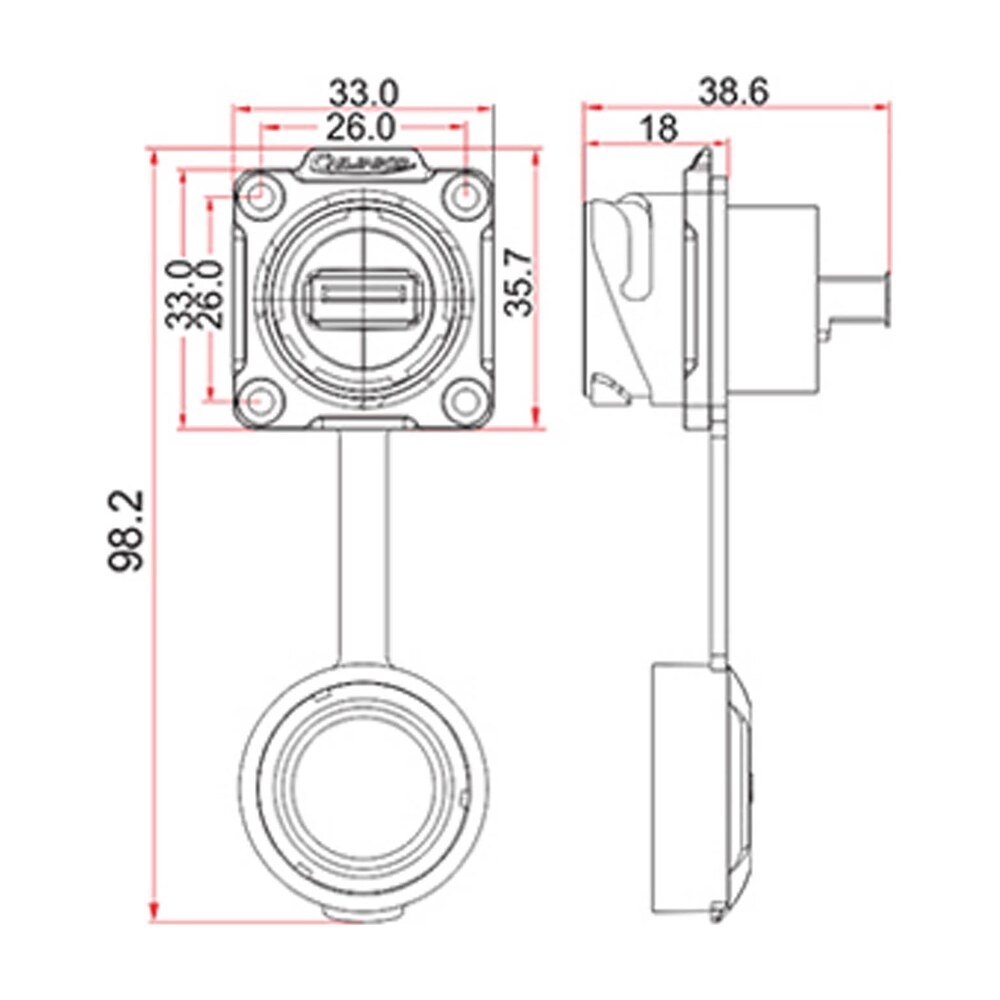

  • Dimensions (without cap)- 35.7 mm Height x 33 mm Width x 38.6 mm Depth (1.4″ x 1.3″ x 1.52″)
  • Number of Contacts- 9
  • Wire Gauge- 26-24 AWG
  • Rated Current- 1.5 A
  • Contact Resistance- < 30mOhm
  • Withstanding Voltage- 1000V
  • Insulation Resistance- > 500MOhm
  • Ingress Protection- IP65/67
  • Durability- > 500 times
  • Operating Temperature- -40 C to 80 C (-40 F to 176 F)
  • Housing Material- Zinc Alloy
  • Flammability Rating- UL94-V0
  • Approvals- CE, CCC, RoHS, ISO9001

Reviews

There are no reviews yet.

Be the first to review “DH-24-J/USB3/213/SX-43-401, DH-24 Series USB Water Resistant Socket”

Your email address will not be published. Required fields are marked *

SKU DH-24-J/USB3/213/SX-43-401 Category

DH-24-J/USB3/213/SX-43-401

Old Part Number: DH-24-USB3.0-S01

The Cnlinko DH-24-J/USB3/213/SX-43-401 is a high-quality and reliable Type A USB 3.0 surface mount socket data connector that will exceed all of your expectations. With the ability to accommodate 26-24 AWG cable and a rating of 1.5 A, this connector is the perfect solution for all of your USB connectivity needs. Plus, it’s fully compatible with the corresponding USB plug, making it incredibly easy to use. So why wait? Invest in the Cnlinko DH-24-J/USB3/213/SX-43-401 today and experience the ultimate in USB connectivity!

  • Metal alloy housing
  • Screw tightening design
  • Reduces electromagnetic & radio frequency interference
  • Resistant to corrosion
  • Heat & pressure resistant
  • Includes blue waterproof cover

$11.38

Available on backorder

Quantity Discount
Quantity Discount Discounted price
1 - 25 - $11.38
26 - 50 1% $11.27
51 - 75 1.5% $11.21
76 - 100 2% $11.15
