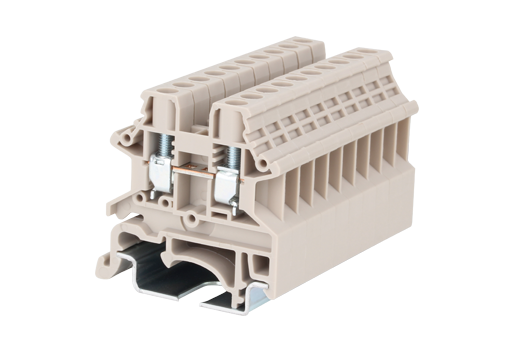

DK4N — Single Level Feed-through Terminal Block, Screw Connection, Width: 6.1mm, M3, 600V, 30A. M3, 600V, 30A, Beige (default).
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
No stock, no problem. We build to your requirement and release it as your line calls for it.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Dinkle DK4N — Single Level Feed-through Terminal Block, Screw Connection. Distributed by Micro-Ray Electronics.
DIN rail terminal blocks distribute and land field wiring inside a control panel on a standard 35 mm rail, so circuits can be tested, isolated and re-terminated without cutting into the harness. They are the backbone of the wiring in machine control cabinets, building systems and process skids.

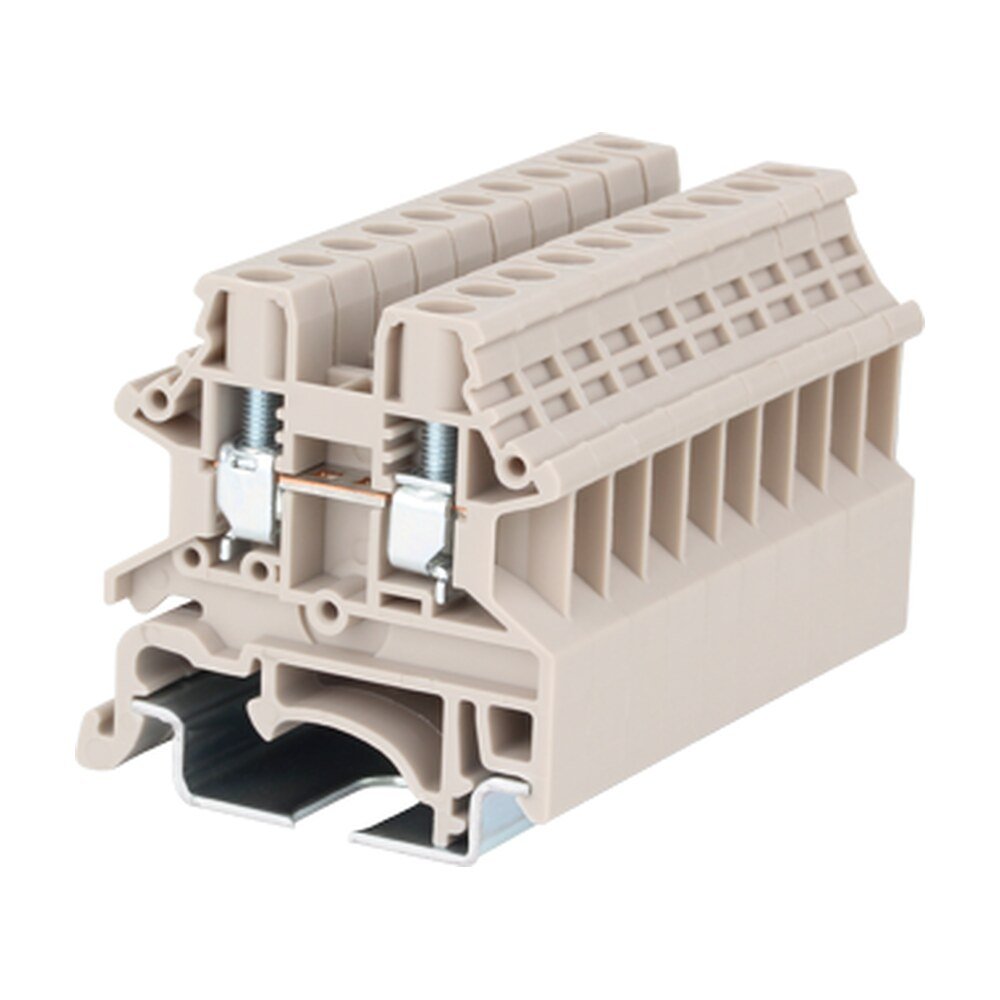

Single Level Feed-through Terminal Block, Screw Connection, Width: 6.1mm, M3, 600V, 30A
Published by Dinkle for the DK4N series.
| Category | Single Level Feed-through Terminal Block |
|---|---|
| Color | Beige (default) |
| Connection method | Screw connection |
| Type of locking | Rail mounting |

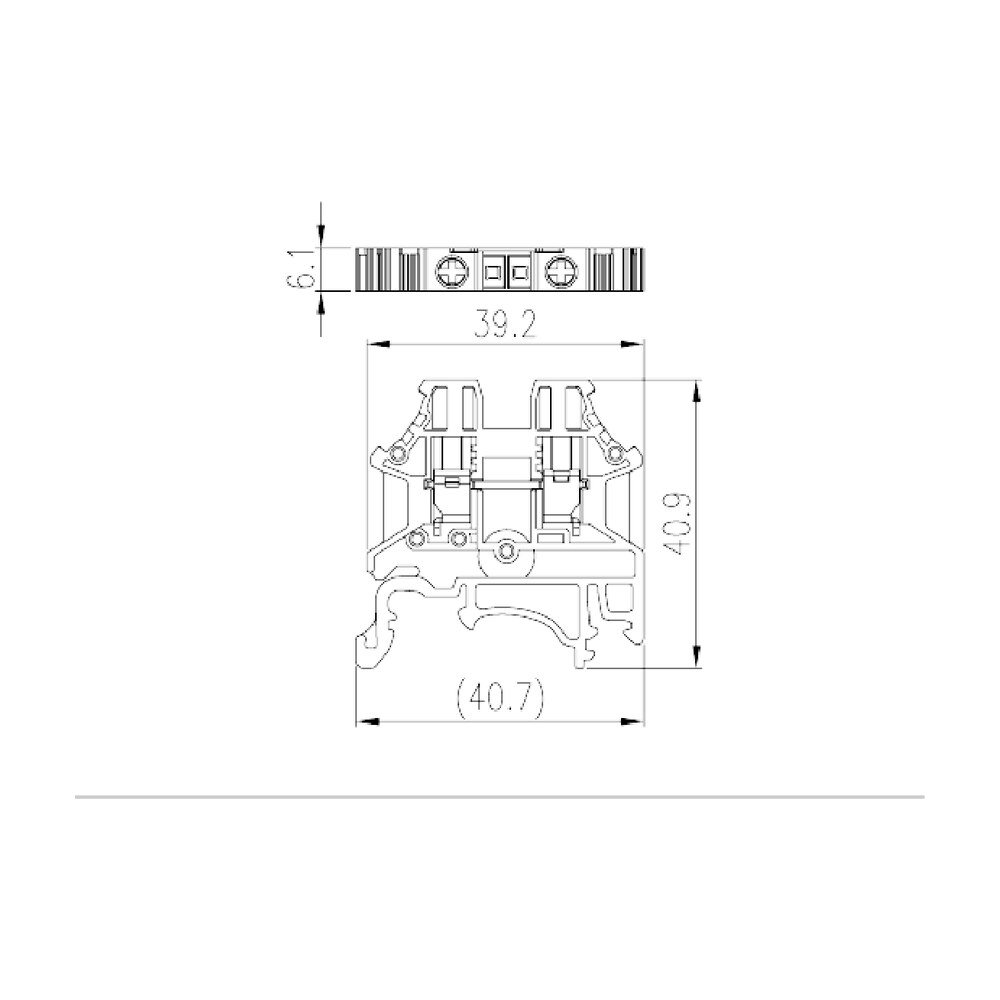

| Length (mm) | 40.7 |
| Width (mm) | 6.1 |
| Height (mm) | 40.9 |
| Number of positions | ≥1P |
| Level | Single level |
| Connection points | 2 |
| Insulation material | PA |
|---|---|
| Insulation material group | I |
| Flame retardant rating , compliant with UL94 | V0 |
| Insulation resistance | ≥500MΩ at DC 500V |
| Rated voltage (V) | 1000 |
|---|---|
| Rated current (A) | 32 |
| Rated voltage (III/3)(V) | 1000 |
| Rated impulse voltage (III/3)(KV) | 8 |
| Conductor cross section solid. min (mm²) | 0.34 |
| Conductor cross section solid.max (mm²) | 6 |
| Conductor cross section stranded. min (mm²) | 0.34 |
| Conductor cross section stranded. max (mm²) | 4 |
| Conductor cross section flexible, with min ferrule without plastic sleeve (mm²) | 0.34 |
| Conductor cross section flexible, with max ferrule without plastic sleeve (mm²) | 4 |
| Conductor cross section flexible, with min ferrule with plastic sleeve (mm²) | 0.34 |
| Conductor cross section flexible, with max ferrule with plastic sleeve (mm²) | 2.5 |
| 2 conductors with same cross section, solid, min (mm²) | 0.34 |
| 2 conductors with same cross section, solid, max (mm²) | 2.5 |
| 2 conductors with same cross section, stranded, min (mm²) | 0.34 |
| 2 conductors with same cross section, stranded, max (mm²) | 1.5 |
| 2 conductors with same cross section flexible, with min ferrule without plastic sleeve (mm²) | 0.5 |
| 2 conductors with same cross section flexible, with max ferrule without plastic sleeve (mm²) | 1 |
| 2 conductors with same cross section flexible, min twin ferrules with plastic sleeve (mm²) | 0.5 |
| 2 conductors with same cross section flexible, max twin ferrules with plastic sleeve (mm²) | 2.5 |
| Screw thread | M3 |
| Slotted screwdriver size (Blade thickness x Width)(mm) | 0.6x3.5 |
| Philips screwdriver size | PH0 |
| Recommend tightening torque. min (N.m) | 0.5 |
| Recommend tightening torque. max (N.m) | 0.6 |
| Stripping Length (mm) | 9~11 |
| Mounting rail | TS-35、TS-35/15 |
| End cover plate required | YES |
| Grounding connections | NO |
| Rated voltage (UL/CUL Group B)(V) | 600 |
|---|---|
| Rated current (UL/CUL Group B)(A) | 30 |
| Rated voltage (UL/CUL Group C)(V) | 600 |
| Rated current (UL/CUL Group C)(A) | 30 |
| Rated voltage (UL/CUL Group D)(V) | 600 |
| Rated current (UL/CUL Group D)(A) | 5 |
| Min. solid wire connection (AWG) acc. to UL/CUL | 22 |
| Max. solid wire connection AWG acc. to UL/CUL | 10 |
| Min. stranded wire connection AWG acc. to UL/CUL | 22 |
| Max. stranded wire connection AWG acc. to UL/CUL | 10 |
| Back of the hand protection (YES or NO) | YES |
|---|---|
| Finger protection (YES or NO) | YES |
| Operating temperature. max (°C) | 120 |
| Operating temperature. min (°C) | -40 |
| Wire Range (Group B)(AWG) | 22~10 |
|---|---|
| Rated voltage (Group B)(V) | 600 |
| Rated current (Group B)(A) | 30 |
| Wire Range (Group C)(AWG) | 22~10 |
| Rated voltage (Group C)(V) | 600 |
| Rated current (Group C)(A) | 30 |
| Wire Range (Group D)(AWG) | 22~10 |
| Rated voltage (Group D)(V) | 600 |
| Rated current (Group D)(A) | 5 |
| Wire Range (Group B)(AWG) | 22~10 |
|---|---|
| Rated voltage (Group B)(V) | 600 |
| Rated current (Group B)(A) | 30 |
| Wire Range (Group C)(AWG) | 22~10 |
| Rated voltage (Group C)(V) | 600 |
| Rated current (Group C)(A) | 30 |
| Wire Ranget (Group D)(AWG) | 22~10 |
| Rated voltage (Group D)(V) | 600 |
| Rated current (Group D)(A) | 5 |
| Wire Range (mm²) | 0.34~4 |
|---|---|
| Rated voltage (V) | 1000 |
| Rated current (A) | 32 |
| Wire Range (mm²) | 0.34~4.0 |
|---|---|
| Rated voltage (V) | 630 |
| Rated current (A) | 32 |
