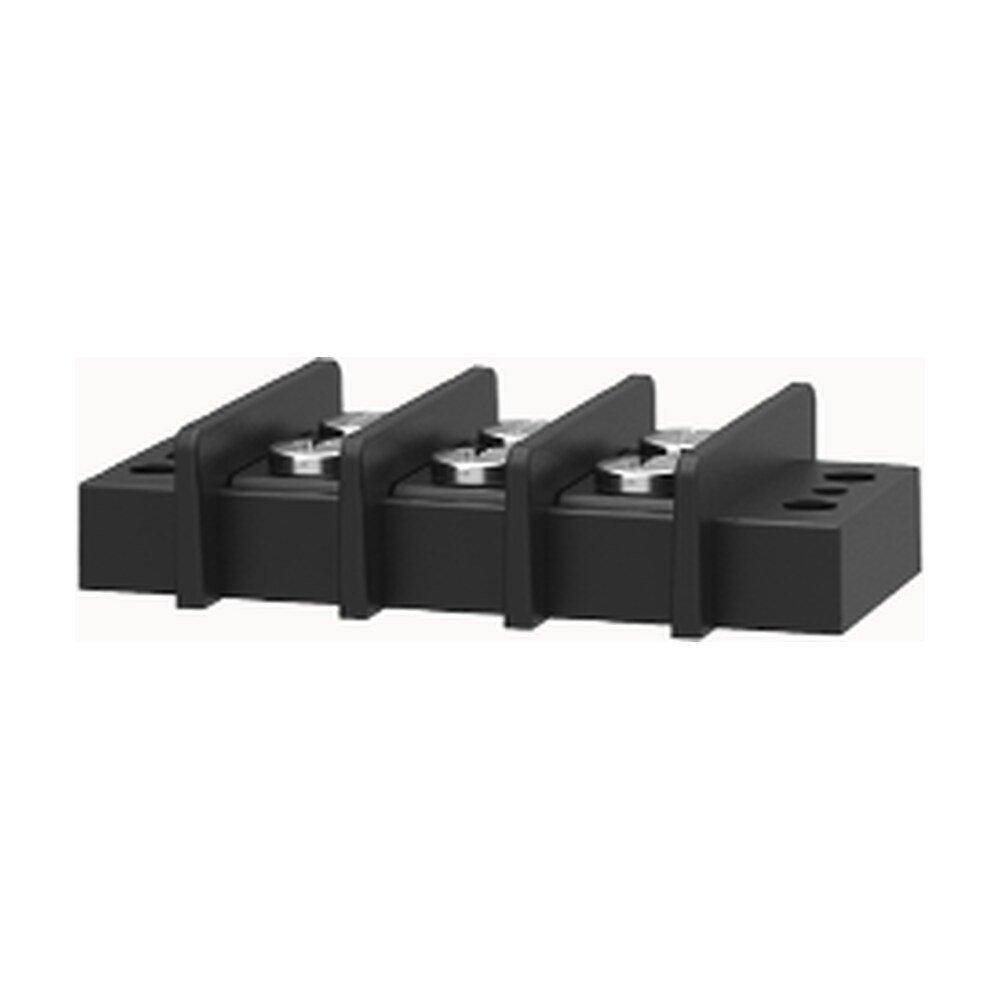

Barrier Block with 3 positions on a 17.45mm pitch and screw termination, rated 70A at 600V.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
This part is available made to order. Send us the quantity you need and we will come back with pricing and a firm lead time.
MR-DG99-A-03P-13-00A(H) is a Micro-Ray DG99 series euro-style pluggable terminal block (Barrier Blocks) with 3 positions, a 17.45mm pitch, screw termination.
Cross-references to Phoenix Contact . Phoenix Contact is a trademark of its owner; Micro-Ray is not affiliated with or endorsed by Phoenix Contact.
| Series | DG99 |
|---|---|
| Type | Barrier Blocks |
| Pitch | 17.45mm |
| Positions | 3 |
| Levels | 1 |
| Positions per Level | 3 |
| Termination | Screw |
| Mounting | Through Hole |
| Current (UL) | 70A |
| Voltage (UL) | 600V |
| Current (IEC) | 101A |
| Wire Range (AWG) | 14~4AWG |
| Screw Size | M5 |
| Screw Torque | 2N.m |
| Operating Temperature | -40℃~125℃ |
| Housing Material | PC |
| Contact Material | Copper alloy |
| Contact Finish | Tin |
| Flammability Rating | UL94V-0 |
| Colour | Black |
| Part Number (SKU) | MR-DG99-A-03P-13-00A(H) |
|---|---|
| Category | Barrier Blocks |
| Series | DG99 |
| Type | Barrier Blocks |
| Pitch | 17.45mm |
| Positions | 3 |
| Levels | 1 |
| Positions per Level | 3 |
| Termination | Screw |
| Mounting | Through Hole |
| Current (UL) | 70A |
| Voltage (UL) | 600V |
| Current (IEC) | 101A |
| Wire Range (AWG) | 14~4AWG |
| Screw Size | M5 |
| Screw Torque | 2N.m |
| Operating Temperature | -40℃~125℃ |
| Housing Material | PC |
| Contact Material | Copper alloy |
| Contact Finish | Tin |
| Flammability Rating | UL94V-0 |
| Colour | Black |
| Availability | Made to Order |
| Typical Lead Time | 8-10 weeks |
