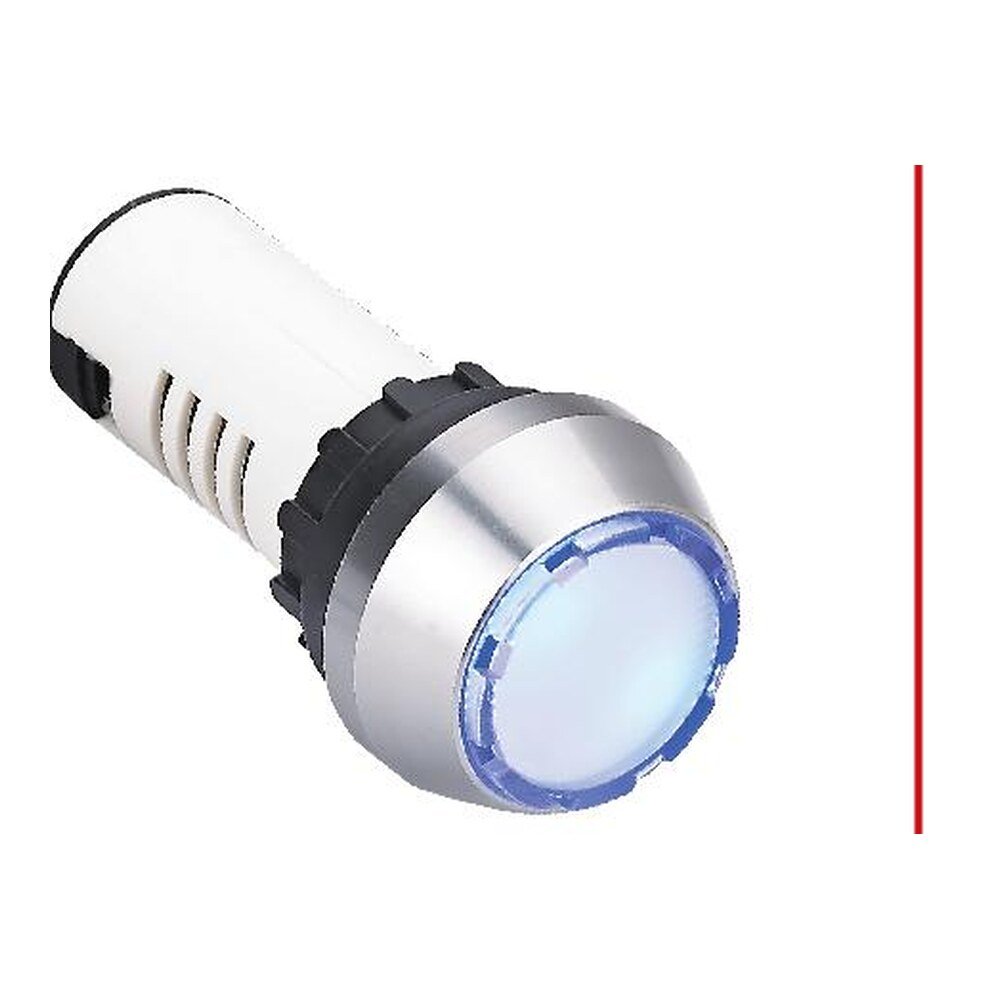

MR-AD16-22GQ-SS - ×22 mm Flashing Light - Metal Frame, Dual Colour.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-AD16-22GQ-SS is a dual-colour flashing LED light in a metal frame for a 22 mm hole.
Ordering. The ordering code is MR-AD16-22GQ-SS-X: each X is replaced by the option you need - voltage (12V = AC/DC 12 V, 24V = AC/DC 24 V, AC110V = AC 110 V, AC220V = AC 220 V, AC380V = AC 380 V). The part numbers are listed below.
Still being confirmed. The colour pairs offered and how they are written in the part number and the flash rate are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for stock check or lead-time.
| Part Number (SKU) | MR-AD16-22GQ-SS |
|---|---|
| Also ordered as | AD16-22GQ-SS |
| Category | Indicator Lights, Switches |
| Ordering code | MR-AD16-22GQ-SS-X |
| Series | AD16 pilot indicators |
| Type | Dual-colour flashing light, metal frame |
| Operating environment | −25 °C to +55 °C, altitude below 2000 m |
| Lamp type | LED |
| LED life | 40,000 hours min |
| Voltage fluctuation | ±20 % (110 V and above) |
| Rated impulse withstand voltage | 2.5 kV (AC RMS), 1 min |
| Frequency (AC) | 50 Hz to 60 Hz |
| Rated current | 20 mA max |
| Brightness | 100 cd/m² min |
| Comparative tracking index | CTI 100 min |
| Insulation resistance | 5 MΩ (Ui up to 60 V), 50 MΩ (60 V to 660 V) |
| Mounting hole | Ø22 mm (also fits a 25 mm hole) |
| Bezel | Ø31.5 mm metal frame |
| Panel thickness | 6 mm max |
| Head length | 15 mm |
| Body length behind panel | 50 mm |
| Terminals | Screw terminals; anti-electric-shock structure |
| Protection class | IP40 standard; IP65 to order |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Parts we build to your requirement ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-AD16-22GQ-SS is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-AD16-22GQ-SS-12V | AC/DC 12 V voltage |
| MR-AD16-22GQ-SS-24V | AC/DC 24 V voltage |
| MR-AD16-22GQ-SS-AC110V | AC 110 V voltage |
| MR-AD16-22GQ-SS-AC220V | AC 220 V voltage |
| MR-AD16-22GQ-SS-AC380V | AC 380 V voltage |
