MR-GQ12G-D-RGB - 12 mm Tri-Colour Metal Indicator Light - RGB, Domed Lens, IP67.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

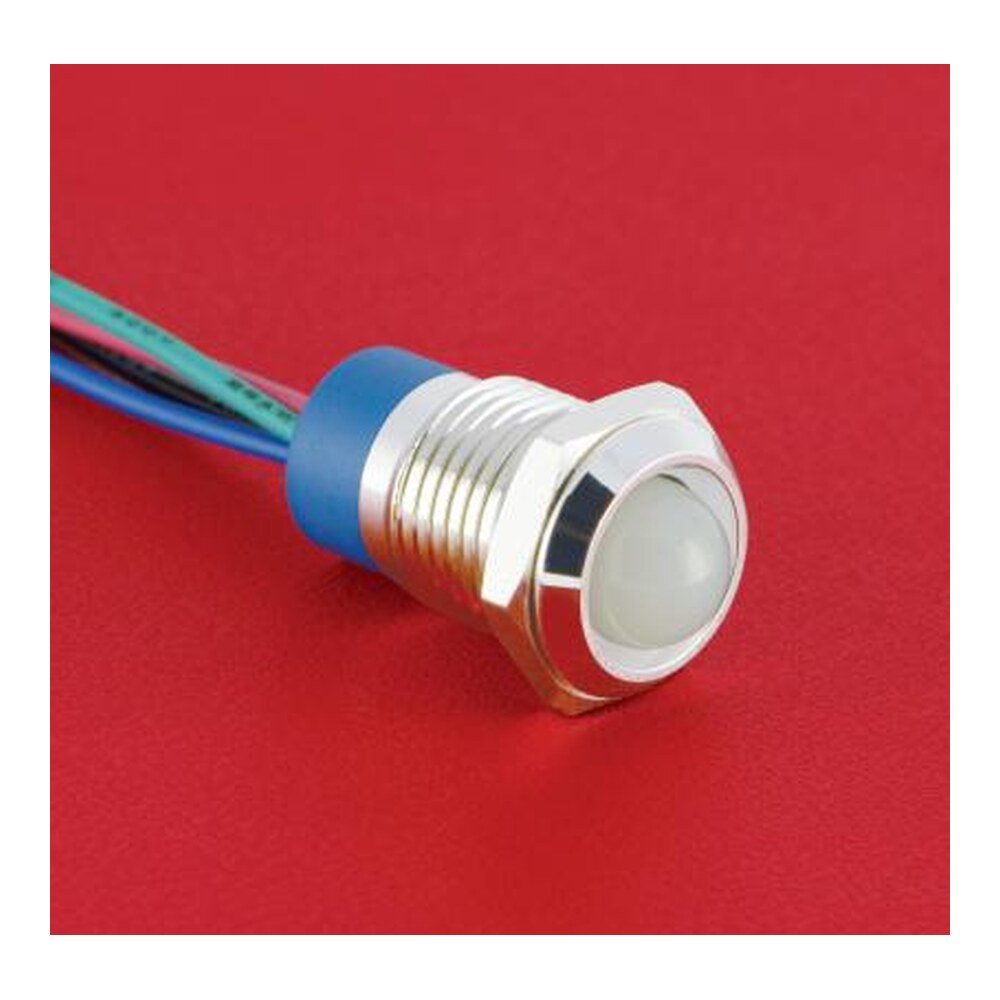

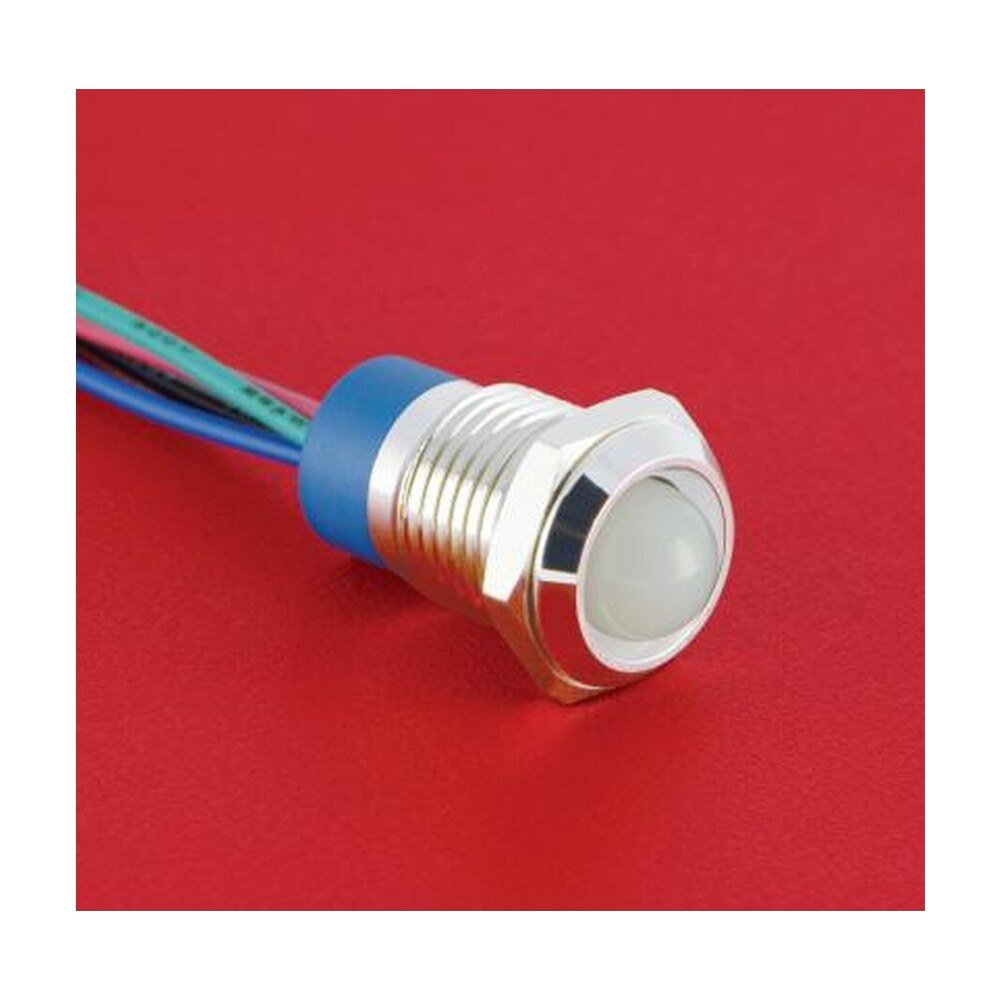

The MR-GQ12G-D-RGB is a 12 mm anti-vandal metal indicator with a red / green / blue LED behind a domed lens, common cathode or common anode, sealed to IP67.
Ordering. The ordering code is MR-GQ12G-D-Y-#RGB-#-#: each X is replaced by the option you need - led option (41 = Tri-colour, common cathode, 42 = Tri-colour, common anode); led voltage (6V = DC 6 V, 12V = DC 12 V, 24V = DC 24 V); body (N = Nickel-plated brass, S = Stainless steel, A = Black-plated brass). The part numbers are listed below.
Still being confirmed. The part number for the dual-colour 3-wire version is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-GQ12G-D-RGB |
|---|---|
| Also ordered as | GQ12G-D/Y/RGB |
| Category | Indicator Lights, Switches |
| Ordering code | MR-GQ12G-D-Y-#RGB-#-# |
| Series | GQ indicators (anti-vandal metal) |
| Type | Tri-colour metal indicator, domed lens |
| Operating temperature | −25 °C to +55 °C, non-freezing; keep air flowing around the indicator |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Dielectric strength | 1500 V RMS, 50 Hz, 1 min |
| Vibration resistance | 50 Hz, amplitude 1.2 mm |
| Solder heat resistance | 320 °C for 3 s |
| Standards | GB/T 14048.5-2017 |
| Lamp type | DC tri-colour LED (red, green, blue) |
| LED life | 40,000 hours (ref.) |
| Lens option | Lens shape and mounting hole size can be customised |
| LED forward voltage without resistor | Red 1.8 V, green 2.8 V, blue 2.8 V |
| Built-in resistor versions | DC 6 V, DC 12 V, DC 24 V |
| Rated current | 5 mA to 15 mA |
| Polarity | Observe anode and cathode; add external resistors to mix colours |
| Wiring | Wire leads about 150 mm; wire colour shows the LED colour, black is common |
| Option | Dual-colour version with 3 wires available |
| Mounting nut torque | About 0.1 N·m |
| Panel thickness | 6 mm max |
| Lens material | Epoxy (UV-resistant to order) |
| Base material | PA |
| Protection class | IP67 |
| Mounting hole | Ø12 mm |
| Thread | M12 × 1 |
| Bezel | Ø13.5 mm, lens Ø8 mm |
| Head length | 4.5 mm |
| Body length behind panel | 18 mm plus leads |
| Availability | Please call for pricing and availability |
