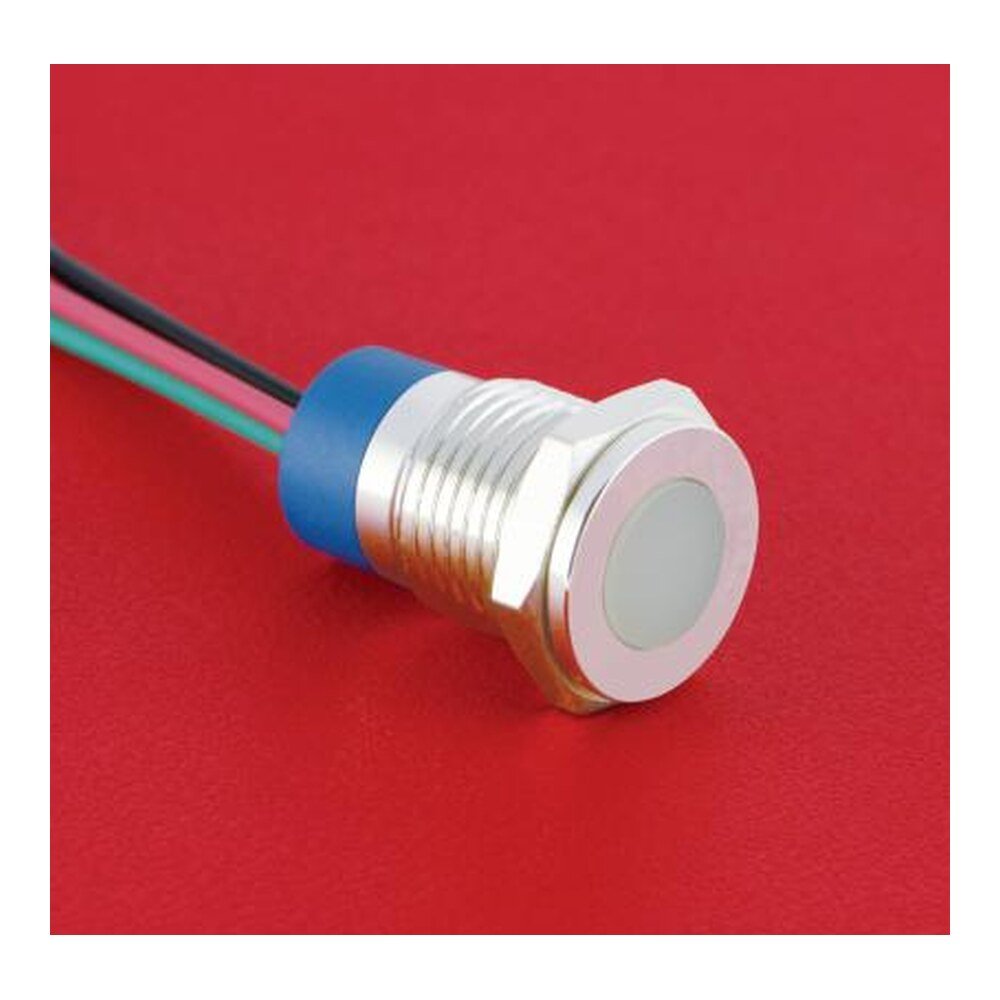

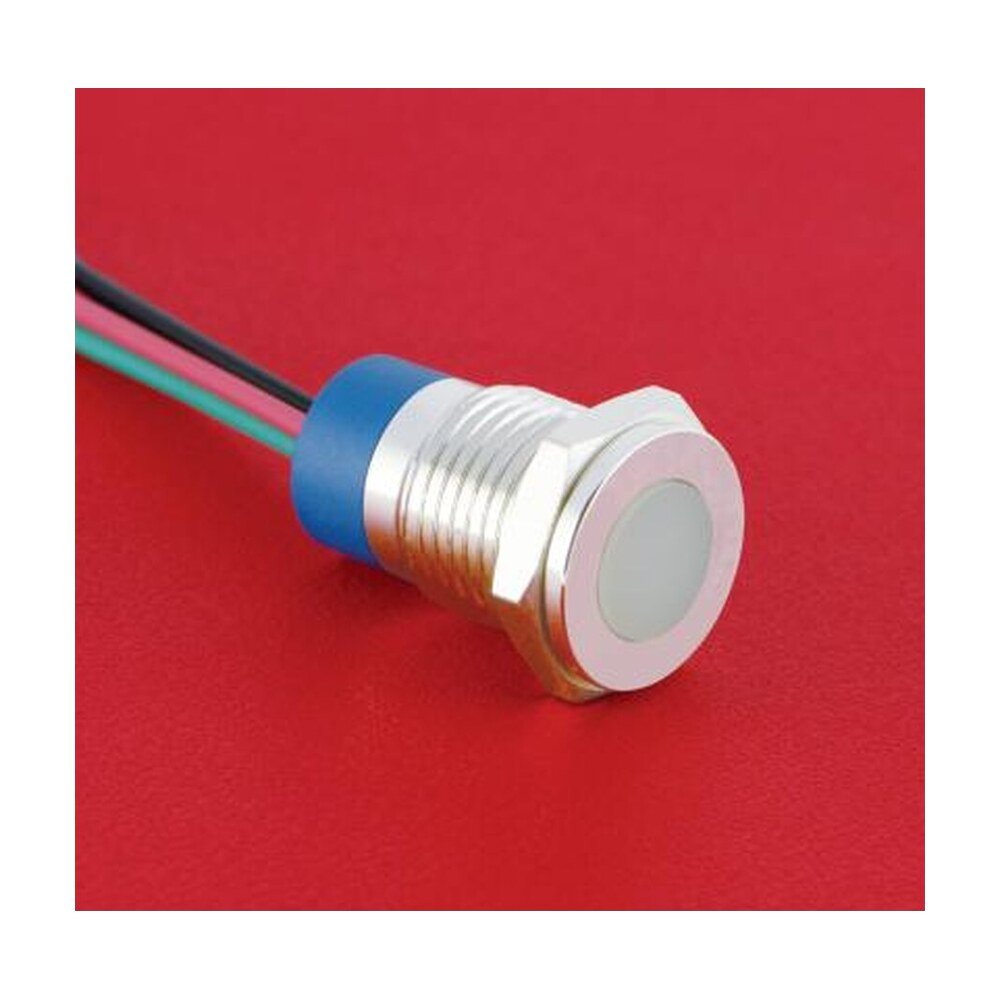

MR-GQ12T-D-RGB - 12 mm Tri-Colour Metal Indicator Light - RGB, Flat Round Lens, IP67.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-GQ12T-D-RGB is a 12 mm anti-vandal metal indicator with a red / green / blue LED behind a flat round lens, common cathode or common anode, sealed to IP67.
Ordering. The ordering code is MR-GQ12T-D-Y-#RGB-#-#: each X is replaced by the option you need - led option (41 = Tri-colour, common cathode, 42 = Tri-colour, common anode); led voltage (6V = DC 6 V, 12V = DC 12 V, 24V = DC 24 V); body (N = Nickel-plated brass, S = Stainless steel, A = Black-plated brass). The part numbers are listed below.
Still being confirmed. The part number for the dual-colour 3-wire version is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-GQ12T-D-RGB |
|---|---|
| Also ordered as | GQ12T-D/Y/RGB |
| Category | Indicator Lights, Switches |
| Ordering code | MR-GQ12T-D-Y-#RGB-#-# |
| Series | GQ indicators (anti-vandal metal) |
| Type | Tri-colour metal indicator, flat round lens |
| Operating temperature | −25 °C to +55 °C, non-freezing; keep air flowing around the indicator |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Dielectric strength | 1500 V RMS, 50 Hz, 1 min |
| Vibration resistance | 50 Hz, amplitude 1.2 mm |
| Solder heat resistance | 320 °C for 3 s |
| Standards | GB/T 14048.5-2017 |
| Lamp type | DC tri-colour LED (red, green, blue) |
| LED life | 40,000 hours (ref.) |
| Lens option | Lens shape and mounting hole size can be customised |
| LED forward voltage without resistor | Red 1.8 V, green 2.8 V, blue 2.8 V |
| Built-in resistor versions | DC 6 V, DC 12 V, DC 24 V |
| Rated current | 5 mA to 15 mA |
| Polarity | Observe anode and cathode; add external resistors to mix colours |
| Wiring | Wire leads about 150 mm; wire colour shows the LED colour, black is common |
| Option | Dual-colour version with 3 wires available |
| Mounting nut torque | About 0.1 N·m |
| Panel thickness | 6 mm max |
| Lens material | Epoxy (UV-resistant to order) |
| Base material | PA |
| Protection class | IP67 |
| Mounting hole | Ø12 mm |
| Thread | M12 × 1 |
| Bezel | Ø13.5 mm, lens Ø8 mm |
| Head length | 1.5 mm |
| Body length behind panel | 18.5 mm plus leads |
| Impact rating | IK06 |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-GQ12T-D-RGB is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-GQ12T-D-Y-41RGB-6V-N | Tri-colour, common cathode led option, DC 6 V led voltage, Nickel-plated brass body |
| MR-GQ12T-D-Y-41RGB-6V-S | Tri-colour, common cathode led option, DC 6 V led voltage, Stainless steel body |
| MR-GQ12T-D-Y-41RGB-6V-A | Tri-colour, common cathode led option, DC 6 V led voltage, Black-plated brass body |
| MR-GQ12T-D-Y-41RGB-12V-N | Tri-colour, common cathode led option, DC 12 V led voltage, Nickel-plated brass body |
| MR-GQ12T-D-Y-41RGB-12V-S | Tri-colour, common cathode led option, DC 12 V led voltage, Stainless steel body |
| MR-GQ12T-D-Y-41RGB-12V-A | Tri-colour, common cathode led option, DC 12 V led voltage, Black-plated brass body |
| MR-GQ12T-D-Y-41RGB-24V-N | Tri-colour, common cathode led option, DC 24 V led voltage, Nickel-plated brass body |
| MR-GQ12T-D-Y-41RGB-24V-S | Tri-colour, common cathode led option, DC 24 V led voltage, Stainless steel body |
| MR-GQ12T-D-Y-41RGB-24V-A | Tri-colour, common cathode led option, DC 24 V led voltage, Black-plated brass body |
| MR-GQ12T-D-Y-42RGB-6V-N | Tri-colour, common anode led option, DC 6 V led voltage, Nickel-plated brass body |
| MR-GQ12T-D-Y-42RGB-6V-S | Tri-colour, common anode led option, DC 6 V led voltage, Stainless steel body |
| MR-GQ12T-D-Y-42RGB-6V-A | Tri-colour, common anode led option, DC 6 V led voltage, Black-plated brass body |
| MR-GQ12T-D-Y-42RGB-12V-N | Tri-colour, common anode led option, DC 12 V led voltage, Nickel-plated brass body |
| MR-GQ12T-D-Y-42RGB-12V-S | Tri-colour, common anode led option, DC 12 V led voltage, Stainless steel body |
| MR-GQ12T-D-Y-42RGB-12V-A | Tri-colour, common anode led option, DC 12 V led voltage, Black-plated brass body |
| MR-GQ12T-D-Y-42RGB-24V-N | Tri-colour, common anode led option, DC 24 V led voltage, Nickel-plated brass body |
| MR-GQ12T-D-Y-42RGB-24V-S | Tri-colour, common anode led option, DC 24 V led voltage, Stainless steel body |
| MR-GQ12T-D-Y-42RGB-24V-A | Tri-colour, common anode led option, DC 24 V led voltage, Black-plated brass body |
