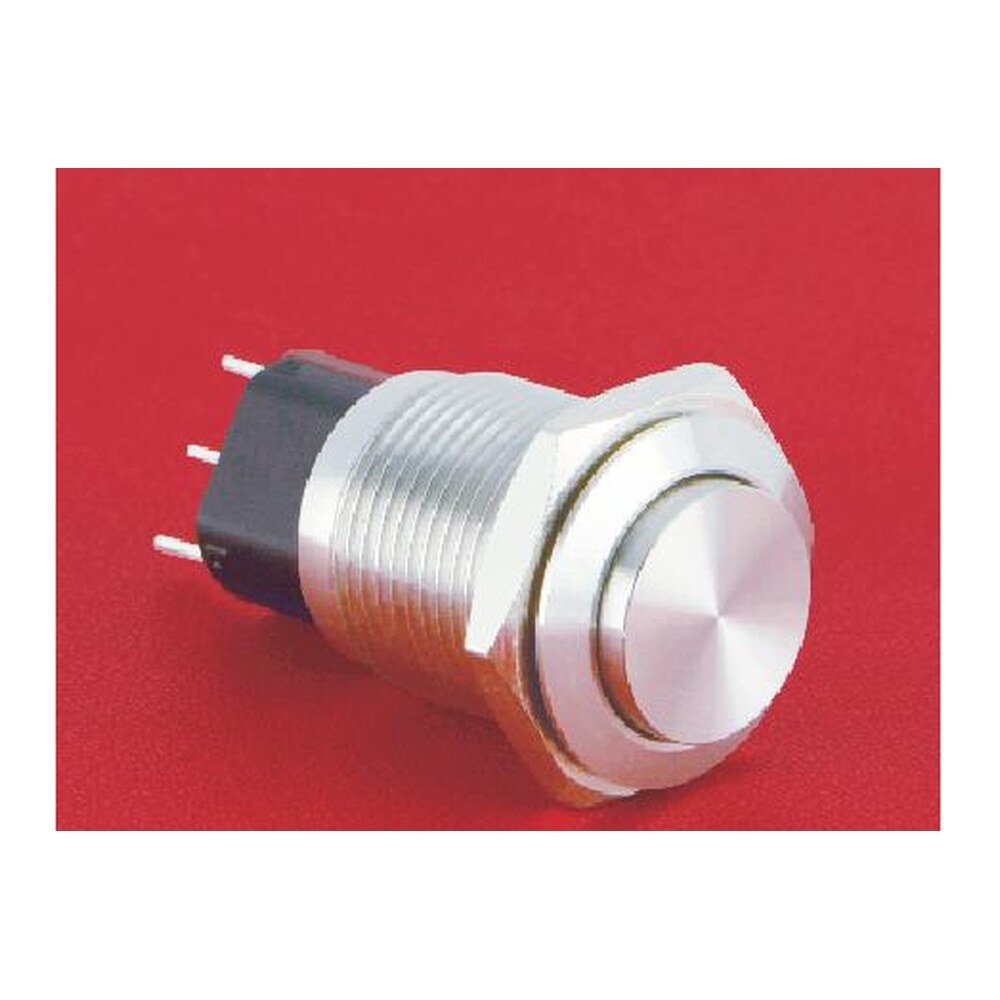

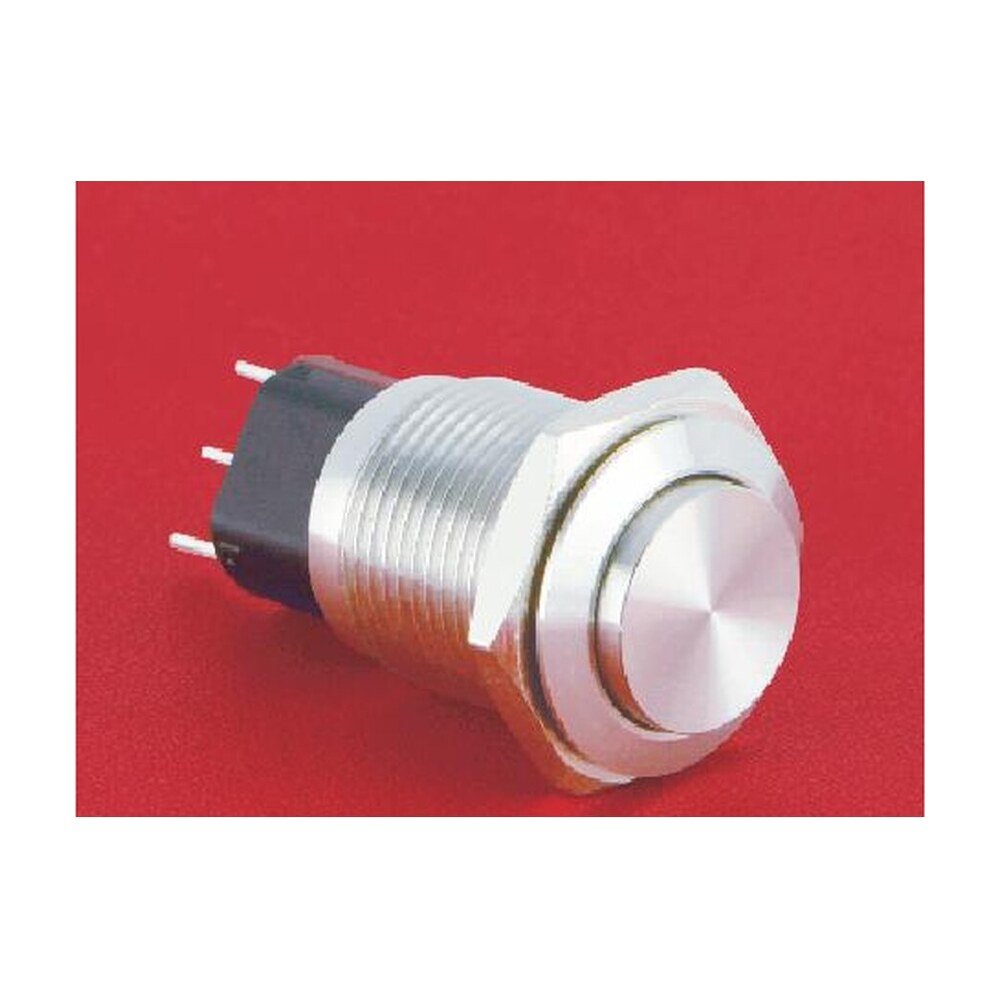

MR-GQ16-KH-11 - 16 mm Metal Push Button - High Round Head, 1NO1NC Changeover, Momentary or Latching.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-GQ16-KH-11 is the raised-head version of the 16 mm changeover push button: one normally open and one normally closed quick-action contact, momentary or latching, in chrome-plated brass, stainless steel or black aluminium.
Ordering. The ordering code is MR-GQ16-KH-11X-J-X: each X is replaced by the option you need - operation (none = Momentary, Z = Latching); housing (C = Brass, chrome plated, S = Stainless steel, A = Aluminium alloy, black). The part numbers are listed below.
Still being confirmed. The terminal count is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-GQ16-KH-11 |
|---|---|
| Also ordered as | GQ16-KH-11 |
| Category | Push Button Switches, Switches |
| Ordering code | MR-GQ16-KH-11X-J-X |
| Series | GQ16-K |
| Contact structure | 1NO1NC (SPDT, quick action) |
| Switch rating | 0.5 A at 220 V |
| Rated insulation voltage Ui | 250 V |
| Thermal current Ith | 3 A |
| Minimum load | 3 V AC/DC, 5 mA (reference) |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Max withstanding voltage | 1500 V AC, 50 Hz, 1 minute |
| Mechanical life | 500,000 cycles |
| Electrical life | 50,000 cycles |
| Operation travel | 3 mm approx |
| Operating force | 1.7 N approx |
| Nut torque | 0.6 Nm approx |
| Base material | PA |
| Vibration resistance | 50 Hz, amplitude 1.2 mm approx |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Protection class | IP40 (IP65 can be customised), IK08 |
| Standards | GB/T 14048.5-2017 CCC 20201201000016, EN 61058-1:2018, CE UDEM/M.2021.206.C62197 |
| Panel cut-out | Ø16 mm |
| Mounting | M16 × 1 threaded bush |
| Bezel diameter | Ø18 mm |
| Bezel height | 8 mm max |
| Across flats | 21.8 mm |
| Head shape | H = high round |
| Termination | Solder tab (wiring patch) 2 × 0.5 mm |
| Body length behind panel | 32 mm |
| Accessory | Sealing cover M12-16H |
| Operation type | Z = latching, no letter = momentary |
| Illumination | None |
| Availability | Please call for pricing and availability |
