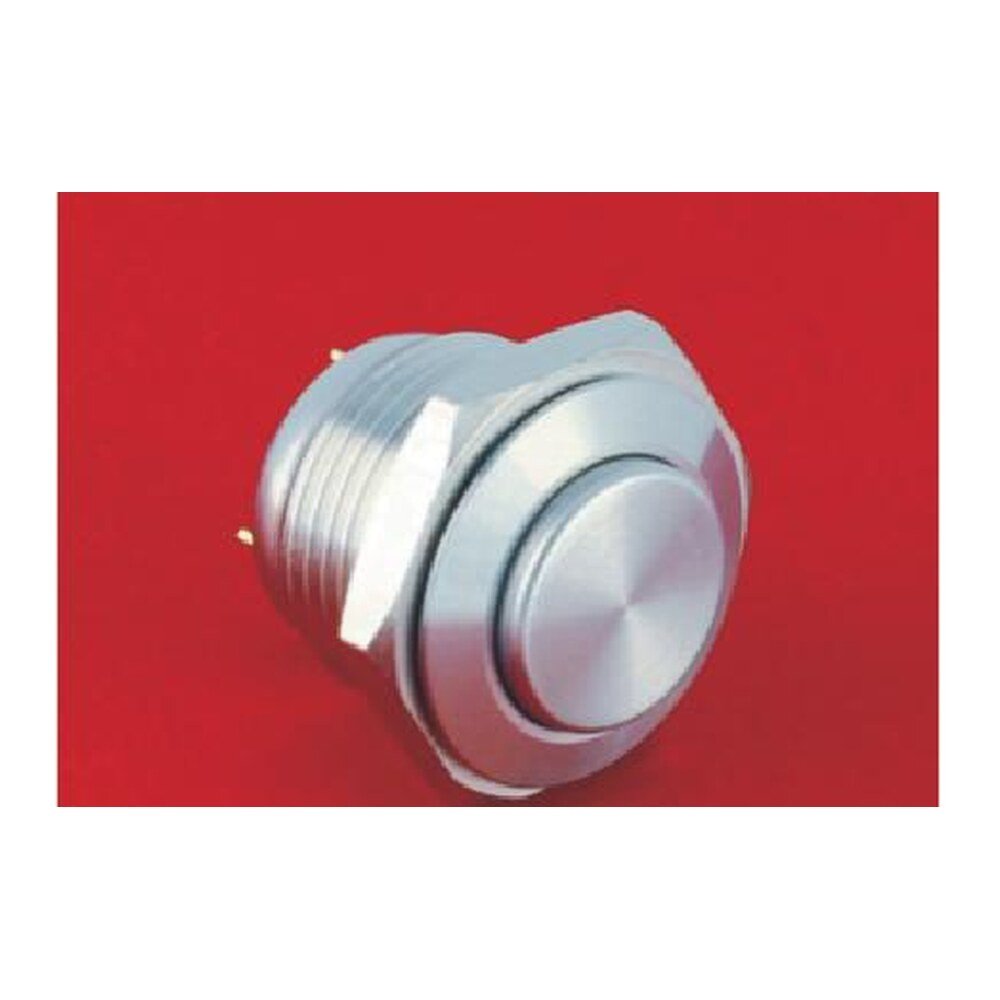

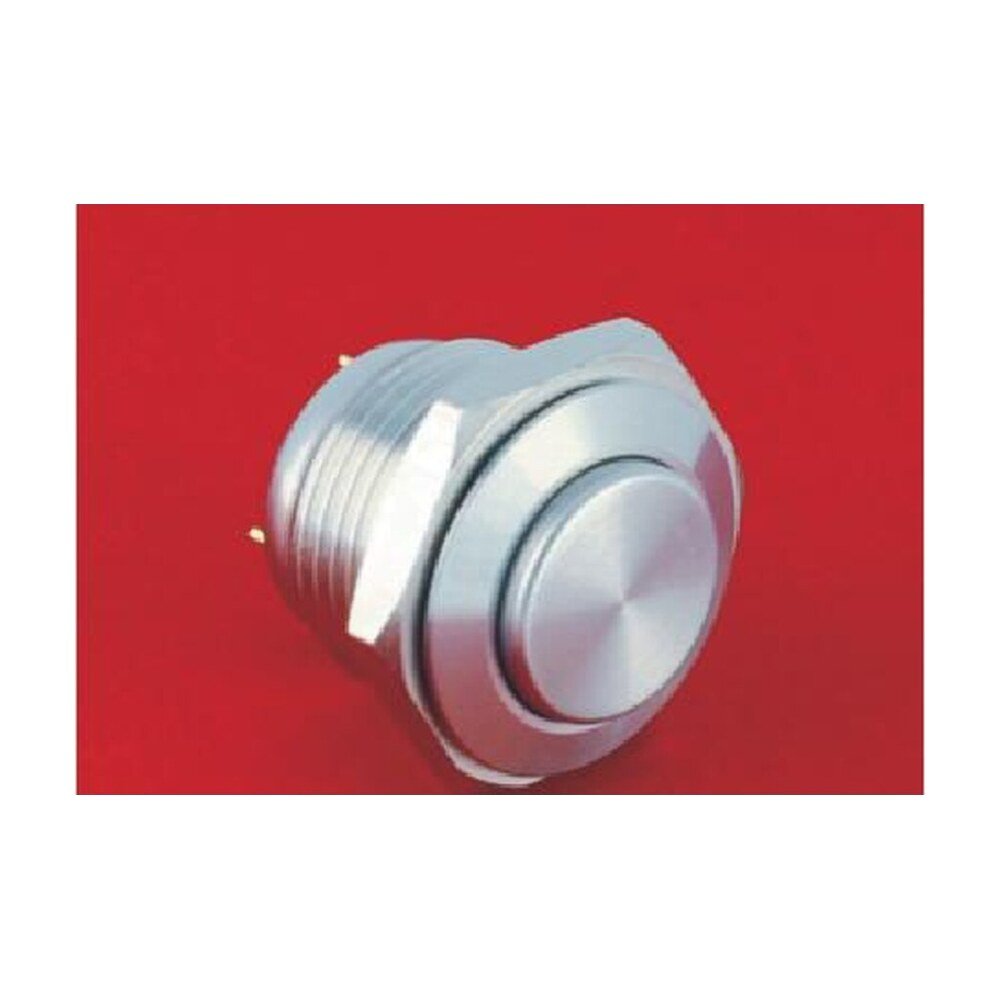

MR-GQ16H-10-J - 16 mm Anti-Vandal Push Button - High Round Head, 1NO, Solder Tab.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-GQ16H-10-J is a 16 mm anti-vandal push button from the GQ16 range - the maker's widest metal-button series: a single normally-open momentary contact rated 2 A at 36 V DC or 0.5 A at 220 V, a million mechanical operations, sealed to IP65 with an IK08 impact rating, mounting in a Ø16 mm panel hole on an M16 × 1 thread.
Ordering. The ordering code is MR-GQ16H-10-J-X: each X is replaced by the option you need - housing (N = Nickel-plated brass, S = Stainless steel). The part numbers are listed below.
Still being confirmed. The terminal count and the operating travel (the catalogue prints 24 mm for this series, which reads like a misprint for 2.4 mm) are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-GQ16H-10-J |
|---|---|
| Also ordered as | GQ16H-10-J |
| Category | Push Button Switches, Switches |
| Ordering code | MR-GQ16H-10-J-X |
| Series | GQ16 |
| Contact structure | 1NO (1NC can be customised on some models) |
| Operation type | Momentary |
| Switch rating | 2 A at 36 V DC, 0.5 A at 220 V |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Max withstanding voltage | 1500 V AC, 50 Hz, 1 minute |
| Mechanical life | 1,000,000 cycles |
| Electrical life | 50,000 cycles |
| Operating force | 4 N approx |
| Nut torque | 0.6 Nm approx |
| Base material | PBT (unlit models), PA (lit models) |
| Vibration resistance | 50 Hz, amplitude 1.2 mm approx |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Protection class | IP65 (IP67 can be customised), IK08 |
| Standards | GB/T 14048.5-2017 CCC 2020970305003360, UL 508, UL/E254023, EN 61058-1:2018, CE UDEM/M.2021.206.C62197 |
| Panel cut-out | Ø16 mm |
| Mounting | M16 × 1 threaded bush |
| Bezel diameter | Ø18 mm |
| Bezel height | 6 mm max |
| Across flats | 21.8 mm |
| Head shape | H = high round |
| Termination | Solder tab (wiring patch) 2 × 0.5 mm |
| Body length behind panel | 17.5 mm |
| Accessory | Sealing cover M12-16H |
| Illumination | None |
| Availability | Please call for pricing and availability |
