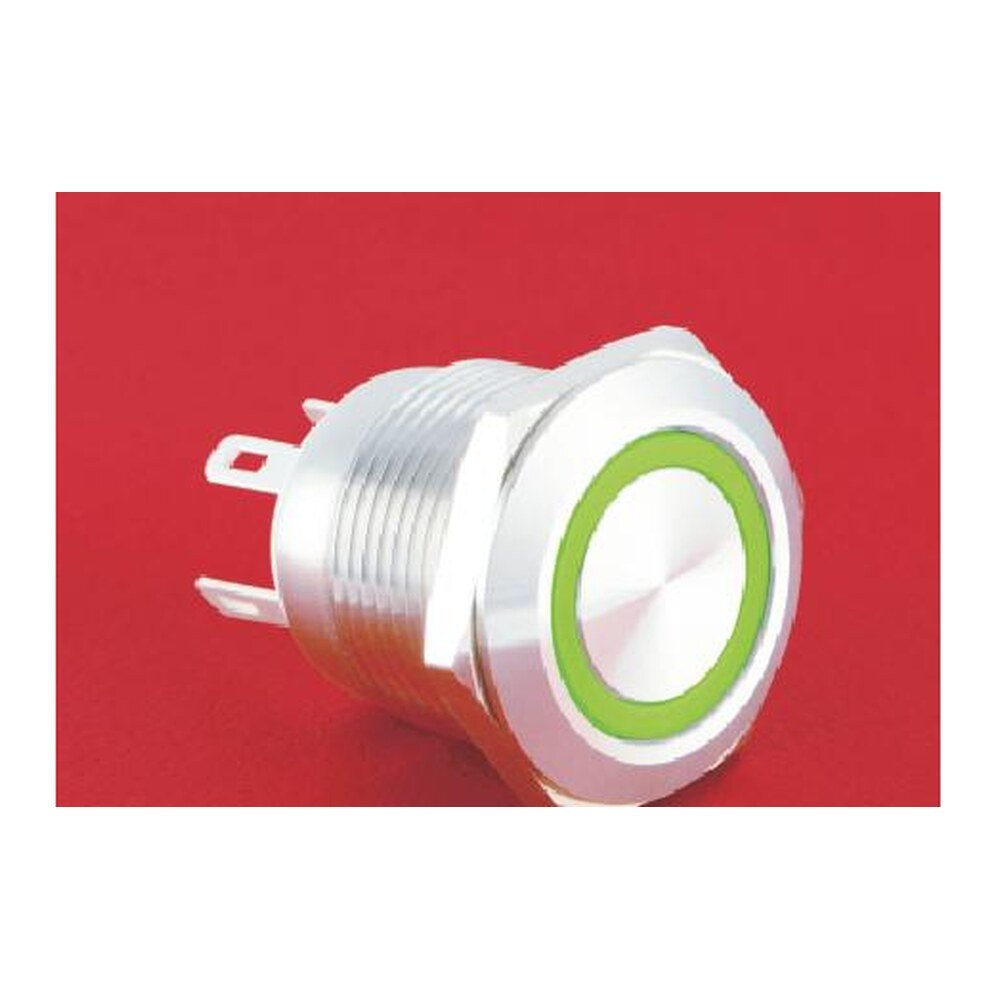

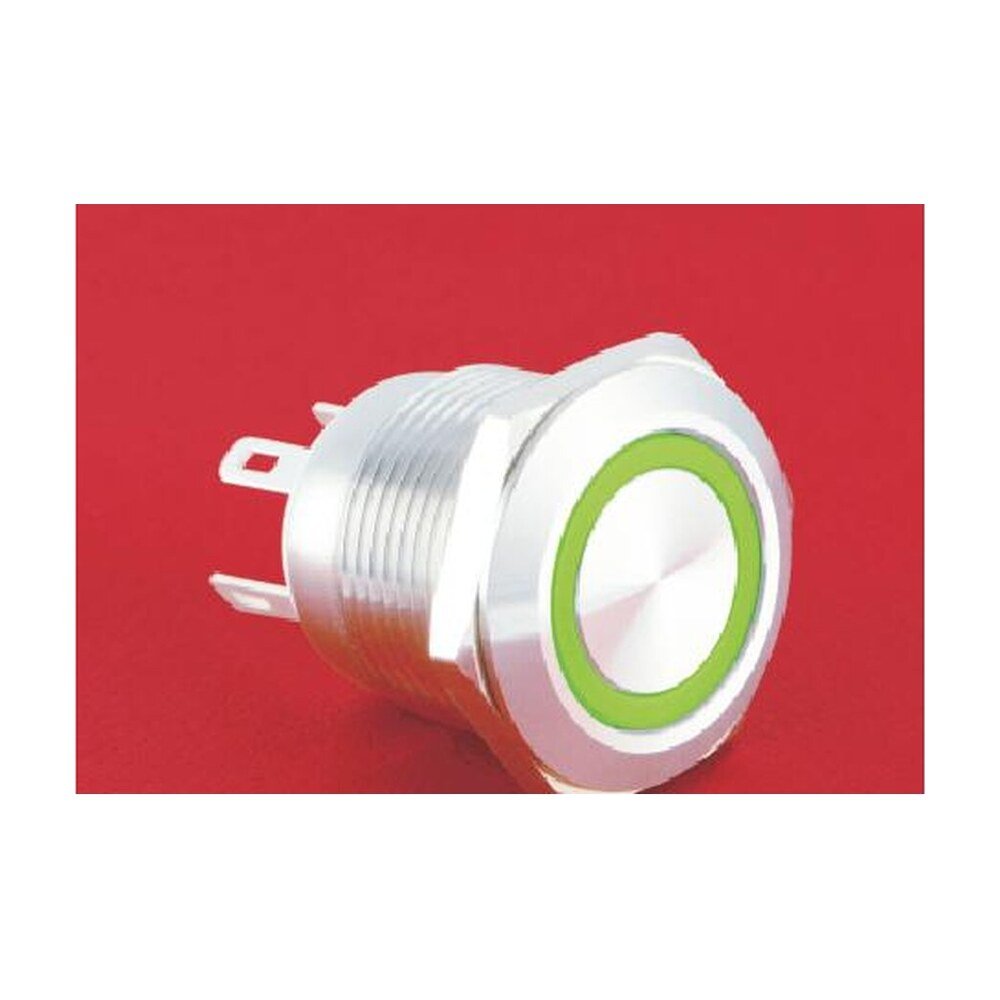

MR-GQ19F-10E-J - 19 mm Anti-Vandal Push Button - Flat Round Head, Ring Illuminated, 1NO.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-GQ19F-10E-J is an illuminated 19 mm anti-vandal push button from the GQ19 range: a single normally-open momentary contact rated 2 A at 36 V DC or 1 A at 220 V, with an LED in red, green, yellow, blue or white at 6 V to 220 V, sealed to IP65 with an IK08 impact rating.
Ordering. The ordering code is MR-GQ19F-10E-J-X-X-S: each X is replaced by the option you need - led colour (R = Red, G = Green, Y = Yellow, B = Blue, W = White); led voltage (6V = 6 V, 12V = 12 V, 24V = 24 V, 110V = 110 V, 220V = 220 V). The part numbers are listed below.
Still being confirmed. The terminal count is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-GQ19F-10E-J |
|---|---|
| Also ordered as | GQ19F-10E-J |
| Category | Push Button Switches, Switches |
| Ordering code | MR-GQ19F-10E-J-X-X-S |
| Series | GQ19 |
| Contact structure | 1NO |
| Operation type | Momentary |
| Switch rating | 2 A at 36 V DC, 1 A at 220 V |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Max withstanding voltage | 1500 V AC, 50 Hz, 1 minute |
| Mechanical life | 1,000,000 cycles |
| Electrical life | 50,000 cycles |
| Operation travel | 1.8 mm approx |
| Operating force | 4 N approx |
| Nut torque | 0.6 Nm approx |
| Base material | PBT |
| Vibration resistance | 50 Hz, amplitude 1.2 mm approx |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Protection class | IP65, IK08 |
| Standards | GB/T 14048.5-2017 CCC 2020970305003361, EN 61058-1:2018, CE UDEM/M.2021.206.C62197 |
| Panel cut-out | Ø19 mm |
| Mounting | M19 × 1 threaded bush |
| Bezel diameter | Ø22 mm |
| Bezel height | 8 mm max |
| Across flats | 25.2 mm |
| Housing material | Stainless steel |
| Head shape | F = flat round |
| Accessories | Sealing cover M12-19F, Protection cover T21-19 |
| LED life | 40,000 hours min |
| LED current | About 15 mA at 24 V or less, about 2 mA at 110 V or more |
| LED voltage fluctuation | DC ±10 %, AC ±20 % |
| Illuminated type | E = ring illuminated |
| Lit area | 1.8 mm ring |
| Termination | Solder tab (wiring patch) 2.8 × 0.5 mm |
| Body length behind panel | 26.4 mm |
| Availability | Please call for pricing and availability |
