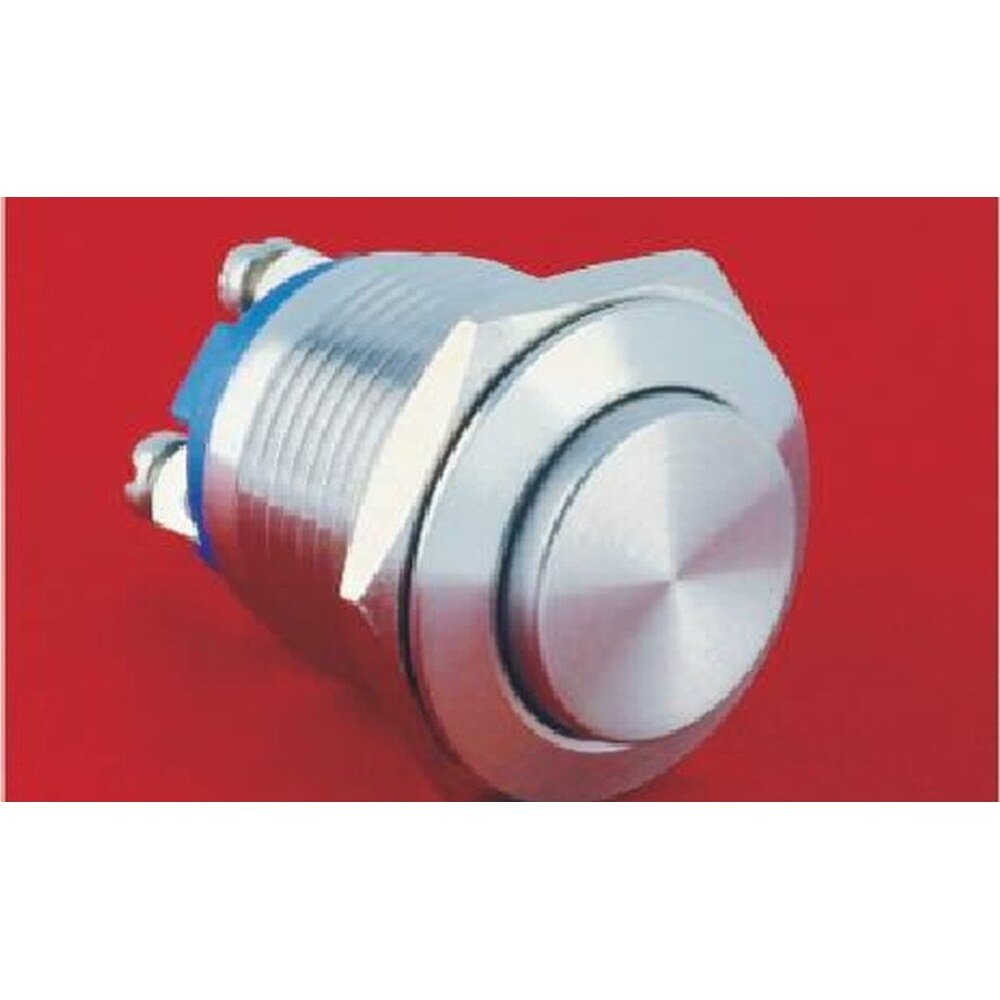

MR-GQ19H-10 - 19 mm Anti-Vandal Push Button - High Round Head, 1NO, Screw Terminals.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

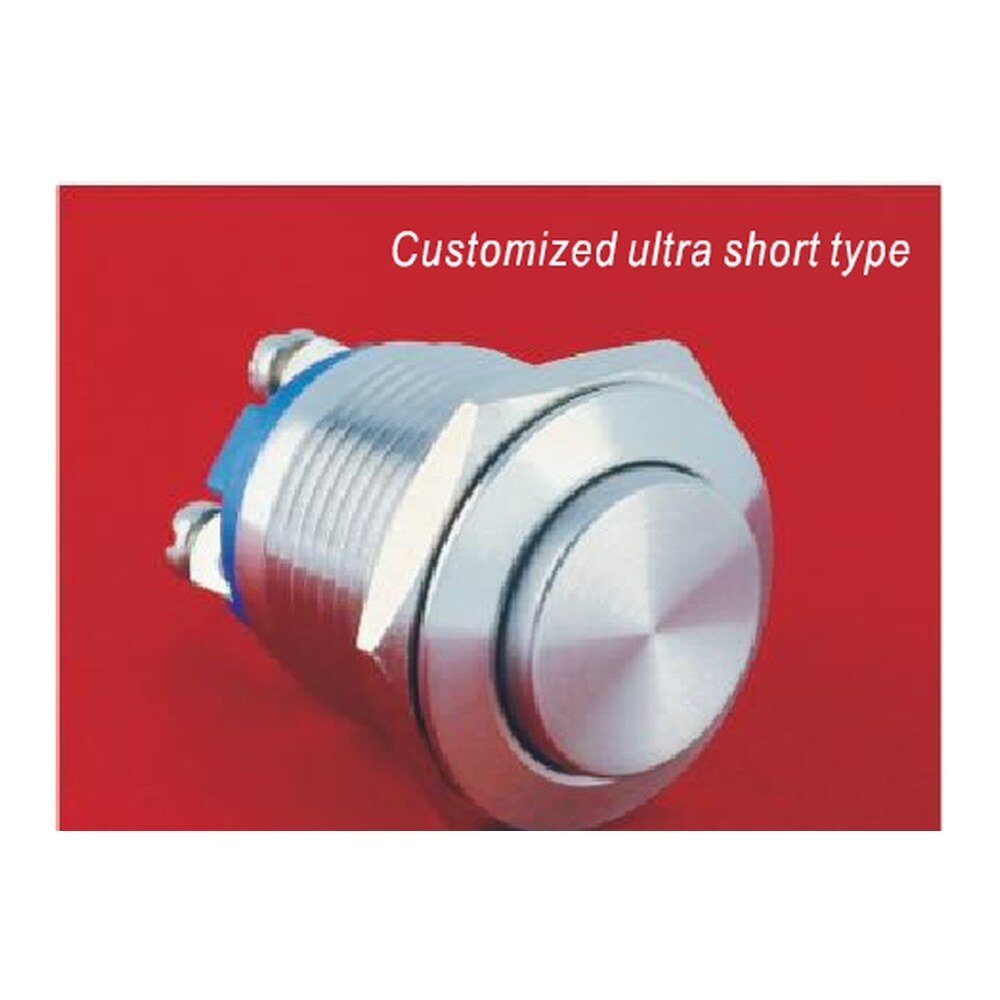

The MR-GQ19H-10 is a 19 mm anti-vandal push button from the GQ19 range - a compact, economical body that has long been the maker's staple for small panels: a single normally-open momentary contact rated 2 A at 36 V DC or 1 A at 220 V, a million mechanical operations and IP65 sealing. An ultra-short body can be built to order.
Ordering. The ordering code is MR-GQ19H-10-X: each X is replaced by the option you need - housing (N = Nickel-plated brass, S = Stainless steel). The part numbers are listed below.
Still being confirmed. The terminal count is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-GQ19H-10 |
|---|---|
| Also ordered as | GQ19H-10 |
| Category | Push Button Switches, Switches |
| Ordering code | MR-GQ19H-10-X |
| Series | GQ19 |
| Contact structure | 1NO (1NC can be customised on some models) |
| Operation type | Momentary |
| Switch rating | 2 A at 36 V DC, 1 A at 220 V |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Max withstanding voltage | 1500 V AC, 50 Hz, 1 minute |
| Mechanical life | 1,000,000 cycles |
| Electrical life | 50,000 cycles |
| Operation travel | 1.8 mm approx |
| Operating force | 4 N approx |
| Nut torque | 0.6 Nm approx |
| Base material | PBT |
| Vibration resistance | 50 Hz, amplitude 1.2 mm approx |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Protection class | IP65, IK06 |
| Standards | GB/T 14048.5-2017 CCC 2020970305003361, EN 61058-1:2018, CE UDEM/M.2021.206.C62197 |
| Panel cut-out | Ø19 mm |
| Mounting | M19 × 1 threaded bush |
| Bezel diameter | Ø22 mm |
| Bezel height | 8 mm max |
| Across flats | 25.2 mm |
| Head shape | High Round Head |
| Termination | Screw terminals |
| Body length behind panel | 28 mm max |
| Accessories | Sealing cover M12-19H |
| Illumination | None |
| Availability | Please call for pricing and availability |
