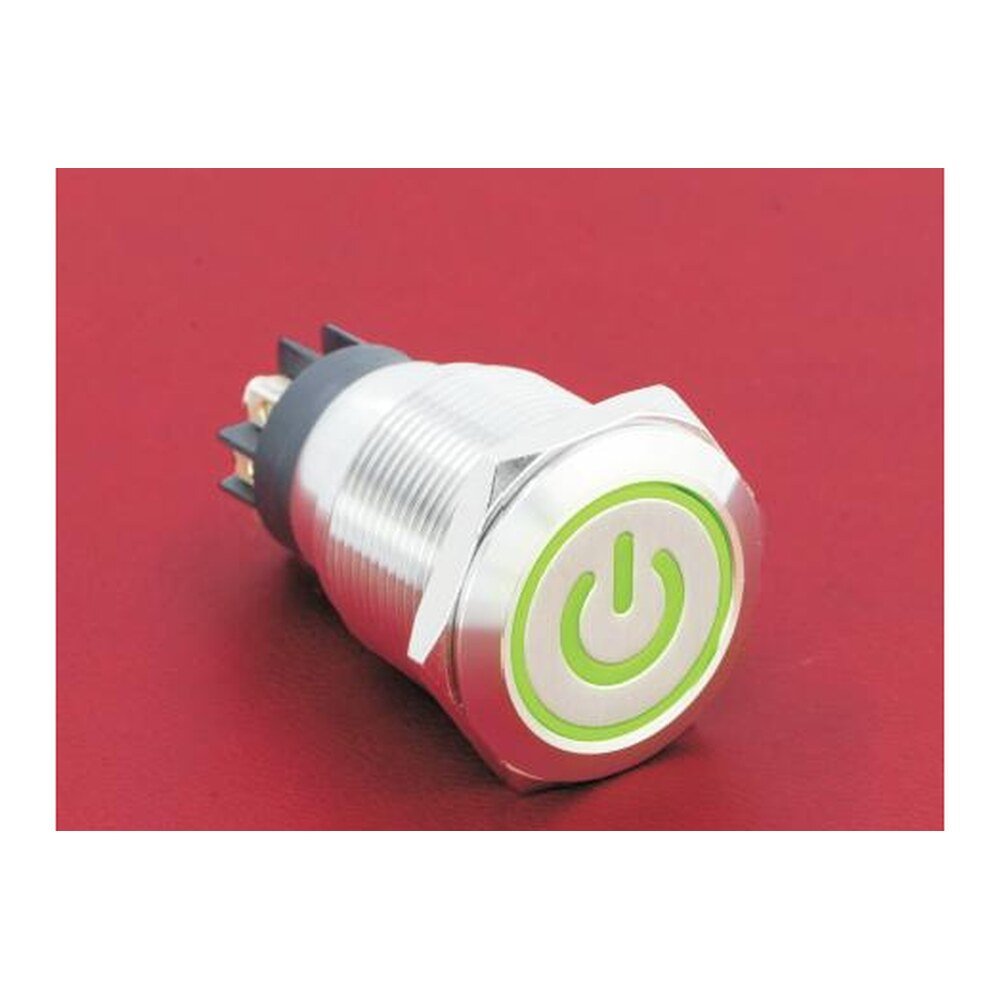

MR-GQ22-L-11ET - 22 mm High-Current Metal Push Button - Ring and Power Symbol Illuminated, Screw Terminal Post.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-GQ22-L-11ET is a fast-action metal push button from the GQ★-L range, built for heavier loads: a changeover contact rated 5 A thermal current at 250 V, momentary or latching, sealed to IP65 with an IK09 impact rating.
Ordering. The ordering code is MR-GQ22-L-11#ET-#-#-S: each X is replaced by the option you need - operation (none = Momentary, Z = Latching); led colour (R = Red, G = Green, Y = Yellow, B = Blue, W = White); led voltage (6V = 6 V, 12V = 12 V, 24V = 24 V, 110V = 110 V, 220V = 220 V). The part numbers are listed below.
Still being confirmed. The terminal count is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-GQ22-L-11ET |
|---|---|
| Also ordered as | GQ22-L-11ET |
| Category | Push Button Switches, Switches |
| Ordering code | MR-GQ22-L-11#ET-#-#-S |
| Contact structure | 11 = 1NO1NC (fast action, SPDT) |
| Operation type | Z = latching, no letter = momentary |
| Switch rating | Ui 250 V, Ith 5 A, 2 A at 220 V AC |
| Rated operation current, AC 50/60 Hz | 110 V: 5 A resistive, 3 A inductive, 220 V: 3 A resistive, 2 A inductive |
| Rated operation current, DC | 12 V: 5 A resistive, 2 A inductive, 24 V: 5 A resistive, 2 A inductive, 110 V: 1 A resistive, 0.2 A inductive, 220 V: 0.5 A resistive, 0.1 A inductive |
| Minimum load | 3 V AC/DC, 5 mA (reference) |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Max withstanding voltage | 1500 V AC, 50 Hz, 1 minute |
| Mechanical life | 1,000,000 cycles |
| Electrical life | 50,000 cycles |
| Operation travel | 2.5 mm approx |
| Operating force | 4 N approx (IP65), 5 N approx (IP67) |
| Nut torque | 0.8 Nm approx |
| Base material | PA / PC |
| Vibration resistance | 50 Hz, amplitude 1.2 mm approx |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Protection class | IP65 (momentary models can be built IP67), IK09 |
| Standards | GB/T 14048.5-2017 CCC 20201201000018, EN 61058-1:2018, CE UDEM/M.2021.206.C62197 |
| Bezel height | 11 mm max |
| Housing material | Stainless steel |
| Terminal marking | 1 and 2 normally closed; 3 and 4 normally open; + and − are the lamp pins |
| Series | GQ22-L (GQ★-L family) |
| Panel cut-out | Ø22 mm |
| Mounting | M22 × 1 threaded bush |
| Bezel diameter | Ø25 mm |
| Across flats | 28.5 mm |
| Termination | Screw terminal post |
| Body length behind panel | 38 mm max momentary, 44.5 mm max latching |
| Accessories | Sealing cover M12-22F, Protection cover T21-22 |
| Illuminated type | ET = ring and power symbol illuminated |
| Ring width | 2.1 mm |
| LED life | 40,000 hours min |
| LED current | About 15 mA at 24 V or less, about 2 mA at 110 V or more |
| LED voltage fluctuation | DC ±10 %, AC ±20 % |
| Availability | Please call for pricing and availability |
