Part No. MR-HBY5-M

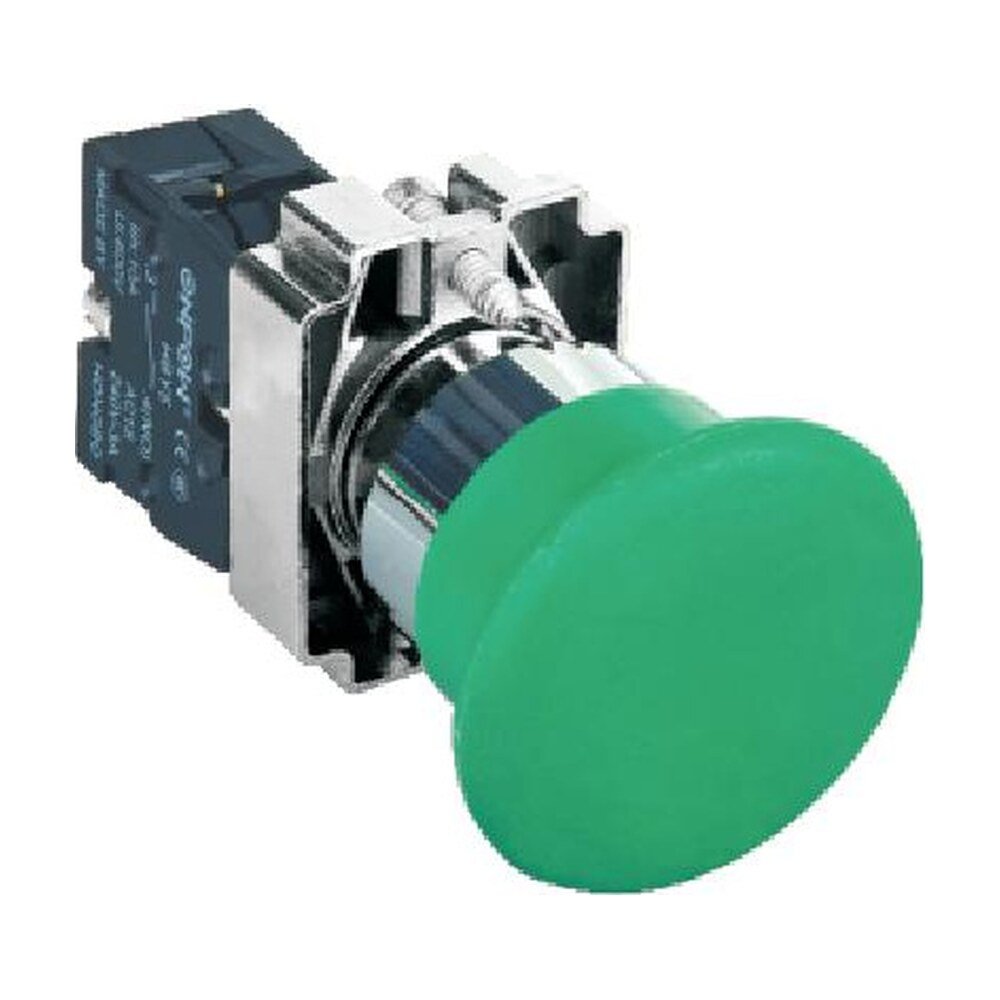

MR-HBY5-M 22 mm Mushroom Head Push Button - Metal Bezel

Name: MR-HBY5-M 22 mm Mushroom Head Push Button - Metal Bezel
Brand: Micro-Ray Electronics
SKU: MR-HBY5-M

Please call for pricing and availability

MR-HBY5-M - 22 mm Mushroom Head Push Button - Metal Bezel.

Choose the part number

Request a quote

Call for Pricing

Value added

Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.

Contact Code

Operation Code

Colour Code

Protection Code

Clear

Request a Quote

Send us the quantity you need and we will come back with pricing and a firm lead time.

Stocked items ship on receipt of order. Made-to-order items ship after production.

Need volume, a custom length, or a cross-reference? Talk to our sales account representative.

The MR-HBY5-M is a 22 mm modular push button with a red or green mushroom head in a metal bezel, momentary or latching, with slow-break switch units rated 10 A thermal current and 660 V insulation voltage. IP40 as standard or IP65 to order.

Ordering. The ordering code is MR-HBY5-XXM-X-X: each X is replaced by the option you need - contact (11 = 1NO1NC, 10 = 1NO, 01 = 1NC, 20 = 2NO, 02 = 2NC, 22 = 2NO2NC, 40 = 4NO, 04 = 4NC, 31 = 3NO1NC, 13 = 1NO3NC, 30 = 3NO, 03 = 3NC, 21 = 2NO1NC, 12 = 1NO2NC); operation (none = Momentary, Z = Latching); colour (R = Red, G = Green); protection (none = IP40, P = IP65). The part numbers are listed below.

Still being confirmed. The mushroom diameter and part numbers for three or more contact groups are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.

Please call for pricing and availability.

Part Number (SKU)	MR-HBY5-M
Also ordered as	HBY5-M
Category	Push Button Switches, Switches
Ordering code	MR-HBY5-XXM-X-X
Series	HBY5 (22 mm, metal head)
Rated insulation voltage Ui	660 V
Thermal current Ith	10 A
Rated operation current, AC-12	24 V: 10 A, 110 V: 10 A, 220 V: 6 A
Rated operation current, AC-15	24 V: 10 A, 110 V: 6 A, 220 V: 3 A, 380 V: 1.8 A, 500 V: 1.4 A
Rated operation current, DC-12	24 V: 8 A, 48 V: 4 A, 110 V: 2.2 A, 220 V: 1.1 A
Rated operation current, DC-13	24 V: 4 A, 48 V: 2 A, 110 V: 1.1 A, 220 V: 0.6 A
Minimum load	3 V AC/DC, 5 mA
Contact material	Silver alloy
Contact resistance	50 mΩ max
Insulation resistance	100 MΩ min at 500 V DC
Dielectric strength	3000 V AC, 50 Hz, 1 min
Vibration resistance	50 Hz, amplitude 1.0 mm
Operating temperature	−25 °C to +55 °C, non-freezing
Operating humidity	45 % to 85 % RH, non-condensing
Connection	Screw terminals: min 1 × 0.5 mm²; max 2 × 1.5 mm² with connecting link, 1 × 2.5 mm² without
Contact structure	Modular slow-break switch units, self-cleaning; 1 to 8 units
Standards	IEC 60947-5-1, GB/T 14048.5
Altitude	2000 m max
Pollution degree	3
Panel cut-out	Ø22.5 mm
Panel thickness	0.5 mm to 5 mm
Type	Mushroom head push button
Protection class	IP40 standard, IP65 to order (P)
Mechanical life	Momentary 1,000,000, Latching 500,000 operations min
Electrical life	50,000 operations min
Operating force	About 8 N (1NO1NC), about 14 N (2NO2NC)
Operation travel	About 5.5 mm
Bezel	30 × 40 mm
Head types	Metal head as standard; simple plastic type E1 to order
Head	Mushroom
Head length	26 mm
Body length behind panel	42 mm
Accessories	Protective cover T31
Availability	Please call for pricing and availability

Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray

Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.

Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.

Contact Micro-Ray Sales

Part numbers in this family

MR-HBY5-M is the family. Order by the part number for the option you need.

Part Number	Description
MR-HBY5-11M-R	1NO1NC contact, Momentary operation, Red colour, IP40 protection
MR-HBY5-11M-R-P	1NO1NC contact, Momentary operation, Red colour, IP65 protection
MR-HBY5-11M-G	1NO1NC contact, Momentary operation, Green colour, IP40 protection
MR-HBY5-11M-G-P	1NO1NC contact, Momentary operation, Green colour, IP65 protection
MR-HBY5-11ZM-R	1NO1NC contact, Latching operation, Red colour, IP40 protection
MR-HBY5-11ZM-R-P	1NO1NC contact, Latching operation, Red colour, IP65 protection
MR-HBY5-11ZM-G	1NO1NC contact, Latching operation, Green colour, IP40 protection
MR-HBY5-11ZM-G-P	1NO1NC contact, Latching operation, Green colour, IP65 protection
MR-HBY5-10M-R	1NO contact, Momentary operation, Red colour, IP40 protection
MR-HBY5-10M-R-P	1NO contact, Momentary operation, Red colour, IP65 protection
MR-HBY5-10M-G	1NO contact, Momentary operation, Green colour, IP40 protection
MR-HBY5-10M-G-P	1NO contact, Momentary operation, Green colour, IP65 protection
MR-HBY5-10ZM-R	1NO contact, Latching operation, Red colour, IP40 protection
MR-HBY5-10ZM-R-P	1NO contact, Latching operation, Red colour, IP65 protection
MR-HBY5-10ZM-G	1NO contact, Latching operation, Green colour, IP40 protection
MR-HBY5-10ZM-G-P	1NO contact, Latching operation, Green colour, IP65 protection
MR-HBY5-01M-R	1NC contact, Momentary operation, Red colour, IP40 protection
MR-HBY5-01M-R-P	1NC contact, Momentary operation, Red colour, IP65 protection
MR-HBY5-01M-G	1NC contact, Momentary operation, Green colour, IP40 protection
MR-HBY5-01M-G-P	1NC contact, Momentary operation, Green colour, IP65 protection
MR-HBY5-01ZM-R	1NC contact, Latching operation, Red colour, IP40 protection
MR-HBY5-01ZM-R-P	1NC contact, Latching operation, Red colour, IP65 protection
MR-HBY5-01ZM-G	1NC contact, Latching operation, Green colour, IP40 protection
MR-HBY5-01ZM-G-P	1NC contact, Latching operation, Green colour, IP65 protection
MR-HBY5-20M-R	2NO contact, Momentary operation, Red colour, IP40 protection
MR-HBY5-20M-R-P	2NO contact, Momentary operation, Red colour, IP65 protection
MR-HBY5-20M-G	2NO contact, Momentary operation, Green colour, IP40 protection
MR-HBY5-20M-G-P	2NO contact, Momentary operation, Green colour, IP65 protection
MR-HBY5-20ZM-R	2NO contact, Latching operation, Red colour, IP40 protection
MR-HBY5-20ZM-R-P	2NO contact, Latching operation, Red colour, IP65 protection
MR-HBY5-20ZM-G	2NO contact, Latching operation, Green colour, IP40 protection
MR-HBY5-20ZM-G-P	2NO contact, Latching operation, Green colour, IP65 protection
MR-HBY5-02M-R	2NC contact, Momentary operation, Red colour, IP40 protection
MR-HBY5-02M-R-P	2NC contact, Momentary operation, Red colour, IP65 protection
MR-HBY5-02M-G	2NC contact, Momentary operation, Green colour, IP40 protection
MR-HBY5-02M-G-P	2NC contact, Momentary operation, Green colour, IP65 protection
MR-HBY5-02ZM-R	2NC contact, Latching operation, Red colour, IP40 protection
MR-HBY5-02ZM-R-P	2NC contact, Latching operation, Red colour, IP65 protection
MR-HBY5-02ZM-G	2NC contact, Latching operation, Green colour, IP40 protection
MR-HBY5-02ZM-G-P	2NC contact, Latching operation, Green colour, IP65 protection
MR-HBY5-22M-R	2NO2NC contact, Momentary operation, Red colour, IP40 protection
MR-HBY5-22M-R-P	2NO2NC contact, Momentary operation, Red colour, IP65 protection
MR-HBY5-22M-G	2NO2NC contact, Momentary operation, Green colour, IP40 protection
MR-HBY5-22M-G-P	2NO2NC contact, Momentary operation, Green colour, IP65 protection
MR-HBY5-22ZM-R	2NO2NC contact, Latching operation, Red colour, IP40 protection
MR-HBY5-22ZM-R-P	2NO2NC contact, Latching operation, Red colour, IP65 protection
MR-HBY5-22ZM-G	2NO2NC contact, Latching operation, Green colour, IP40 protection
MR-HBY5-22ZM-G-P	2NO2NC contact, Latching operation, Green colour, IP65 protection
MR-HBY5-40M-R	4NO contact, Momentary operation, Red colour, IP40 protection
MR-HBY5-40M-R-P	4NO contact, Momentary operation, Red colour, IP65 protection
MR-HBY5-40M-G	4NO contact, Momentary operation, Green colour, IP40 protection
MR-HBY5-40M-G-P	4NO contact, Momentary operation, Green colour, IP65 protection
MR-HBY5-40ZM-R	4NO contact, Latching operation, Red colour, IP40 protection
MR-HBY5-40ZM-R-P	4NO contact, Latching operation, Red colour, IP65 protection
MR-HBY5-40ZM-G	4NO contact, Latching operation, Green colour, IP40 protection
MR-HBY5-40ZM-G-P	4NO contact, Latching operation, Green colour, IP65 protection
MR-HBY5-04M-R	4NC contact, Momentary operation, Red colour, IP40 protection
MR-HBY5-04M-R-P	4NC contact, Momentary operation, Red colour, IP65 protection
MR-HBY5-04M-G	4NC contact, Momentary operation, Green colour, IP40 protection
MR-HBY5-04M-G-P	4NC contact, Momentary operation, Green colour, IP65 protection
MR-HBY5-04ZM-R	4NC contact, Latching operation, Red colour, IP40 protection
MR-HBY5-04ZM-R-P	4NC contact, Latching operation, Red colour, IP65 protection
MR-HBY5-04ZM-G	4NC contact, Latching operation, Green colour, IP40 protection
MR-HBY5-04ZM-G-P	4NC contact, Latching operation, Green colour, IP65 protection
MR-HBY5-31M-R	3NO1NC contact, Momentary operation, Red colour, IP40 protection
MR-HBY5-31M-R-P	3NO1NC contact, Momentary operation, Red colour, IP65 protection
MR-HBY5-31M-G	3NO1NC contact, Momentary operation, Green colour, IP40 protection
MR-HBY5-31M-G-P	3NO1NC contact, Momentary operation, Green colour, IP65 protection
MR-HBY5-31ZM-R	3NO1NC contact, Latching operation, Red colour, IP40 protection
MR-HBY5-31ZM-R-P	3NO1NC contact, Latching operation, Red colour, IP65 protection
MR-HBY5-31ZM-G	3NO1NC contact, Latching operation, Green colour, IP40 protection
MR-HBY5-31ZM-G-P	3NO1NC contact, Latching operation, Green colour, IP65 protection
MR-HBY5-13M-R	1NO3NC contact, Momentary operation, Red colour, IP40 protection
MR-HBY5-13M-R-P	1NO3NC contact, Momentary operation, Red colour, IP65 protection
MR-HBY5-13M-G	1NO3NC contact, Momentary operation, Green colour, IP40 protection
MR-HBY5-13M-G-P	1NO3NC contact, Momentary operation, Green colour, IP65 protection
MR-HBY5-13ZM-R	1NO3NC contact, Latching operation, Red colour, IP40 protection
MR-HBY5-13ZM-R-P	1NO3NC contact, Latching operation, Red colour, IP65 protection
MR-HBY5-13ZM-G	1NO3NC contact, Latching operation, Green colour, IP40 protection
MR-HBY5-13ZM-G-P	1NO3NC contact, Latching operation, Green colour, IP65 protection
MR-HBY5-30M-R	3NO contact, Momentary operation, Red colour, IP40 protection
MR-HBY5-30M-R-P	3NO contact, Momentary operation, Red colour, IP65 protection
MR-HBY5-30M-G	3NO contact, Momentary operation, Green colour, IP40 protection
MR-HBY5-30M-G-P	3NO contact, Momentary operation, Green colour, IP65 protection
MR-HBY5-30ZM-R	3NO contact, Latching operation, Red colour, IP40 protection
MR-HBY5-30ZM-R-P	3NO contact, Latching operation, Red colour, IP65 protection
MR-HBY5-30ZM-G	3NO contact, Latching operation, Green colour, IP40 protection
MR-HBY5-30ZM-G-P	3NO contact, Latching operation, Green colour, IP65 protection
MR-HBY5-03M-R	3NC contact, Momentary operation, Red colour, IP40 protection
MR-HBY5-03M-R-P	3NC contact, Momentary operation, Red colour, IP65 protection
MR-HBY5-03M-G	3NC contact, Momentary operation, Green colour, IP40 protection
MR-HBY5-03M-G-P	3NC contact, Momentary operation, Green colour, IP65 protection
MR-HBY5-03ZM-R	3NC contact, Latching operation, Red colour, IP40 protection
MR-HBY5-03ZM-R-P	3NC contact, Latching operation, Red colour, IP65 protection
MR-HBY5-03ZM-G	3NC contact, Latching operation, Green colour, IP40 protection
MR-HBY5-03ZM-G-P	3NC contact, Latching operation, Green colour, IP65 protection
MR-HBY5-21M-R	2NO1NC contact, Momentary operation, Red colour, IP40 protection
MR-HBY5-21M-R-P	2NO1NC contact, Momentary operation, Red colour, IP65 protection
MR-HBY5-21M-G	2NO1NC contact, Momentary operation, Green colour, IP40 protection
MR-HBY5-21M-G-P	2NO1NC contact, Momentary operation, Green colour, IP65 protection
MR-HBY5-21ZM-R	2NO1NC contact, Latching operation, Red colour, IP40 protection
MR-HBY5-21ZM-R-P	2NO1NC contact, Latching operation, Red colour, IP65 protection
MR-HBY5-21ZM-G	2NO1NC contact, Latching operation, Green colour, IP40 protection
MR-HBY5-21ZM-G-P	2NO1NC contact, Latching operation, Green colour, IP65 protection
MR-HBY5-12M-R	1NO2NC contact, Momentary operation, Red colour, IP40 protection
MR-HBY5-12M-R-P	1NO2NC contact, Momentary operation, Red colour, IP65 protection
MR-HBY5-12M-G	1NO2NC contact, Momentary operation, Green colour, IP40 protection
MR-HBY5-12M-G-P	1NO2NC contact, Momentary operation, Green colour, IP65 protection
MR-HBY5-12ZM-R	1NO2NC contact, Latching operation, Red colour, IP40 protection
MR-HBY5-12ZM-R-P	1NO2NC contact, Latching operation, Red colour, IP65 protection
MR-HBY5-12ZM-G	1NO2NC contact, Latching operation, Green colour, IP40 protection
MR-HBY5-12ZM-G-P	1NO2NC contact, Latching operation, Green colour, IP65 protection

Every part is made to order. Call for pricing and lead-time on 1-732-892-8799, or request a quote against the part number you need.

Trademark noticeAll manufacturer names, brand names, trade names, logos, model numbers and part numbers appearing on this site — including but not limited to AMP, TE Connectivity, Molex, JST, Phoenix Contact and Hirose — are the property of their respective owners. Micro-Ray Electronics, Inc. is not affiliated with, authorized by, sponsored by or endorsed by any of these companies, except where Micro-Ray Electronics is expressly identified on this site as an authorized distributor or brand partner. Manufacturer part numbers are used solely to identify the original part for which a Micro-Ray part is offered as an equivalent, and no claim is made to any third-party trademark. Micro-Ray parts are our own products, cross-referenced for form, fit and function; they are not the original manufacturer’s parts and carry no original manufacturer warranty.

Full Terms & Conditions of Sale, including our second-source equivalency, technical-data, warranty and liability statements.

Need a Custom Cable Assembly or a Hard-to-Find Connector?

Send us your part number, drawing, or a description of what you need. A real person on our team will get back to you.

Request a Quote Call (732) 892-8799

MR-HBY5-M 22 mm Mushroom Head Push Button - Metal Bezel

Related Products

MR-LAS4GQH-11 12 mm Metal Push Button - 1NO1NC, Stainless Steel, Solder Tab

MR-GQ12-AH-10E 12 mm Anti-Vandal Push Button - High Round Head, Ring Illuminated, 1NO

MR-GQ12G-10-J-AL 12 mm Anti-Vandal Push Button - High Domed Head, Pin Terminal 2 × 0.5 mm, Black Anodised Aluminium Alloy

Part numbers in this family

Need a Custom Cable Assembly or a Hard-to-Find Connector?
