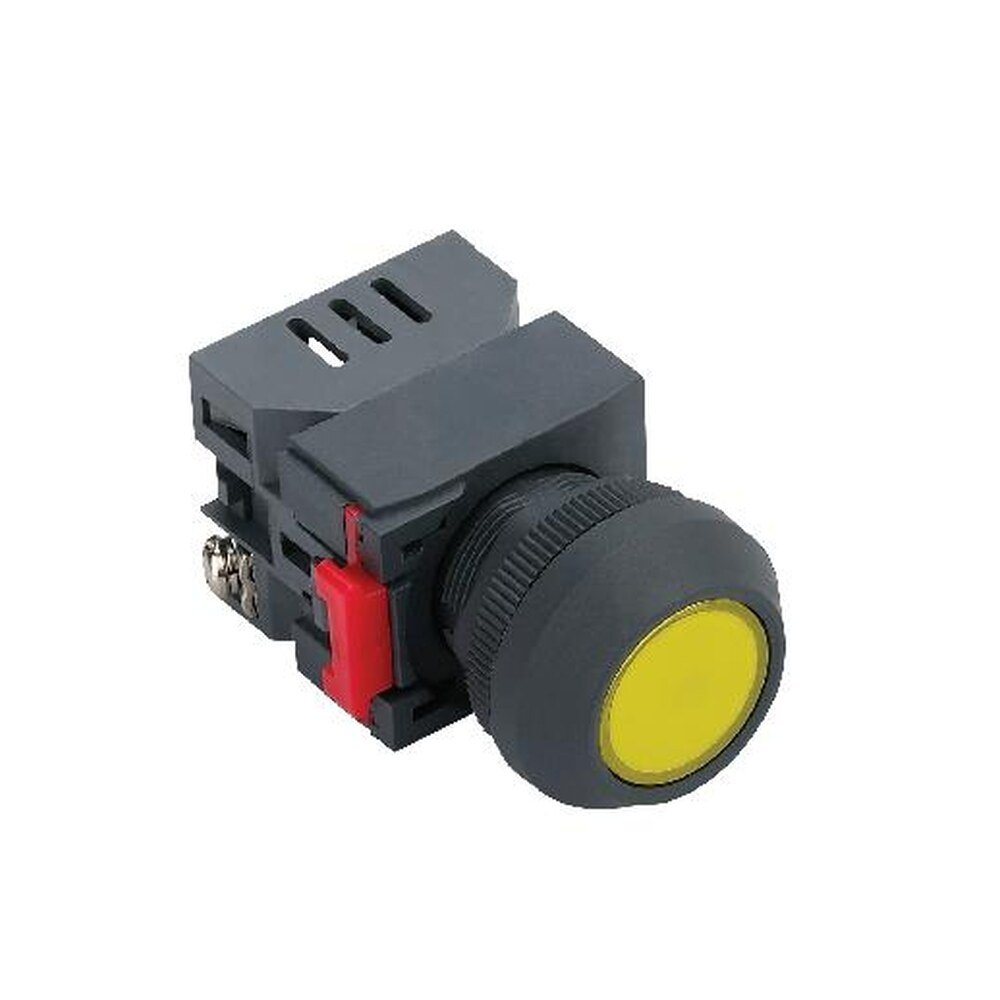

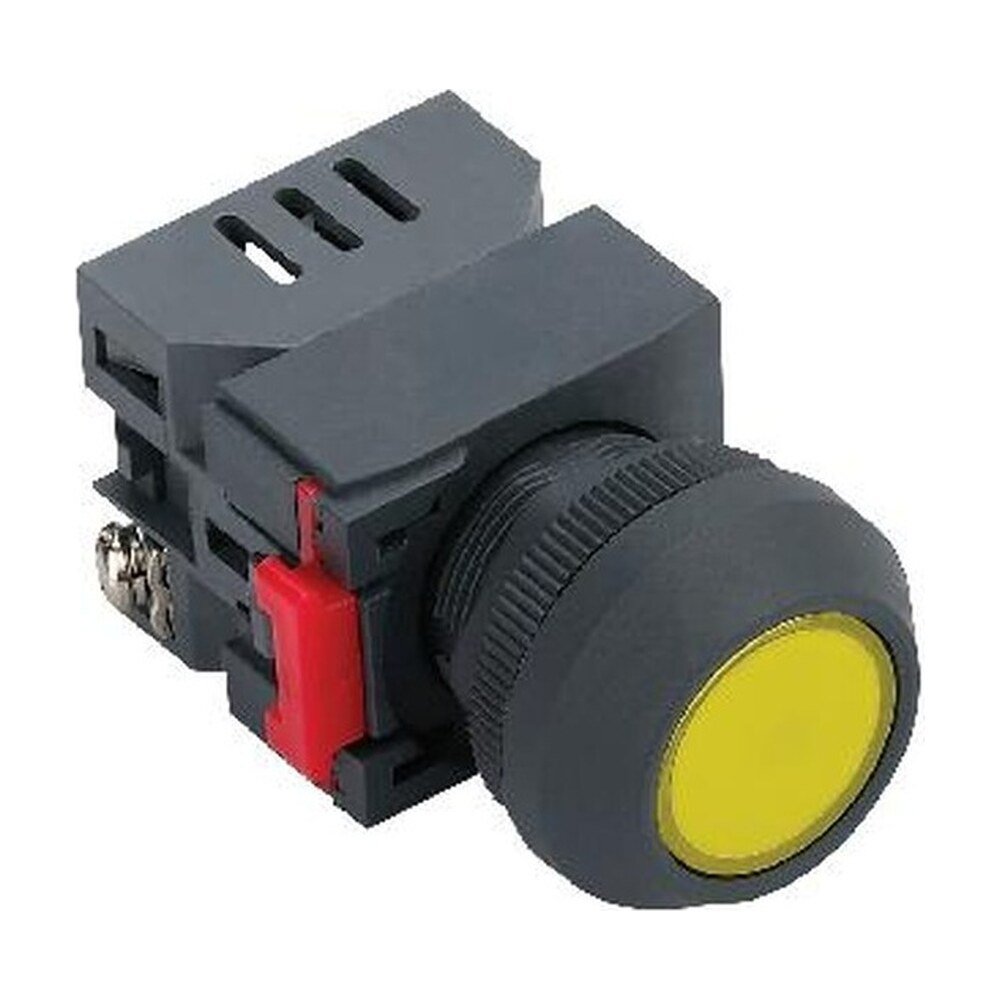

MR-LAS0-KE-D - 22 mm Pilot Lamp - Economy Plastic Head, LED.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-LAS0-KE-D is a 22 mm LED pilot lamp in an economy plastic K-type head, IP40 as standard or IP65 to order.
Ordering. The ordering code is MR-LAS0-KE-D-X-X-X: each X is replaced by the option you need - led colour (R = Red, G = Green, Y = Yellow, B = Blue, W = White); led voltage (6V = 6 V, 12V = 12 V, 24V = 24 V, 110V = 110 V, 220V = 220 V); protection (none = IP40, P = IP65). The part numbers are listed below.
Still being confirmed. The dimensions is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS0-KE-D |
|---|---|
| Also ordered as | LAS0-KE-D |
| Category | Indicator Lights, Switches |
| Ordering code | MR-LAS0-KE-D-X-X-X |
| Series | LAS0-KE (22 mm, economy plastic K-type head) |
| Rated insulation voltage Ui | 500 V |
| Thermal current Ith | 10 A |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Dielectric strength | 3000 V AC, 50 Hz, 1 min |
| Vibration resistance | 50 Hz, amplitude 1.0 mm |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Connection | Screw terminals, wire up to 2 × 1.5 mm², Pin terminal 6.3 × 0.8 mm |
| Standards | IEC 60947-5-1, GB/T 14048.5 |
| Lamp type | LED |
| LED current | 20 mA max |
| LED life | 40,000 hours |
| Lamp note | Current-limiting resistor built in; AC/DC types use a resistor step-down, AC types a capacitor step-down (50 to 60 Hz) |
| Panel cut-out | Ø22.5 mm |
| Panel thickness | 0.5 mm to 5 mm |
| Type | Pilot lamp, LED |
| Head material | Plastic (economy type) |
| Protection class | IP40 standard, IP65 to order (P) |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-LAS0-KE-D is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-LAS0-KE-D-R-6V | Red led colour, 6 V led voltage, IP40 protection |
| MR-LAS0-KE-D-R-6V-P | Red led colour, 6 V led voltage, IP65 protection |
| MR-LAS0-KE-D-R-12V | Red led colour, 12 V led voltage, IP40 protection |
| MR-LAS0-KE-D-R-12V-P | Red led colour, 12 V led voltage, IP65 protection |
| MR-LAS0-KE-D-R-24V | Red led colour, 24 V led voltage, IP40 protection |
| MR-LAS0-KE-D-R-24V-P | Red led colour, 24 V led voltage, IP65 protection |
| MR-LAS0-KE-D-R-110V | Red led colour, 110 V led voltage, IP40 protection |
| MR-LAS0-KE-D-R-110V-P | Red led colour, 110 V led voltage, IP65 protection |
| MR-LAS0-KE-D-R-220V | Red led colour, 220 V led voltage, IP40 protection |
| MR-LAS0-KE-D-R-220V-P | Red led colour, 220 V led voltage, IP65 protection |
| MR-LAS0-KE-D-G-6V | Green led colour, 6 V led voltage, IP40 protection |
| MR-LAS0-KE-D-G-6V-P | Green led colour, 6 V led voltage, IP65 protection |
| MR-LAS0-KE-D-G-12V | Green led colour, 12 V led voltage, IP40 protection |
| MR-LAS0-KE-D-G-12V-P | Green led colour, 12 V led voltage, IP65 protection |
| MR-LAS0-KE-D-G-24V | Green led colour, 24 V led voltage, IP40 protection |
| MR-LAS0-KE-D-G-24V-P | Green led colour, 24 V led voltage, IP65 protection |
| MR-LAS0-KE-D-G-110V | Green led colour, 110 V led voltage, IP40 protection |
| MR-LAS0-KE-D-G-110V-P | Green led colour, 110 V led voltage, IP65 protection |
| MR-LAS0-KE-D-G-220V | Green led colour, 220 V led voltage, IP40 protection |
| MR-LAS0-KE-D-G-220V-P | Green led colour, 220 V led voltage, IP65 protection |
| MR-LAS0-KE-D-Y-6V | Yellow led colour, 6 V led voltage, IP40 protection |
| MR-LAS0-KE-D-Y-6V-P | Yellow led colour, 6 V led voltage, IP65 protection |
| MR-LAS0-KE-D-Y-12V | Yellow led colour, 12 V led voltage, IP40 protection |
| MR-LAS0-KE-D-Y-12V-P | Yellow led colour, 12 V led voltage, IP65 protection |
| MR-LAS0-KE-D-Y-24V | Yellow led colour, 24 V led voltage, IP40 protection |
| MR-LAS0-KE-D-Y-24V-P | Yellow led colour, 24 V led voltage, IP65 protection |
| MR-LAS0-KE-D-Y-110V | Yellow led colour, 110 V led voltage, IP40 protection |
| MR-LAS0-KE-D-Y-110V-P | Yellow led colour, 110 V led voltage, IP65 protection |
| MR-LAS0-KE-D-Y-220V | Yellow led colour, 220 V led voltage, IP40 protection |
| MR-LAS0-KE-D-Y-220V-P | Yellow led colour, 220 V led voltage, IP65 protection |
| MR-LAS0-KE-D-B-6V | Blue led colour, 6 V led voltage, IP40 protection |
| MR-LAS0-KE-D-B-6V-P | Blue led colour, 6 V led voltage, IP65 protection |
| MR-LAS0-KE-D-B-12V | Blue led colour, 12 V led voltage, IP40 protection |
| MR-LAS0-KE-D-B-12V-P | Blue led colour, 12 V led voltage, IP65 protection |
| MR-LAS0-KE-D-B-24V | Blue led colour, 24 V led voltage, IP40 protection |
| MR-LAS0-KE-D-B-24V-P | Blue led colour, 24 V led voltage, IP65 protection |
| MR-LAS0-KE-D-B-110V | Blue led colour, 110 V led voltage, IP40 protection |
| MR-LAS0-KE-D-B-110V-P | Blue led colour, 110 V led voltage, IP65 protection |
| MR-LAS0-KE-D-B-220V | Blue led colour, 220 V led voltage, IP40 protection |
| MR-LAS0-KE-D-B-220V-P | Blue led colour, 220 V led voltage, IP65 protection |
| MR-LAS0-KE-D-W-6V | White led colour, 6 V led voltage, IP40 protection |
| MR-LAS0-KE-D-W-6V-P | White led colour, 6 V led voltage, IP65 protection |
| MR-LAS0-KE-D-W-12V | White led colour, 12 V led voltage, IP40 protection |
| MR-LAS0-KE-D-W-12V-P | White led colour, 12 V led voltage, IP65 protection |
| MR-LAS0-KE-D-W-24V | White led colour, 24 V led voltage, IP40 protection |
| MR-LAS0-KE-D-W-24V-P | White led colour, 24 V led voltage, IP65 protection |
| MR-LAS0-KE-D-W-110V | White led colour, 110 V led voltage, IP40 protection |
| MR-LAS0-KE-D-W-110V-P | White led colour, 110 V led voltage, IP65 protection |
| MR-LAS0-KE-D-W-220V | White led colour, 220 V led voltage, IP40 protection |
| MR-LAS0-KE-D-W-220V-P | White led colour, 220 V led voltage, IP65 protection |
Every part is made to order. Call for pricing and lead-time on 1-732-892-8799, or request a quote against the part number you need.
