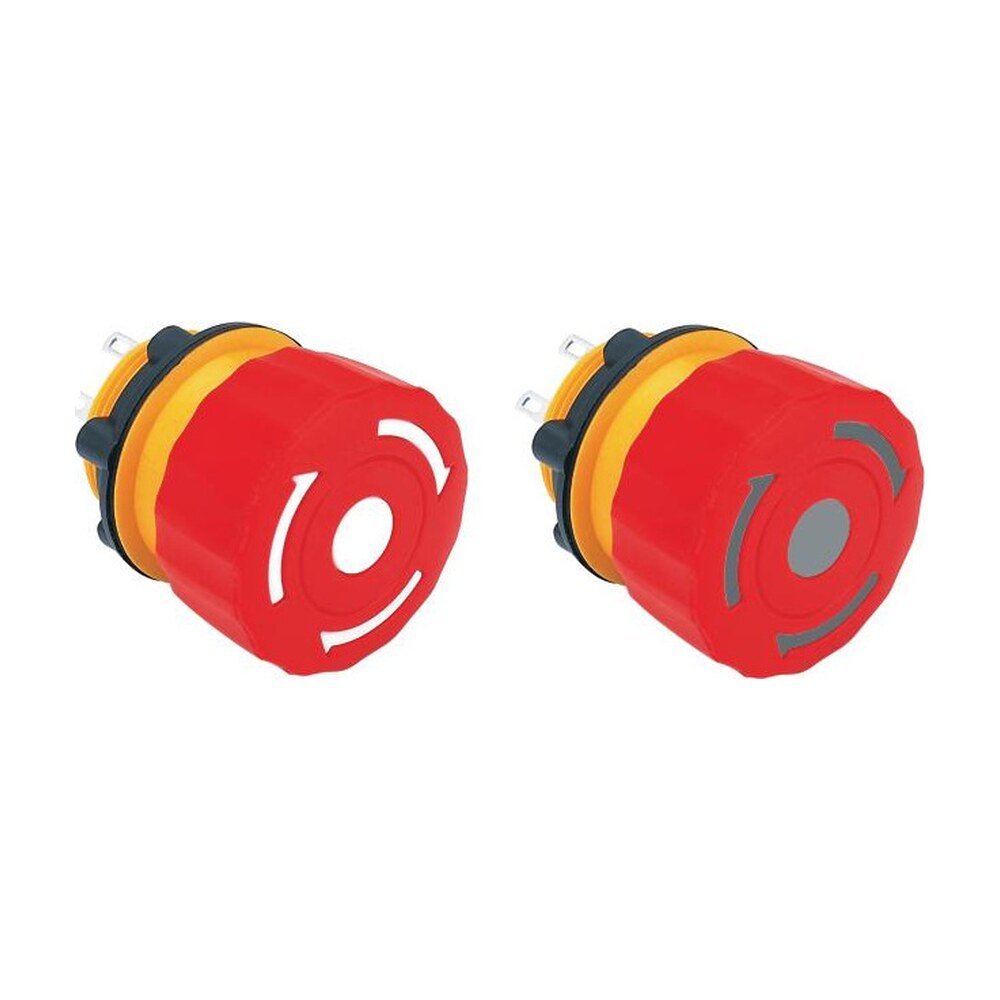

MR-LAS1-A22Y-TSB - 22 mm Short-Body Emergency Stop Switch - Ø33 mm, IP65, Terminals.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-LAS1-A22Y-TSB is a short-body emergency stop switch for a 22 mm hole, only 17.7 mm deep behind the panel, with a Ø33 mm head, IP65 sealing, and 1NC, 2NC or 1NO1NC contacts, plain or lit red.
Ordering. The ordering code is MR-LAS1-A22Y-#TSB-#: each X is replaced by the option you need - contact (01 = 1NC, 02 = 2NC, 11 = 1NO1NC); illumination (none = Not illuminated, R-6V = Red LED, 6 V, R-12V = Red LED, 12 V, R-24V = Red LED, 24 V, R-110V = Red LED, 110 V, R-220V = Red LED, 220 V). The part numbers are listed below.
Still being confirmed. The electrical ratings, the mechanical life and the reset method are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS1-A22Y-TSB |
|---|---|
| Also ordered as | LAS1-A22Y-TSB |
| Category | Emergency Stop Switches, Switches |
| Ordering code | MR-LAS1-A22Y-#TSB-# |
| Series | LAS1-A22 (22 mm short-body) |
| Type | Short-body emergency stop |
| Head | Ø33 mm, round |
| Protection class | IP65 |
| Illumination | Can be illuminated, LED colour red |
| LED voltage | 6 V, 12 V, 24 V, 110 V, 220 V |
| Panel cut-out | Ø22 mm |
| Head length | 27 mm |
| Panel thickness | 5 mm max |
| Connection | Terminals |
| Body length behind panel | 17.7 mm |
| Availability | Please call for pricing and availability |
