MR-LAS1-AGQ16-X - 16 mm Selector Switch - Illuminated Knob, 2 or 3 Position, Stainless Steel.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

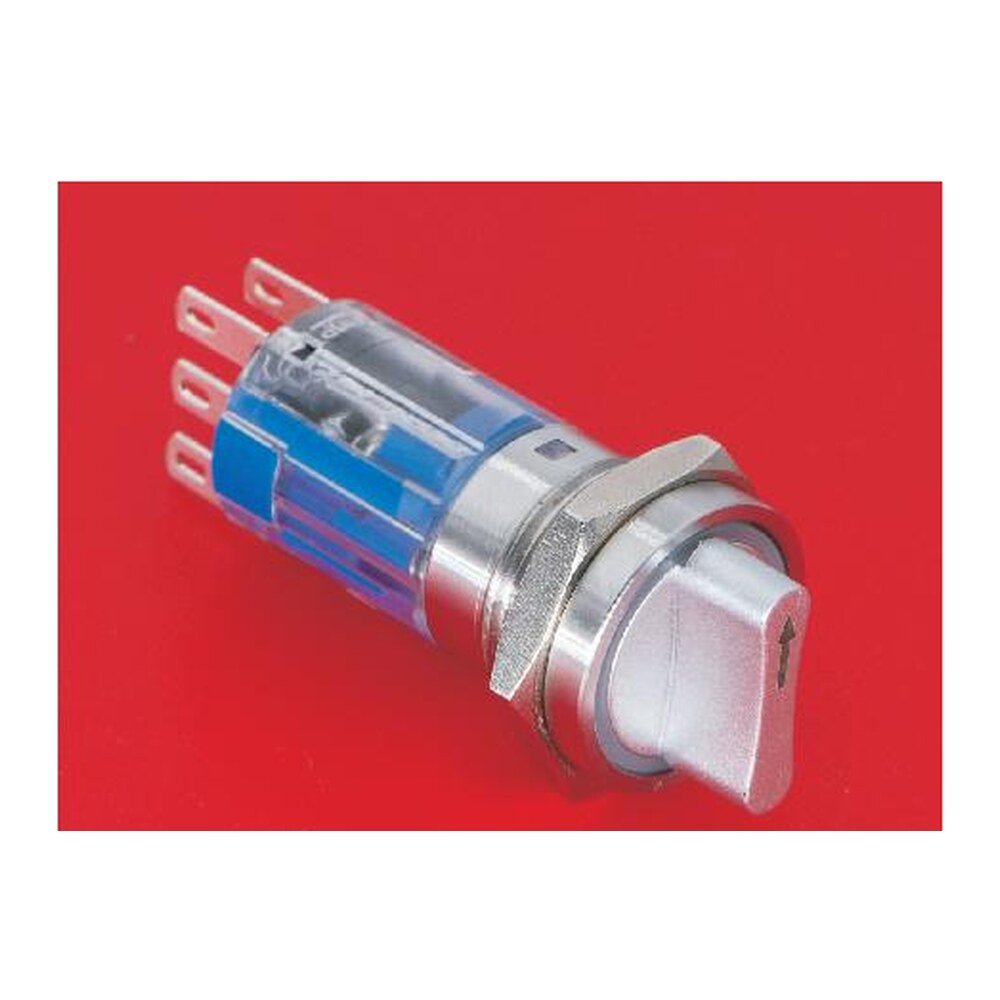

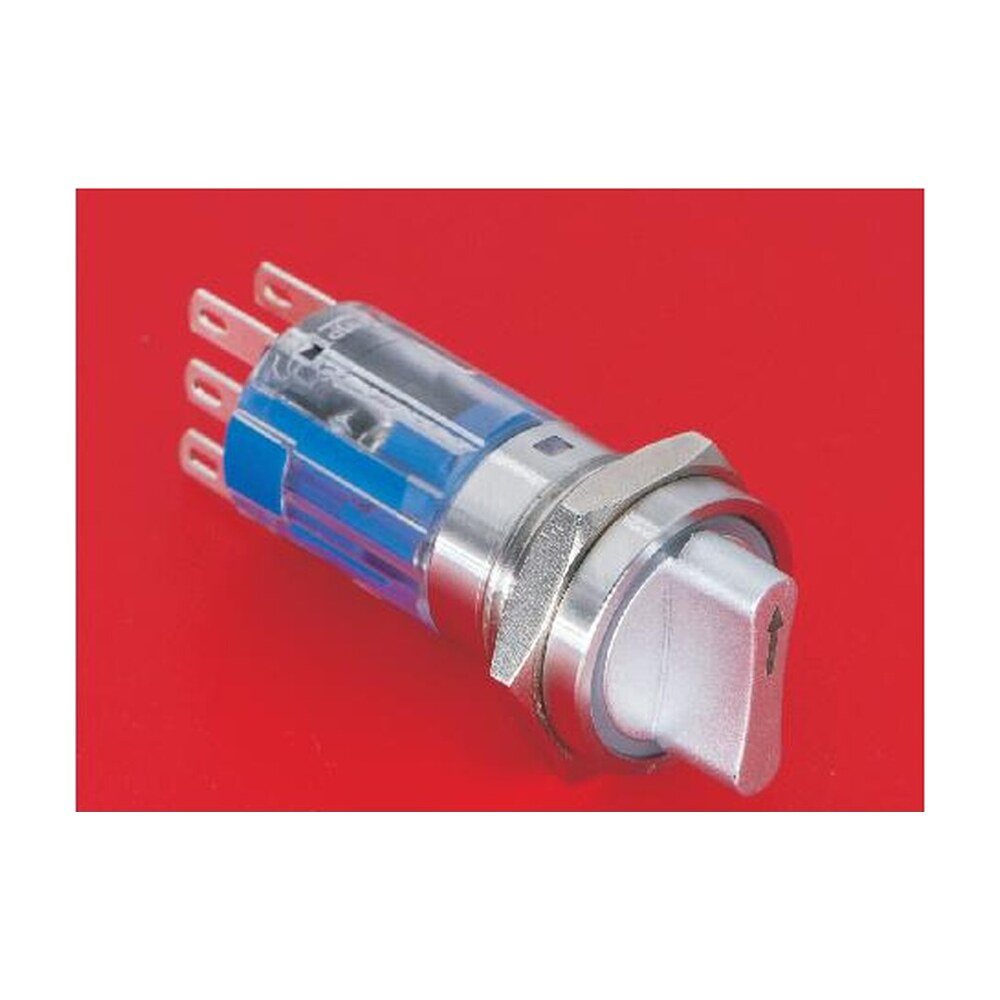

The MR-LAS1-AGQ16-X is a 16 mm selector switch: a lit knob turning through two positions at 90° or three positions at 45°, with one or two changeover contacts, in stainless steel. Each position can be built to hold (retention) or to spring back (self-return).
Still being confirmed. The terminal count is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS1-AGQ16-X |
|---|---|
| Also ordered as | LAS1-AGQ16-X |
| Category | Selector Switches, Switches |
| Ordering code | MR-LAS1-AGQ16-XX-X-X-X-X-S |
| Series | LAS1-AGQ |
| Contact structure | 11 = 1NO1NC, 22 = 2NO2NC (snap action) |
| Switch rating | Ui 250 V, Ith 5 A |
| Rated operation current, AC 50/60 Hz | 110 V: 1 A resistive, 0.7 A inductive, 220 V: 0.5 A resistive, 0.5 A inductive |
| Rated operation current, DC | 12 V: 1 A resistive, 0.7 A inductive, 24 V: 1 A resistive, 0.7 A inductive, 110 V: 0.2 A resistive, 0.1 A inductive |
| Minimum load | 3 V AC/DC, 5 mA (reference) |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Max withstanding voltage | 1500 V AC, 50 Hz, 1 minute |
| Electrical life | 50,000 cycles |
| Nut torque | 0.6 Nm approx |
| Vibration resistance | 50 Hz, amplitude 1.2 mm approx |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Standards | UL 508 UL/E254053, EN 60947-5-1:2004 VDE/40050498, GB/T 14048.5-2017 CCC 2020970305003363, EN 60947-5-1:2004 CE UDEM/RBT210131203ER-1 |
| Panel cut-out | Ø16 mm |
| Mounting | M16 × 1 threaded bush |
| Bezel diameter | Ø18 mm |
| Across flats | 21.8 mm |
| Termination | Solder pins; up to two switch sets (C1/NO1/NC1 and C2/NO2/NC2) plus + and − lamp pins |
| Operation type | X = selector knob |
| Operating positions | 2 = second position (90°), 3 = third position (45°) |
| Action type | 1 = retention, 3 = fully self-return |
| Mechanical life | 200,000 operations (knob) |
| Protection class | IP40, IK02 |
| Bezel height | 6 mm max |
| Body length behind panel | 36.6 mm |
| Knob length | 15.5 mm |
| Accessories | Solder socket S04, PCB socket S05 |
| Note | The knob must be turned fully into position in use; a 15 mm anti-rotation groove at Ø16 mm is recommended in the panel |
| LED life | 40,000 hours min |
| LED current | About 15 mA at 24 V or less, about 2 mA at 110 V or more |
| LED voltage fluctuation | DC ±10 % |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-LAS1-AGQ16-X is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-LAS1-AGQ16-11X-21-R-6V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, Red led colour, 6 V led voltage |
| MR-LAS1-AGQ16-11X-21-R-12V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, Red led colour, 12 V led voltage |
| MR-LAS1-AGQ16-11X-21-R-24V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, Red led colour, 24 V led voltage |
| MR-LAS1-AGQ16-11X-21-R-110V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, Red led colour, 110 V led voltage |
| MR-LAS1-AGQ16-11X-21-R-220V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, Red led colour, 220 V led voltage |
| MR-LAS1-AGQ16-11X-21-G-6V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, Green led colour, 6 V led voltage |
| MR-LAS1-AGQ16-11X-21-G-12V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, Green led colour, 12 V led voltage |
| MR-LAS1-AGQ16-11X-21-G-24V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, Green led colour, 24 V led voltage |
| MR-LAS1-AGQ16-11X-21-G-110V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, Green led colour, 110 V led voltage |
| MR-LAS1-AGQ16-11X-21-G-220V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, Green led colour, 220 V led voltage |
| MR-LAS1-AGQ16-11X-21-Y-6V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, Yellow led colour, 6 V led voltage |
| MR-LAS1-AGQ16-11X-21-Y-12V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, Yellow led colour, 12 V led voltage |
| MR-LAS1-AGQ16-11X-21-Y-24V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, Yellow led colour, 24 V led voltage |
| MR-LAS1-AGQ16-11X-21-Y-110V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, Yellow led colour, 110 V led voltage |
| MR-LAS1-AGQ16-11X-21-Y-220V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, Yellow led colour, 220 V led voltage |
| MR-LAS1-AGQ16-11X-21-B-6V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, Blue led colour, 6 V led voltage |
| MR-LAS1-AGQ16-11X-21-B-12V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, Blue led colour, 12 V led voltage |
| MR-LAS1-AGQ16-11X-21-B-24V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, Blue led colour, 24 V led voltage |
| MR-LAS1-AGQ16-11X-21-B-110V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, Blue led colour, 110 V led voltage |
| MR-LAS1-AGQ16-11X-21-B-220V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, Blue led colour, 220 V led voltage |
| MR-LAS1-AGQ16-11X-21-W-6V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, White led colour, 6 V led voltage |
| MR-LAS1-AGQ16-11X-21-W-12V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, White led colour, 12 V led voltage |
| MR-LAS1-AGQ16-11X-21-W-24V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, White led colour, 24 V led voltage |
| MR-LAS1-AGQ16-11X-21-W-110V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, White led colour, 110 V led voltage |
| MR-LAS1-AGQ16-11X-21-W-220V-S | 1NO1NC contact, Two position (90 degrees) positions, Retention action, White led colour, 220 V led voltage |
| MR-LAS1-AGQ16-11X-23-R-6V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, Red led colour, 6 V led voltage |
| MR-LAS1-AGQ16-11X-23-R-12V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, Red led colour, 12 V led voltage |
| MR-LAS1-AGQ16-11X-23-R-24V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, Red led colour, 24 V led voltage |
| MR-LAS1-AGQ16-11X-23-R-110V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, Red led colour, 110 V led voltage |
| MR-LAS1-AGQ16-11X-23-R-220V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, Red led colour, 220 V led voltage |
| MR-LAS1-AGQ16-11X-23-G-6V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, Green led colour, 6 V led voltage |
| MR-LAS1-AGQ16-11X-23-G-12V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, Green led colour, 12 V led voltage |
| MR-LAS1-AGQ16-11X-23-G-24V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, Green led colour, 24 V led voltage |
| MR-LAS1-AGQ16-11X-23-G-110V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, Green led colour, 110 V led voltage |
| MR-LAS1-AGQ16-11X-23-G-220V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, Green led colour, 220 V led voltage |
| MR-LAS1-AGQ16-11X-23-Y-6V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, Yellow led colour, 6 V led voltage |
| MR-LAS1-AGQ16-11X-23-Y-12V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, Yellow led colour, 12 V led voltage |
| MR-LAS1-AGQ16-11X-23-Y-24V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, Yellow led colour, 24 V led voltage |
| MR-LAS1-AGQ16-11X-23-Y-110V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, Yellow led colour, 110 V led voltage |
| MR-LAS1-AGQ16-11X-23-Y-220V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, Yellow led colour, 220 V led voltage |
| MR-LAS1-AGQ16-11X-23-B-6V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, Blue led colour, 6 V led voltage |
| MR-LAS1-AGQ16-11X-23-B-12V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, Blue led colour, 12 V led voltage |
| MR-LAS1-AGQ16-11X-23-B-24V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, Blue led colour, 24 V led voltage |
| MR-LAS1-AGQ16-11X-23-B-110V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, Blue led colour, 110 V led voltage |
| MR-LAS1-AGQ16-11X-23-B-220V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, Blue led colour, 220 V led voltage |
| MR-LAS1-AGQ16-11X-23-W-6V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, White led colour, 6 V led voltage |
| MR-LAS1-AGQ16-11X-23-W-12V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, White led colour, 12 V led voltage |
| MR-LAS1-AGQ16-11X-23-W-24V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, White led colour, 24 V led voltage |
| MR-LAS1-AGQ16-11X-23-W-110V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, White led colour, 110 V led voltage |
| MR-LAS1-AGQ16-11X-23-W-220V-S | 1NO1NC contact, Two position (90 degrees) positions, Self-return action, White led colour, 220 V led voltage |
| MR-LAS1-AGQ16-11X-31-R-6V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, Red led colour, 6 V led voltage |
| MR-LAS1-AGQ16-11X-31-R-12V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, Red led colour, 12 V led voltage |
| MR-LAS1-AGQ16-11X-31-R-24V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, Red led colour, 24 V led voltage |
| MR-LAS1-AGQ16-11X-31-R-110V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, Red led colour, 110 V led voltage |
| MR-LAS1-AGQ16-11X-31-R-220V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, Red led colour, 220 V led voltage |
| MR-LAS1-AGQ16-11X-31-G-6V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, Green led colour, 6 V led voltage |
| MR-LAS1-AGQ16-11X-31-G-12V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, Green led colour, 12 V led voltage |
| MR-LAS1-AGQ16-11X-31-G-24V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, Green led colour, 24 V led voltage |
| MR-LAS1-AGQ16-11X-31-G-110V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, Green led colour, 110 V led voltage |
| MR-LAS1-AGQ16-11X-31-G-220V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, Green led colour, 220 V led voltage |
| MR-LAS1-AGQ16-11X-31-Y-6V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, Yellow led colour, 6 V led voltage |
| MR-LAS1-AGQ16-11X-31-Y-12V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, Yellow led colour, 12 V led voltage |
| MR-LAS1-AGQ16-11X-31-Y-24V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, Yellow led colour, 24 V led voltage |
| MR-LAS1-AGQ16-11X-31-Y-110V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, Yellow led colour, 110 V led voltage |
| MR-LAS1-AGQ16-11X-31-Y-220V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, Yellow led colour, 220 V led voltage |
| MR-LAS1-AGQ16-11X-31-B-6V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, Blue led colour, 6 V led voltage |
| MR-LAS1-AGQ16-11X-31-B-12V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, Blue led colour, 12 V led voltage |
| MR-LAS1-AGQ16-11X-31-B-24V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, Blue led colour, 24 V led voltage |
| MR-LAS1-AGQ16-11X-31-B-110V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, Blue led colour, 110 V led voltage |
| MR-LAS1-AGQ16-11X-31-B-220V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, Blue led colour, 220 V led voltage |
| MR-LAS1-AGQ16-11X-31-W-6V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, White led colour, 6 V led voltage |
| MR-LAS1-AGQ16-11X-31-W-12V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, White led colour, 12 V led voltage |
| MR-LAS1-AGQ16-11X-31-W-24V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, White led colour, 24 V led voltage |
| MR-LAS1-AGQ16-11X-31-W-110V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, White led colour, 110 V led voltage |
| MR-LAS1-AGQ16-11X-31-W-220V-S | 1NO1NC contact, Three position (45 degrees) positions, Retention action, White led colour, 220 V led voltage |
| MR-LAS1-AGQ16-11X-33-R-6V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, Red led colour, 6 V led voltage |
| MR-LAS1-AGQ16-11X-33-R-12V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, Red led colour, 12 V led voltage |
| MR-LAS1-AGQ16-11X-33-R-24V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, Red led colour, 24 V led voltage |
| MR-LAS1-AGQ16-11X-33-R-110V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, Red led colour, 110 V led voltage |
| MR-LAS1-AGQ16-11X-33-R-220V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, Red led colour, 220 V led voltage |
| MR-LAS1-AGQ16-11X-33-G-6V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, Green led colour, 6 V led voltage |
| MR-LAS1-AGQ16-11X-33-G-12V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, Green led colour, 12 V led voltage |
| MR-LAS1-AGQ16-11X-33-G-24V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, Green led colour, 24 V led voltage |
| MR-LAS1-AGQ16-11X-33-G-110V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, Green led colour, 110 V led voltage |
| MR-LAS1-AGQ16-11X-33-G-220V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, Green led colour, 220 V led voltage |
| MR-LAS1-AGQ16-11X-33-Y-6V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, Yellow led colour, 6 V led voltage |
| MR-LAS1-AGQ16-11X-33-Y-12V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, Yellow led colour, 12 V led voltage |
| MR-LAS1-AGQ16-11X-33-Y-24V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, Yellow led colour, 24 V led voltage |
| MR-LAS1-AGQ16-11X-33-Y-110V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, Yellow led colour, 110 V led voltage |
| MR-LAS1-AGQ16-11X-33-Y-220V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, Yellow led colour, 220 V led voltage |
| MR-LAS1-AGQ16-11X-33-B-6V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, Blue led colour, 6 V led voltage |
| MR-LAS1-AGQ16-11X-33-B-12V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, Blue led colour, 12 V led voltage |
| MR-LAS1-AGQ16-11X-33-B-24V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, Blue led colour, 24 V led voltage |
| MR-LAS1-AGQ16-11X-33-B-110V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, Blue led colour, 110 V led voltage |
| MR-LAS1-AGQ16-11X-33-B-220V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, Blue led colour, 220 V led voltage |
| MR-LAS1-AGQ16-11X-33-W-6V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, White led colour, 6 V led voltage |
| MR-LAS1-AGQ16-11X-33-W-12V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, White led colour, 12 V led voltage |
| MR-LAS1-AGQ16-11X-33-W-24V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, White led colour, 24 V led voltage |
| MR-LAS1-AGQ16-11X-33-W-110V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, White led colour, 110 V led voltage |
| MR-LAS1-AGQ16-11X-33-W-220V-S | 1NO1NC contact, Three position (45 degrees) positions, Self-return action, White led colour, 220 V led voltage |
| MR-LAS1-AGQ16-22X-21-R-6V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, Red led colour, 6 V led voltage |
| MR-LAS1-AGQ16-22X-21-R-12V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, Red led colour, 12 V led voltage |
| MR-LAS1-AGQ16-22X-21-R-24V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, Red led colour, 24 V led voltage |
| MR-LAS1-AGQ16-22X-21-R-110V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, Red led colour, 110 V led voltage |
| MR-LAS1-AGQ16-22X-21-R-220V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, Red led colour, 220 V led voltage |
| MR-LAS1-AGQ16-22X-21-G-6V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, Green led colour, 6 V led voltage |
| MR-LAS1-AGQ16-22X-21-G-12V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, Green led colour, 12 V led voltage |
| MR-LAS1-AGQ16-22X-21-G-24V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, Green led colour, 24 V led voltage |
| MR-LAS1-AGQ16-22X-21-G-110V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, Green led colour, 110 V led voltage |
| MR-LAS1-AGQ16-22X-21-G-220V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, Green led colour, 220 V led voltage |
| MR-LAS1-AGQ16-22X-21-Y-6V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, Yellow led colour, 6 V led voltage |
| MR-LAS1-AGQ16-22X-21-Y-12V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, Yellow led colour, 12 V led voltage |
| MR-LAS1-AGQ16-22X-21-Y-24V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, Yellow led colour, 24 V led voltage |
| MR-LAS1-AGQ16-22X-21-Y-110V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, Yellow led colour, 110 V led voltage |
| MR-LAS1-AGQ16-22X-21-Y-220V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, Yellow led colour, 220 V led voltage |
| MR-LAS1-AGQ16-22X-21-B-6V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, Blue led colour, 6 V led voltage |
| MR-LAS1-AGQ16-22X-21-B-12V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, Blue led colour, 12 V led voltage |
| MR-LAS1-AGQ16-22X-21-B-24V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, Blue led colour, 24 V led voltage |
| MR-LAS1-AGQ16-22X-21-B-110V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, Blue led colour, 110 V led voltage |
| MR-LAS1-AGQ16-22X-21-B-220V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, Blue led colour, 220 V led voltage |
| MR-LAS1-AGQ16-22X-21-W-6V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, White led colour, 6 V led voltage |
| MR-LAS1-AGQ16-22X-21-W-12V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, White led colour, 12 V led voltage |
| MR-LAS1-AGQ16-22X-21-W-24V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, White led colour, 24 V led voltage |
| MR-LAS1-AGQ16-22X-21-W-110V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, White led colour, 110 V led voltage |
| MR-LAS1-AGQ16-22X-21-W-220V-S | 2NO2NC contact, Two position (90 degrees) positions, Retention action, White led colour, 220 V led voltage |
| MR-LAS1-AGQ16-22X-23-R-6V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, Red led colour, 6 V led voltage |
| MR-LAS1-AGQ16-22X-23-R-12V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, Red led colour, 12 V led voltage |
| MR-LAS1-AGQ16-22X-23-R-24V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, Red led colour, 24 V led voltage |
| MR-LAS1-AGQ16-22X-23-R-110V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, Red led colour, 110 V led voltage |
| MR-LAS1-AGQ16-22X-23-R-220V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, Red led colour, 220 V led voltage |
| MR-LAS1-AGQ16-22X-23-G-6V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, Green led colour, 6 V led voltage |
| MR-LAS1-AGQ16-22X-23-G-12V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, Green led colour, 12 V led voltage |
| MR-LAS1-AGQ16-22X-23-G-24V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, Green led colour, 24 V led voltage |
| MR-LAS1-AGQ16-22X-23-G-110V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, Green led colour, 110 V led voltage |
| MR-LAS1-AGQ16-22X-23-G-220V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, Green led colour, 220 V led voltage |
| MR-LAS1-AGQ16-22X-23-Y-6V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, Yellow led colour, 6 V led voltage |
| MR-LAS1-AGQ16-22X-23-Y-12V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, Yellow led colour, 12 V led voltage |
| MR-LAS1-AGQ16-22X-23-Y-24V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, Yellow led colour, 24 V led voltage |
| MR-LAS1-AGQ16-22X-23-Y-110V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, Yellow led colour, 110 V led voltage |
| MR-LAS1-AGQ16-22X-23-Y-220V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, Yellow led colour, 220 V led voltage |
| MR-LAS1-AGQ16-22X-23-B-6V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, Blue led colour, 6 V led voltage |
| MR-LAS1-AGQ16-22X-23-B-12V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, Blue led colour, 12 V led voltage |
| MR-LAS1-AGQ16-22X-23-B-24V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, Blue led colour, 24 V led voltage |
| MR-LAS1-AGQ16-22X-23-B-110V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, Blue led colour, 110 V led voltage |
| MR-LAS1-AGQ16-22X-23-B-220V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, Blue led colour, 220 V led voltage |
| MR-LAS1-AGQ16-22X-23-W-6V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, White led colour, 6 V led voltage |
| MR-LAS1-AGQ16-22X-23-W-12V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, White led colour, 12 V led voltage |
| MR-LAS1-AGQ16-22X-23-W-24V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, White led colour, 24 V led voltage |
| MR-LAS1-AGQ16-22X-23-W-110V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, White led colour, 110 V led voltage |
| MR-LAS1-AGQ16-22X-23-W-220V-S | 2NO2NC contact, Two position (90 degrees) positions, Self-return action, White led colour, 220 V led voltage |
| MR-LAS1-AGQ16-22X-31-R-6V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, Red led colour, 6 V led voltage |
| MR-LAS1-AGQ16-22X-31-R-12V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, Red led colour, 12 V led voltage |
| MR-LAS1-AGQ16-22X-31-R-24V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, Red led colour, 24 V led voltage |
| MR-LAS1-AGQ16-22X-31-R-110V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, Red led colour, 110 V led voltage |
| MR-LAS1-AGQ16-22X-31-R-220V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, Red led colour, 220 V led voltage |
| MR-LAS1-AGQ16-22X-31-G-6V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, Green led colour, 6 V led voltage |
| MR-LAS1-AGQ16-22X-31-G-12V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, Green led colour, 12 V led voltage |
| MR-LAS1-AGQ16-22X-31-G-24V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, Green led colour, 24 V led voltage |
| MR-LAS1-AGQ16-22X-31-G-110V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, Green led colour, 110 V led voltage |
| MR-LAS1-AGQ16-22X-31-G-220V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, Green led colour, 220 V led voltage |
| MR-LAS1-AGQ16-22X-31-Y-6V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, Yellow led colour, 6 V led voltage |
| MR-LAS1-AGQ16-22X-31-Y-12V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, Yellow led colour, 12 V led voltage |
| MR-LAS1-AGQ16-22X-31-Y-24V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, Yellow led colour, 24 V led voltage |
| MR-LAS1-AGQ16-22X-31-Y-110V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, Yellow led colour, 110 V led voltage |
| MR-LAS1-AGQ16-22X-31-Y-220V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, Yellow led colour, 220 V led voltage |
| MR-LAS1-AGQ16-22X-31-B-6V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, Blue led colour, 6 V led voltage |
| MR-LAS1-AGQ16-22X-31-B-12V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, Blue led colour, 12 V led voltage |
| MR-LAS1-AGQ16-22X-31-B-24V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, Blue led colour, 24 V led voltage |
| MR-LAS1-AGQ16-22X-31-B-110V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, Blue led colour, 110 V led voltage |
| MR-LAS1-AGQ16-22X-31-B-220V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, Blue led colour, 220 V led voltage |
| MR-LAS1-AGQ16-22X-31-W-6V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, White led colour, 6 V led voltage |
| MR-LAS1-AGQ16-22X-31-W-12V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, White led colour, 12 V led voltage |
| MR-LAS1-AGQ16-22X-31-W-24V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, White led colour, 24 V led voltage |
| MR-LAS1-AGQ16-22X-31-W-110V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, White led colour, 110 V led voltage |
| MR-LAS1-AGQ16-22X-31-W-220V-S | 2NO2NC contact, Three position (45 degrees) positions, Retention action, White led colour, 220 V led voltage |
| MR-LAS1-AGQ16-22X-33-R-6V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, Red led colour, 6 V led voltage |
| MR-LAS1-AGQ16-22X-33-R-12V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, Red led colour, 12 V led voltage |
| MR-LAS1-AGQ16-22X-33-R-24V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, Red led colour, 24 V led voltage |
| MR-LAS1-AGQ16-22X-33-R-110V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, Red led colour, 110 V led voltage |
| MR-LAS1-AGQ16-22X-33-R-220V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, Red led colour, 220 V led voltage |
| MR-LAS1-AGQ16-22X-33-G-6V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, Green led colour, 6 V led voltage |
| MR-LAS1-AGQ16-22X-33-G-12V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, Green led colour, 12 V led voltage |
| MR-LAS1-AGQ16-22X-33-G-24V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, Green led colour, 24 V led voltage |
| MR-LAS1-AGQ16-22X-33-G-110V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, Green led colour, 110 V led voltage |
| MR-LAS1-AGQ16-22X-33-G-220V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, Green led colour, 220 V led voltage |
| MR-LAS1-AGQ16-22X-33-Y-6V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, Yellow led colour, 6 V led voltage |
| MR-LAS1-AGQ16-22X-33-Y-12V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, Yellow led colour, 12 V led voltage |
| MR-LAS1-AGQ16-22X-33-Y-24V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, Yellow led colour, 24 V led voltage |
| MR-LAS1-AGQ16-22X-33-Y-110V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, Yellow led colour, 110 V led voltage |
| MR-LAS1-AGQ16-22X-33-Y-220V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, Yellow led colour, 220 V led voltage |
| MR-LAS1-AGQ16-22X-33-B-6V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, Blue led colour, 6 V led voltage |
| MR-LAS1-AGQ16-22X-33-B-12V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, Blue led colour, 12 V led voltage |
| MR-LAS1-AGQ16-22X-33-B-24V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, Blue led colour, 24 V led voltage |
| MR-LAS1-AGQ16-22X-33-B-110V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, Blue led colour, 110 V led voltage |
| MR-LAS1-AGQ16-22X-33-B-220V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, Blue led colour, 220 V led voltage |
| MR-LAS1-AGQ16-22X-33-W-6V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, White led colour, 6 V led voltage |
| MR-LAS1-AGQ16-22X-33-W-12V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, White led colour, 12 V led voltage |
| MR-LAS1-AGQ16-22X-33-W-24V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, White led colour, 24 V led voltage |
| MR-LAS1-AGQ16-22X-33-W-110V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, White led colour, 110 V led voltage |
| MR-LAS1-AGQ16-22X-33-W-220V-S | 2NO2NC contact, Three position (45 degrees) positions, Self-return action, White led colour, 220 V led voltage |
Every part is made to order. Call for pricing and lead-time on 1-732-892-8799, or request a quote against the part number you need.
Send us your part number, drawing, or a description of what you need. A real person on our team will get back to you.
