MR-LAS1-AGQ22-TSD - 22 mm Emergency Stop Button - D-type emergency stop, Ø31.8 mm Head.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

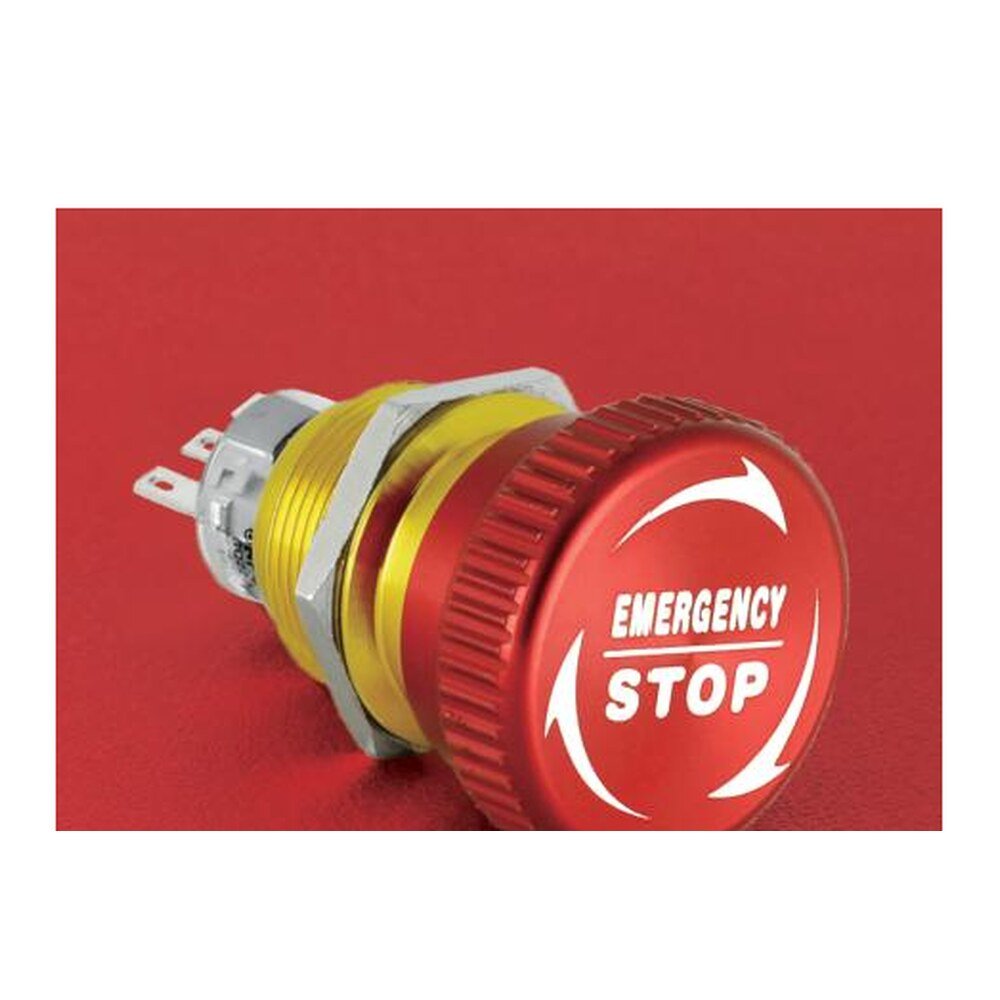

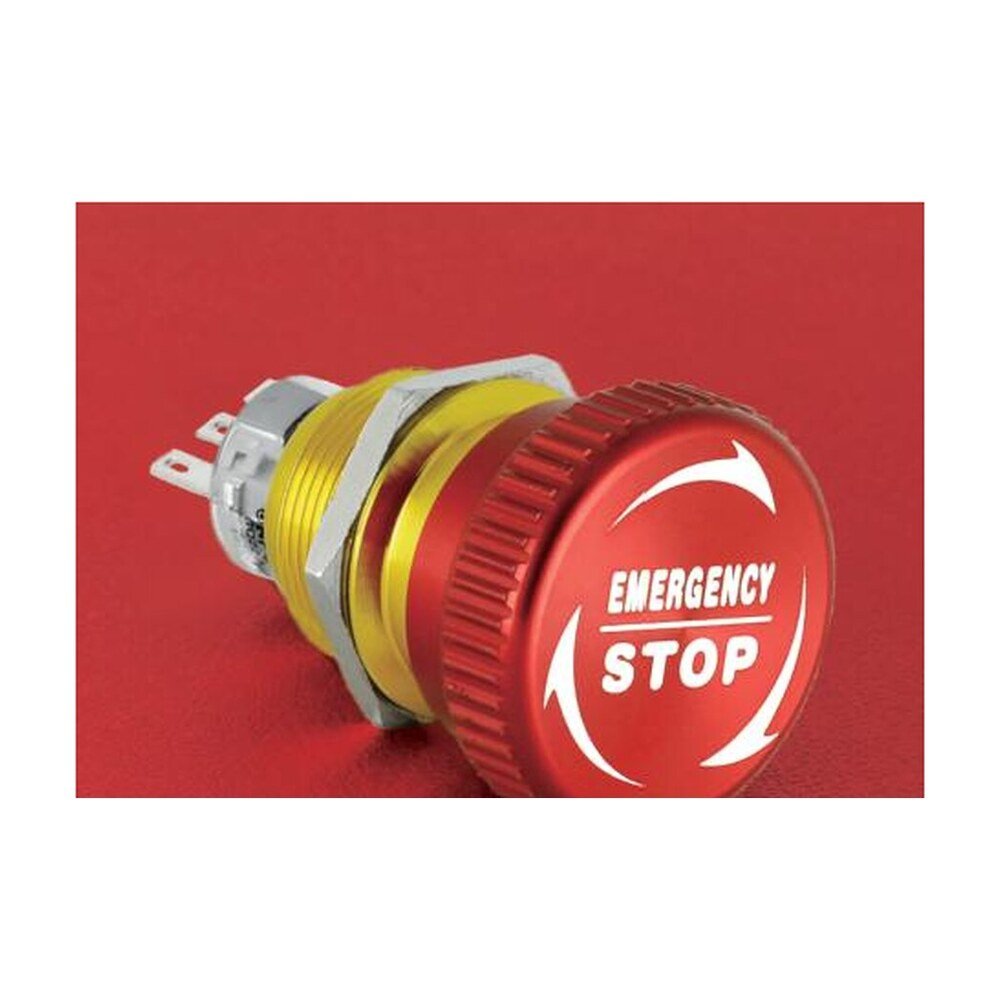

The MR-LAS1-AGQ22-TSD is a 22 mm emergency stop button with a Ø31.8 mm red twist-release head, one or two changeover contacts and an aluminium body, rated 5 A thermal current at 250 V.
Still being confirmed. The terminal count and whether the contact block is a positive-opening safety contact to EN 60947-5-1 Annex K are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS1-AGQ22-TSD |
|---|---|
| Also ordered as | LAS1-AGQ22-TSD |
| Category | Emergency Stop Switches, Switches |
| Ordering code | MR-LAS1-AGQ22-XTSD |
| Series | LAS1-AGQ |
| Contact structure | 11 = 1NO1NC, 22 = 2NO2NC (snap action) |
| Switch rating | Ui 250 V, Ith 5 A |
| Rated operation current, AC 50/60 Hz | 110 V: 1 A resistive, 0.7 A inductive, 220 V: 0.5 A resistive, 0.5 A inductive |
| Rated operation current, DC | 12 V: 1 A resistive, 0.7 A inductive, 24 V: 1 A resistive, 0.7 A inductive, 110 V: 0.2 A resistive, 0.1 A inductive |
| Minimum load | 3 V AC/DC, 5 mA (reference) |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Max withstanding voltage | 1500 V AC, 50 Hz, 1 minute |
| Mechanical life | 200,000 operations |
| Electrical life | 50,000 cycles |
| Nut torque | 0.6 Nm approx |
| Vibration resistance | 50 Hz, amplitude 1.2 mm approx |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Standards | UL 508 UL/E254053, EN 60947-5-1:2004 VDE/40050498, GB/T 14048.5-2017 CCC 2020970305003363, EN 60947-5-1:2004 CE UDEM/RBT210131203ER-1 |
| Panel cut-out | Ø22 mm |
| Mounting | M22 × 1 threaded bush |
| Protection class | IP55, IK02 |
| Bezel height | 6 mm max |
| Across flats | 28.5 mm |
| Accessories | Solder socket S04, PCB socket S05, Safety mask T16 |
| Termination | Solder pins; up to two switch sets (C1/NO1/NC1 and C2/NO2/NC2) |
| Installation note | A 10.4 mm anti-rotation groove at Ø22 mm is recommended in the panel |
| Operation type | TSD = D-type emergency stop |
| Head diameter | Ø31.8 mm |
| Head length | 20.7 mm |
| Body length behind panel | 28.4 mm |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-LAS1-AGQ22-TSD is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-LAS1-AGQ22-11TSD | 1NO1NC contact |
| MR-LAS1-AGQ22-22TSD | 2NO2NC contact |
