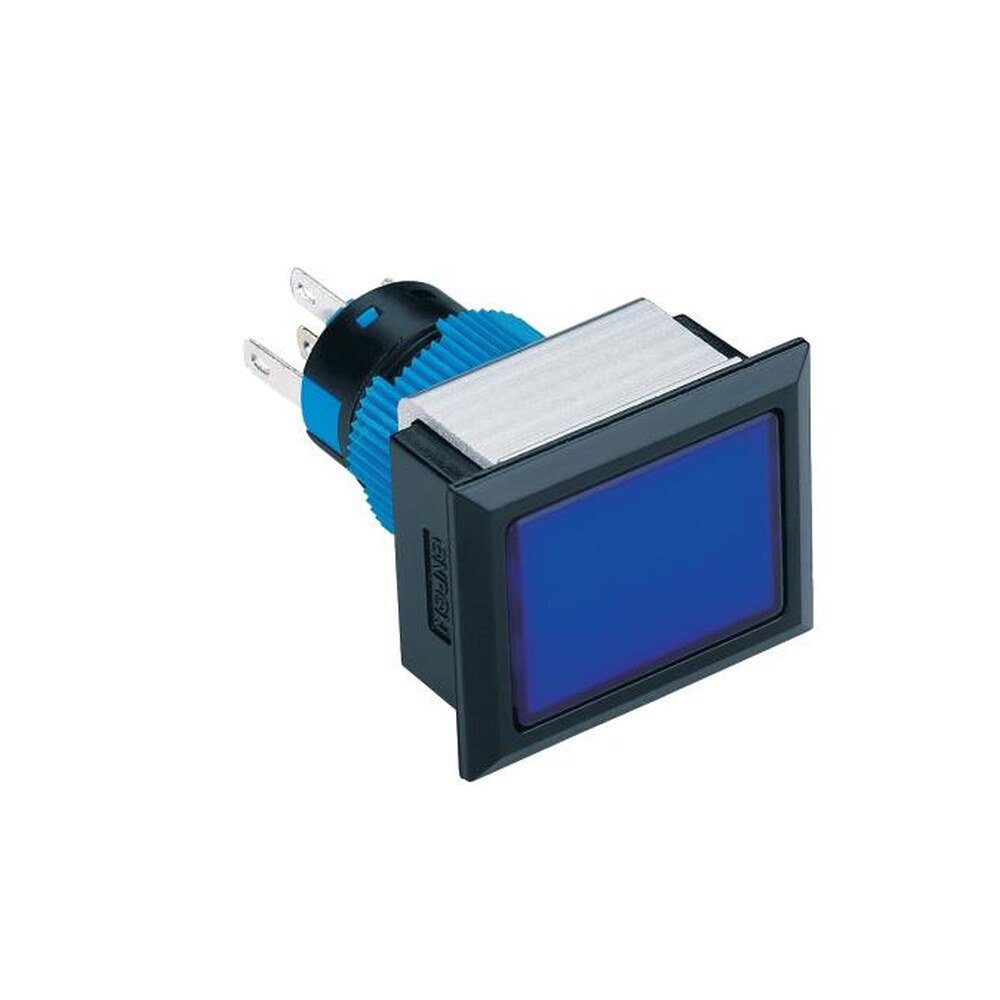

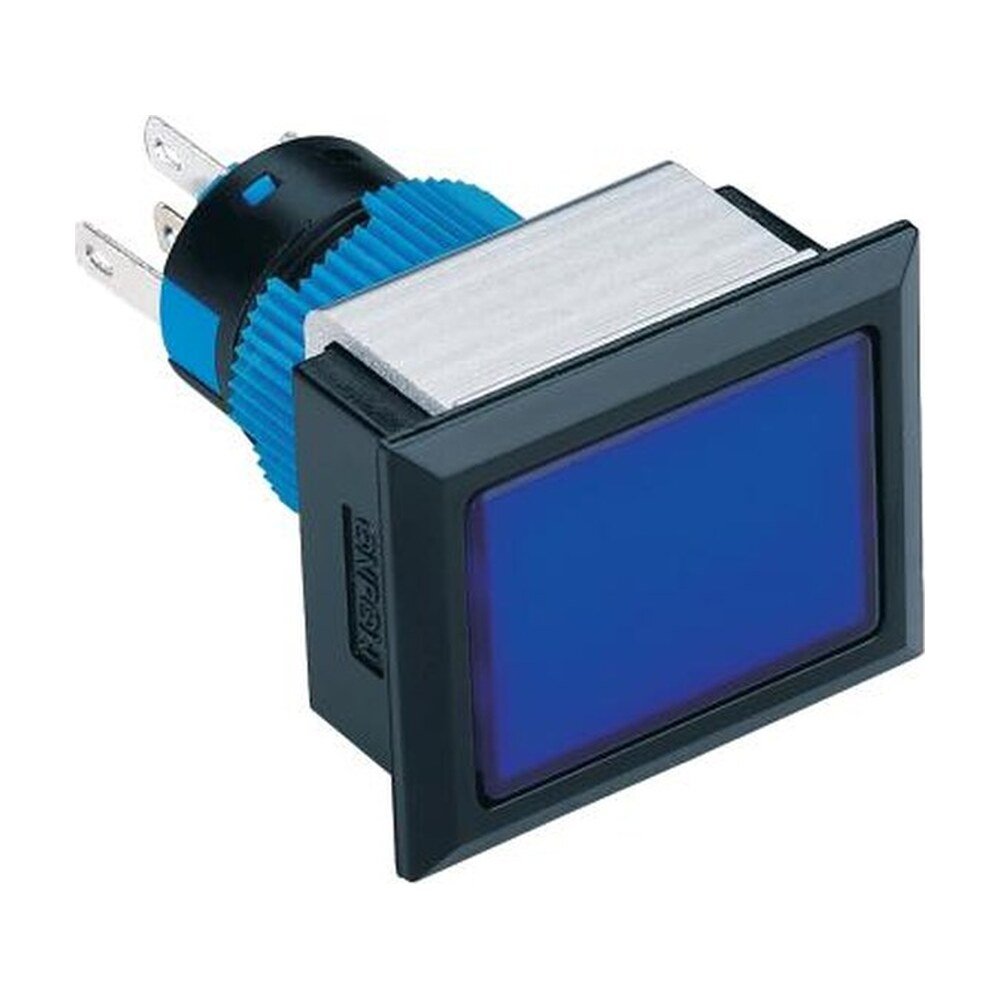

MR-LAS1-APJ - 22 mm Push Button - Rectangular Black Frame, Can Be Illuminated.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-LAS1-APJ is a low-profile push button for a 27 × 21 mm cut-out, with a rectangular black frame standing only 2 mm proud of the panel and a cap that can be lit. One or two changeover contacts, momentary or latching, IP40 as standard or IP65 to order. The catalogue specifies it by reference to the silver-frame version.
Ordering. The ordering code is MR-LAS1-APJ-XX-X-X-X: each X is replaced by the option you need - contact (11 = 1NO1NC, 22 = 2NO2NC); operation (none = Momentary, Z = Latching); colour (R = Red, G = Green, Y = Yellow, B = Blue, W = White, N = Black); led voltage (6V = 6 V, 12V = 12 V, 24V = 24 V, 110V = 110 V, 220V = 220 V); protection (none = IP40, P = IP65). The part numbers are listed below.
Still being confirmed. Whether the button can be ordered unlit and confirmation that dimensions and options match the silver-frame version are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS1-APJ |
|---|---|
| Also ordered as | LAS1-APJ |
| Category | Push Button Switches, Switches |
| Ordering code | MR-LAS1-APJ-XX-X-X-X |
| Series | LAS1-A P (22 mm cut-out, black frame) |
| Rated insulation voltage Ui | 250 V AC/DC |
| Thermal current Ith | 5 A |
| Rated operation current, AC 50/60 Hz | 110 V: 1 A resistive, 0.7 A inductive, 220 V: 0.5 A resistive, 0.5 A inductive |
| Rated operation current, DC | 12 V: 1 A resistive, 0.7 A inductive, 24 V: 1 A resistive, 0.7 A inductive, 110 V: 0.2 A resistive, 0.1 A inductive |
| Minimum load | 3 V AC/DC, 5 mA |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Dielectric strength | 2000 V AC 1 min between contact and LED terminals, 1500 V AC 1 min between terminals of the same pole, 2000 V AC 1 min between terminals of different poles |
| Vibration resistance | 50 Hz, amplitude 1.2 mm |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Wiring | Wire up to 2 × 0.8 mm diameter, 0.75 mm² copper, Pin terminal 2.8 × 0.5 mm |
| Standards | IEC 60947-5-1, GB/T 14048.5 |
| Housing material | Plastic |
| Protection class | IP40 standard, IP65 to order (P) |
| LED life | 40,000 hours min |
| LED current | About 15 mA at 24 V or less, about 2 mA at 110 V or more |
| LED voltage fluctuation | DC ±10 %, AC ±20 % |
| Lamp note | Internal resistor, no polarity |
| Contact structure | Fast-motion element, 1NO1NC per element; 2 elements max |
| Mechanical life | Momentary 1,000,000, Latching 500,000 operations |
| Electrical life | 50,000 cycles |
| Operation travel | 3 mm approx |
| Operating force | 1.7 N approx (1NO1NC), 3 N approx (2NO2NC) |
| Type | Push button, can be illuminated |
| Head shape | Rectangular |
| Frame | Black frame 31 × 25 mm, lens 24 × 18 mm |
| Panel cut-out | 27 × 21 mm (+0.2 / −0) |
| Hole spacing | min 31 mm horizontally, 27 mm vertically |
| Height above panel | 2 mm |
| Panel thickness | 6 mm max |
| Body length behind panel | 40.9 mm |
| Accessories | Switch guard T23, Solder terminal S04, PCB terminal S05 |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-LAS1-APJ is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-LAS1-APJ-11-R-6V | 1NO1NC contact, Momentary operation, Red colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-R-6V-P | 1NO1NC contact, Momentary operation, Red colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-R-12V | 1NO1NC contact, Momentary operation, Red colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-R-12V-P | 1NO1NC contact, Momentary operation, Red colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-R-24V | 1NO1NC contact, Momentary operation, Red colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-R-24V-P | 1NO1NC contact, Momentary operation, Red colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-R-110V | 1NO1NC contact, Momentary operation, Red colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-R-110V-P | 1NO1NC contact, Momentary operation, Red colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-R-220V | 1NO1NC contact, Momentary operation, Red colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-R-220V-P | 1NO1NC contact, Momentary operation, Red colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-G-6V | 1NO1NC contact, Momentary operation, Green colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-G-6V-P | 1NO1NC contact, Momentary operation, Green colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-G-12V | 1NO1NC contact, Momentary operation, Green colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-G-12V-P | 1NO1NC contact, Momentary operation, Green colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-G-24V | 1NO1NC contact, Momentary operation, Green colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-G-24V-P | 1NO1NC contact, Momentary operation, Green colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-G-110V | 1NO1NC contact, Momentary operation, Green colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-G-110V-P | 1NO1NC contact, Momentary operation, Green colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-G-220V | 1NO1NC contact, Momentary operation, Green colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-G-220V-P | 1NO1NC contact, Momentary operation, Green colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-Y-6V | 1NO1NC contact, Momentary operation, Yellow colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-Y-6V-P | 1NO1NC contact, Momentary operation, Yellow colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-Y-12V | 1NO1NC contact, Momentary operation, Yellow colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-Y-12V-P | 1NO1NC contact, Momentary operation, Yellow colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-Y-24V | 1NO1NC contact, Momentary operation, Yellow colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-Y-24V-P | 1NO1NC contact, Momentary operation, Yellow colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-Y-110V | 1NO1NC contact, Momentary operation, Yellow colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-Y-110V-P | 1NO1NC contact, Momentary operation, Yellow colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-Y-220V | 1NO1NC contact, Momentary operation, Yellow colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-Y-220V-P | 1NO1NC contact, Momentary operation, Yellow colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-B-6V | 1NO1NC contact, Momentary operation, Blue colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-B-6V-P | 1NO1NC contact, Momentary operation, Blue colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-B-12V | 1NO1NC contact, Momentary operation, Blue colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-B-12V-P | 1NO1NC contact, Momentary operation, Blue colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-B-24V | 1NO1NC contact, Momentary operation, Blue colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-B-24V-P | 1NO1NC contact, Momentary operation, Blue colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-B-110V | 1NO1NC contact, Momentary operation, Blue colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-B-110V-P | 1NO1NC contact, Momentary operation, Blue colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-B-220V | 1NO1NC contact, Momentary operation, Blue colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-B-220V-P | 1NO1NC contact, Momentary operation, Blue colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-W-6V | 1NO1NC contact, Momentary operation, White colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-W-6V-P | 1NO1NC contact, Momentary operation, White colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-W-12V | 1NO1NC contact, Momentary operation, White colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-W-12V-P | 1NO1NC contact, Momentary operation, White colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-W-24V | 1NO1NC contact, Momentary operation, White colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-W-24V-P | 1NO1NC contact, Momentary operation, White colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-W-110V | 1NO1NC contact, Momentary operation, White colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-W-110V-P | 1NO1NC contact, Momentary operation, White colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-W-220V | 1NO1NC contact, Momentary operation, White colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-W-220V-P | 1NO1NC contact, Momentary operation, White colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-N-6V | 1NO1NC contact, Momentary operation, Black colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-N-6V-P | 1NO1NC contact, Momentary operation, Black colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-N-12V | 1NO1NC contact, Momentary operation, Black colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-N-12V-P | 1NO1NC contact, Momentary operation, Black colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-N-24V | 1NO1NC contact, Momentary operation, Black colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-N-24V-P | 1NO1NC contact, Momentary operation, Black colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-N-110V | 1NO1NC contact, Momentary operation, Black colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-N-110V-P | 1NO1NC contact, Momentary operation, Black colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-11-N-220V | 1NO1NC contact, Momentary operation, Black colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-11-N-220V-P | 1NO1NC contact, Momentary operation, Black colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-R-6V | 1NO1NC contact, Latching operation, Red colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-R-6V-P | 1NO1NC contact, Latching operation, Red colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-R-12V | 1NO1NC contact, Latching operation, Red colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-R-12V-P | 1NO1NC contact, Latching operation, Red colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-R-24V | 1NO1NC contact, Latching operation, Red colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-R-24V-P | 1NO1NC contact, Latching operation, Red colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-R-110V | 1NO1NC contact, Latching operation, Red colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-R-110V-P | 1NO1NC contact, Latching operation, Red colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-R-220V | 1NO1NC contact, Latching operation, Red colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-R-220V-P | 1NO1NC contact, Latching operation, Red colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-G-6V | 1NO1NC contact, Latching operation, Green colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-G-6V-P | 1NO1NC contact, Latching operation, Green colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-G-12V | 1NO1NC contact, Latching operation, Green colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-G-12V-P | 1NO1NC contact, Latching operation, Green colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-G-24V | 1NO1NC contact, Latching operation, Green colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-G-24V-P | 1NO1NC contact, Latching operation, Green colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-G-110V | 1NO1NC contact, Latching operation, Green colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-G-110V-P | 1NO1NC contact, Latching operation, Green colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-G-220V | 1NO1NC contact, Latching operation, Green colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-G-220V-P | 1NO1NC contact, Latching operation, Green colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-Y-6V | 1NO1NC contact, Latching operation, Yellow colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-Y-6V-P | 1NO1NC contact, Latching operation, Yellow colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-Y-12V | 1NO1NC contact, Latching operation, Yellow colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-Y-12V-P | 1NO1NC contact, Latching operation, Yellow colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-Y-24V | 1NO1NC contact, Latching operation, Yellow colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-Y-24V-P | 1NO1NC contact, Latching operation, Yellow colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-Y-110V | 1NO1NC contact, Latching operation, Yellow colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-Y-110V-P | 1NO1NC contact, Latching operation, Yellow colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-Y-220V | 1NO1NC contact, Latching operation, Yellow colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-Y-220V-P | 1NO1NC contact, Latching operation, Yellow colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-B-6V | 1NO1NC contact, Latching operation, Blue colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-B-6V-P | 1NO1NC contact, Latching operation, Blue colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-B-12V | 1NO1NC contact, Latching operation, Blue colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-B-12V-P | 1NO1NC contact, Latching operation, Blue colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-B-24V | 1NO1NC contact, Latching operation, Blue colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-B-24V-P | 1NO1NC contact, Latching operation, Blue colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-B-110V | 1NO1NC contact, Latching operation, Blue colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-B-110V-P | 1NO1NC contact, Latching operation, Blue colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-B-220V | 1NO1NC contact, Latching operation, Blue colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-B-220V-P | 1NO1NC contact, Latching operation, Blue colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-W-6V | 1NO1NC contact, Latching operation, White colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-W-6V-P | 1NO1NC contact, Latching operation, White colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-W-12V | 1NO1NC contact, Latching operation, White colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-W-12V-P | 1NO1NC contact, Latching operation, White colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-W-24V | 1NO1NC contact, Latching operation, White colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-W-24V-P | 1NO1NC contact, Latching operation, White colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-W-110V | 1NO1NC contact, Latching operation, White colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-W-110V-P | 1NO1NC contact, Latching operation, White colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-W-220V | 1NO1NC contact, Latching operation, White colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-W-220V-P | 1NO1NC contact, Latching operation, White colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-N-6V | 1NO1NC contact, Latching operation, Black colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-N-6V-P | 1NO1NC contact, Latching operation, Black colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-N-12V | 1NO1NC contact, Latching operation, Black colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-N-12V-P | 1NO1NC contact, Latching operation, Black colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-N-24V | 1NO1NC contact, Latching operation, Black colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-N-24V-P | 1NO1NC contact, Latching operation, Black colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-N-110V | 1NO1NC contact, Latching operation, Black colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-N-110V-P | 1NO1NC contact, Latching operation, Black colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-11Z-N-220V | 1NO1NC contact, Latching operation, Black colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-11Z-N-220V-P | 1NO1NC contact, Latching operation, Black colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-R-6V | 2NO2NC contact, Momentary operation, Red colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-R-6V-P | 2NO2NC contact, Momentary operation, Red colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-R-12V | 2NO2NC contact, Momentary operation, Red colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-R-12V-P | 2NO2NC contact, Momentary operation, Red colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-R-24V | 2NO2NC contact, Momentary operation, Red colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-R-24V-P | 2NO2NC contact, Momentary operation, Red colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-R-110V | 2NO2NC contact, Momentary operation, Red colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-R-110V-P | 2NO2NC contact, Momentary operation, Red colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-R-220V | 2NO2NC contact, Momentary operation, Red colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-R-220V-P | 2NO2NC contact, Momentary operation, Red colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-G-6V | 2NO2NC contact, Momentary operation, Green colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-G-6V-P | 2NO2NC contact, Momentary operation, Green colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-G-12V | 2NO2NC contact, Momentary operation, Green colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-G-12V-P | 2NO2NC contact, Momentary operation, Green colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-G-24V | 2NO2NC contact, Momentary operation, Green colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-G-24V-P | 2NO2NC contact, Momentary operation, Green colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-G-110V | 2NO2NC contact, Momentary operation, Green colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-G-110V-P | 2NO2NC contact, Momentary operation, Green colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-G-220V | 2NO2NC contact, Momentary operation, Green colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-G-220V-P | 2NO2NC contact, Momentary operation, Green colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-Y-6V | 2NO2NC contact, Momentary operation, Yellow colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-Y-6V-P | 2NO2NC contact, Momentary operation, Yellow colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-Y-12V | 2NO2NC contact, Momentary operation, Yellow colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-Y-12V-P | 2NO2NC contact, Momentary operation, Yellow colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-Y-24V | 2NO2NC contact, Momentary operation, Yellow colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-Y-24V-P | 2NO2NC contact, Momentary operation, Yellow colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-Y-110V | 2NO2NC contact, Momentary operation, Yellow colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-Y-110V-P | 2NO2NC contact, Momentary operation, Yellow colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-Y-220V | 2NO2NC contact, Momentary operation, Yellow colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-Y-220V-P | 2NO2NC contact, Momentary operation, Yellow colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-B-6V | 2NO2NC contact, Momentary operation, Blue colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-B-6V-P | 2NO2NC contact, Momentary operation, Blue colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-B-12V | 2NO2NC contact, Momentary operation, Blue colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-B-12V-P | 2NO2NC contact, Momentary operation, Blue colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-B-24V | 2NO2NC contact, Momentary operation, Blue colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-B-24V-P | 2NO2NC contact, Momentary operation, Blue colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-B-110V | 2NO2NC contact, Momentary operation, Blue colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-B-110V-P | 2NO2NC contact, Momentary operation, Blue colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-B-220V | 2NO2NC contact, Momentary operation, Blue colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-B-220V-P | 2NO2NC contact, Momentary operation, Blue colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-W-6V | 2NO2NC contact, Momentary operation, White colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-W-6V-P | 2NO2NC contact, Momentary operation, White colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-W-12V | 2NO2NC contact, Momentary operation, White colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-W-12V-P | 2NO2NC contact, Momentary operation, White colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-W-24V | 2NO2NC contact, Momentary operation, White colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-W-24V-P | 2NO2NC contact, Momentary operation, White colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-W-110V | 2NO2NC contact, Momentary operation, White colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-W-110V-P | 2NO2NC contact, Momentary operation, White colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-W-220V | 2NO2NC contact, Momentary operation, White colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-W-220V-P | 2NO2NC contact, Momentary operation, White colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-N-6V | 2NO2NC contact, Momentary operation, Black colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-N-6V-P | 2NO2NC contact, Momentary operation, Black colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-N-12V | 2NO2NC contact, Momentary operation, Black colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-N-12V-P | 2NO2NC contact, Momentary operation, Black colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-N-24V | 2NO2NC contact, Momentary operation, Black colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-N-24V-P | 2NO2NC contact, Momentary operation, Black colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-N-110V | 2NO2NC contact, Momentary operation, Black colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-N-110V-P | 2NO2NC contact, Momentary operation, Black colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-22-N-220V | 2NO2NC contact, Momentary operation, Black colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-22-N-220V-P | 2NO2NC contact, Momentary operation, Black colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-R-6V | 2NO2NC contact, Latching operation, Red colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-R-6V-P | 2NO2NC contact, Latching operation, Red colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-R-12V | 2NO2NC contact, Latching operation, Red colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-R-12V-P | 2NO2NC contact, Latching operation, Red colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-R-24V | 2NO2NC contact, Latching operation, Red colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-R-24V-P | 2NO2NC contact, Latching operation, Red colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-R-110V | 2NO2NC contact, Latching operation, Red colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-R-110V-P | 2NO2NC contact, Latching operation, Red colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-R-220V | 2NO2NC contact, Latching operation, Red colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-R-220V-P | 2NO2NC contact, Latching operation, Red colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-G-6V | 2NO2NC contact, Latching operation, Green colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-G-6V-P | 2NO2NC contact, Latching operation, Green colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-G-12V | 2NO2NC contact, Latching operation, Green colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-G-12V-P | 2NO2NC contact, Latching operation, Green colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-G-24V | 2NO2NC contact, Latching operation, Green colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-G-24V-P | 2NO2NC contact, Latching operation, Green colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-G-110V | 2NO2NC contact, Latching operation, Green colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-G-110V-P | 2NO2NC contact, Latching operation, Green colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-G-220V | 2NO2NC contact, Latching operation, Green colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-G-220V-P | 2NO2NC contact, Latching operation, Green colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-Y-6V | 2NO2NC contact, Latching operation, Yellow colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-Y-6V-P | 2NO2NC contact, Latching operation, Yellow colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-Y-12V | 2NO2NC contact, Latching operation, Yellow colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-Y-12V-P | 2NO2NC contact, Latching operation, Yellow colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-Y-24V | 2NO2NC contact, Latching operation, Yellow colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-Y-24V-P | 2NO2NC contact, Latching operation, Yellow colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-Y-110V | 2NO2NC contact, Latching operation, Yellow colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-Y-110V-P | 2NO2NC contact, Latching operation, Yellow colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-Y-220V | 2NO2NC contact, Latching operation, Yellow colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-Y-220V-P | 2NO2NC contact, Latching operation, Yellow colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-B-6V | 2NO2NC contact, Latching operation, Blue colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-B-6V-P | 2NO2NC contact, Latching operation, Blue colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-B-12V | 2NO2NC contact, Latching operation, Blue colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-B-12V-P | 2NO2NC contact, Latching operation, Blue colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-B-24V | 2NO2NC contact, Latching operation, Blue colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-B-24V-P | 2NO2NC contact, Latching operation, Blue colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-B-110V | 2NO2NC contact, Latching operation, Blue colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-B-110V-P | 2NO2NC contact, Latching operation, Blue colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-B-220V | 2NO2NC contact, Latching operation, Blue colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-B-220V-P | 2NO2NC contact, Latching operation, Blue colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-W-6V | 2NO2NC contact, Latching operation, White colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-W-6V-P | 2NO2NC contact, Latching operation, White colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-W-12V | 2NO2NC contact, Latching operation, White colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-W-12V-P | 2NO2NC contact, Latching operation, White colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-W-24V | 2NO2NC contact, Latching operation, White colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-W-24V-P | 2NO2NC contact, Latching operation, White colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-W-110V | 2NO2NC contact, Latching operation, White colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-W-110V-P | 2NO2NC contact, Latching operation, White colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-W-220V | 2NO2NC contact, Latching operation, White colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-W-220V-P | 2NO2NC contact, Latching operation, White colour, 220 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-N-6V | 2NO2NC contact, Latching operation, Black colour, 6 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-N-6V-P | 2NO2NC contact, Latching operation, Black colour, 6 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-N-12V | 2NO2NC contact, Latching operation, Black colour, 12 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-N-12V-P | 2NO2NC contact, Latching operation, Black colour, 12 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-N-24V | 2NO2NC contact, Latching operation, Black colour, 24 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-N-24V-P | 2NO2NC contact, Latching operation, Black colour, 24 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-N-110V | 2NO2NC contact, Latching operation, Black colour, 110 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-N-110V-P | 2NO2NC contact, Latching operation, Black colour, 110 V led voltage, IP65 protection |
| MR-LAS1-APJ-22Z-N-220V | 2NO2NC contact, Latching operation, Black colour, 220 V led voltage, IP40 protection |
| MR-LAS1-APJ-22Z-N-220V-P | 2NO2NC contact, Latching operation, Black colour, 220 V led voltage, IP65 protection |
Every part is made to order. Call for pricing and lead-time on 1-732-892-8799, or request a quote against the part number you need.
Send us your part number, drawing, or a description of what you need. A real person on our team will get back to you.
