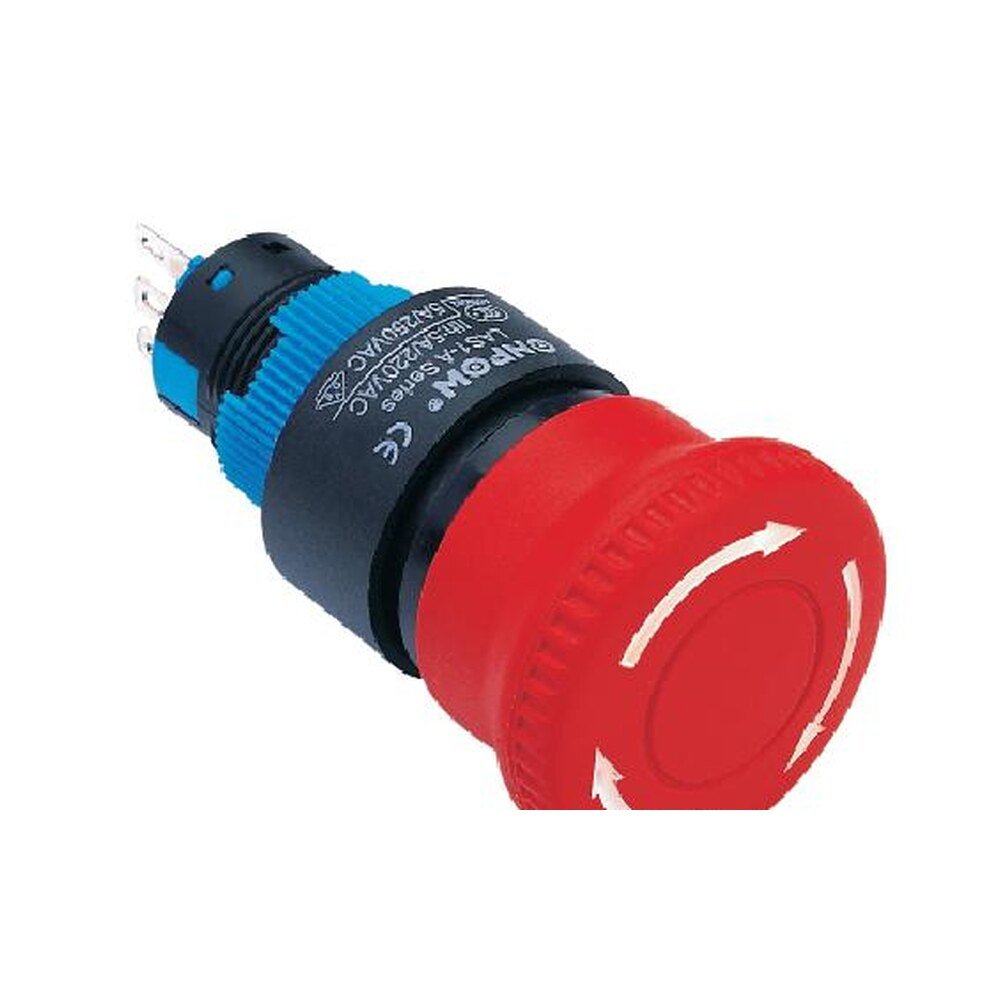

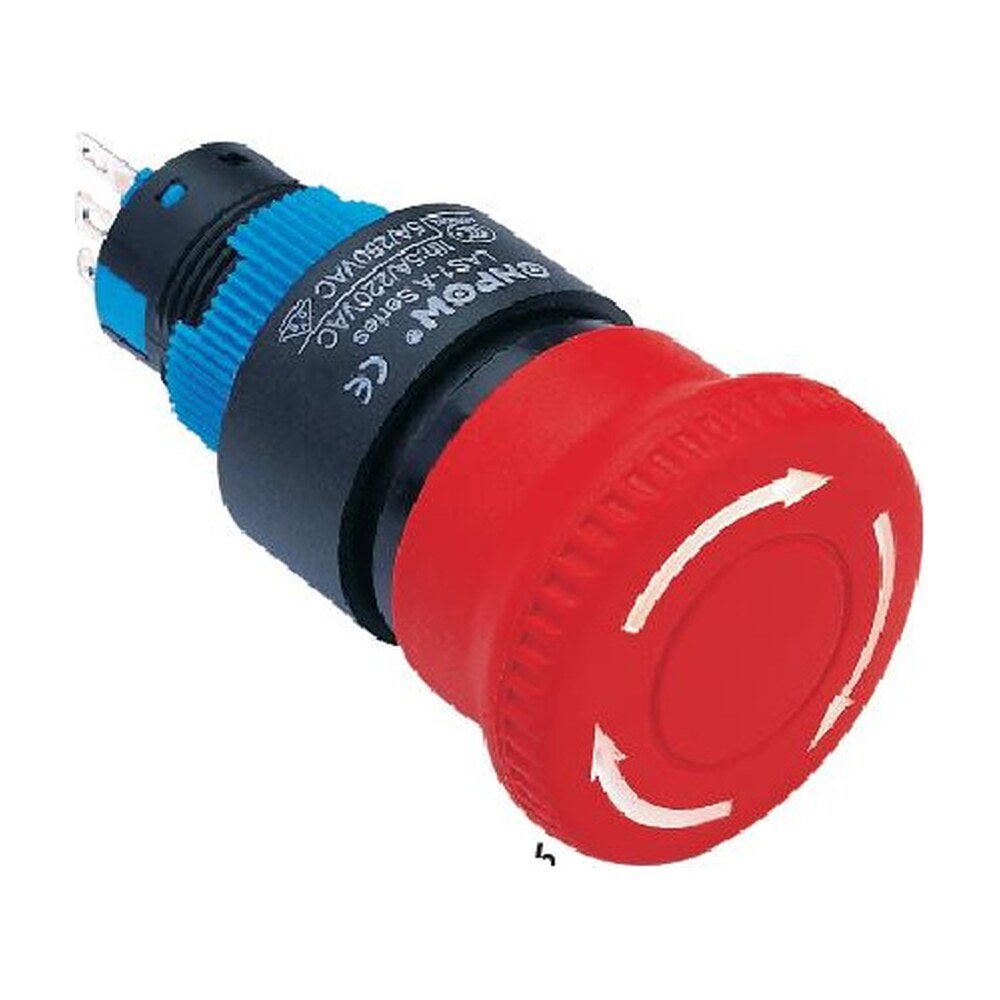

MR-LAS1-APY-TS - 22 mm Emergency Stop Switch - Ø32 mm Head.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-LAS1-APY-TS is a plastic emergency stop switch for a 22 mm hole, with a Ø32 mm head and one or two changeover contacts, IP40 as standard or IP65 to order.
Ordering. The ordering code is MR-LAS1-APY-#TS-#: each X is replaced by the option you need - contact (11 = 1NO1NC, 22 = 2NO2NC); protection (none = IP40, P = IP65). The part numbers are listed below.
Still being confirmed. The terminal count, the mechanical life and the reset method are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS1-APY-TS |
|---|---|
| Also ordered as | LAS1-APY-TS |
| Category | Emergency Stop Switches, Switches |
| Ordering code | MR-LAS1-APY-#TS-# |
| Series | LAS1-A P (22 mm cut-out, standard frame) |
| Rated insulation voltage Ui | 250 V AC/DC |
| Thermal current Ith | 5 A |
| Rated operation current, AC 50/60 Hz | 110 V: 1 A resistive, 0.7 A inductive, 220 V: 0.5 A resistive, 0.5 A inductive |
| Rated operation current, DC | 12 V: 1 A resistive, 0.7 A inductive, 24 V: 1 A resistive, 0.7 A inductive, 110 V: 0.2 A resistive, 0.1 A inductive |
| Minimum load | 3 V AC/DC, 5 mA |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Dielectric strength | 2000 V AC 1 min between contact and LED terminals, 1500 V AC 1 min between terminals of the same pole, 2000 V AC 1 min between terminals of different poles |
| Vibration resistance | 50 Hz, amplitude 1.2 mm |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Wiring | Wire up to 2 × 0.8 mm diameter, 0.75 mm² copper, Pin terminal 2.8 × 0.5 mm |
| Standards | IEC 60947-5-1, GB/T 14048.5 |
| Housing material | Plastic |
| Protection class | IP40 standard, IP65 to order (P) |
| Type | Emergency stop |
| Contact structure | Fast-motion element, 1NO1NC per element; 2 elements max |
| Electrical life | 50,000 cycles |
| Head | Ø32 mm |
| Panel cut-out | Ø22 mm (+0.22 / −0) |
| Head length | 23.2 mm |
| Panel thickness | 6 mm max |
| Body length behind panel | 40 mm |
| Accessories | Emergency stop switch guard T26 |
| Availability | Please call for pricing and availability |
