MR-LAS1-BJ-Y - 16 mm Key-Lock Switch - Rectangular Bezel, 2 or 3 Position.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.

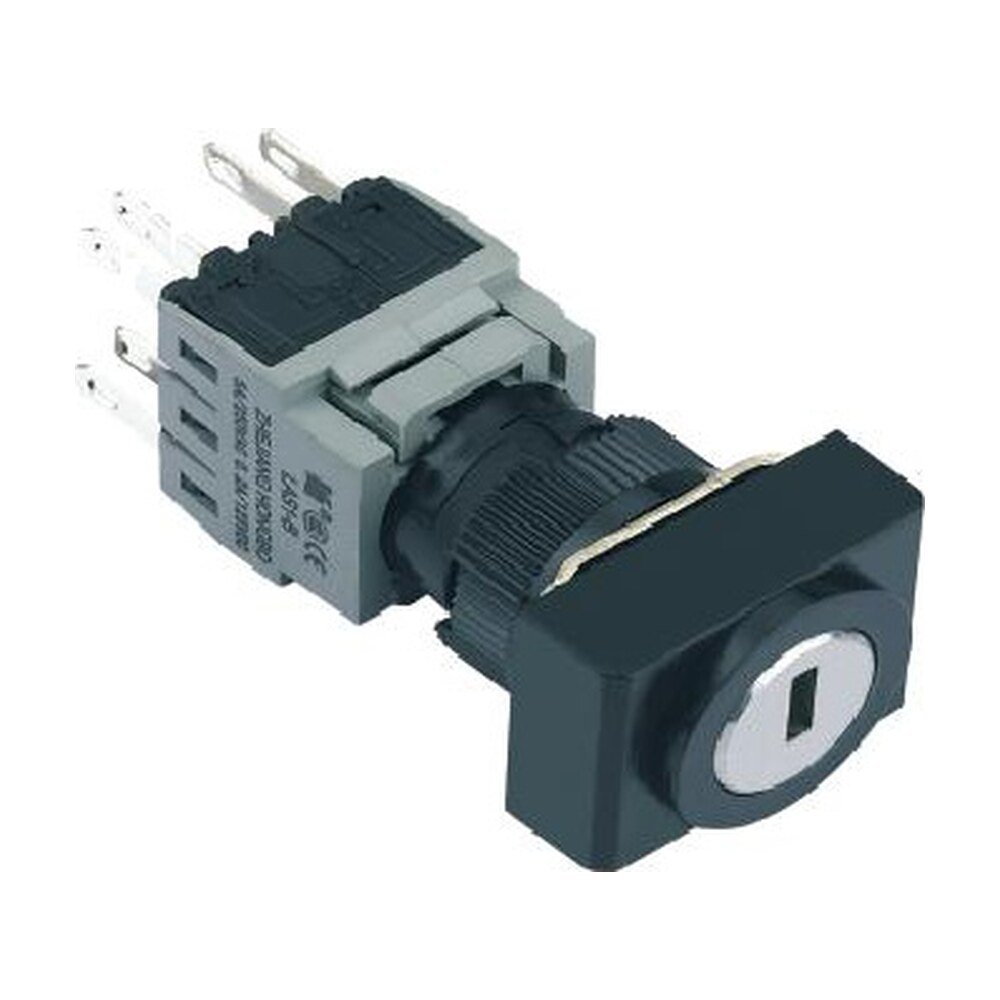

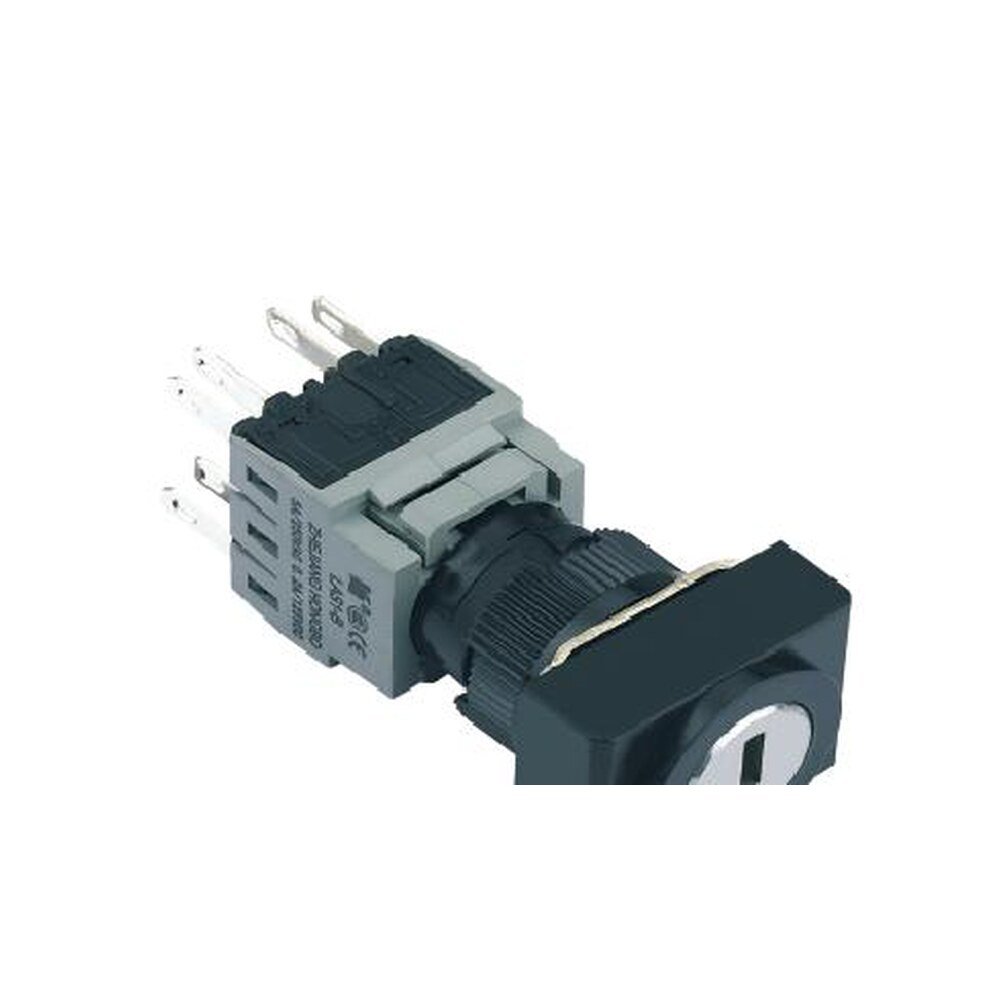

The MR-LAS1-BJ-Y is a 16 mm plastic key-lock switch with a rectangular bezel, in 2 or 3 positions, maintained or self-return, with one to three double-break changeover contacts. Two keys are supplied.
Ordering. The ordering code is MR-LAS1-BJ-#Y-#: each X is replaced by the option you need - contact (11 = 1NO1NC, 22 = 2NO2NC, 33 = 3NO3NC); position (21 = 2 position, maintained, 23 = 2 position, self-return, 31 = 3 position, maintained, 32 = 3 position, return from right, 33 = 3 position, self-return from both sides). The part numbers are listed below.
Still being confirmed. The terminal count is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS1-BJ-Y |
|---|---|
| Also ordered as | LAS1-BJ-Y |
| Category | Key Switches, Switches |
| Ordering code | MR-LAS1-BJ-#Y-# |
| Series | LAS1-B (16 mm plastic) |
| Rated insulation voltage Ui | 250 V AC/DC |
| Thermal current Ith | 5 A |
| Rated operation current, AC 50/60 Hz | 110 V: 5 A resistive, 3 A inductive, 220 V: 3 A resistive, 2 A inductive |
| Rated operation current, DC | 12 V: 5 A resistive, 2 A inductive, 24 V: 5 A resistive, 2 A inductive, 110 V: 1 A resistive, 0.2 A inductive, 220 V: 0.5 A resistive, 0.1 A inductive |
| Minimum load | 3 V AC/DC, 5 mA |
| Contact material | Silver alloy |
| Contact resistance | 50 mΩ max |
| Insulation resistance | 100 MΩ min |
| Dielectric strength | 2000 V AC between contact and LED terminals, 1500 V AC between terminals of the same pole, 2000 V AC between poles |
| Electrical life | 50,000 cycles |
| Vibration resistance | 50 Hz, amplitude 1.2 mm |
| Operating temperature | −25 °C to +55 °C |
| Operating humidity | 45 % to 85 % RH |
| Solder heat resistance | 320 °C for 3 s |
| Wiring | Wire up to 2 × 0.8 mm diameter, 0.75 mm², Pin terminal 2.8 × 0.5 mm |
| Contact structure | Double-break, fast action, self-cleaning; 1 to 3 elements |
| Operation travel | 3 mm approx |
| Operating force | 2.8 N (1 element), 3.5 N (2 elements), 4.7 N (3 elements) |
| Protection class | IP40 |
| Panel cut-out | Ø16 mm (+0.2 / −0) |
| Housing material | Plastic |
| Type | Key-lock switch |
| Mechanical life | 200,000 operations |
| Head shape | Rectangular |
| Bezel | Bezel 24 × 18 mm |
| Hole spacing | min 18 mm / 24 mm spacing |
| Bezel height | 5 mm max |
| Head length | 10 mm |
| Key length | 24 mm |
| Body length behind panel | 43.6 mm |
| Keys | 2 keys supplied, all keys the same, Key removable in every position; removal in a specified position only can be made to order |
| Contact availability | 2 position: 1NO1NC, 2NO2NC or 3NO3NC, 3 position: 2NO2NC or 3NO3NC |
| Return option | Position 32 returns from the right as standard; return from the left can be made to order |
| Accessories | Panel plug S17-GY, Panel plug S17-BK |
| Availability | Please call for pricing and availability |
