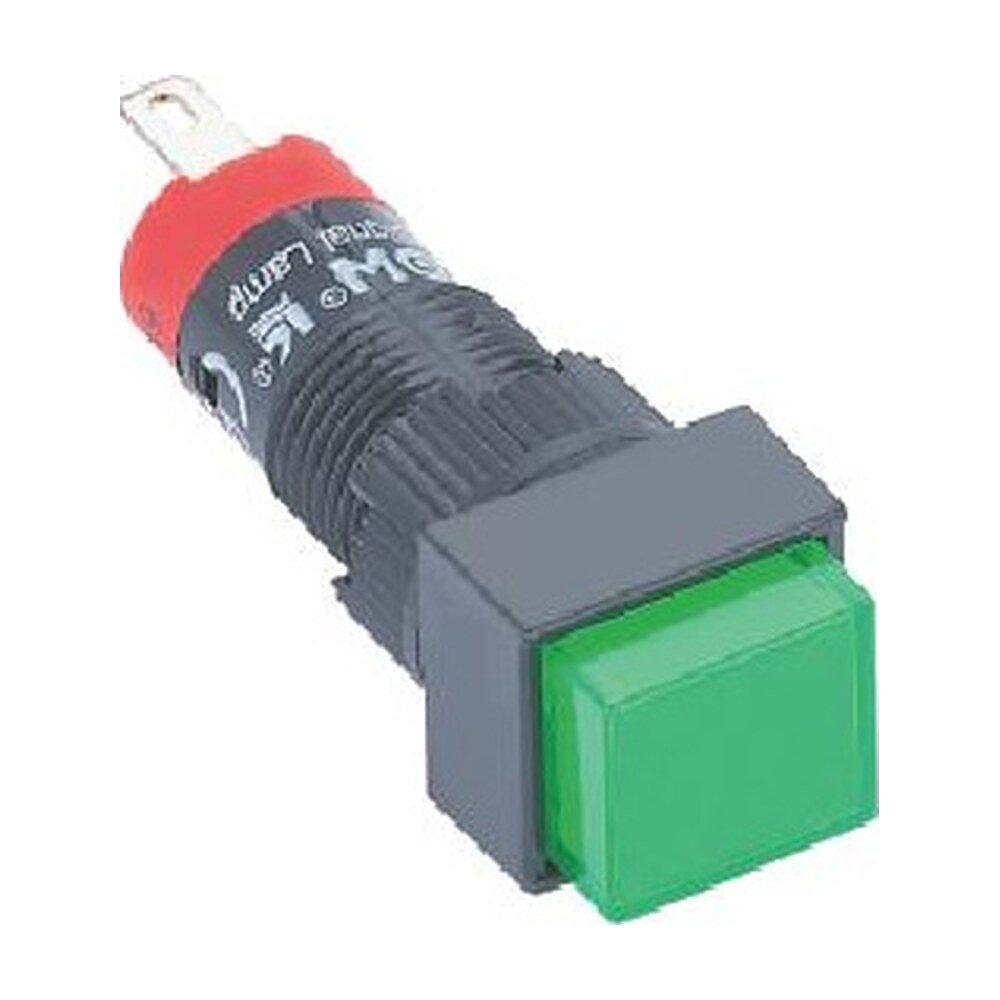

MR-LAS3F-D - 10 mm Indicator Light - Square Head, LED.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-LAS3F-D is a compact 10 mm panel indicator with a square lens, lit by an LED in red, green, yellow, blue or white at 6 V to 220 V.
Ordering. The ordering code is MR-LAS3F-D-X-X: each X is replaced by the option you need - led colour (R = Red, G = Green, Y = Yellow, B = Blue, W = White); led voltage (6V = 6 V, 12V = 12 V, 24V = 24 V, 110V = 110 V, 220V = 220 V). The part numbers are listed below.
Still being confirmed. The terminal count is being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS3F-D |
|---|---|
| Also ordered as | LAS3F-D |
| Category | Indicator Lights, Switches |
| Ordering code | MR-LAS3F-D-X-X |
| Series | LAS3 (LAS2/3/4 family) |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Protection class | IP40 |
| Mounting | M10 × 0.75 threaded bush |
| Housing material | Plastic |
| Bezel height | 8 mm max |
| Lamp | AC/DC LED, about 40,000 hours; DC LED and red/green two-colour LED can be customised |
| Type | Signal light |
| Head shape | Square |
| Panel cut-out | Ø10 mm (12 mm and 12 mm spacing) |
| Bezel | Bezel 12 mm square |
| Body length behind panel | 28 mm |
| LED colour | R red, G green, Y yellow, B blue, W white |
| LED voltage | 6 V, 12 V, 24 V, 110 V, 220 V |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-LAS3F-D is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-LAS3F-D-R-6V | Red led colour, 6 V led voltage |
| MR-LAS3F-D-R-12V | Red led colour, 12 V led voltage |
| MR-LAS3F-D-R-24V | Red led colour, 24 V led voltage |
| MR-LAS3F-D-R-110V | Red led colour, 110 V led voltage |
| MR-LAS3F-D-R-220V | Red led colour, 220 V led voltage |
| MR-LAS3F-D-G-6V | Green led colour, 6 V led voltage |
| MR-LAS3F-D-G-12V | Green led colour, 12 V led voltage |
| MR-LAS3F-D-G-24V | Green led colour, 24 V led voltage |
| MR-LAS3F-D-G-110V | Green led colour, 110 V led voltage |
| MR-LAS3F-D-G-220V | Green led colour, 220 V led voltage |
| MR-LAS3F-D-Y-6V | Yellow led colour, 6 V led voltage |
| MR-LAS3F-D-Y-12V | Yellow led colour, 12 V led voltage |
| MR-LAS3F-D-Y-24V | Yellow led colour, 24 V led voltage |
| MR-LAS3F-D-Y-110V | Yellow led colour, 110 V led voltage |
| MR-LAS3F-D-Y-220V | Yellow led colour, 220 V led voltage |
| MR-LAS3F-D-B-6V | Blue led colour, 6 V led voltage |
| MR-LAS3F-D-B-12V | Blue led colour, 12 V led voltage |
| MR-LAS3F-D-B-24V | Blue led colour, 24 V led voltage |
| MR-LAS3F-D-B-110V | Blue led colour, 110 V led voltage |
| MR-LAS3F-D-B-220V | Blue led colour, 220 V led voltage |
| MR-LAS3F-D-W-6V | White led colour, 6 V led voltage |
| MR-LAS3F-D-W-12V | White led colour, 12 V led voltage |
| MR-LAS3F-D-W-24V | White led colour, 24 V led voltage |
| MR-LAS3F-D-W-110V | White led colour, 110 V led voltage |
| MR-LAS3F-D-W-220V | White led colour, 220 V led voltage |
