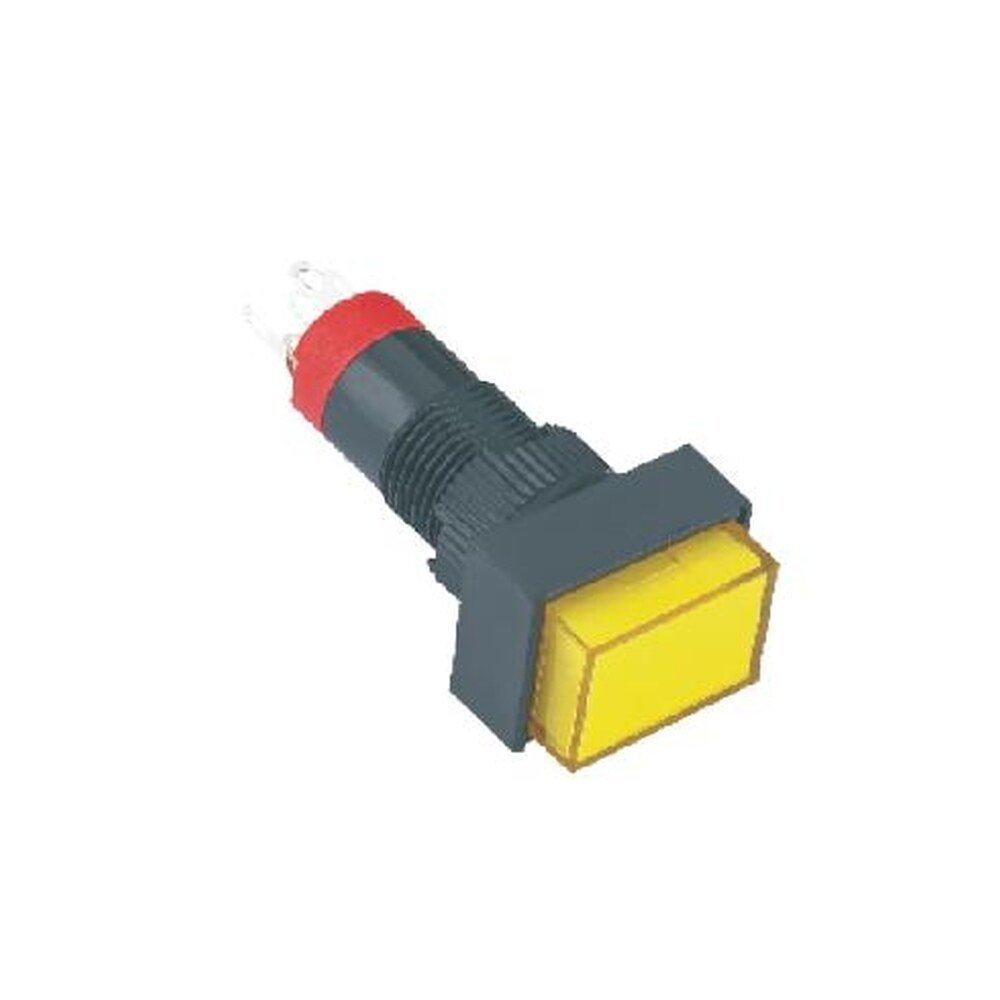

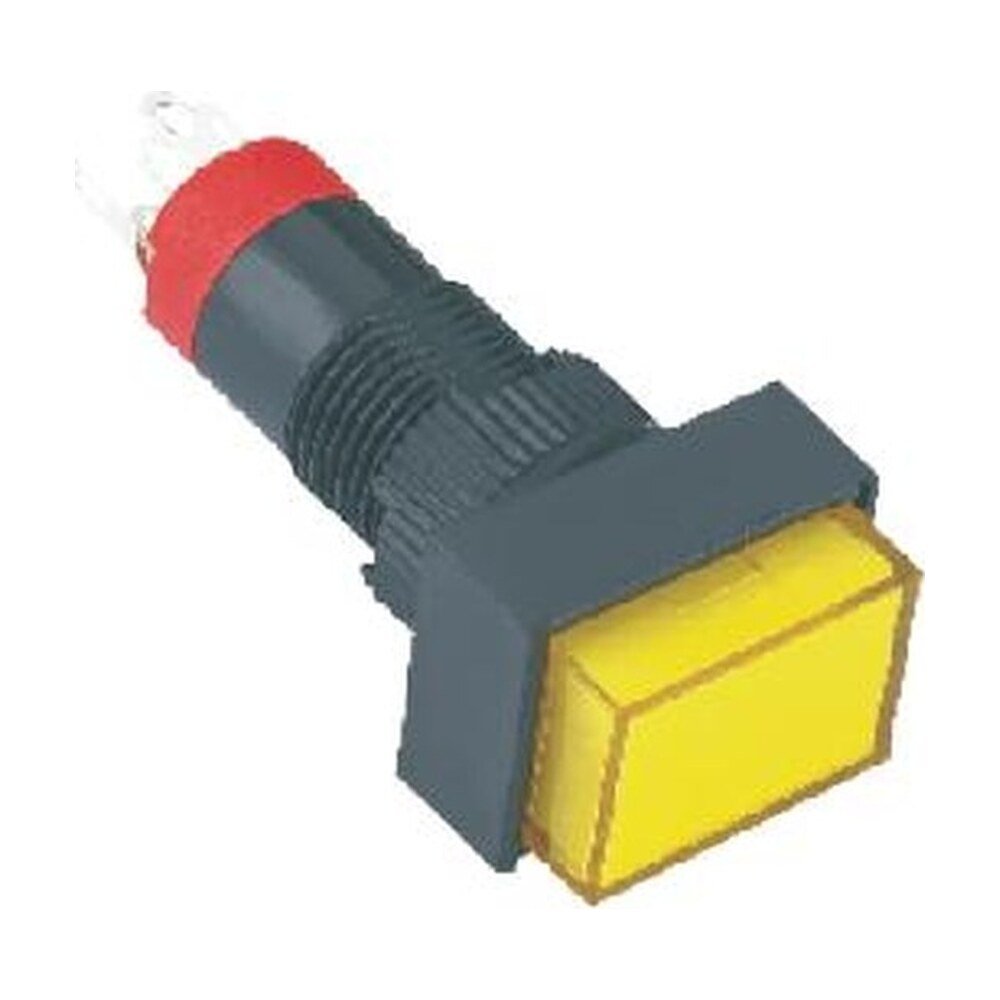

MR-LAS3J-11 - 10 mm Push Button - Rectangular Head, 1NO1NC, Illuminated.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-LAS3J-11 is a compact 10 mm plastic push button with a rectangular cap that can be lit and one fast-break changeover element, momentary or latching.
Ordering. The ordering code is MR-LAS3J-11X-X-X: each X is replaced by the option you need - operation (none = Momentary, Z = Latching); colour (R = Red, G = Green, Y = Yellow, B = Blue, W = White, N = Colour code N); led voltage (6V = 6 V, 12V = 12 V, 24V = 24 V, 220V = 220 V). The part numbers are listed below.
Still being confirmed. The terminal count, what colour code N denotes and whether the button can be ordered unlit are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.
Please call for pricing and availability.
| Part Number (SKU) | MR-LAS3J-11 |
|---|---|
| Also ordered as | LAS3J-11 |
| Category | Push Button Switches, Switches |
| Ordering code | MR-LAS3J-11X-X-X |
| Series | LAS3 (LAS2/3/4 family) |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Solder heat resistance | 320 °C for 3 s |
| Protection class | IP40 |
| Mounting | M10 × 0.75 threaded bush |
| Housing material | Plastic |
| Bezel height | 8 mm max |
| Lamp | AC/DC LED, about 40,000 hours; DC LED and red/green two-colour LED can be customised |
| Contact material | Silver alloy |
| Rated insulation voltage Ui | 250 V |
| Thermal current Ith | 3 A |
| Rated operation current, AC 50/60 Hz | 110 V: 1 A resistive, 0.7 A inductive, 220 V: 0.5 A resistive, 0.5 A inductive |
| Rated operation current, DC | 12 V: 1 A resistive, 0.7 A inductive, 24 V: 1 A resistive, 0.7 A inductive, 110 V: 0.2 A resistive, 0.1 A inductive |
| Minimum load | 3 V AC/DC, 5 mA |
| Contact resistance | 50 mΩ max |
| Dielectric strength | 1500 V AC 1 min between contact and LED terminals and between terminals of the same pole, 2000 V AC 1 min between poles |
| Operation travel | 3 mm approx |
| Mechanical life | Momentary 200,000 operations, Latching 100,000 operations |
| Electrical life | 50,000 cycles min |
| Structure | Fast-break; one 1NO1NC switch element |
| Contact structure | 11 = 1NO1NC |
| Type | Push button, can be illuminated |
| Head shape | Rectangular |
| Panel cut-out | Ø10 mm (min 12 mm and 16 mm spacing) |
| Bezel | Bezel 16 × 12 mm |
| Body length behind panel | 28 mm |
| Operation type | Z = latching, no letter = momentary |
| Lamp note | Push buttons above 60 V need an external resistor |
| Availability | Please call for pricing and availability |
