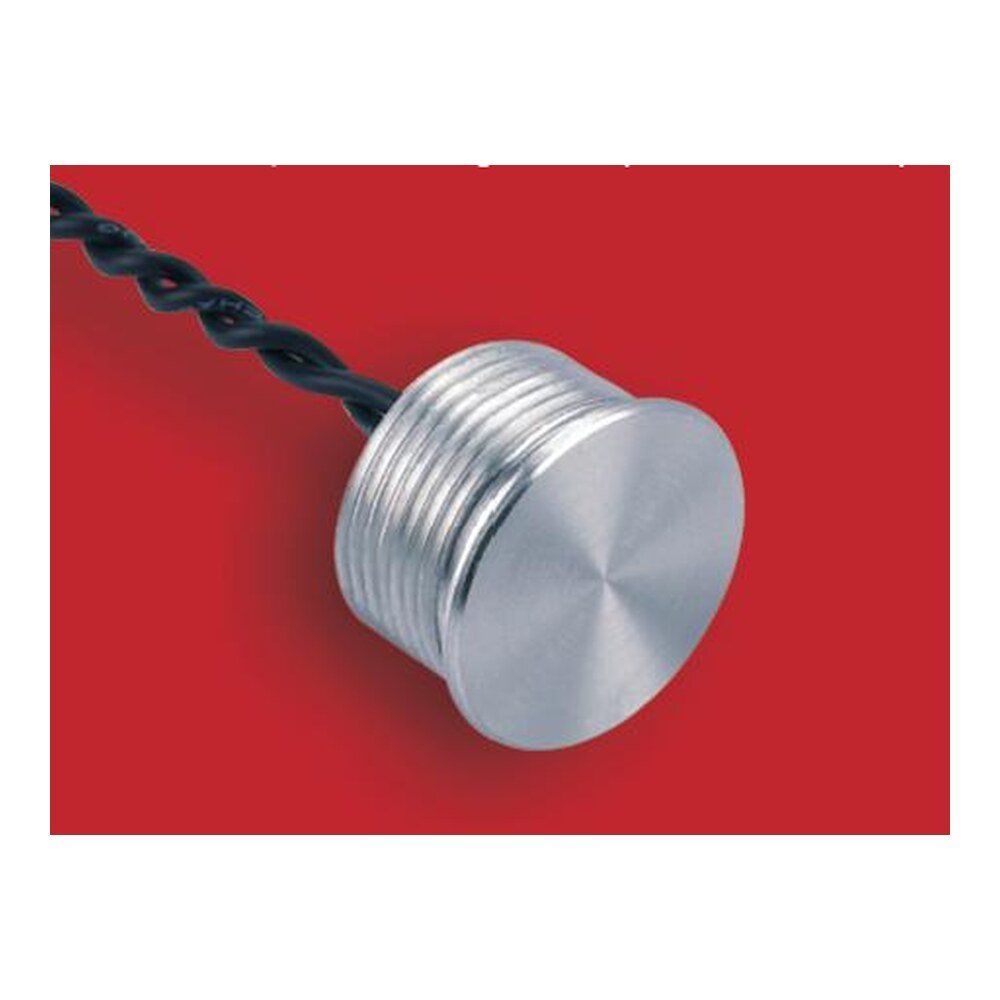

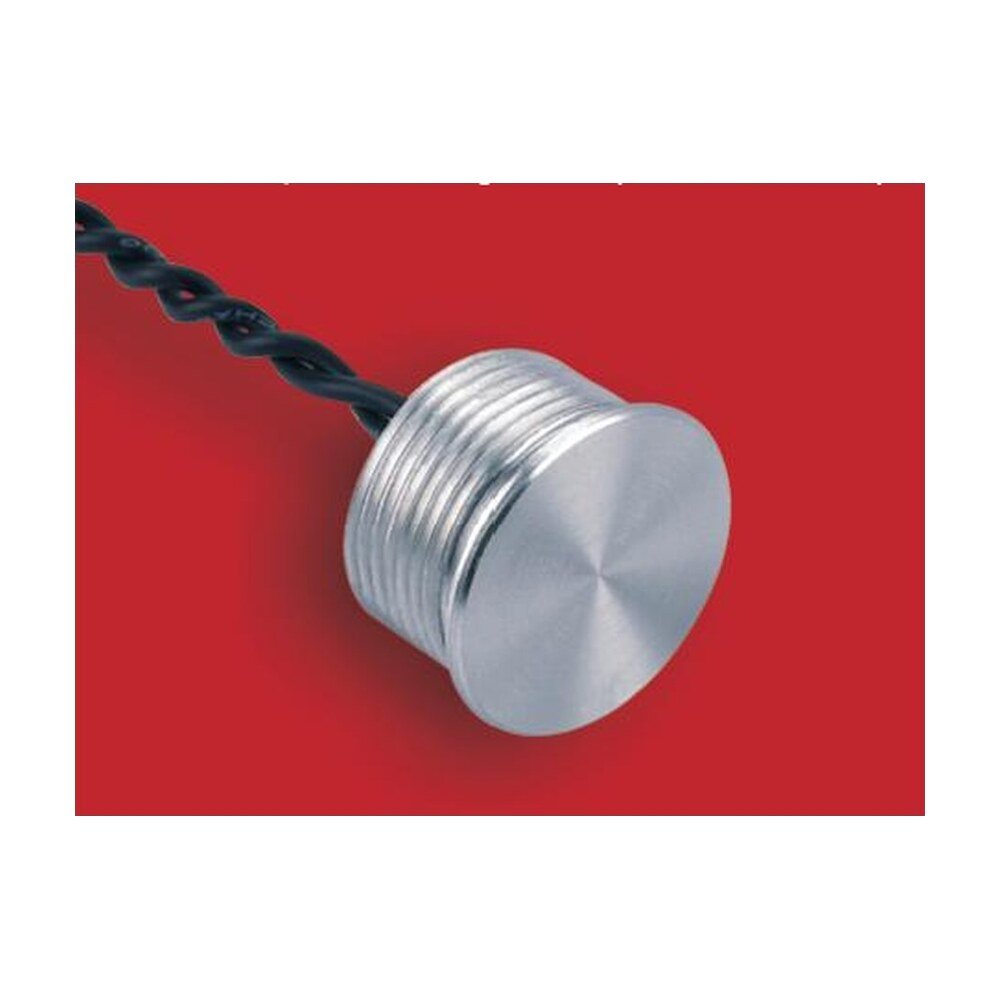

MR-PS161P - 16 mm Piezo Push Button - Flat Operator 1.0 mm, IP68 / IP69K.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-PS161P is a 16 mm piezo push button with a flat operator 1.0 mm high, in anodized aluminium or stainless steel, IP68 / IP69K, rated for 50 million operations.
Ordering. The ordering code is MR-PS161P-X-Y-X-1: each X is replaced by the option you need - function (10 = 1NO pulse, 01 = 1NC pulse); housing (NT = Natural anodized aluminium, BU = Blue anodized aluminium, BK = Black anodized aluminium, GD = Gold anodized aluminium, GN = Green anodized aluminium, RD = Red anodized aluminium, SS = Stainless steel). The part numbers are listed below.
Please call for pricing and availability.
| Part Number (SKU) | MR-PS161P |
|---|---|
| Also ordered as | PS161P |
| Category | Push Button Switches, Switches |
| Ordering code | MR-PS161P-X-Y-X-1 |
| Series | PS piezo push buttons |
| Switch type | Pressure-activated (piezo) switch |
| Switch rating | 200 mA max at 24 V AC/DC |
| Switch resistance ON | 10 Ω max |
| Switch resistance OFF | 5 MΩ min |
| Operating force | 5 N to 10 N |
| Operating life | 50 million cycles |
| LED consumption | Dot 10 mA, ring 20 mA |
| Protection class | IP68 / IP69K |
| Impact rating | IK06 (stainless steel) |
| Vibration resistance | 10 Hz to 500 Hz, 10 g |
| Operating temperature | −40 °C to +75 °C (sudden change not above 20 °C) |
| Terminals | 26 AWG twisted-pair wire leads, 300 mm (other lengths to order) |
| Type | Piezo push button, flat operator 1.0 mm high, not illuminated |
| Housing material | Anodized aluminium or stainless steel |
| Mounting hole | Ø16 mm |
| Thread | M16 × 1 |
| Bezel | Ø18 mm |
| Head length | 1 mm |
| Body length behind panel | 9 mm plus leads |
| Panel thickness | 5 mm max |
| Availability | Please call for pricing and availability |
Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray
Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.
Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.
Contact Micro-Ray Sales
MR-PS161P is the family. Order by the part number for the option you need.
| Part Number | Description |
|---|---|
| MR-PS161P-10-Y-NT-1 | 1NO pulse function, Natural anodized aluminium housing |
| MR-PS161P-10-Y-BU-1 | 1NO pulse function, Blue anodized aluminium housing |
| MR-PS161P-10-Y-BK-1 | 1NO pulse function, Black anodized aluminium housing |
| MR-PS161P-10-Y-GD-1 | 1NO pulse function, Gold anodized aluminium housing |
| MR-PS161P-10-Y-GN-1 | 1NO pulse function, Green anodized aluminium housing |
| MR-PS161P-10-Y-RD-1 | 1NO pulse function, Red anodized aluminium housing |
| MR-PS161P-10-Y-SS-1 | 1NO pulse function, Stainless steel housing |
| MR-PS161P-01-Y-NT-1 | 1NC pulse function, Natural anodized aluminium housing |
| MR-PS161P-01-Y-BU-1 | 1NC pulse function, Blue anodized aluminium housing |
| MR-PS161P-01-Y-BK-1 | 1NC pulse function, Black anodized aluminium housing |
| MR-PS161P-01-Y-GD-1 | 1NC pulse function, Gold anodized aluminium housing |
| MR-PS161P-01-Y-GN-1 | 1NC pulse function, Green anodized aluminium housing |
| MR-PS161P-01-Y-RD-1 | 1NC pulse function, Red anodized aluminium housing |
| MR-PS161P-01-Y-SS-1 | 1NC pulse function, Stainless steel housing |
Every part is made to order. Call for pricing and lead-time on 1-732-892-8799, or request a quote against the part number you need.
