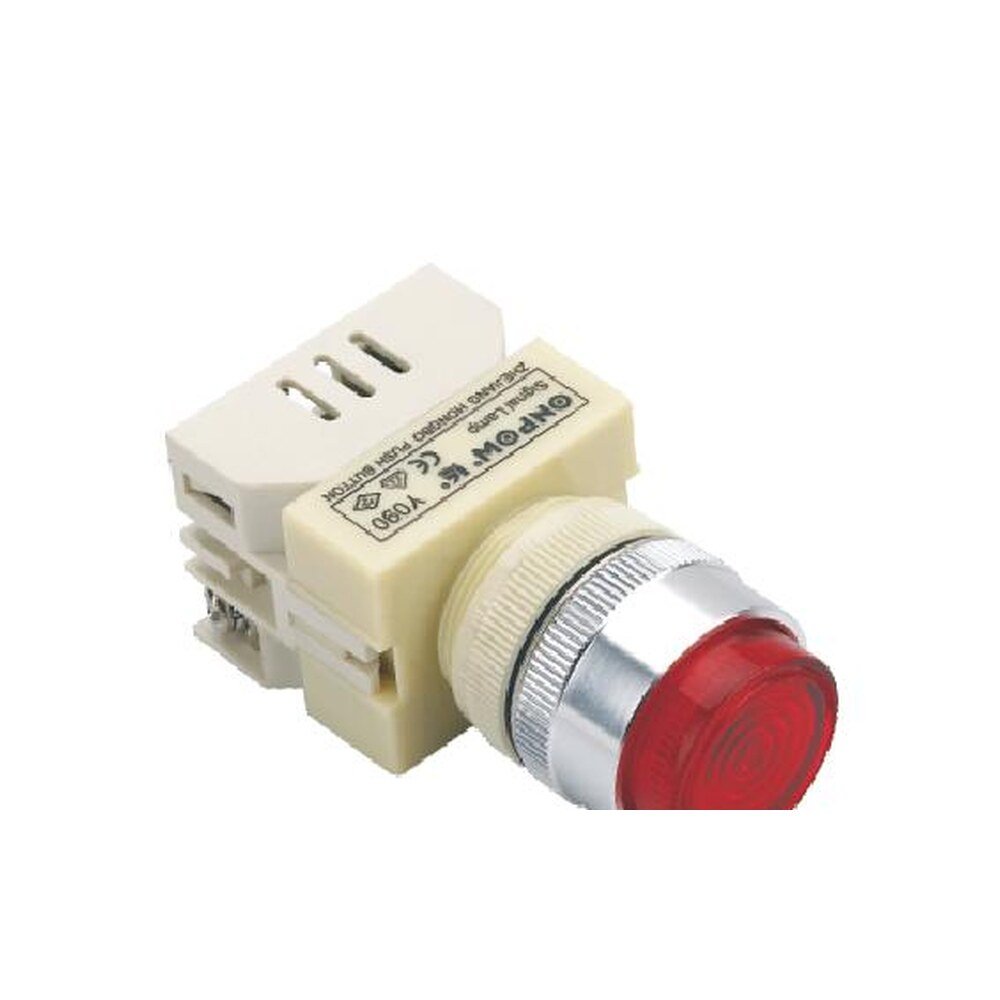

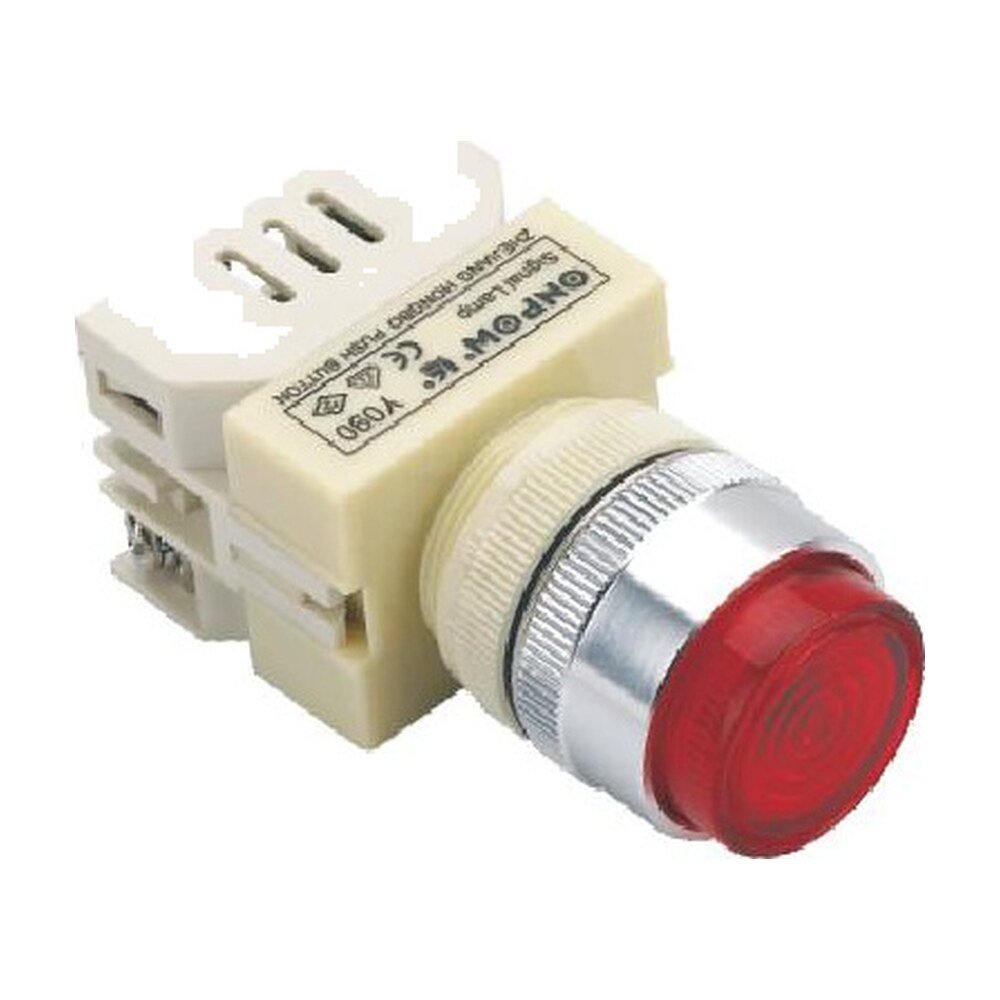

MR-Y090-D - 22 mm Pilot Lamp - LED.
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
The MR-Y090-D is a 22 mm LED pilot lamp with a 30 × 37 mm bezel, IP40.
Ordering. The ordering code is MR-Y090-D-X-X: each X is replaced by the option you need - led colour (R = Red, G = Green, Y = Yellow, B = Blue, W = White); led voltage (6V = 6 V, 12V = 12 V, 24V = 24 V, 110V = 110 V, 220V = 220 V, 380V = 380 V). The part numbers are listed below.
Please call for pricing and availability.
| Part Number (SKU) | MR-Y090-D |
|---|---|
| Also ordered as | Y090-D |
| Category | Indicator Lights, Switches |
| Ordering code | MR-Y090-D-X-X |
| Series | Y090 (22 mm) |
| Rated insulation voltage Ui | 660 V |
| Thermal current Ith | 10 A |
| Insulation resistance | 100 MΩ min at 500 V DC |
| Dielectric strength | 3000 V AC, 50 Hz, 1 min |
| Vibration resistance | 50 Hz, amplitude 1.0 mm |
| Operating temperature | −25 °C to +55 °C, non-freezing |
| Operating humidity | 45 % to 85 % RH, non-condensing |
| Connection | Screw terminals, wire up to 2 × 1.5 mm², Pin terminal 6.3 × 0.8 mm |
| Standards | IEC 60947-5-1, GB/T 14048.5 |
| Lamp type | LED |
| LED current | 20 mA max |
| LED life | 40,000 hours |
| Lamp note | Current-limiting resistor built in; AC/DC types use a resistor step-down, AC types a capacitor step-down (50 to 60 Hz) |
| Panel cut-out | Ø22.5 mm |
| Panel thickness | 0.5 mm to 5 mm |
| Type | Pilot lamp, LED |
| Economy version | Economy type to order (E after the series number, Y090E) |
| Protection class | IP40 |
| Bezel | 30 × 37 mm |
| Head length | 21 mm |
| Body length behind panel | 45.5 mm |
| Accessories | Sign frame T04 |
| Availability | Please call for pricing and availability |
