Part No. MR-Y090E-TS

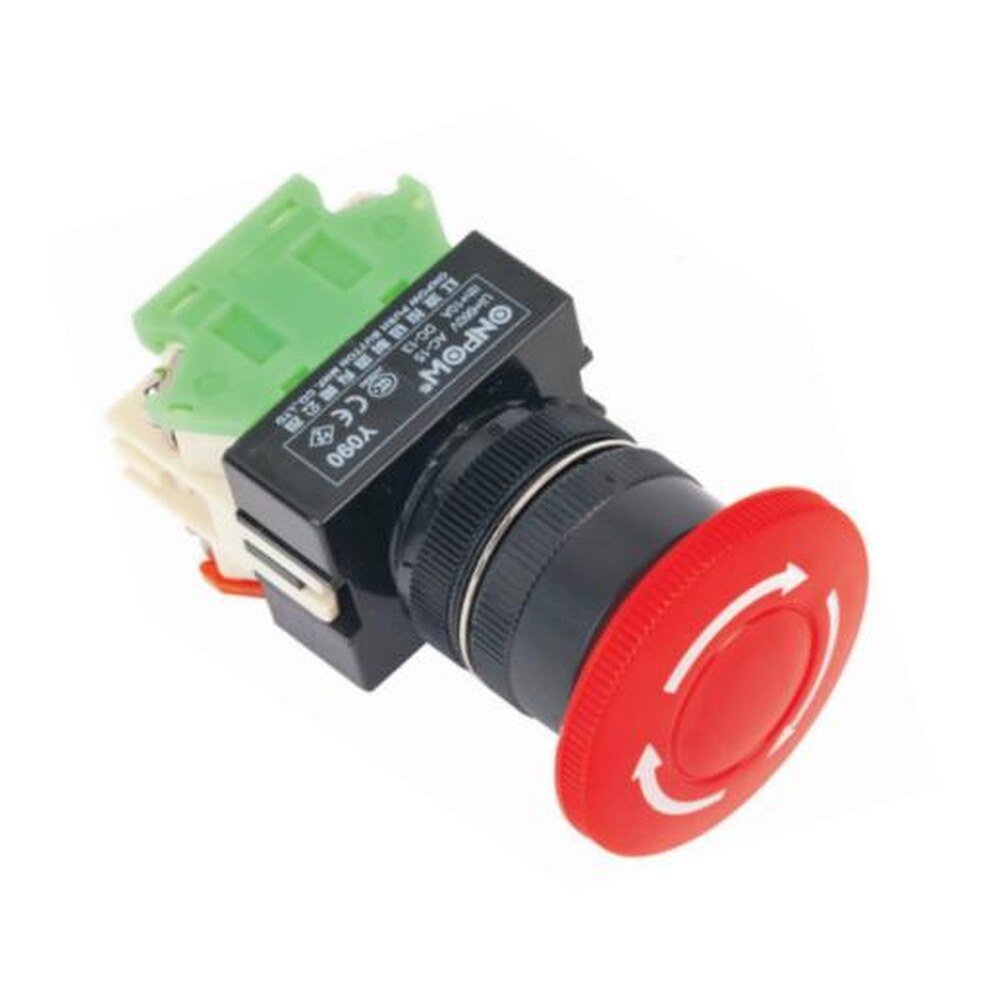

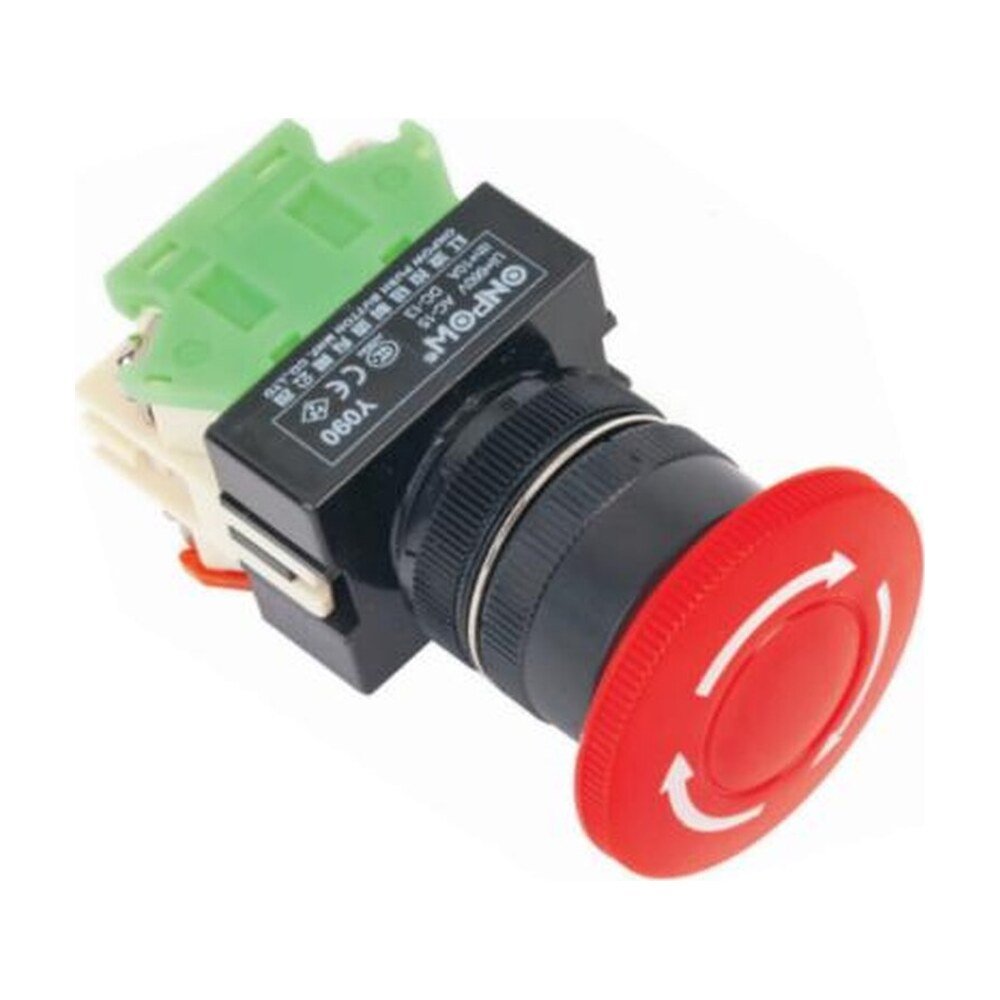

MR-Y090E-TS 22 mm Emergency Stop Switch - Economy Type, Ø40 mm, Can Be Illuminated

Please call for pricing and availability

MR-Y090E-TS - 22 mm Emergency Stop Switch - Economy Type, Ø40 mm, Can Be Illuminated.

MR-Y090E-TS 22 mm Emergency Stop Switch - Economy Type, Ø40 mm, Can Be Illuminated
MR-Y090E-TS 22 mm Emergency Stop Switch - Economy Type, Ø40 mm, Can Be Illuminated
Request a quote
Call for Pricing
Value added

Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.

Request a Quote

Send us the quantity you need and we will come back with pricing and a firm lead time.

Stocked items ship on receipt of order. Made-to-order items ship after production.
Need volume, a custom length, or a cross-reference? Talk to our sales account representative.

The MR-Y090E-TS is a 22 mm economy emergency stop switch with a Ø40 mm head that can be lit, with slow-break switch units rated 10 A thermal current and 660 V insulation voltage. IP40.

Ordering. The ordering code is MR-Y090E-#TS-#-#: each X is replaced by the option you need - contact (11 = 1NO1NC, 10 = 1NO, 01 = 1NC, 20 = 2NO, 02 = 2NC, 22 = 2NO2NC, 40 = 4NO, 04 = 4NC, 31 = 3NO1NC, 13 = 1NO3NC, 30 = 3NO, 03 = 3NC, 21 = 2NO1NC, 12 = 1NO2NC); colour (R = Red, G = Green); led voltage (none = Not illuminated, 6V = 6 V, 12V = 12 V, 24V = 24 V, 110V = 110 V, 220V = 220 V, 380V = 380 V). The part numbers are listed below.

Still being confirmed. The dimensions, the colour options (taken from the Y090 version), the reset method and part numbers for three or more contact groups are being confirmed with the factory and not published here yet. Ask us and we will send it with the quotation.

Please call for pricing and availability.

Part Number (SKU)MR-Y090E-TS
Also ordered asY090E-TS
CategoryEmergency Stop Switches, Switches
Ordering codeMR-Y090E-#TS-#-#
SeriesY090E (22 mm, economy type)
Rated insulation voltage Ui660 V
Thermal current Ith10 A
Rated operation current, AC-1224 V: 10 A, 110 V: 10 A, 220 V: 6 A
Rated operation current, AC-1524 V: 10 A, 110 V: 6 A, 220 V: 3 A, 380 V: 1.8 A, 500 V: 1.4 A
Rated operation current, DC-1224 V: 8 A, 48 V: 4 A, 110 V: 2.2 A, 220 V: 1.1 A
Rated operation current, DC-1324 V: 4 A, 48 V: 2 A, 110 V: 1.1 A, 220 V: 0.6 A
Minimum load3 V AC/DC, 5 mA
Contact materialSilver alloy
Contact resistance50 mΩ max
Insulation resistance100 MΩ min at 500 V DC
Dielectric strength3000 V AC, 50 Hz, 1 min
Vibration resistance50 Hz, amplitude 1.0 mm
Operating temperature−25 °C to +55 °C, non-freezing
Operating humidity45 % to 85 % RH, non-condensing
ConnectionScrew terminals, wire up to 2 × 1.5 mm², Pin terminal 6.3 × 0.8 mm
Contact structureModular slow-break switch units, self-cleaning; 1 to 8 units
StandardsIEC 60947-5-1, GB/T 14048.5
Lamp typeLED
LED current20 mA max
LED life40,000 hours
Lamp noteCurrent-limiting resistor built in; AC/DC types use a resistor step-down, AC types a capacitor step-down (50 to 60 Hz)
Panel cut-outØ22.5 mm
Panel thickness0.5 mm to 5 mm
TypeEmergency stop, can be illuminated
HeadØ40 mm
Mechanical life200,000 operations min
Electrical life50,000 operations min
Protection classIP40
AvailabilityPlease call for pricing and availability

Missing a value you need? Our sales team can supply full specifications and drawings for any part in the catalog. Contact Micro-Ray

Stocked items ship on receipt of order. Made-to-order parts ship once production is complete; your lead time is confirmed on your quote before you commit to an order.

Shipping is calculated at checkout from the weight and dimensions of the parts in your cart. For freight, drop-ship or international orders, contact our sales team and we will quote the best available rate.

Contact Micro-Ray Sales

Related Products

MR-GQ12-AF-10D 12 mm Anti-Vandal Push Button - Flat Round Head, Dot Illuminated, 1NO
MR-GQ12-AF-10D 12 mm Anti-Vandal Push Button - Flat Round Head, Dot Illuminated, 1NO
MR-GQ12-AF-10D

MR-GQ12-AF-10D 12 mm Anti-Vandal Push Button - Flat Round Head, Dot Illuminated, 1NO

Call for Pricing
Details
MR-LAS4GQH-11E 12 mm Illuminated Metal Push Button - 1NO1NC, Ring LED, Stainless Steel
MR-LAS4GQH-11E 12 mm Illuminated Metal Push Button - 1NO1NC, Ring LED, Stainless Steel
MR-LAS4GQH-11E

MR-LAS4GQH-11E 12 mm Illuminated Metal Push Button - 1NO1NC, Ring LED, Stainless Steel

Call for Pricing
Details
MR-GQ12-AF-10DT 12 mm Anti-Vandal Push Button - Flat Round Head, Power Symbol Illuminated, 1NO
MR-GQ12-AF-10DT 12 mm Anti-Vandal Push Button - Flat Round Head, Power Symbol Illuminated, 1NO
MR-GQ12-AF-10DT

MR-GQ12-AF-10DT 12 mm Anti-Vandal Push Button - Flat Round Head, Power Symbol Illuminated, 1NO

Call for Pricing
Details

Part numbers in this family

MR-Y090E-TS is the family. Order by the part number for the option you need.

Part NumberDescription
MR-Y090E-11TS-R1NO1NC contact, Red colour, Not illuminated led voltage
MR-Y090E-11TS-R-6V1NO1NC contact, Red colour, 6 V led voltage
MR-Y090E-11TS-R-12V1NO1NC contact, Red colour, 12 V led voltage
MR-Y090E-11TS-R-24V1NO1NC contact, Red colour, 24 V led voltage
MR-Y090E-11TS-R-110V1NO1NC contact, Red colour, 110 V led voltage
MR-Y090E-11TS-R-220V1NO1NC contact, Red colour, 220 V led voltage
MR-Y090E-11TS-R-380V1NO1NC contact, Red colour, 380 V led voltage
MR-Y090E-11TS-G1NO1NC contact, Green colour, Not illuminated led voltage
MR-Y090E-11TS-G-6V1NO1NC contact, Green colour, 6 V led voltage
MR-Y090E-11TS-G-12V1NO1NC contact, Green colour, 12 V led voltage
MR-Y090E-11TS-G-24V1NO1NC contact, Green colour, 24 V led voltage
MR-Y090E-11TS-G-110V1NO1NC contact, Green colour, 110 V led voltage
MR-Y090E-11TS-G-220V1NO1NC contact, Green colour, 220 V led voltage
MR-Y090E-11TS-G-380V1NO1NC contact, Green colour, 380 V led voltage
MR-Y090E-10TS-R1NO contact, Red colour, Not illuminated led voltage
MR-Y090E-10TS-R-6V1NO contact, Red colour, 6 V led voltage
MR-Y090E-10TS-R-12V1NO contact, Red colour, 12 V led voltage
MR-Y090E-10TS-R-24V1NO contact, Red colour, 24 V led voltage
MR-Y090E-10TS-R-110V1NO contact, Red colour, 110 V led voltage
MR-Y090E-10TS-R-220V1NO contact, Red colour, 220 V led voltage
MR-Y090E-10TS-R-380V1NO contact, Red colour, 380 V led voltage
MR-Y090E-10TS-G1NO contact, Green colour, Not illuminated led voltage
MR-Y090E-10TS-G-6V1NO contact, Green colour, 6 V led voltage
MR-Y090E-10TS-G-12V1NO contact, Green colour, 12 V led voltage
MR-Y090E-10TS-G-24V1NO contact, Green colour, 24 V led voltage
MR-Y090E-10TS-G-110V1NO contact, Green colour, 110 V led voltage
MR-Y090E-10TS-G-220V1NO contact, Green colour, 220 V led voltage
MR-Y090E-10TS-G-380V1NO contact, Green colour, 380 V led voltage
MR-Y090E-01TS-R1NC contact, Red colour, Not illuminated led voltage
MR-Y090E-01TS-R-6V1NC contact, Red colour, 6 V led voltage
MR-Y090E-01TS-R-12V1NC contact, Red colour, 12 V led voltage
MR-Y090E-01TS-R-24V1NC contact, Red colour, 24 V led voltage
MR-Y090E-01TS-R-110V1NC contact, Red colour, 110 V led voltage
MR-Y090E-01TS-R-220V1NC contact, Red colour, 220 V led voltage
MR-Y090E-01TS-R-380V1NC contact, Red colour, 380 V led voltage
MR-Y090E-01TS-G1NC contact, Green colour, Not illuminated led voltage
MR-Y090E-01TS-G-6V1NC contact, Green colour, 6 V led voltage
MR-Y090E-01TS-G-12V1NC contact, Green colour, 12 V led voltage
MR-Y090E-01TS-G-24V1NC contact, Green colour, 24 V led voltage
MR-Y090E-01TS-G-110V1NC contact, Green colour, 110 V led voltage
MR-Y090E-01TS-G-220V1NC contact, Green colour, 220 V led voltage
MR-Y090E-01TS-G-380V1NC contact, Green colour, 380 V led voltage
MR-Y090E-20TS-R2NO contact, Red colour, Not illuminated led voltage
MR-Y090E-20TS-R-6V2NO contact, Red colour, 6 V led voltage
MR-Y090E-20TS-R-12V2NO contact, Red colour, 12 V led voltage
MR-Y090E-20TS-R-24V2NO contact, Red colour, 24 V led voltage
MR-Y090E-20TS-R-110V2NO contact, Red colour, 110 V led voltage
MR-Y090E-20TS-R-220V2NO contact, Red colour, 220 V led voltage
MR-Y090E-20TS-R-380V2NO contact, Red colour, 380 V led voltage
MR-Y090E-20TS-G2NO contact, Green colour, Not illuminated led voltage
MR-Y090E-20TS-G-6V2NO contact, Green colour, 6 V led voltage
MR-Y090E-20TS-G-12V2NO contact, Green colour, 12 V led voltage
MR-Y090E-20TS-G-24V2NO contact, Green colour, 24 V led voltage
MR-Y090E-20TS-G-110V2NO contact, Green colour, 110 V led voltage
MR-Y090E-20TS-G-220V2NO contact, Green colour, 220 V led voltage
MR-Y090E-20TS-G-380V2NO contact, Green colour, 380 V led voltage
MR-Y090E-02TS-R2NC contact, Red colour, Not illuminated led voltage
MR-Y090E-02TS-R-6V2NC contact, Red colour, 6 V led voltage
MR-Y090E-02TS-R-12V2NC contact, Red colour, 12 V led voltage
MR-Y090E-02TS-R-24V2NC contact, Red colour, 24 V led voltage
MR-Y090E-02TS-R-110V2NC contact, Red colour, 110 V led voltage
MR-Y090E-02TS-R-220V2NC contact, Red colour, 220 V led voltage
MR-Y090E-02TS-R-380V2NC contact, Red colour, 380 V led voltage
MR-Y090E-02TS-G2NC contact, Green colour, Not illuminated led voltage
MR-Y090E-02TS-G-6V2NC contact, Green colour, 6 V led voltage
MR-Y090E-02TS-G-12V2NC contact, Green colour, 12 V led voltage
MR-Y090E-02TS-G-24V2NC contact, Green colour, 24 V led voltage
MR-Y090E-02TS-G-110V2NC contact, Green colour, 110 V led voltage
MR-Y090E-02TS-G-220V2NC contact, Green colour, 220 V led voltage
MR-Y090E-02TS-G-380V2NC contact, Green colour, 380 V led voltage
MR-Y090E-22TS-R2NO2NC contact, Red colour, Not illuminated led voltage
MR-Y090E-22TS-R-6V2NO2NC contact, Red colour, 6 V led voltage
MR-Y090E-22TS-R-12V2NO2NC contact, Red colour, 12 V led voltage
MR-Y090E-22TS-R-24V2NO2NC contact, Red colour, 24 V led voltage
MR-Y090E-22TS-R-110V2NO2NC contact, Red colour, 110 V led voltage
MR-Y090E-22TS-R-220V2NO2NC contact, Red colour, 220 V led voltage
MR-Y090E-22TS-R-380V2NO2NC contact, Red colour, 380 V led voltage
MR-Y090E-22TS-G2NO2NC contact, Green colour, Not illuminated led voltage
MR-Y090E-22TS-G-6V2NO2NC contact, Green colour, 6 V led voltage
MR-Y090E-22TS-G-12V2NO2NC contact, Green colour, 12 V led voltage
MR-Y090E-22TS-G-24V2NO2NC contact, Green colour, 24 V led voltage
MR-Y090E-22TS-G-110V2NO2NC contact, Green colour, 110 V led voltage
MR-Y090E-22TS-G-220V2NO2NC contact, Green colour, 220 V led voltage
MR-Y090E-22TS-G-380V2NO2NC contact, Green colour, 380 V led voltage
MR-Y090E-40TS-R4NO contact, Red colour, Not illuminated led voltage
MR-Y090E-40TS-R-6V4NO contact, Red colour, 6 V led voltage
MR-Y090E-40TS-R-12V4NO contact, Red colour, 12 V led voltage
MR-Y090E-40TS-R-24V4NO contact, Red colour, 24 V led voltage
MR-Y090E-40TS-R-110V4NO contact, Red colour, 110 V led voltage
MR-Y090E-40TS-R-220V4NO contact, Red colour, 220 V led voltage
MR-Y090E-40TS-R-380V4NO contact, Red colour, 380 V led voltage
MR-Y090E-40TS-G4NO contact, Green colour, Not illuminated led voltage
MR-Y090E-40TS-G-6V4NO contact, Green colour, 6 V led voltage
MR-Y090E-40TS-G-12V4NO contact, Green colour, 12 V led voltage
MR-Y090E-40TS-G-24V4NO contact, Green colour, 24 V led voltage
MR-Y090E-40TS-G-110V4NO contact, Green colour, 110 V led voltage
MR-Y090E-40TS-G-220V4NO contact, Green colour, 220 V led voltage
MR-Y090E-40TS-G-380V4NO contact, Green colour, 380 V led voltage
MR-Y090E-04TS-R4NC contact, Red colour, Not illuminated led voltage
MR-Y090E-04TS-R-6V4NC contact, Red colour, 6 V led voltage
MR-Y090E-04TS-R-12V4NC contact, Red colour, 12 V led voltage
MR-Y090E-04TS-R-24V4NC contact, Red colour, 24 V led voltage
MR-Y090E-04TS-R-110V4NC contact, Red colour, 110 V led voltage
MR-Y090E-04TS-R-220V4NC contact, Red colour, 220 V led voltage
MR-Y090E-04TS-R-380V4NC contact, Red colour, 380 V led voltage
MR-Y090E-04TS-G4NC contact, Green colour, Not illuminated led voltage
MR-Y090E-04TS-G-6V4NC contact, Green colour, 6 V led voltage
MR-Y090E-04TS-G-12V4NC contact, Green colour, 12 V led voltage
MR-Y090E-04TS-G-24V4NC contact, Green colour, 24 V led voltage
MR-Y090E-04TS-G-110V4NC contact, Green colour, 110 V led voltage
MR-Y090E-04TS-G-220V4NC contact, Green colour, 220 V led voltage
MR-Y090E-04TS-G-380V4NC contact, Green colour, 380 V led voltage
MR-Y090E-31TS-R3NO1NC contact, Red colour, Not illuminated led voltage
MR-Y090E-31TS-R-6V3NO1NC contact, Red colour, 6 V led voltage
MR-Y090E-31TS-R-12V3NO1NC contact, Red colour, 12 V led voltage
MR-Y090E-31TS-R-24V3NO1NC contact, Red colour, 24 V led voltage
MR-Y090E-31TS-R-110V3NO1NC contact, Red colour, 110 V led voltage
MR-Y090E-31TS-R-220V3NO1NC contact, Red colour, 220 V led voltage
MR-Y090E-31TS-R-380V3NO1NC contact, Red colour, 380 V led voltage
MR-Y090E-31TS-G3NO1NC contact, Green colour, Not illuminated led voltage
MR-Y090E-31TS-G-6V3NO1NC contact, Green colour, 6 V led voltage
MR-Y090E-31TS-G-12V3NO1NC contact, Green colour, 12 V led voltage
MR-Y090E-31TS-G-24V3NO1NC contact, Green colour, 24 V led voltage
MR-Y090E-31TS-G-110V3NO1NC contact, Green colour, 110 V led voltage
MR-Y090E-31TS-G-220V3NO1NC contact, Green colour, 220 V led voltage
MR-Y090E-31TS-G-380V3NO1NC contact, Green colour, 380 V led voltage
MR-Y090E-13TS-R1NO3NC contact, Red colour, Not illuminated led voltage
MR-Y090E-13TS-R-6V1NO3NC contact, Red colour, 6 V led voltage
MR-Y090E-13TS-R-12V1NO3NC contact, Red colour, 12 V led voltage
MR-Y090E-13TS-R-24V1NO3NC contact, Red colour, 24 V led voltage
MR-Y090E-13TS-R-110V1NO3NC contact, Red colour, 110 V led voltage
MR-Y090E-13TS-R-220V1NO3NC contact, Red colour, 220 V led voltage
MR-Y090E-13TS-R-380V1NO3NC contact, Red colour, 380 V led voltage
MR-Y090E-13TS-G1NO3NC contact, Green colour, Not illuminated led voltage
MR-Y090E-13TS-G-6V1NO3NC contact, Green colour, 6 V led voltage
MR-Y090E-13TS-G-12V1NO3NC contact, Green colour, 12 V led voltage
MR-Y090E-13TS-G-24V1NO3NC contact, Green colour, 24 V led voltage
MR-Y090E-13TS-G-110V1NO3NC contact, Green colour, 110 V led voltage
MR-Y090E-13TS-G-220V1NO3NC contact, Green colour, 220 V led voltage
MR-Y090E-13TS-G-380V1NO3NC contact, Green colour, 380 V led voltage
MR-Y090E-30TS-R3NO contact, Red colour, Not illuminated led voltage
MR-Y090E-30TS-R-6V3NO contact, Red colour, 6 V led voltage
MR-Y090E-30TS-R-12V3NO contact, Red colour, 12 V led voltage
MR-Y090E-30TS-R-24V3NO contact, Red colour, 24 V led voltage
MR-Y090E-30TS-R-110V3NO contact, Red colour, 110 V led voltage
MR-Y090E-30TS-R-220V3NO contact, Red colour, 220 V led voltage
MR-Y090E-30TS-R-380V3NO contact, Red colour, 380 V led voltage
MR-Y090E-30TS-G3NO contact, Green colour, Not illuminated led voltage
MR-Y090E-30TS-G-6V3NO contact, Green colour, 6 V led voltage
MR-Y090E-30TS-G-12V3NO contact, Green colour, 12 V led voltage
MR-Y090E-30TS-G-24V3NO contact, Green colour, 24 V led voltage
MR-Y090E-30TS-G-110V3NO contact, Green colour, 110 V led voltage
MR-Y090E-30TS-G-220V3NO contact, Green colour, 220 V led voltage
MR-Y090E-30TS-G-380V3NO contact, Green colour, 380 V led voltage
MR-Y090E-03TS-R3NC contact, Red colour, Not illuminated led voltage
MR-Y090E-03TS-R-6V3NC contact, Red colour, 6 V led voltage
MR-Y090E-03TS-R-12V3NC contact, Red colour, 12 V led voltage
MR-Y090E-03TS-R-24V3NC contact, Red colour, 24 V led voltage
MR-Y090E-03TS-R-110V3NC contact, Red colour, 110 V led voltage
MR-Y090E-03TS-R-220V3NC contact, Red colour, 220 V led voltage
MR-Y090E-03TS-R-380V3NC contact, Red colour, 380 V led voltage
MR-Y090E-03TS-G3NC contact, Green colour, Not illuminated led voltage
MR-Y090E-03TS-G-6V3NC contact, Green colour, 6 V led voltage
MR-Y090E-03TS-G-12V3NC contact, Green colour, 12 V led voltage
MR-Y090E-03TS-G-24V3NC contact, Green colour, 24 V led voltage
MR-Y090E-03TS-G-110V3NC contact, Green colour, 110 V led voltage
MR-Y090E-03TS-G-220V3NC contact, Green colour, 220 V led voltage
MR-Y090E-03TS-G-380V3NC contact, Green colour, 380 V led voltage
MR-Y090E-21TS-R2NO1NC contact, Red colour, Not illuminated led voltage
MR-Y090E-21TS-R-6V2NO1NC contact, Red colour, 6 V led voltage
MR-Y090E-21TS-R-12V2NO1NC contact, Red colour, 12 V led voltage
MR-Y090E-21TS-R-24V2NO1NC contact, Red colour, 24 V led voltage
MR-Y090E-21TS-R-110V2NO1NC contact, Red colour, 110 V led voltage
MR-Y090E-21TS-R-220V2NO1NC contact, Red colour, 220 V led voltage
MR-Y090E-21TS-R-380V2NO1NC contact, Red colour, 380 V led voltage
MR-Y090E-21TS-G2NO1NC contact, Green colour, Not illuminated led voltage
MR-Y090E-21TS-G-6V2NO1NC contact, Green colour, 6 V led voltage
MR-Y090E-21TS-G-12V2NO1NC contact, Green colour, 12 V led voltage
MR-Y090E-21TS-G-24V2NO1NC contact, Green colour, 24 V led voltage
MR-Y090E-21TS-G-110V2NO1NC contact, Green colour, 110 V led voltage
MR-Y090E-21TS-G-220V2NO1NC contact, Green colour, 220 V led voltage
MR-Y090E-21TS-G-380V2NO1NC contact, Green colour, 380 V led voltage
MR-Y090E-12TS-R1NO2NC contact, Red colour, Not illuminated led voltage
MR-Y090E-12TS-R-6V1NO2NC contact, Red colour, 6 V led voltage
MR-Y090E-12TS-R-12V1NO2NC contact, Red colour, 12 V led voltage
MR-Y090E-12TS-R-24V1NO2NC contact, Red colour, 24 V led voltage
MR-Y090E-12TS-R-110V1NO2NC contact, Red colour, 110 V led voltage
MR-Y090E-12TS-R-220V1NO2NC contact, Red colour, 220 V led voltage
MR-Y090E-12TS-R-380V1NO2NC contact, Red colour, 380 V led voltage
MR-Y090E-12TS-G1NO2NC contact, Green colour, Not illuminated led voltage
MR-Y090E-12TS-G-6V1NO2NC contact, Green colour, 6 V led voltage
MR-Y090E-12TS-G-12V1NO2NC contact, Green colour, 12 V led voltage
MR-Y090E-12TS-G-24V1NO2NC contact, Green colour, 24 V led voltage
MR-Y090E-12TS-G-110V1NO2NC contact, Green colour, 110 V led voltage
MR-Y090E-12TS-G-220V1NO2NC contact, Green colour, 220 V led voltage
MR-Y090E-12TS-G-380V1NO2NC contact, Green colour, 380 V led voltage

Every part is made to order. Call for pricing and lead-time on 1-732-892-8799, or request a quote against the part number you need.

Trademark noticeAll manufacturer names, brand names, trade names, logos, model numbers and part numbers appearing on this site — including but not limited to AMP, TE Connectivity, Molex, JST, Phoenix Contact and Hirose — are the property of their respective owners. Micro-Ray Electronics, Inc. is not affiliated with, authorized by, sponsored by or endorsed by any of these companies, except where Micro-Ray Electronics is expressly identified on this site as an authorized distributor or brand partner. Manufacturer part numbers are used solely to identify the original part for which a Micro-Ray part is offered as an equivalent, and no claim is made to any third-party trademark. Micro-Ray parts are our own products, cross-referenced for form, fit and function; they are not the original manufacturer’s parts and carry no original manufacturer warranty.
Full Terms & Conditions of Sale, including our second-source equivalency, technical-data, warranty and liability statements.

Need a Custom Cable Assembly or a Hard-to-Find Connector?

Send us your part number, drawing, or a description of what you need. A real person on our team will get back to you.

Request a Quote Call (732) 892-8799
Call Us Request a Quote
