Explore Winmate E500RM9, a rugged handheld computer featuring 5-inch display with 1280x720 resolution, IP65, IP67 for field service and warehouse data capture.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate E500RM9, a rugged handheld computer featuring 5-inch display with 1280x720 resolution, IP65, IP67 for field service and warehouse data capture.

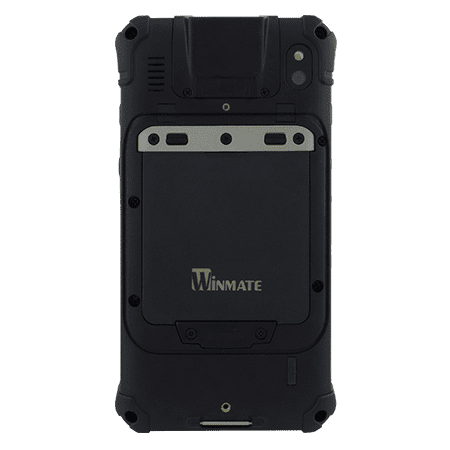

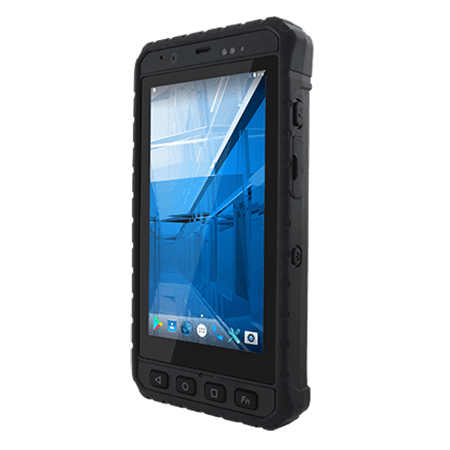

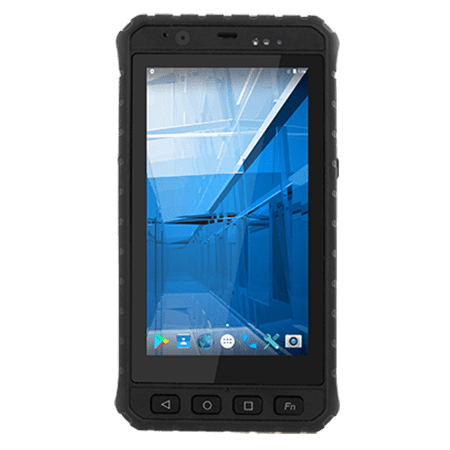

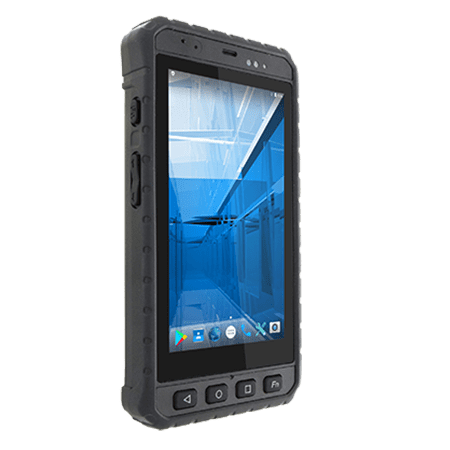

The E500RM9 rugged mobile computer is an ultimate compact pocket-size 5” portable computer for on-the-go communications, monitoring, and data capture.
With built-in 13 MP rear and 8MP front camera, optional 1D/2D barcode reader, and NFC reader for data collection, the E500RM9 with PCAP touch screen suits modern mobile workers and business applications.
Compliant with MIL-STD-810H and sealed to IP65 rating, the E500RM9 rugged mobile computer is built to withstand harsh environments, protected against water and dust, operate in extreme temperatures, and endure shocks and vibrations.
The E500RM9 rugged mobile computer can operate in a wide temperature range, also equipped with an extended battery running time, it offers the flexibility of use in many industrial use cases.
| Display | |
|---|---|
| Size | 5.0 inches |
| Resolution | 1280x720 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 500 nits |
| Contrast Ratio | 800:1 |
| View Angles | 80,80,80,80 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Touch Mode | Support Hand / Gloves and Rain Mode |
| System Specification | |
| Processor | ARM A73 x 4 (2.0 GHz) + A53 x 4 (2.0 GHz) |
| Memory | 4GB |
| Storage | 64GB |
| Smart Card Reader | ISO7816 Part 1.2.3, Smart Card Reader (Optional) |
| Operating System | Android 11.0 |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS/AGPS |
| RFID | NFC (Read / Write) (Optional) |
| Sensors | Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors |
| Fingerprint Scanner | Fingerprint Reader (Optional) |
| Camera | |
| Front Camera | 8MP Camera |
| Rear Camera | 13MP Camera with LED Auxiliary Light (Auto Focus) |
| Mechanical | |
| Dimension | 85.9 x 163.2 x 22.5 mm |
| Weight | 315g |
| IO Ports | |
| USB Port | 1 x Micro USB OTG |
| Audio | 1 x Audio Combo connector (Mic in or Line Out), 2 x Built-in Mic, 1 x Speaker, 1 x Receiver |
| SD Card Slot | 1 x Micro SD Card Slot |
| SIM Card Slot | 2 x SIM Card Slot |
| Indicator | 1 x LED Indicators, (Power, Battery) |
| Docking Connector | 1 x Docking Connector |
| Environment | |
| Operating Humidity | 10% to 95% RH, NonCondensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8, 4 ft |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| Control | |
| Button | 1 x Volume +/-, 1 x Power Button, 3 x Function Button, 1 x Home, 1 x Menu, 1 x Esc |
| Power | |
| Battery | 3.7V 3900mAh (Default), Hotswappable Function (Optional) |
| Battery Operating Time | 20Hr |
| Power Rating | 5V |
| Adapter | 5V 2A Adapter |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Accessory | |
| Accessory | Power Plug (Based on Customer's Country), Hand Strap, Battery |
| Optional Accessory | Micro SD Card, Charging Dock 2 bay, Charging Dock 6 bay, Battery Charging Dock 2 bay, Battery Charging Dock 6 bay, Micro USB Cable |
| Barcode Scanner | |
| Barcode Scanner | 1D/2D Barcode Reader (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | E500RM9 |
| Series | E500 Handheld Computer |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
