Explore Winmate EACIL21, an industrial computer solution featuring Intel® Celeron® N3350, 100x115 resolution for industrial automation and embedded systems.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate EACIL21, an industrial computer solution featuring Intel® Celeron® N3350, 100x115 resolution for industrial automation and embedded systems.

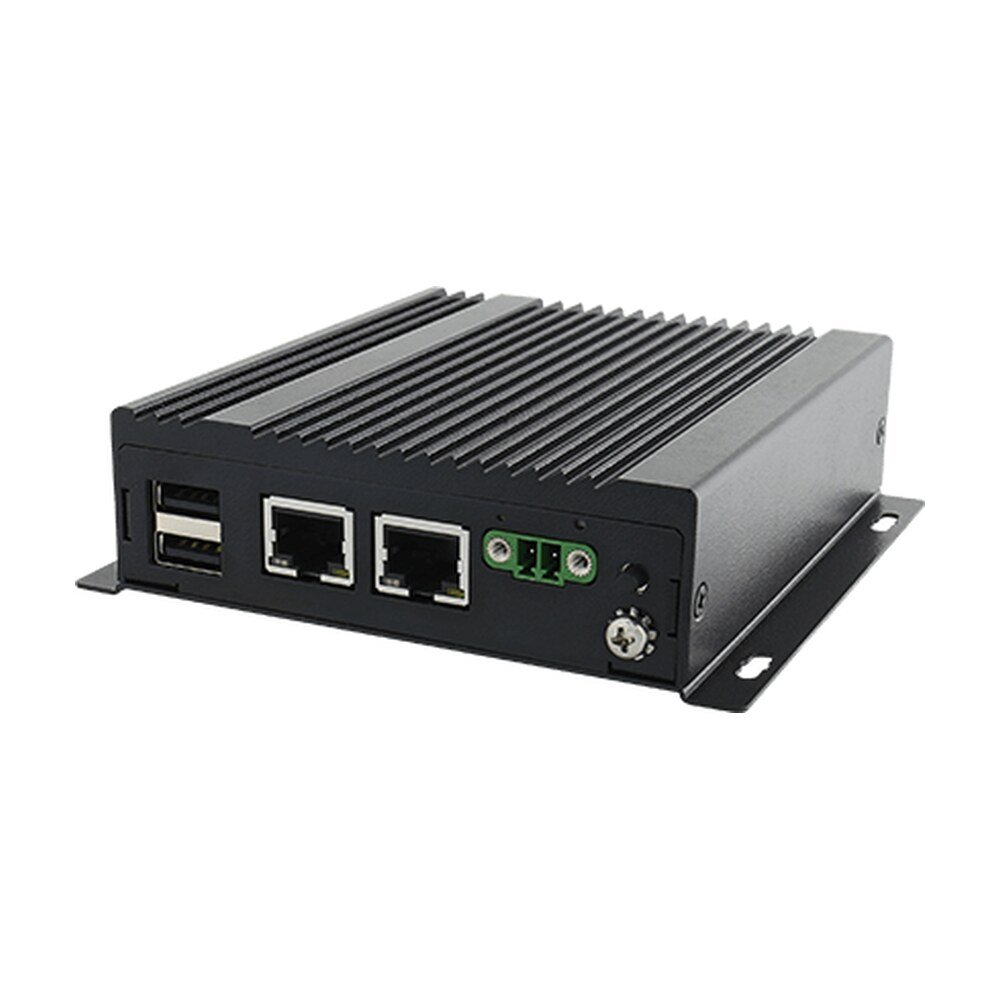

The EAC series gateway's hardware has a compact design of 100 x 115 x 31 mm(w/o mounting bracket) and is based on rugged, reliable, and long-lasting industrial technology.
EAC series is a plug & play IoT gateway to simplify your deployment with multi-connectivity, optimized thermal solution, and easy mounting with Stand, VESA, Wall, Din-Rail, which is ideal for smart city, smart retail, smart energy, and industry 4.0.
The device is suitable for USB Type-C Port featuring Alt Mode: DP A/V output, USB Data, Power Delivery. The EAC Mimi is typically used for preventive machine maintenance and linking production to the ERP (Enterprise Resource Planning) level to minimize expensive production downtimes. Relevant indicators can be evaluated, and impending signs of wear detected at an early stage. These are how the new IoT Gateway contributes to making production more versatile, reliable, and efficient.
As Microsoft's strategic industrial partner, Winmate seamlessly integrates Microsoft’s direct support to provide our partners headache-free services. Our industrial partners will get know-your-need software and cloud solutions from Winmate to meet all expectations. Winmate EAC mini is the perfect platform for HMI and dashboard applications on the go. It keeps you updated with status information and vital data from your machines presented in clear, interactive graphics. Mobile and agile, it gives you vital data on production trends, alarms, and upcoming maintenance so you can take decisions and corrective measures from anywhere within your facility.
| System Specification | |
|---|---|
| Processor | Intel Celeron N3350 1.1GHz (up to 2.4GHz) (Default), Intel Pentium N4200 1.1GHz (up to 2.5GHz) (Optional) |
| Memory | 4GB LPDDR3 |
| Storage | eMMC: Onboard 64 GB (Default), mSATA SSD 128GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 100 x 115 x 31 mm |
| Weight | 0.8 kg |
| Mounting | Desk Mounting and Wall Mounting (Default), VESA Mounting (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
| Environment | |
| Operating Humidity | 30% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -15°C to 70°C |
| Shock | Operating, IEC 60068-2-27 |
| Vibration | Operating, IEC 60068-2-64 |
| IP rating | IP30 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |

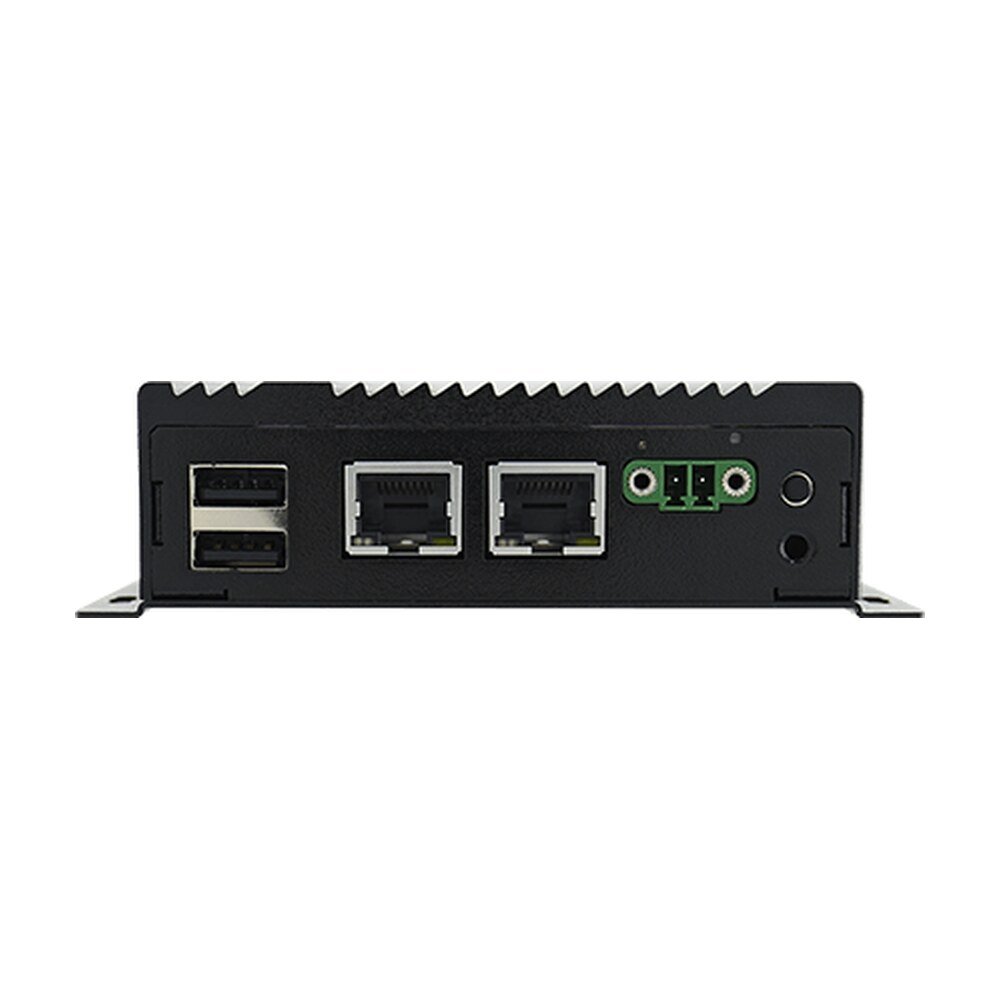

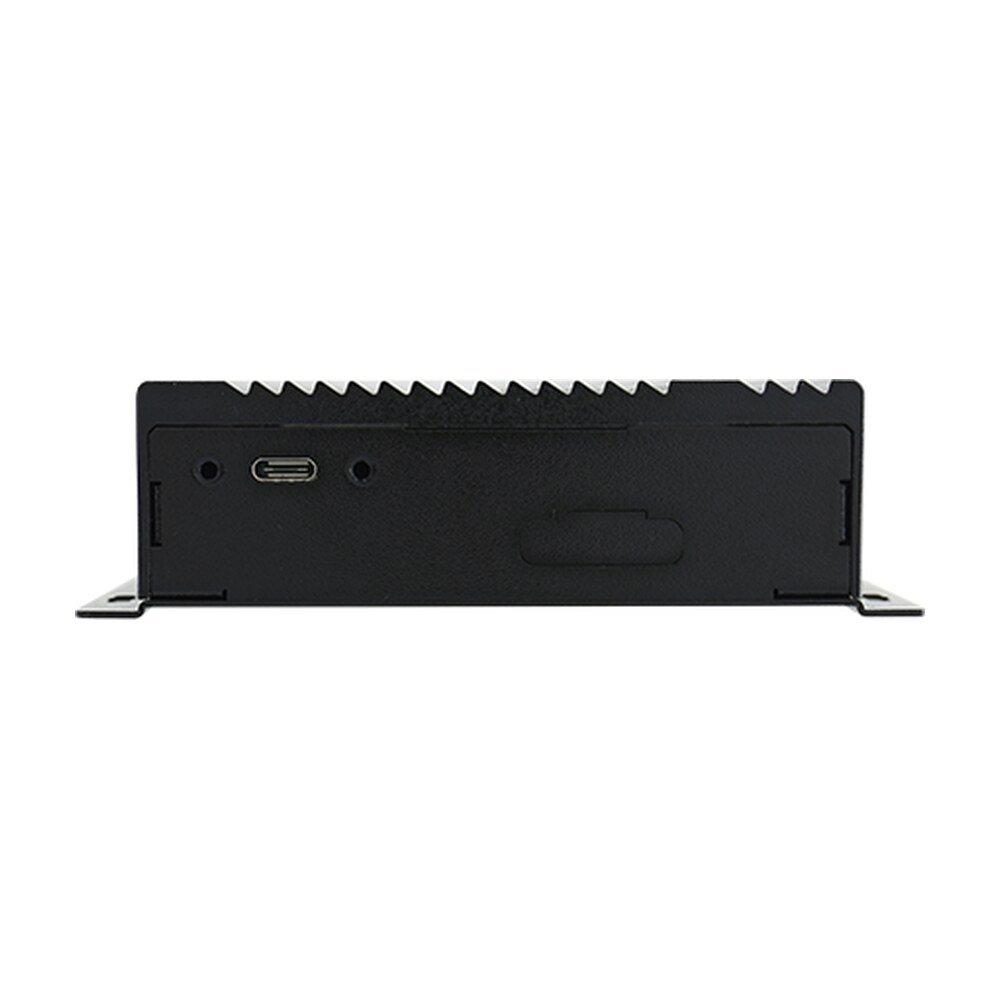

| USB Port | 2 x USB2.0 (Type-A), 1 x USB Type-C[Alt Mode]：, -Display Port A/V output(Support max resolution 3840 x 2160@60Hz), -USB data, -Power Delivery up to 15W(5V/3A) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Expansion Port | mPCIe: 1 x Full-size mPCIe slot |
| Indicator | 1 x LED Indicator for power |
| mini PCIe | 1 x Mini PCIE |
| Power Input | 1 x 9~36V DC, 2-Pin Terminal Block |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | Quick Start Guide, Terminal Block 2 pin to 2.5Ø Female Adapter Cable, Open Wire Cable with terminal block 2 pin connector, WLAN External Antenna (For EACIL21-101-A464) (Default), VESA Mount Kit (Optional), AC to DC Adapter 12V/36W (Optional), USB Type-C male Cable (Optional), Single-side Lockable USB Type-C Cable (Optional), Dual-side Lockable USB Type-C Cable (Optional) |
| Power | |
| Power Rating | 9V~36V DC, 2-Pin Terminal Block |
| Adapter | 12V 36W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | EACIL21 |
| Series | EAC Mini |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | EACIL21 |
|---|---|
| Category | Embedded Computing, IoT Gateway / Radio Gateway, Winmate |
| Processor | Intel Celeron N3350 1.1GHz (up to 2.4GHz) (Default), Intel Pentium N4200 1.1GHz (up to 2.5GHz) (Optional) |
| Memory | 4GB LPDDR3 |
| Storage | eMMC: Onboard 64 GB (Default), mSATA SSD 128GB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional), Linux Ubuntu 20.04 (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Dimension | 100 x 115 x 31 mm |
| Weight | 0.8 kg |
| Mounting | Desk Mounting and Wall Mounting (Default), VESA Mounting (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
| Operating Humidity | 30% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -15°C to 70°C |
| Shock | Operating, IEC 60068-2-27 |
| Vibration | Operating, IEC 60068-2-64 |
| IP rating | IP30 |
| Certification | CE, FCC |
| USB Port | 2 x USB2.0 (Type-A), 1 x USB Type-C[Alt Mode]: , -Display Port A/V output(Support max resolution 3840 x 2160@60Hz), -USB data, -Power Delivery up to 15W(5V/3A) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Expansion Port | mPCIe: 1 x Full-size mPCIe slot |
| Indicator | 1 x LED Indicator for power |
| mini PCIe | 1 x Mini PCIE |
| Power Input | 1 x 9~36V DC, 2-Pin Terminal Block |
| Button | 1 x Power Button, 1 x Reset Button |
| Power Rating | 9V~36V DC, 2-Pin Terminal Block |
| Adapter | 12V 36W |
| Brand | Winmate |
| Manufacturer part number | EACIL21 |
| Series | EAC Mini |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
