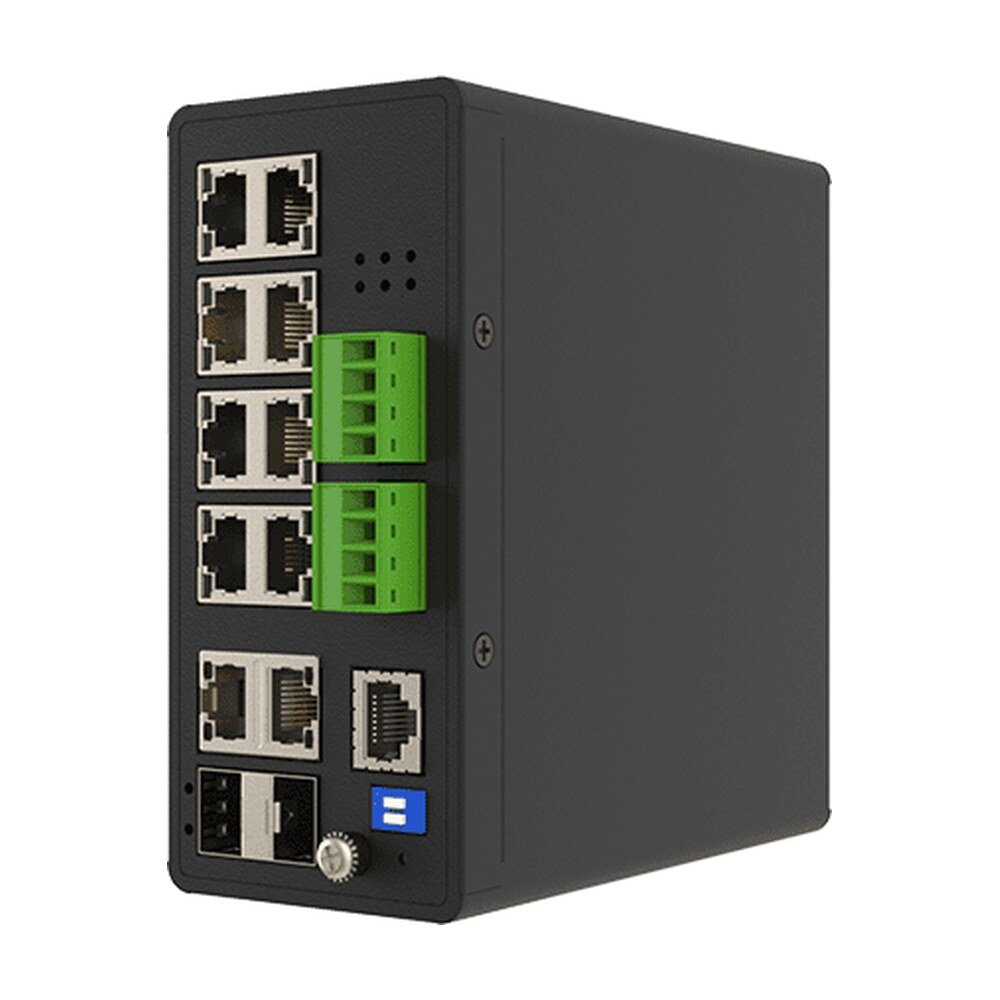

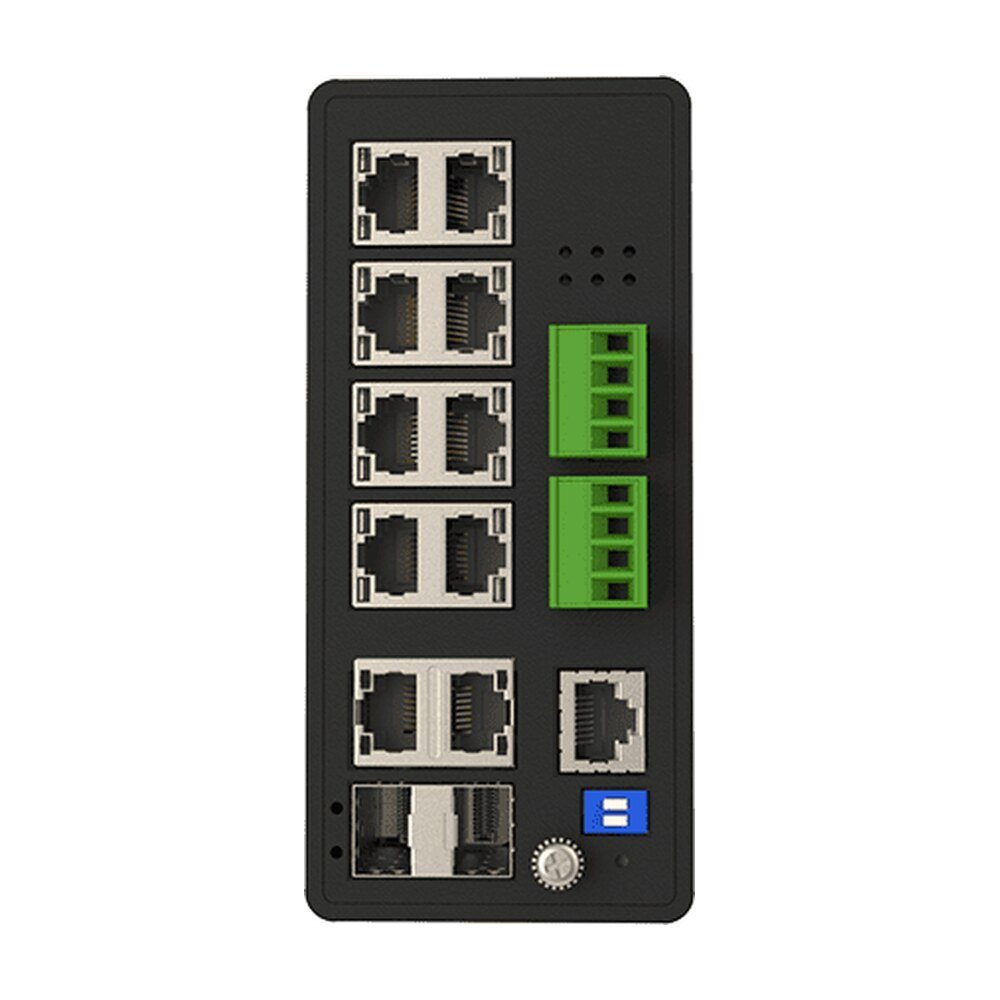

Explore Winmate EACSW-L2, an industrial computer solution featuring DNV, IEC 60945 for marine bridge systems and shipboard automation.
The EACSW-L2 supports IXM for batch configuration across multiple devices, enabling rapid deployment. In addition, integration with Advantech’s NMS software allows centralized monitoring and remote management of distributed switches. These capabilities make it ideal for large-scale marine and industrial networks demanding both efficiency and control.
The EACSW-L2 Marine Switch includes SFP sockets that allow easy and flexible fiber network integration. This capability helps marine operators extend communication range while reducing signal interference. Winmate Marine Switches ensure connectivity across vast and challenging maritime environments.
Equipped with Gigabit X-Ring Pro redundancy and recovery time under 20 ms, the EACSW-L2 enhances network reliability in critical situations. Support for RSTP and STP protocols enables loop prevention and smooth switching. This makes the Winmate Marine Switch a dependable choice for mission-critical marine systems.
The EACSW-L2 supports SNMP, web and Telnet interfaces for comprehensive remote management. It offers 802.1x authentication and RADIUS support for secure access control in marine deployments. As a Winmate Marine Switch, it empowers IT teams to manage and protect infrastructure with confidence.
| Environment | |
|---|---|
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| IP rating | IP30 |
| TEMPEST | igore |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| LAN | 8 x 10/100BASE-T/TX RJ-45, 2 x RJ-45/SFP(mini-GBIC)Combo port |
| Mechanical | |
| Dimension | 74 x 152 x 105 mm |
| Weight | 3.5 kg |
| Mounting | DIN-rail mount/ Wall mount |
| Enclosure | Metal Shell |
| Cooling System | Fanless Design |
| Power | |
| Power Rating | 24 ~ 48 VDC, redundant dual power input |
| Consumption | 12.1W @ 48VDC (System) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | EACSW-L2 |
| Series | Marine Switch |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | EACSW-L2 |
|---|---|
| Category | Marine Grade, Marine Switch, Winmate |
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| IP rating | IP30 |
| TEMPEST | igore |
| Certification | CE, FCC |
| LAN | 8 x 10/100BASE-T/TX RJ-45, 2 x RJ-45/SFP(mini-GBIC)Combo port |
| Dimension | 74 x 152 x 105 mm |
| Weight | 3.5 kg |
| Mounting | DIN-rail mount/ Wall mount |
| Enclosure | Metal Shell |
| Cooling System | Fanless Design |
| Power Rating | 24 ~ 48 VDC, redundant dual power input |
| Consumption | 12.1W @ 48VDC (System) |
| Brand | Winmate |
| Manufacturer part number | EACSW-L2 |
| Series | Marine Switch |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
