Explore Winmate EACSW, an industrial computer solution featuring IP30, DNV for marine bridge systems and shipboard automation.

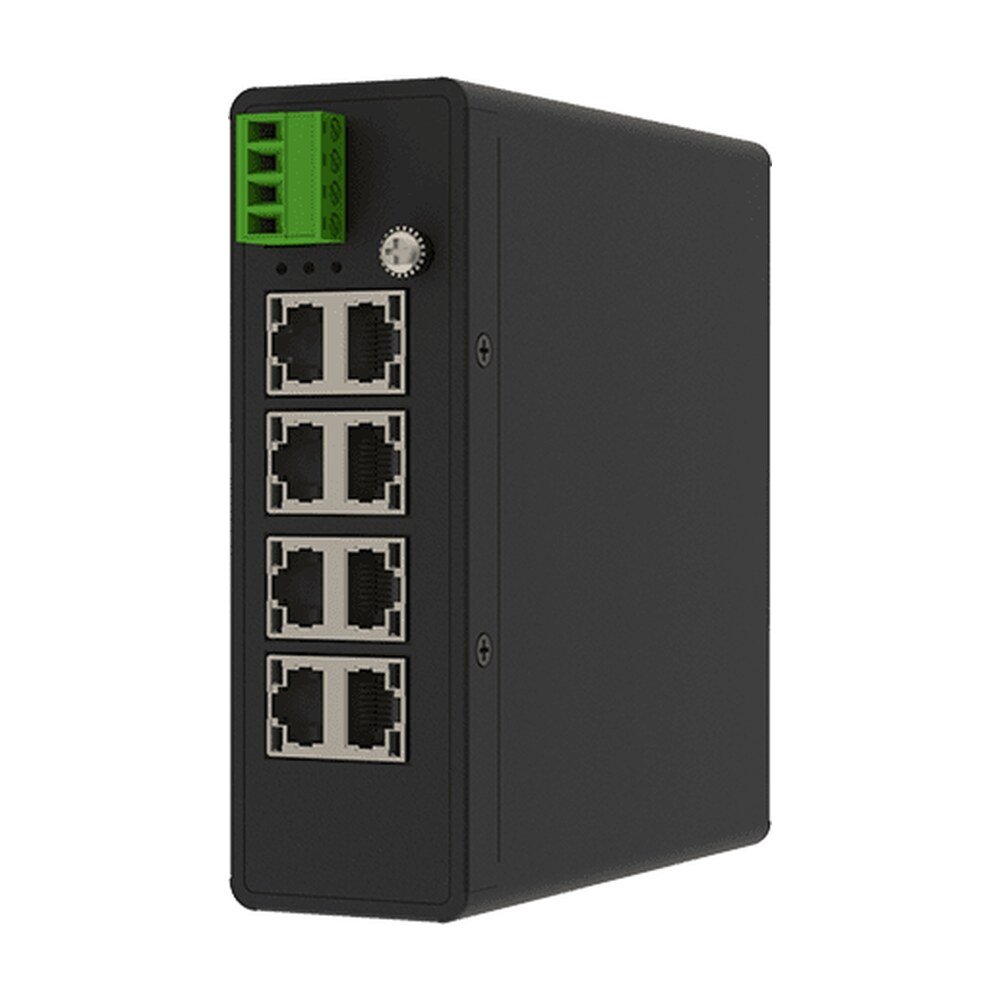

The EACSW Marine Switch offers true Plug and Play functionality, which enables immediate network connectivity without the need for manual configuration. This simplifies installation in marine environments where rapid deployment and minimal technical effort are critical. Once connected, the device automatically detects network settings to ensure smooth and reliable operation.
Equipped with Gigabit X-Ring Pro redundancy and recovery time under 20 ms, the EACSW enhances network reliability in critical situations. Support for RSTP and STP protocols enables loop prevention and smooth switching. This makes the Winmate Marine Switch a dependable choice for mission-critical marine systems.

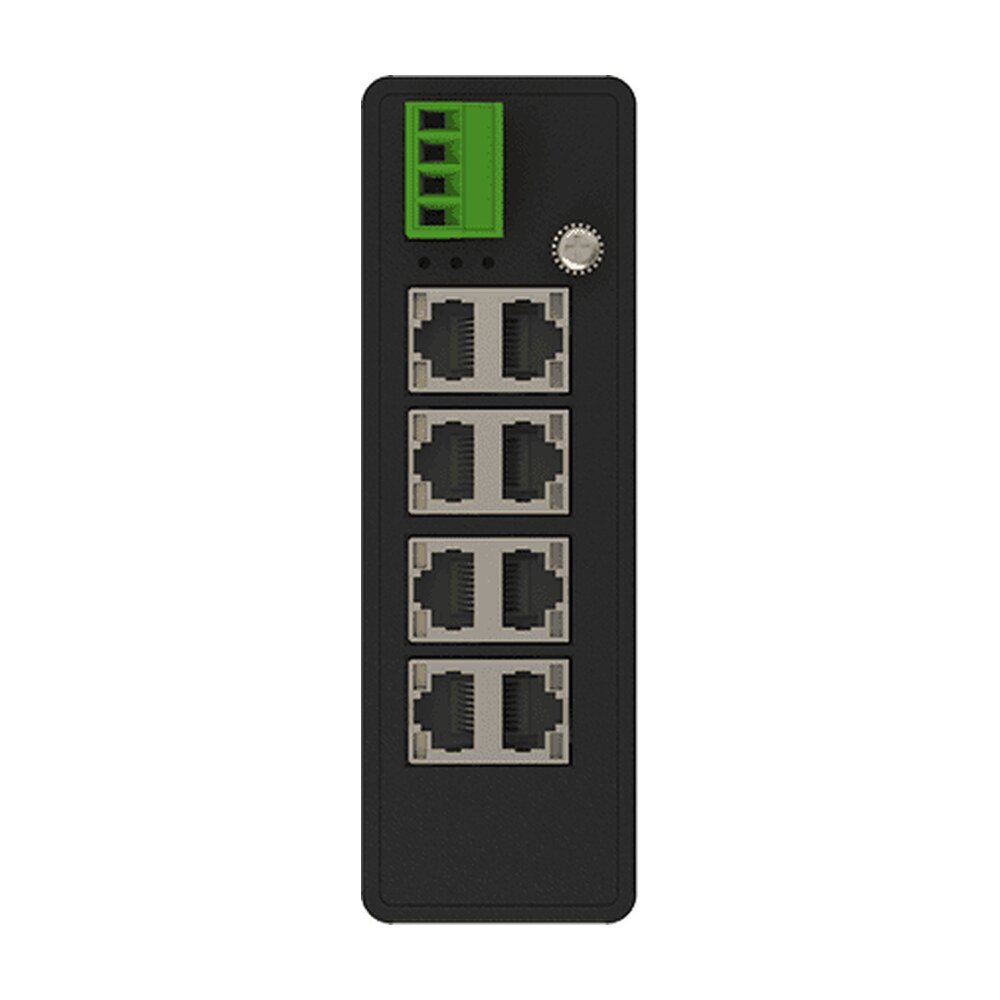

The Winmate EACSW Marine Switch offers eight Fast Ethernet ports with Auto MDI/MDI-X, enabling seamless connection of multiple devices. Its automatic crossover function removes the need for special cables, making setup quick and easy. This design streamlines installation and enhances communication efficiency in industrial networks.
Engineered for space-limited settings, the EACSW features a slim form factor suitable for control cabinets. It supports flexible DIN-rail or wall mounting to accommodate various installation needs. The IP30-rated metal housing provides durable protection against industrial wear and tear.
| Environment | |
|---|---|
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| IP rating | IP30 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| LAN | 8 x 10/100 Mbps RJ-45 Port, (Transmission Distance 100m) |
| Mechanical | |
| Dimension | 30 x 140 x 95 mm |
| Weight | 1.5kg |
| Mounting | DIN-rail mount/ Wall mount |
| Enclosure | Metal Shell |
| Cooling System | Fanless Design |
| Power | |
| Power Rating | 12 ~ 48 VDC, redundant dual power input |
| Consumption | 4.71W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | EACSW |
| Series | Marine Switch |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | EACSW |
|---|---|
| Category | Marine Grade, Marine Switch, Winmate |
| Operating Humidity | 5% to 95% |
| Operating Temperature | -15~55°C |
| IP rating | IP30 |
| Certification | CE, FCC |
| LAN | 8 x 10/100 Mbps RJ-45 Port, (Transmission Distance 100m) |
| Dimension | 30 x 140 x 95 mm |
| Weight | 1.5kg |
| Mounting | DIN-rail mount/ Wall mount |
| Enclosure | Metal Shell |
| Cooling System | Fanless Design |
| Power Rating | 12 ~ 48 VDC, redundant dual power input |
| Consumption | 4.71W |
| Brand | Winmate |
| Manufacturer part number | EACSW |
| Series | Marine Switch |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
