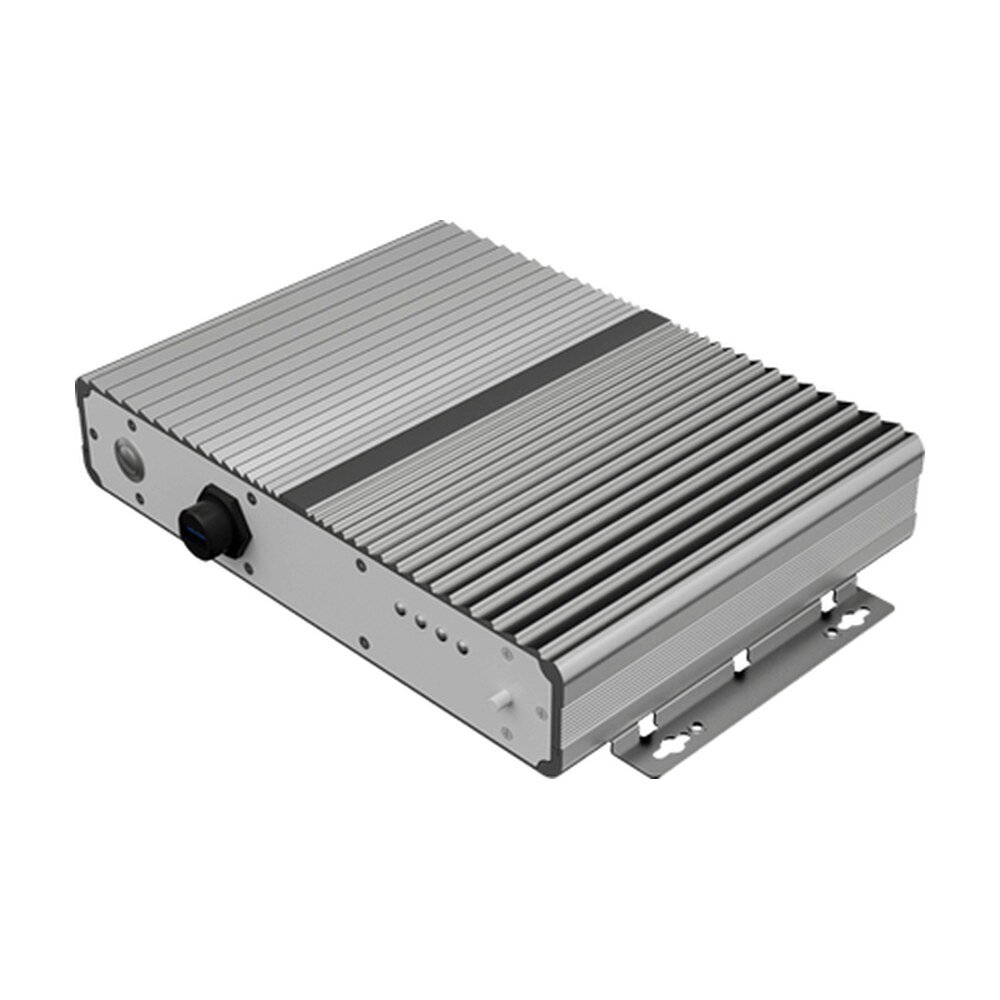

Explore Winmate F65EAC-IT32, an industrial embedded computer featuring Intel® Core™ i5-1135G7, IP65 for industrial automation and embedded systems.
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate F65EAC-IT32, an industrial embedded computer featuring Intel® Core™ i5-1135G7, IP65 for industrial automation and embedded systems.
For industrial applications that require a reliable waterproof computing system, the IP65 system’s I/O ports are equipped with M12 connectors. The advantages of M12 connectors for industrial cabling include easy assembly, compact size, and secure connection even under shock or vibration.
To ensure easy flexible deployment, the built-in Intel® processor is compatible with wide operating temperature (-0 ~ 50 °C) and input voltage (9 ~ 36 V).
Like the other Winmate series products, Box PC with IP65 also features a low-power, fanless design for superior energy efficiency, quiet operation, and an extended product lifecycle.
Built to provide a high-performance Box PC that can be employed in harsh industrial environments. To ensure optimal operation under extreme conditions, the corrosion-resistant stainless steel enclosure is IP65 rated for resistance to water and dust ingress, providing sufficient protection in exposure to chemicals or lousy weather.
| System Specification | |
|---|---|
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 4GB(Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 10 IoT Enterprise (64 bit) (Optional), Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 24.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 260.4 x 193 x 50.1 mm(w/o desk mount bracket), 275.4 x 193 x 56.1 mm(w/i desk mount bracket) |
| Weight | 3.0 kg |
| Mounting | Desk mount |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | Operating, IEC 60068-2-27 |
| Vibration | Operating, IEC 60068-2-64 |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 1 x M12 waterproof connector for 2 x USB2.0, 1 x Waterproof USB Type-A Connector with cover |
| Serial Port | 1 x M12 waterproof connector for RS232/RS422/RS485 (Default RS232) (Default), 2 x M12 waterproof connector for RS232 (Optional) |
| LAN | 2 x M12 type connector for Giga LAN |
| Video | 1x Waterproof connector for HDMI output |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi Module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage, 2 x LED Indicator for LAN |
| DIDO | 1x M12 type connector for Digital 4 in/ 4 out (Optional) |
| Power Input | 1 x M12 waterproof connector for 9~36V DC |
| Control | |
| Button | 1 x Power Button with LED Indicator |
| Accessory | |
| Accessory | External open wire Power cable with waterproof connector, External USB cable with waterproof connector, External HDMI cable with waterproof connector, External COM cable with waterproof connector, External LAN cable with waterproof connector, Waterproof caps, RJ45 female-female converter |
| Optional Accessory | 100~240V AC to DC Adapter with waterproof connector (Optional), Power Cord (Optional) |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | F65EAC-IT32 |
| Series | Waterproof Full IP65 EAC Box PC |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | F65EAC-IT32 |
|---|---|
| Category | Box PC / Waterproof Rugged PC IP65, Embedded Computing, Winmate |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 4GB(Default), 8GB (Optional), 16GB (Optional), 32GB (Optional) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Dimension | 260.4 x 193 x 50.1 mm(w/o desk mount bracket), 275.4 x 193 x 56.1 mm(w/i desk mount bracket) |
| Weight | 3.0 kg |
| Mounting | Desk mount |
| Enclosure | Aluminum Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Shock | Operating, IEC 60068-2-27 |
| Vibration | Operating, IEC 60068-2-64 |
| IP rating | IP65 |
| Certification | CE, FCC |
| USB Port | 1 x M12 waterproof connector for 2 x USB2.0, 1 x Waterproof USB Type-A Connector with cover |
| Serial Port | 1 x M12 waterproof connector for RS232/RS422/RS485 (Default RS232) (Default), 2 x M12 waterproof connector for RS232 (Optional) |
| LAN | 2 x M12 type connector for Giga LAN |
| Video | 1x Waterproof connector for HDMI output |
| Expansion Port | 1 x M.2 2230 E-Key Slot (for Wi-Fi Module) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage, 2 x LED Indicator for LAN |
| DIDO | 1x M12 type connector for Digital 4 in/ 4 out (Optional) |
| Power Input | 1 x M12 waterproof connector for 9~36V DC |
| Button | 1 x Power Button with LED Indicator |
| Optional Accessory | 100~240V AC to DC Adapter with waterproof connector (Optional), Power Cord (Optional) |
| Brand | Winmate |
| Manufacturer part number | F65EAC-IT32 |
| Series | Waterproof Full IP65 EAC Box PC |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
