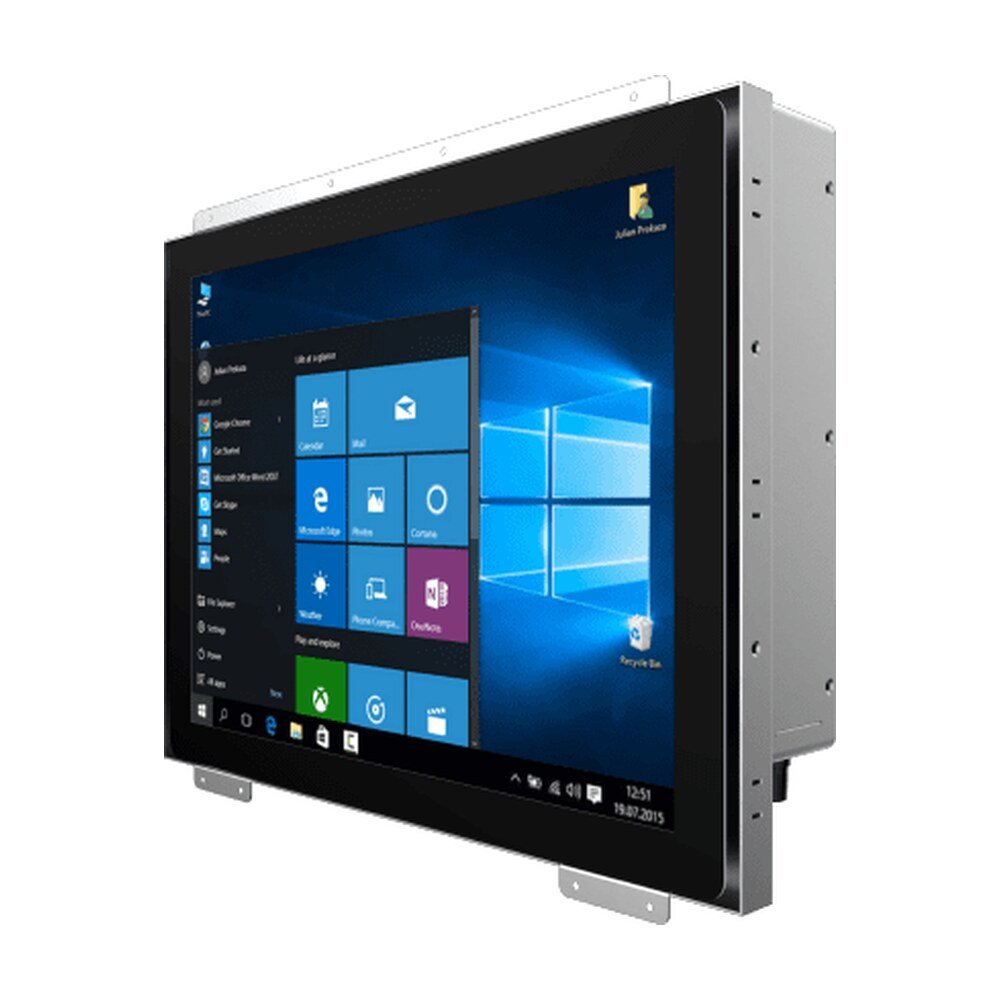

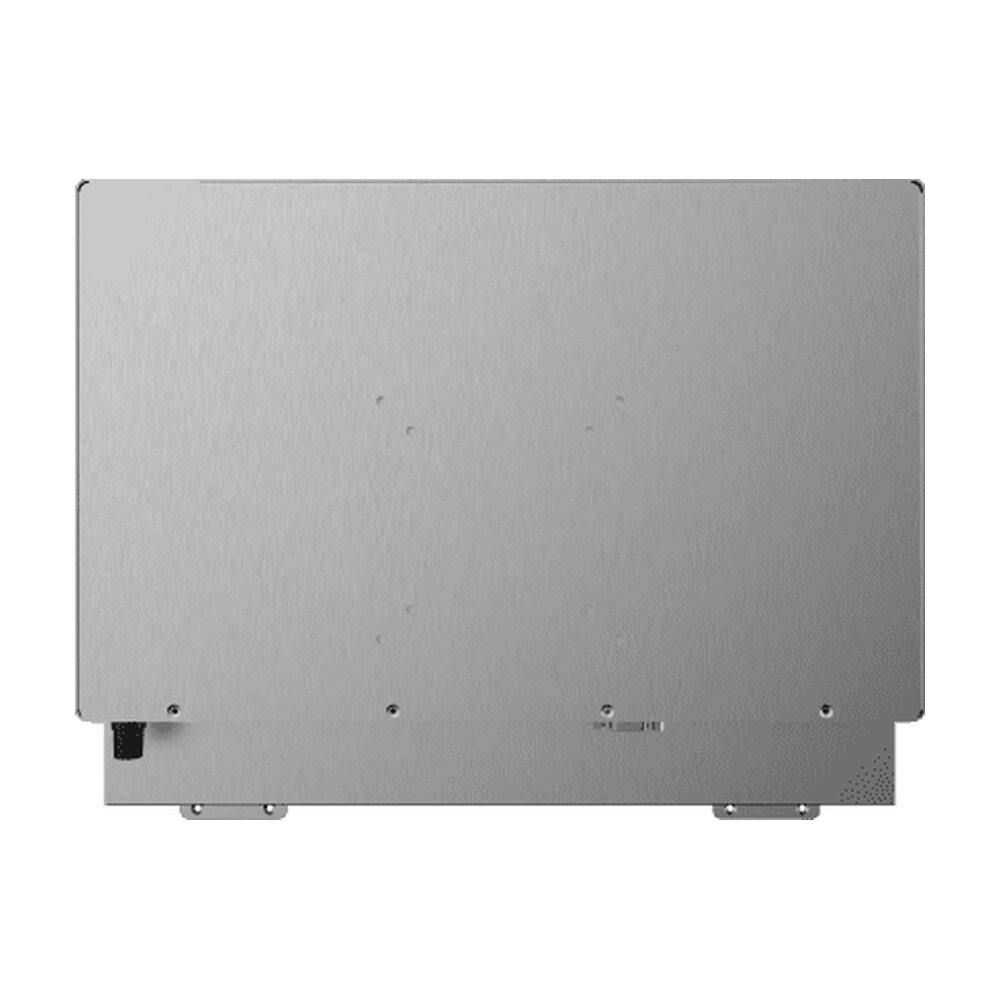

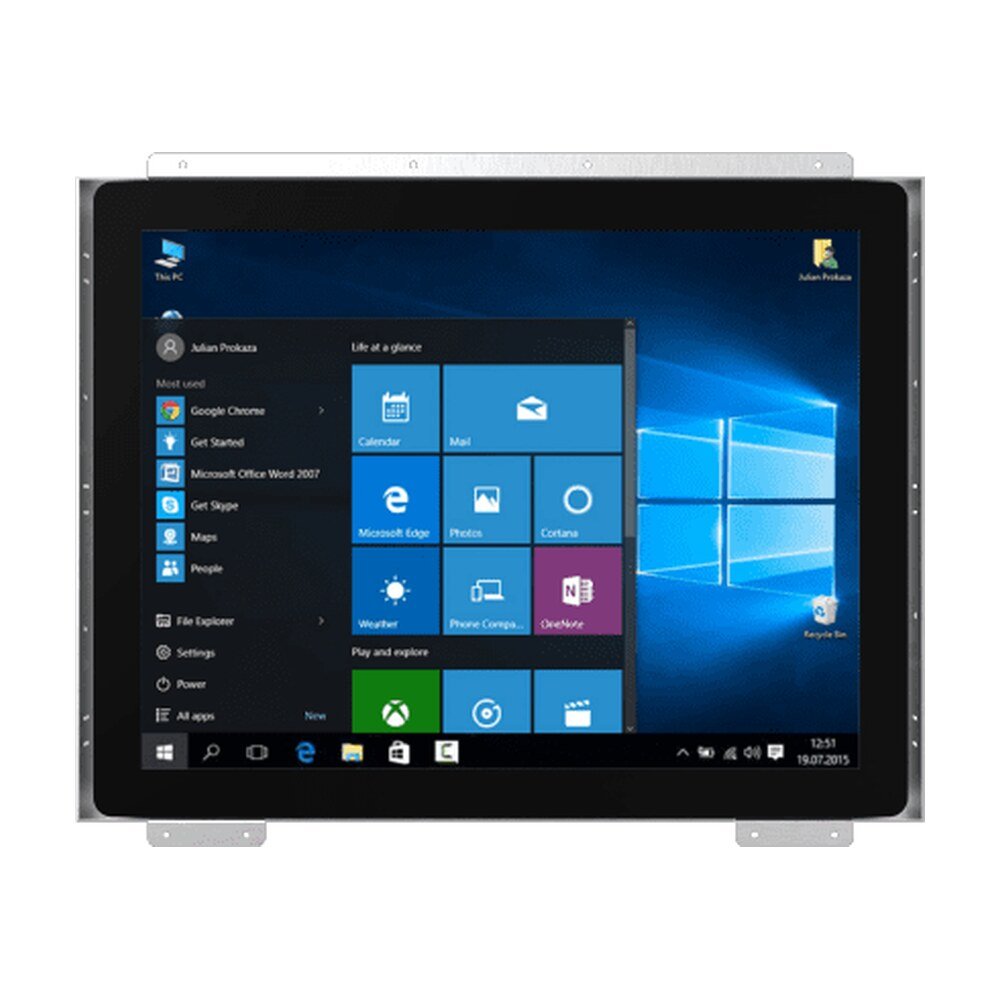

Explore Winmate R15IT7T-POC3, an HMI panel PC featuring Intel® Core™ i5, 15-inch display with 1024x768 resolution, IP65 for machine control and factory…
Lead times vary by quantity and current production. Please confirm your lead time with Micro-Ray sales before ordering. Contact sales
Micro-Ray is a value-added distributor. Most products can be customized to your requirement - modified terminations and lengths, custom cable assemblies, control panels and light PC board assembly. Call (732) 892-8799 and tell us what you need.
Send us the quantity you need and we will come back with pricing and a firm lead time.
Explore Winmate R15IT7T-POC3, an HMI panel PC featuring Intel® Core™ i5, 15-inch display with 1024x768 resolution, IP65 for machine control and factory…
The Open Frame HMI panel PCs provide an exceptional touch experience with a projected capacitive (PCAP) multi-touch screen. This technology enhances every interaction, improving device usability and overall customer experience. Enjoy the convenience and responsiveness with every touch!
The PO Series HMI panel PCs feature a sleek flat bezel and an easy-to-mount open frame housing, making them ideal for various industrial embedded and kiosk applications. Designed for banking, healthcare, retail, transportation, and other vertical markets, these panel PCs combine functionality with a modern aesthetic.
The PO Series HMI panel PCs deliver high performance and a comprehensive I/O interface for innovative industrial IoT solutions, featuring serial ports, USB ports, LAN, video, and audio ports. Their versatile connectivity, outstanding performance, and user-friendly installation design make them ideal for various vertical applications.
| Display | |
|---|---|
| Size | 15.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1024x768 |
| Panel Brightness | 300.0 nits |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 304.1x228.1 mm |
| System Specification | |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 2 x non-ECC SO-DIMM RAM, up to 64GB (32GB per DIMM) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB, 1 x SATA III for 2.5" SSD/HDD (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Mechanical | |
| Dimension | 360 x 294.8 x 63 mm |
| Weight | 4.1 kg |
| Mounting | Open frame (Default), Panel mount (Optional), VESA mount (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Environment | |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | |
| Certification | CE, FCC |
| IO Ports | |
| USB Port | 4 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 1 x Giga LAN RJ45 Connector, 1 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x DP1.4 (Default), 1 x HDMI 2.0 (Optional) |
| Audio | Mic in, Line out |
| Expansion Port | 1 x M.2 2280 M-Key Slot (for NVME SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module), 1 x PCIe 4.0 (x16) slot (x4 signal) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
| Power Input | 1 x 12V DC, Din4 pin connector |
| Control | |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws |
| Power | |
| Power Rating | 12V DC |
| Adapter | 12V 120W |
| Ordering | |
| Brand | Winmate |
| Manufacturer part number | R15IT7T-POC3 |
| Series | PO Series HMI |
| Availability | Please call for pricing and availability |
Micro-Ray Electronics is a Winmate distributor. Winmate offers memory, storage, operating system and wireless options on most models; tell us the configuration you need and we will quote it. Please call (732) 892-8799 or email sales@micro-ray.com for pricing and availability.
Specifications are published by Winmate and are subject to change without notice.
| Part Number (SKU) | R15IT7T-POC3 |
|---|---|
| Category | HMI (P-CAP Touch), Industrial Panel PC and HMI, Winmate |
| Size | 15.0 inches |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
| Resolution | 1024x768 |
| Panel Brightness | 300.0 nits |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 304.1x228.1 mm |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| Memory | 2 x non-ECC SO-DIMM RAM, up to 64GB (32GB per DIMM) |
| Storage | 128GB SSD(Default), 256GB SSD (Optional), 512GB SSD (Optional), 1TB (Optional), 2TB (Optional), 4TB, 1 x SATA III for 2.5" SSD/HDD (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional), Windows 11 Pro 64 bit (Optional), Linux Ubuntu 22.04(Do not support Wake on Touch) (Optional) |
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Dimension | 360 x 294.8 x 63 mm |
| Weight | 4.1 kg |
| Mounting | Open frame (Default), Panel mount (Optional), VESA mount (Optional) |
| Enclosure | Metal Housing |
| Cooling System | Fanless Design |
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
| Certification | CE, FCC |
| USB Port | 4 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232), 1 x RS232 |
| LAN | 1 x Giga LAN RJ45 Connector, 1 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x DP1.4 (Default), 1 x HDMI 2.0 (Optional) |
| Audio | Mic in, Line out |
| Expansion Port | 1 x M.2 2280 M-Key Slot (for NVME SSD), 1 x M.2 2230 E-Key Slot (for Wi-Fi module), 1 x PCIe 4.0 (x16) slot (x4 signal) |
| Indicator | 1 x LED Indicator for power, 1 x LED Indicator for storage |
| Brightness Knob | 1 x Brightness Adjustment Knob |
| Power Input | 1 x 12V DC, Din4 pin connector |
| Button | 1 x Power Button, 1 x Reset Button |
| Accessory | 100~240V AC to DC Adapter, Power Cord, VESA screws |
| Power Rating | 12V DC |
| Adapter | 12V 120W |
| Brand | Winmate |
| Manufacturer part number | R15IT7T-POC3 |
| Series | PO Series HMI |
| Availability | Please call for lead-time |
| Typical Lead Time | Please call for stock check or lead-time |
